Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: JG-8X
Price: 78.20 USD
Availability: InStock

For 8 inch driver

$78.20 MSRP

Model JG-8X

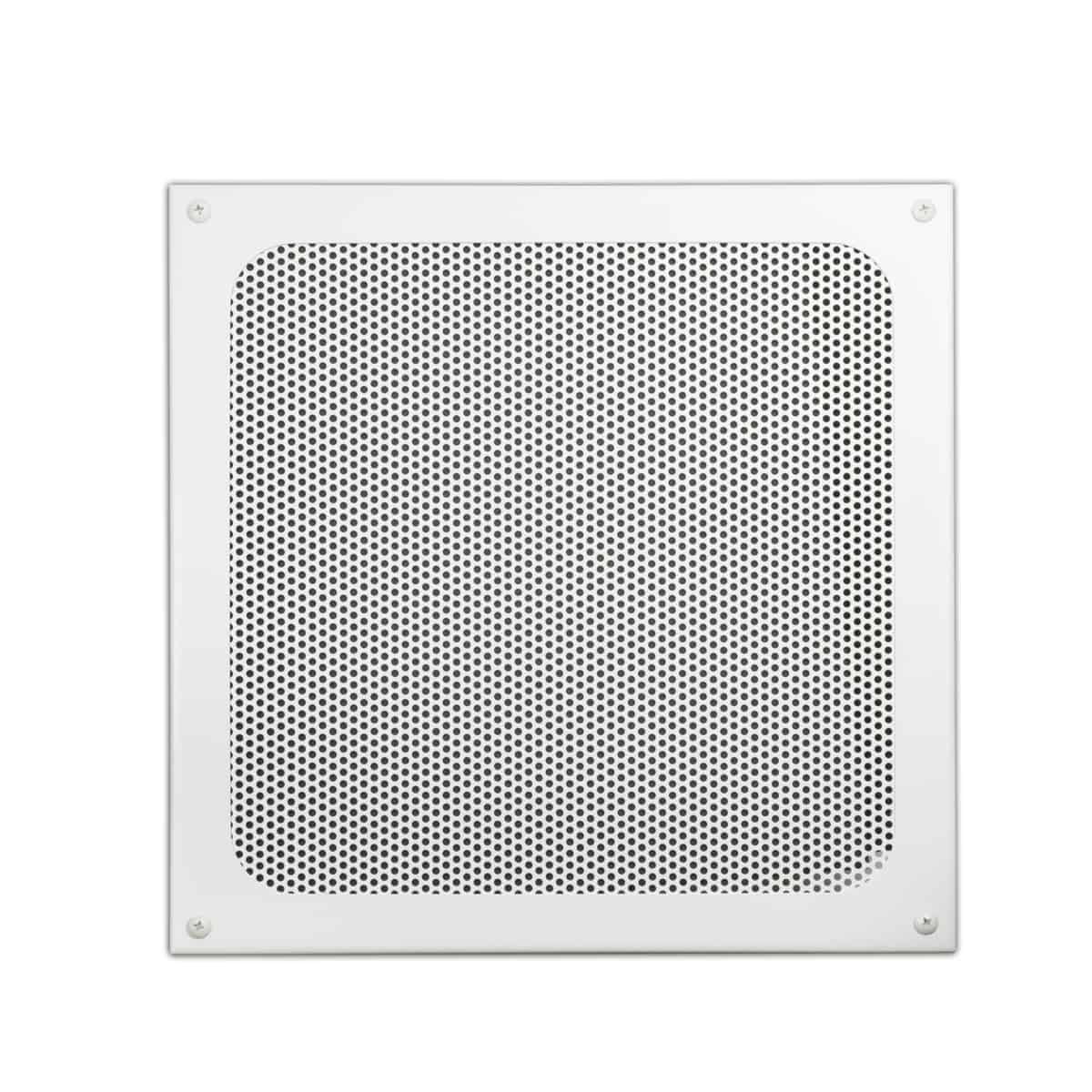

JG-8X square speaker grille for 8 inch driver is steel with beveled edges and separate sub-plate. This speaker grille is suitable for use with a recessed or surface-mount enclosure.

Add to Favorites

Compare

Style: Screw-mount

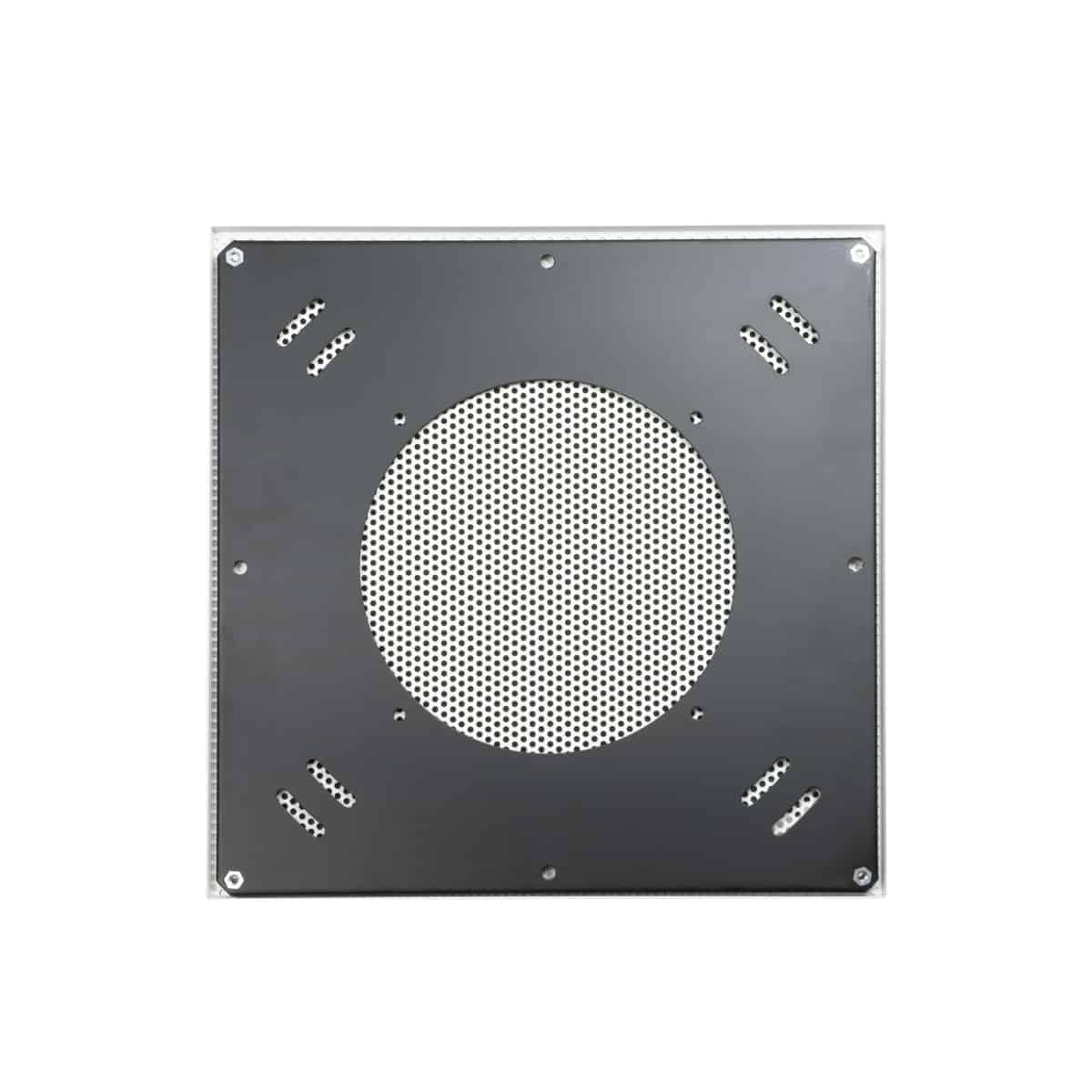

Material: 20-gauge beveled frame with radius corner cutout and welded 22-gauge perforated steel screen, 21-gauge steel subplate
Finish: White grille, black subplate
Size: 12.375 in. square
Mounting Projection: 0.375 in.
Mounting Provisions: 4 screws (white), subplate w/4 screws

Spec Sheet: 1649-JG8X

Made in the U.S.A.
Certified U.S. steel

The JG-8X square speaker grille for the 8 inch driver shall be Lowell Model JG-8X. It shall be 20-gauge steel frame with a beveled edge, radius corner cutout and 22-gauge welded perforated screen center. The grille shall include a 21-gauge steel subplate and mounting hardware. The grille shall be 12.375 in. square with a mounting projection of 0.375 in. The subplate shall include provisions for mounting an 8 in. driver and for mounting the speaker/adapter assembly to specified recessed or surface backbox. The subplate shall be finished in black powder epoxy. The grille shall be finished in white powder epoxy and shall mount to the specified backbox using four 8-32 x .375 in. white screws.

Drivers: 8 inch
Surface-Mount Enclosures: CB84A, CB86A, CB88
Recessed Backboxes: P68X, P68XA, P68X-6, P68XA-6, P875X-6
Tile Bridge: LBS8 (typically without backbox)
