Recessed Enclosure for 8 inch driver (4″D)

Name: Recessed Enclosure for 8 inch driver (4"D)
SKU: P68XA
Price: 34.84 USD
Availability: InStock

For screw-mount grille

$34.84 MSRP

Model P68XA

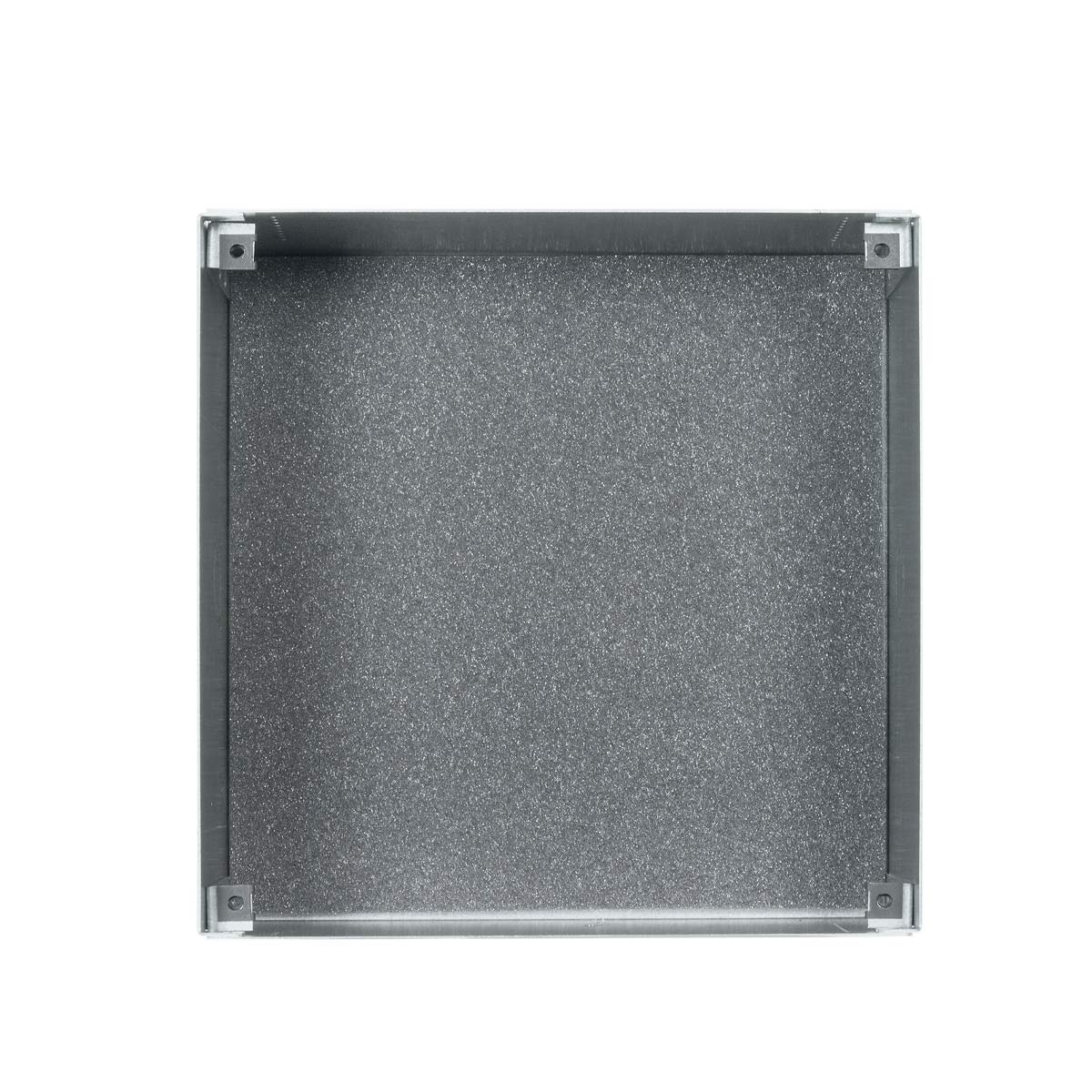

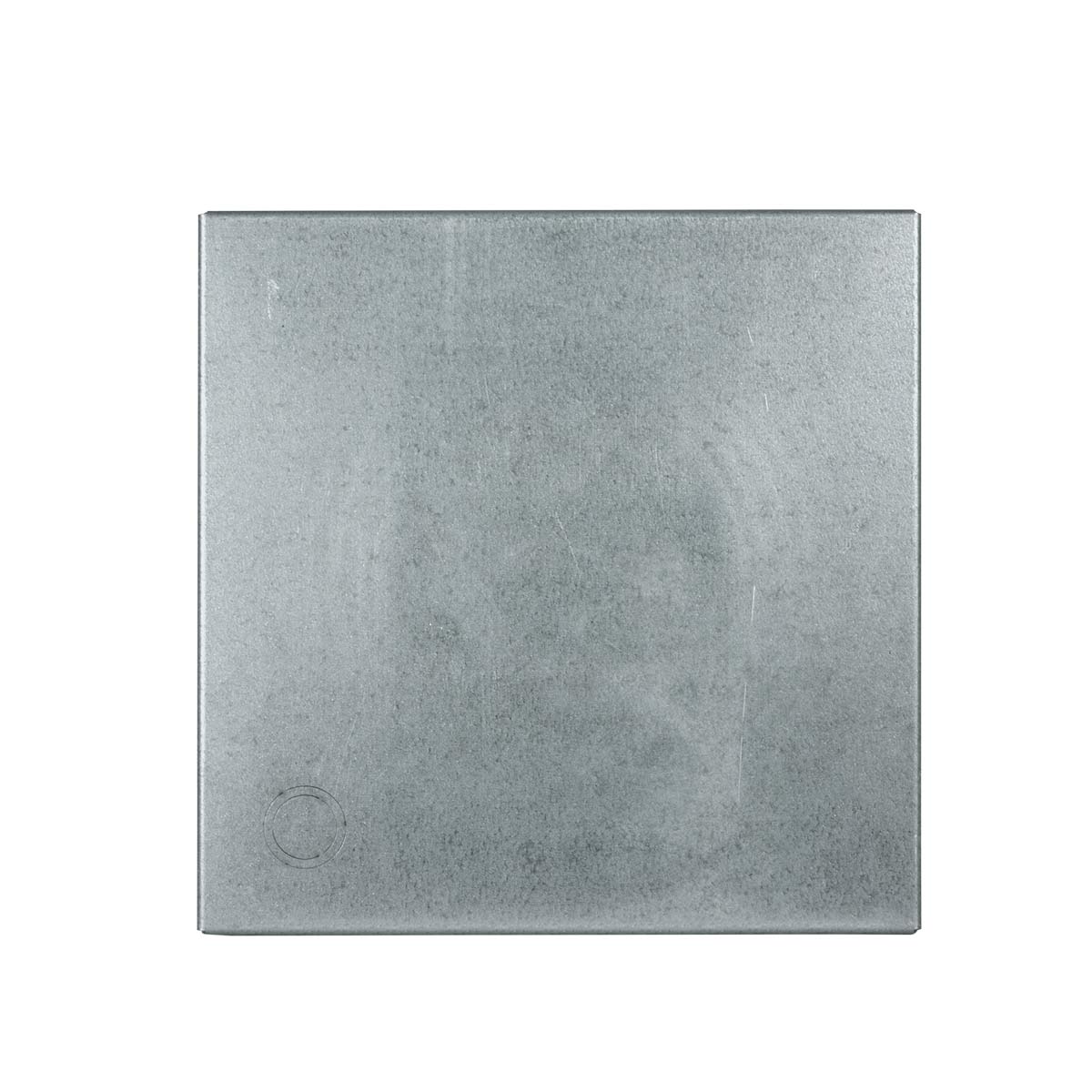

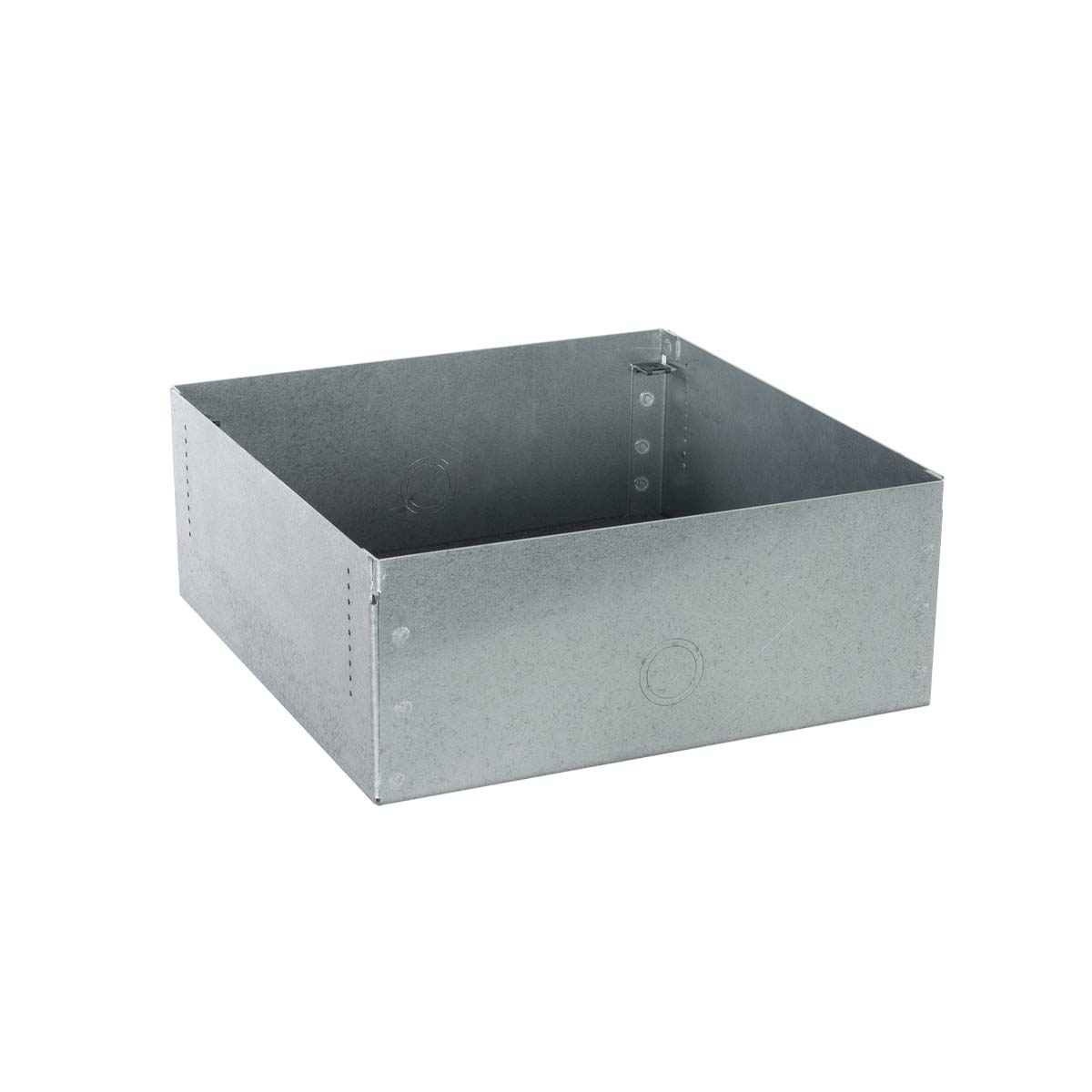

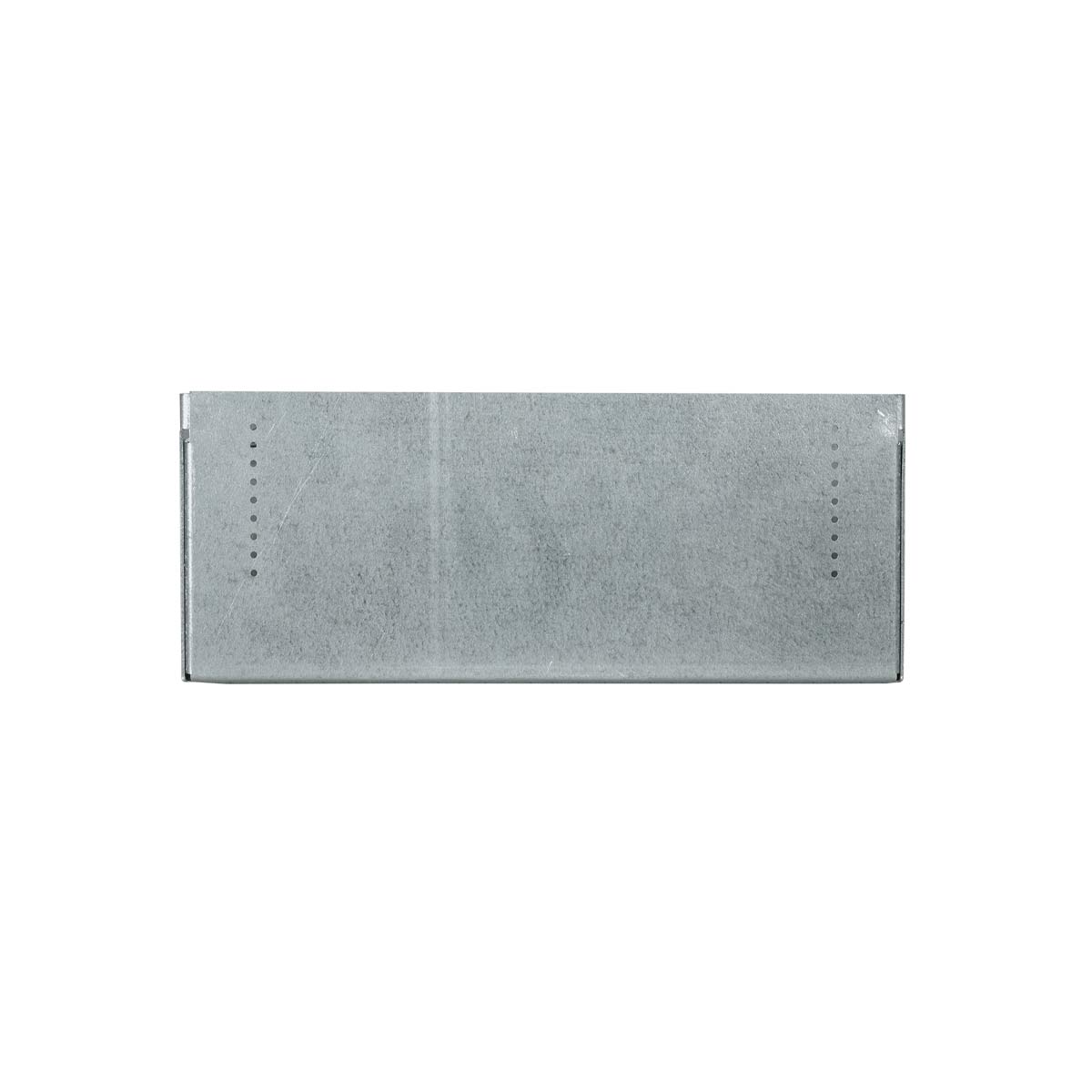

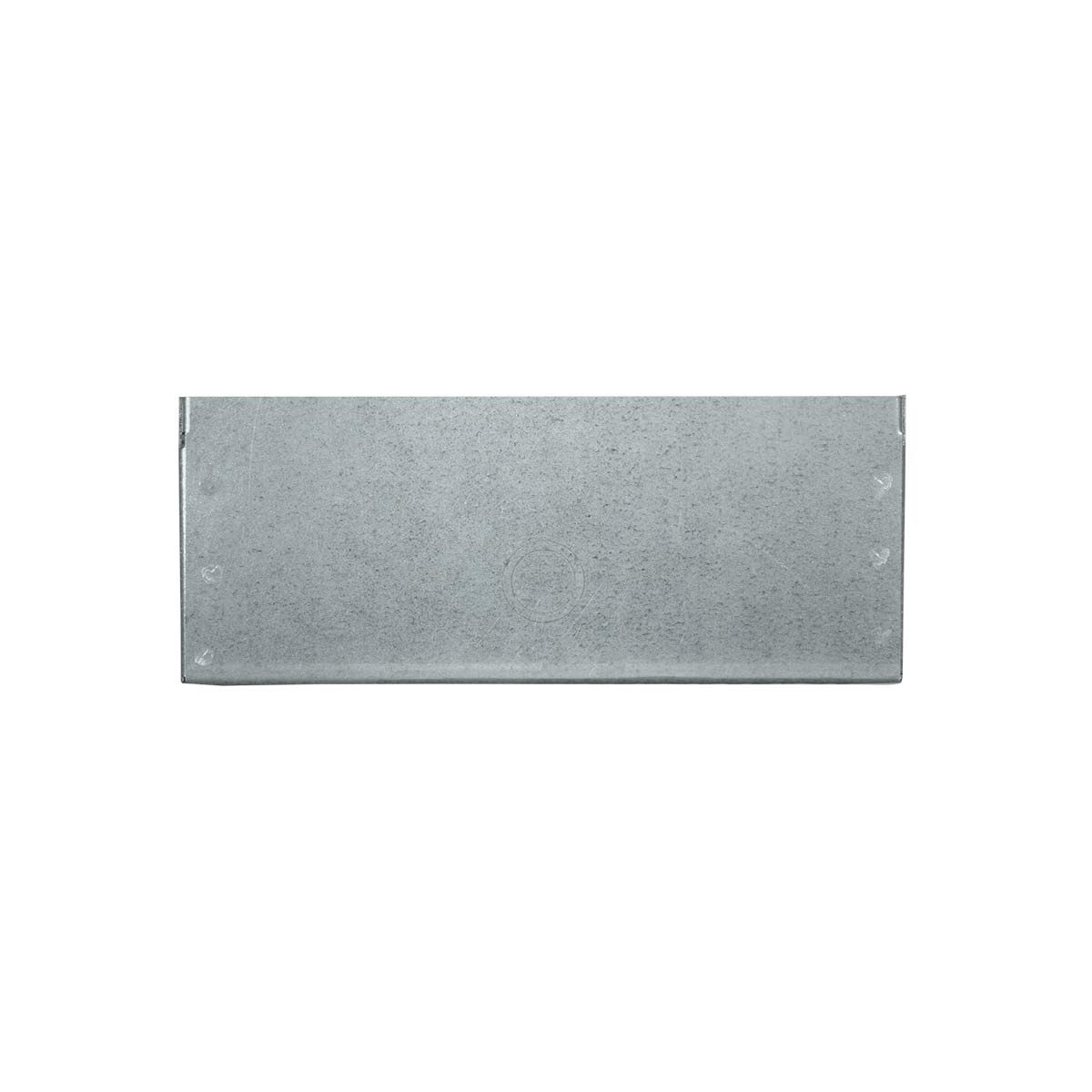

Galvanized steel enclosure for recessed installation of an 8 inch speaker in a ceiling or wall. Two sides of the enclosure are punched to mount optional retrofit brackets or tile support channel rails (order separately) in various ceiling or wall thicknesses.

Add to Favorites

Compare

Material: 18-gauge galvanized steel
Finish: Galvanized steel
Height: 10.00 in.
Width: 10.00 in.
Depth: 4.00 in.
Volume: 0.231 cu.ft.
Acoustical Treatment: Foam pad lining
Knockouts: 1/2″ and 3/4″ combination for conduit
Mounting Aids: Knockouts, mounting tabs, pre-punched holes for optional mounting brackets or tile support channel rails
For Grille Type: Screw-mount

Spec Sheet: 2291-P68XA

Made in U.S.A.
Certified U.S. steel

The enclosure for recessed installation of 8″ speakers shall be Lowell model P68XA, which shall be 18-gauge galvanized steel (10″ x 10″ x 4″). It shall feature combination knockouts for conduit (1/2″ and 3/4″) on two opposite sides and rear of enclosure. It shall also feature recessed mounting tabs with four Tinnerman clips, and a foam pad to help reduce acoustic/mechanical resonance. The enclosure shall be made in the U.S.A.

Screw-Mount Grilles: FW-8, JG-8X, SG-8, SG-8VP, IC-105A, VRG-8
Drivers: 8 inch
Channel Rails: SS24, SS30, SS48
Retrofit Bracket: SS9
