Surface Enclosure for 8 inch driver

Name: Surface Enclosure for 8 inch driver
SKU: CB84A
Price: 63.10 USD
Availability: InStock

For screw-mount grille

$63.10 MSRP

Model CB84A

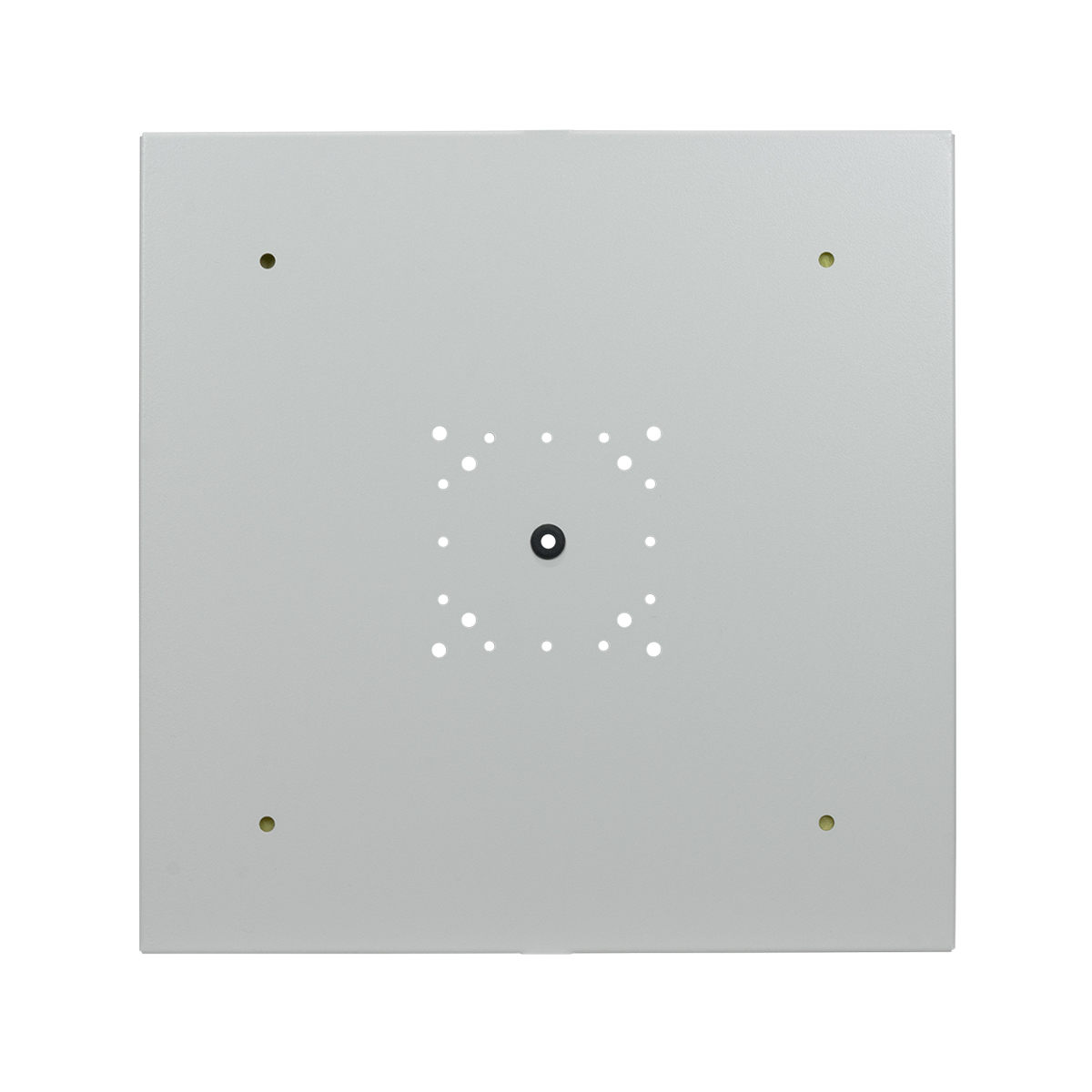

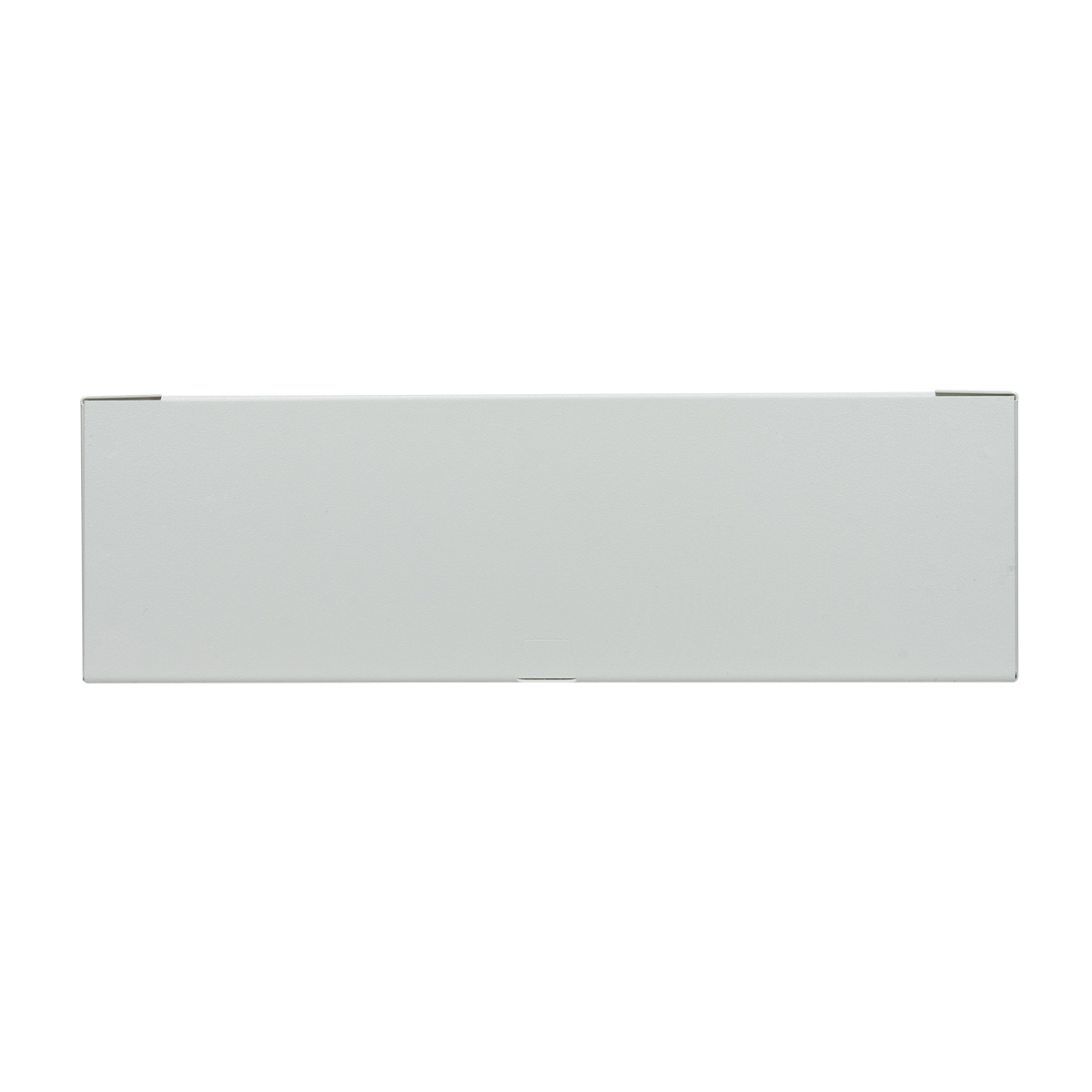

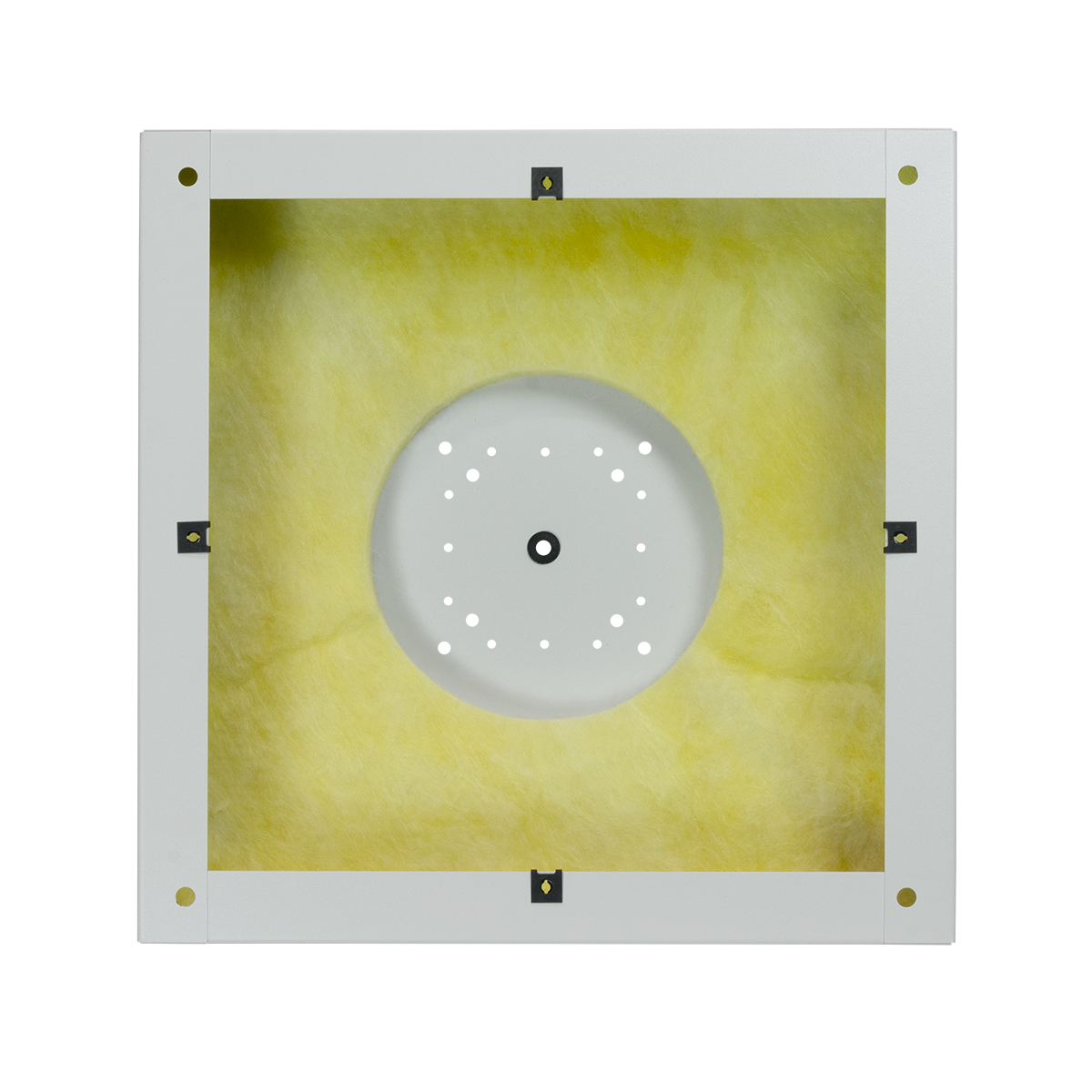

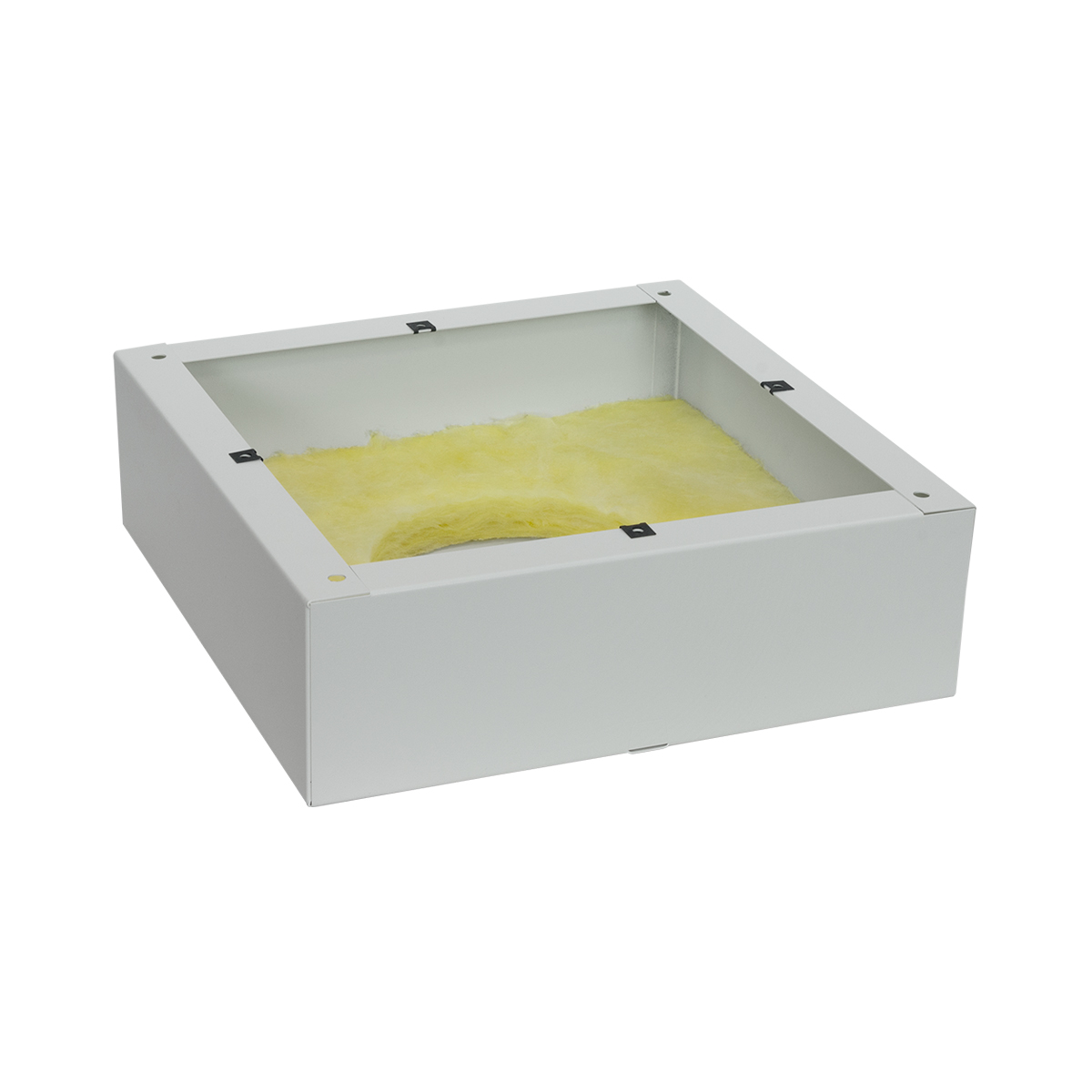

Surface-mount steel enclosure for ceiling or wall is designed to mount a screw-mount grille and a standard 8 inch speaker. The clean square format is ideal for use in schools, offices, restaurants, hotels and similar venues.

Add to Favorites

Compare

Material: 20-gauge one-piece U.S. steel, welded seams, white finish
Acoustical Treatment: 1 in. thick acoustic batting
For Grille Type: Screw-mount
Mounting Aids: Timmerman clips on front flanges, universal mounting pattern for E.O. box (not included), 0.375 in. hole with grommet for wire access, Wiremold 500 Series knockouts on two sides
Length: 13.00 in.
Width: 13.00 in.
Depth: 4.00 in.
Volume: 0.391 cu.ft.

Spec Sheet:

Made in U.S.A.
Certified U.S. steel

The surface-mount enclosure for use with 8″ speaker and screw-mount grille shall be Lowell model CB84A. It shall be 13″ x 13″ x 4″ steel construction with white powder epoxy finish, four mounting holes, four 8-32 U-clips, a rear access hole with grommet, provisions to mount to an electrical box, two side knockouts for Wiremold 500 Series, and 1″ thick fiberglass acoustic batting. The enclosure shall be made in the U.S.A. with certified U.S.

Drivers: 8 inch
Grille: FW-8 (recommended for fully covered backbox), JG-8X (staggered edge appearance, backbox is slightly exposed)
