Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: FW-8
Price: 85.40 USD
Availability: InStock

For 8 inch driver

$85.40 MSRP

Model FW-8

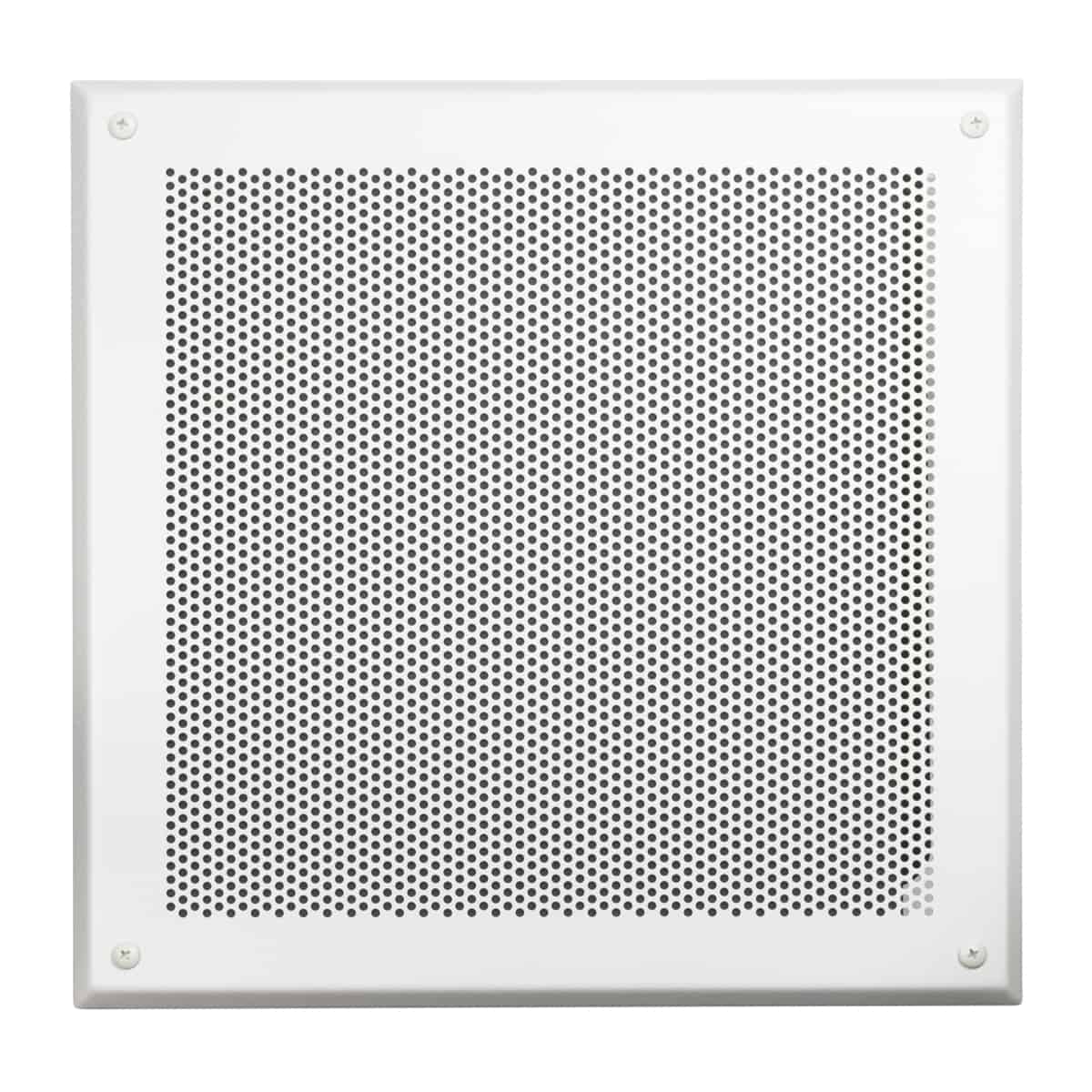

Square speaker grille with beveled edge and sub-plate is engineered to direct-mount to a backbox with screws (provided), allowing heavier 8 inch driver assemblies to be supported by a backbox.

Add to Favorites

Compare

Style: Screw-mount

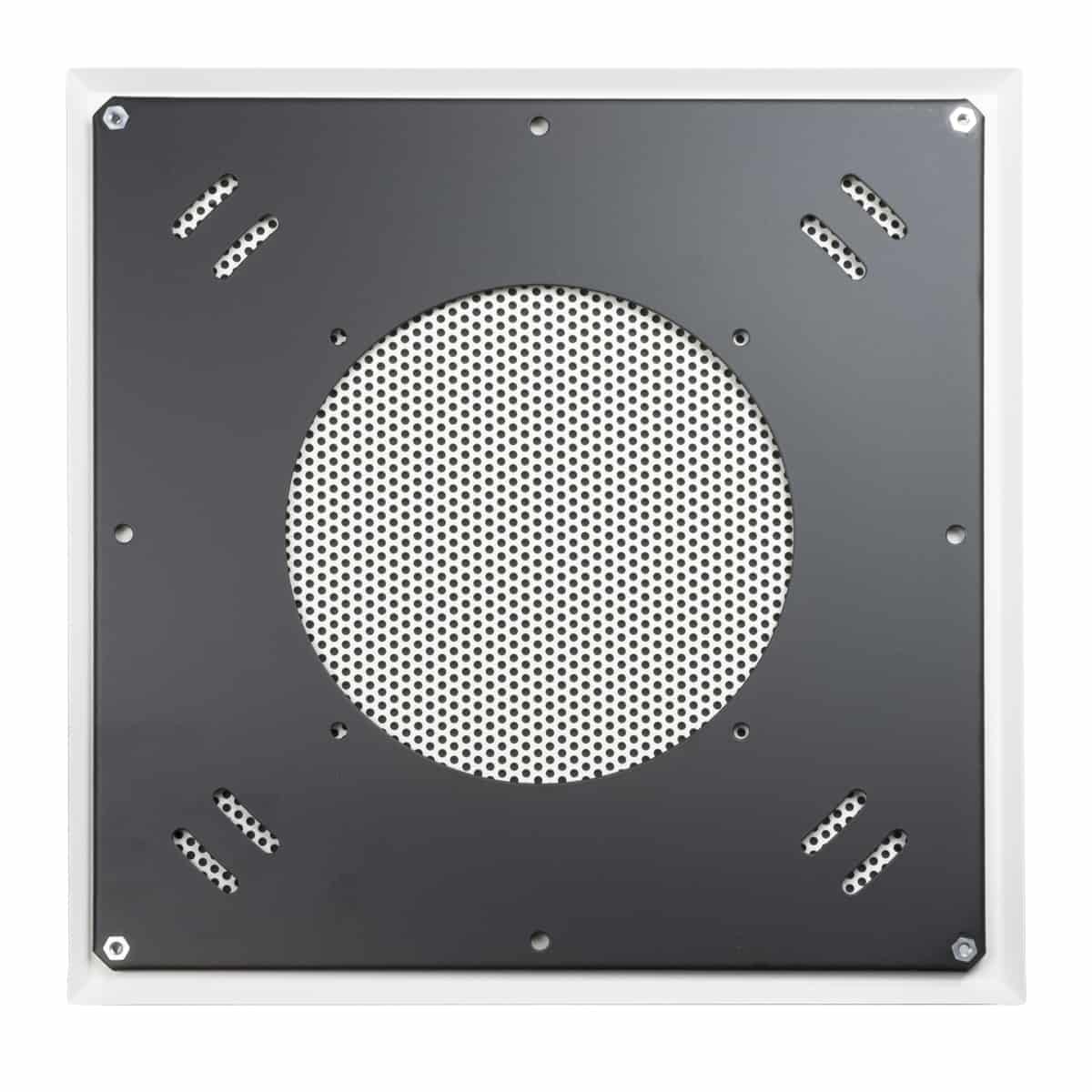

Material: 18-gauge one-piece perforated steel, 21-gauge steel subplate
Finish: White grille with beveled edges, black subplate
Size: 13.00 in. square
Mounting Projection: 0.313 in.
Mounting Provisions: 4 screws (white), subplate with 4 screws

Spec Sheet: 1679-FW8

Made in the U.S.A.
Certified U.S. steel

The square speaker grille for 8 in. drivers shall be Lowell Model FW-8, which shall be 18-gauge steel with perforated center and beveled frame. It shall be 13 in. square with a mounting projection of 0.313 in. The grille shall include a 21-gauge steel subplate and mounting hardware with provisions for mounting an 8 in. speaker and for mounting the speaker/adapter assembly to specified backbox. The subplate shall be finished in black powder epoxy. The non-loadbearing grille shall be finished in white powder epoxy and shall mount to the specified backbox using four 8-32 x 0.375 in. white screws.

Drivers (8 in.): 8 inch
Surface-Mount Backboxes: CB84A, CB86A, CB88
Recessed Backboxes: P68X, P68XA, P68X-6, P68XA-6, P875X-6
