Recessed Enclosure for 8 inch driver, w/straps

Name: Recessed Enclosure for 8 inch driver, w/straps
SKU: XCP84-S
Price: 32.80 USD
Availability: InStock

For screw-mount or torsion grille

$32.80 MSRP

Model XCP84-S

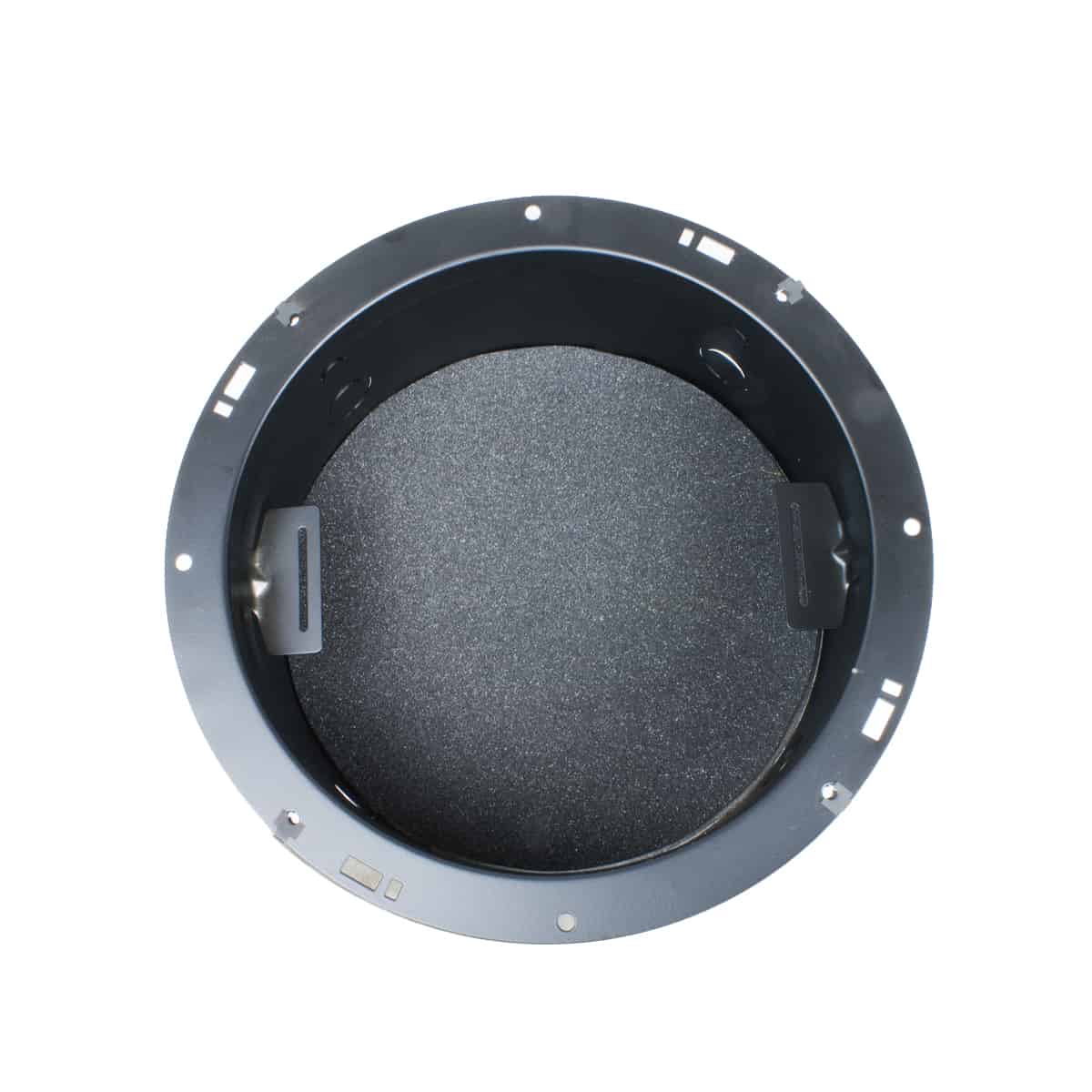

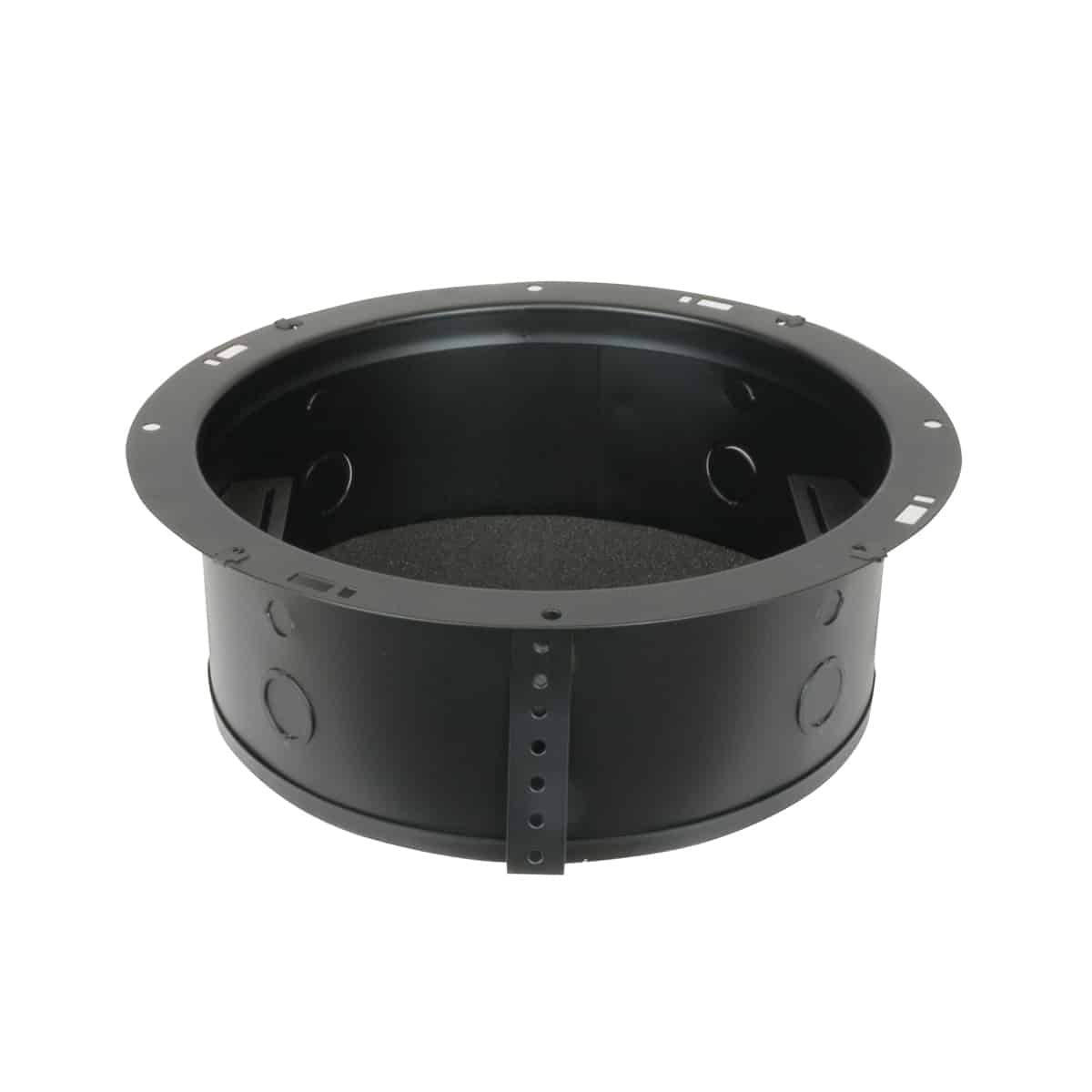

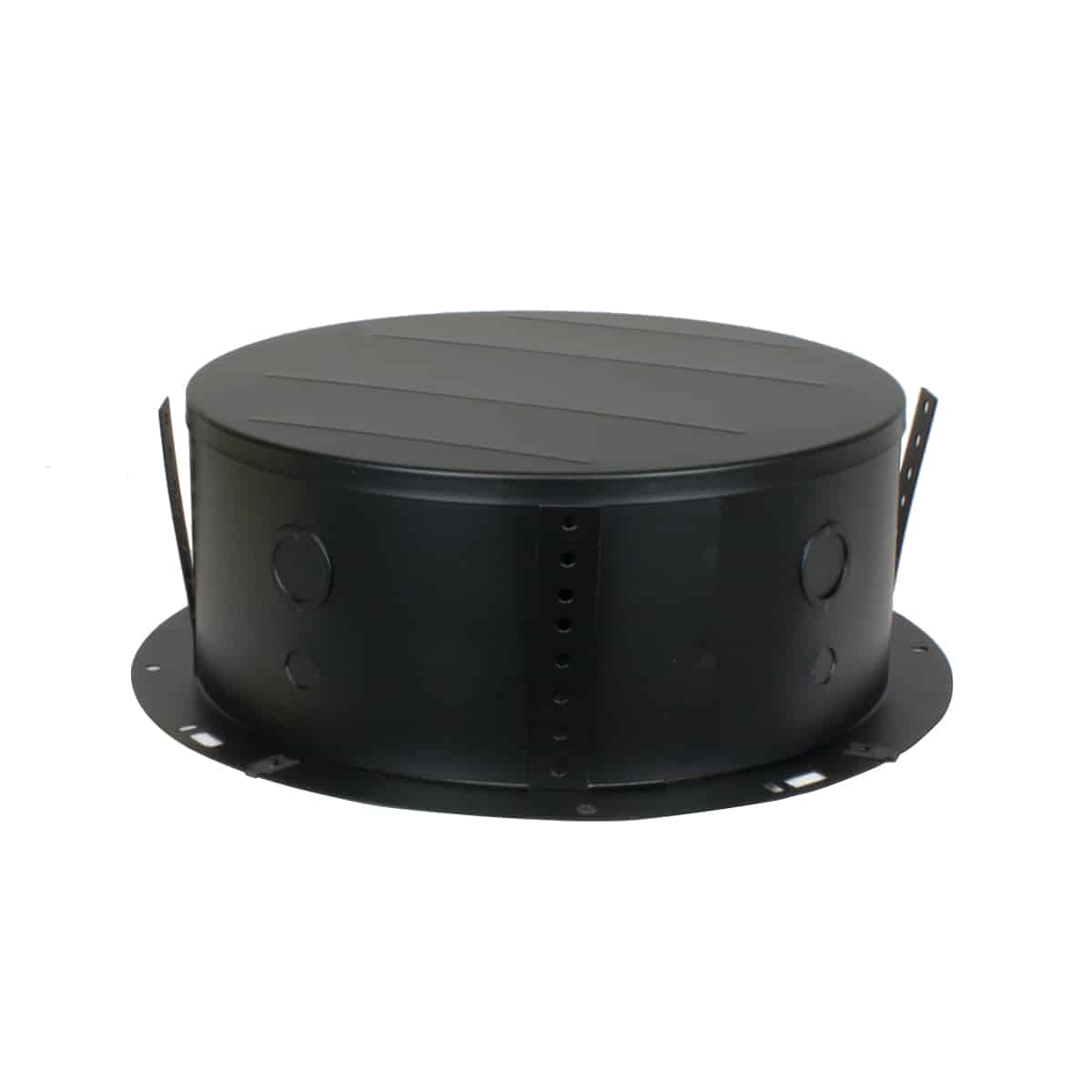

Recessed enclosure with flat grille mounting flange will accept an 8 inch driver and torsion or screw-mount grille. Ideal for suspended tile ceilings.

Add to Favorites

Compare

Material: Welded unitized heavy gauge steel
Finish: Black
Diameter: 10.06 in.
Depth: 4.06 in.
Volume: 0.187 cu.ft.
Flange: Flat
Acoustical Treatment: Undercoated, foam pad
Mounting Aids: Welded anchor straps, knockouts
For Grille Type: Screw-mount or torsion

Spec Sheet: 1280-XCP84S

Made in U.S.A.
Certified U.S. steel

The recessed backbox shall be Lowell Model No. XCP84-S, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance. The backbox shall have a 10.06 in. diameter and 4.06 in. depth. It shall have four 0.5–0.75 in. knockouts for conduit and four 0.5 in. knockouts for wire. The backbox shall include a foam pad and welded anchor straps. It shall be finished in black powder epoxy paint.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Torsion Grilles: CN-8M, WB-8T
Drivers: 8 inch
Tile Bridges: LBS8, LBS8-R1
