Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: WB-8-6
Price: 14.80 USD
Availability: InStock

For 6-1/2 inch driver

$14.80 MSRP

Model WB-8-6

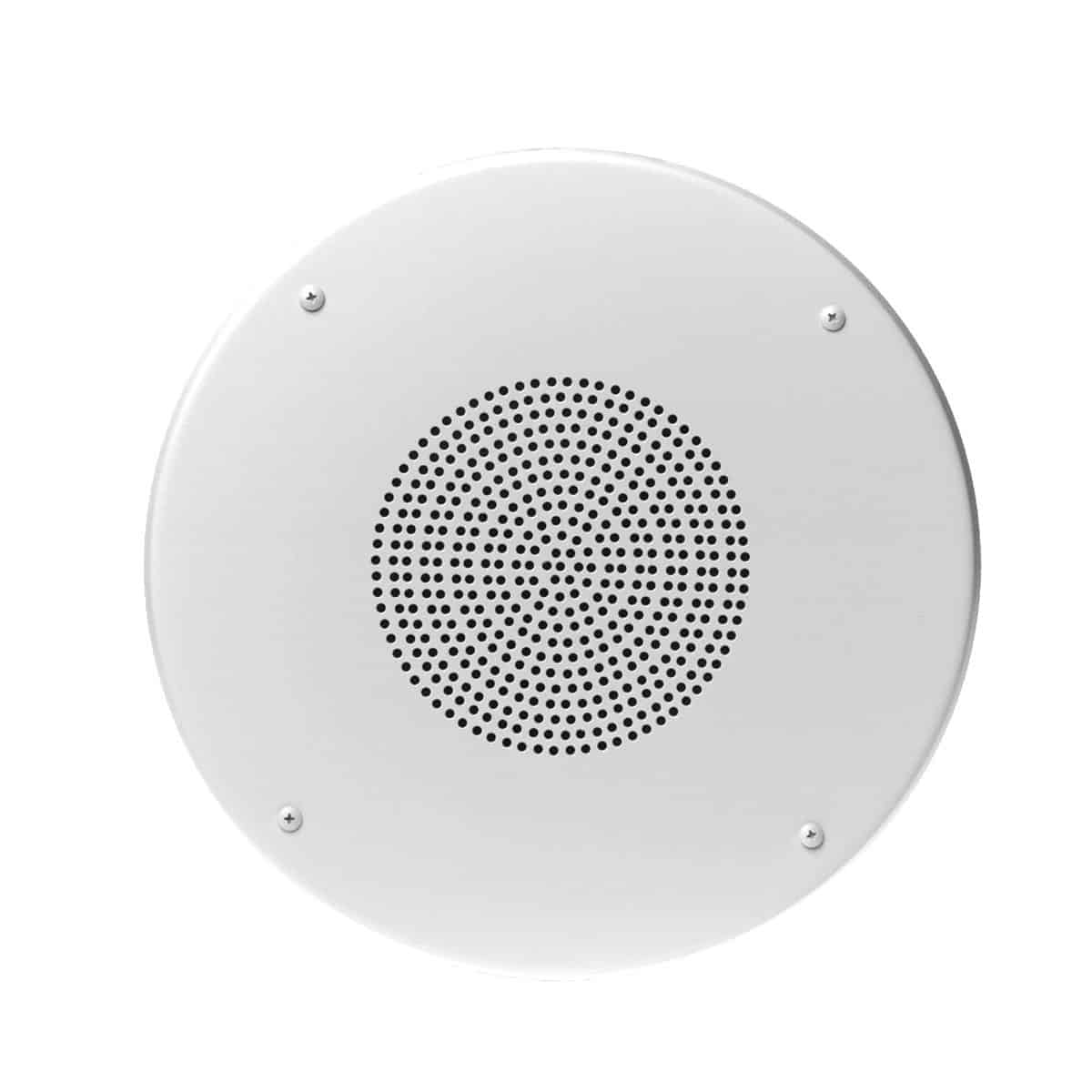

Steel screw-mount grille for 6-1/2 inch driver has a contoured edge and white finish. Note: Discontinued model, limited availability.

Add to Favorites

Compare

Style: Screw-mount grille for use with 6.5 in. driver
Material: Precision formed single piece of steel reinforced with perforated center, beveled edge
Finish: White
Size: 12.875 in. diameter.
Projection: 0.25 in. mounting projection
Mounting Provisions: Four white 8-32 Phillips-head screws

Spec Sheet: 1779-WB86

Made in the U.S.A.
Certified U.S. steel

The grille for use with a 6.5″ driver shall be Lowell Model WB-8-6. It shall be one-piece 22-gauge steel reinforced with a peripheral flange of 60 degrees. The diameter shall be 12.875″ with a shallow mounting projection of 0.25″. Model WB-8-6 shall include welded studs for mounting specified 6.5″ speaker. It shall feature four 0.25″ holes spaced at 90 degree intervals on a 11.25″ bolt circle for mounting the specified backbox or mounting ring. The grille shall be finished in white powder epoxy and include four white 8-32 x 1-1/2” Philips-head screws for backbox mounting.

Drivers (8 in.): 810, 8A50, 8C10MRB, CT830A
Recessed Backboxes: CP87, CP810, DX108, XCP87, XCP810,
Tile-Bridges: LBS8, LBS8-CP, LBS8-RI
Support Rails: SS24, SS30, SS48
