2U/3U Variable-width Shelf

Name: 2U/3U Variable-width Shelf
SKU: VWS-218
Price: 118.28 USD
Availability: InStock

For wide equipment

$118.28 MSRP

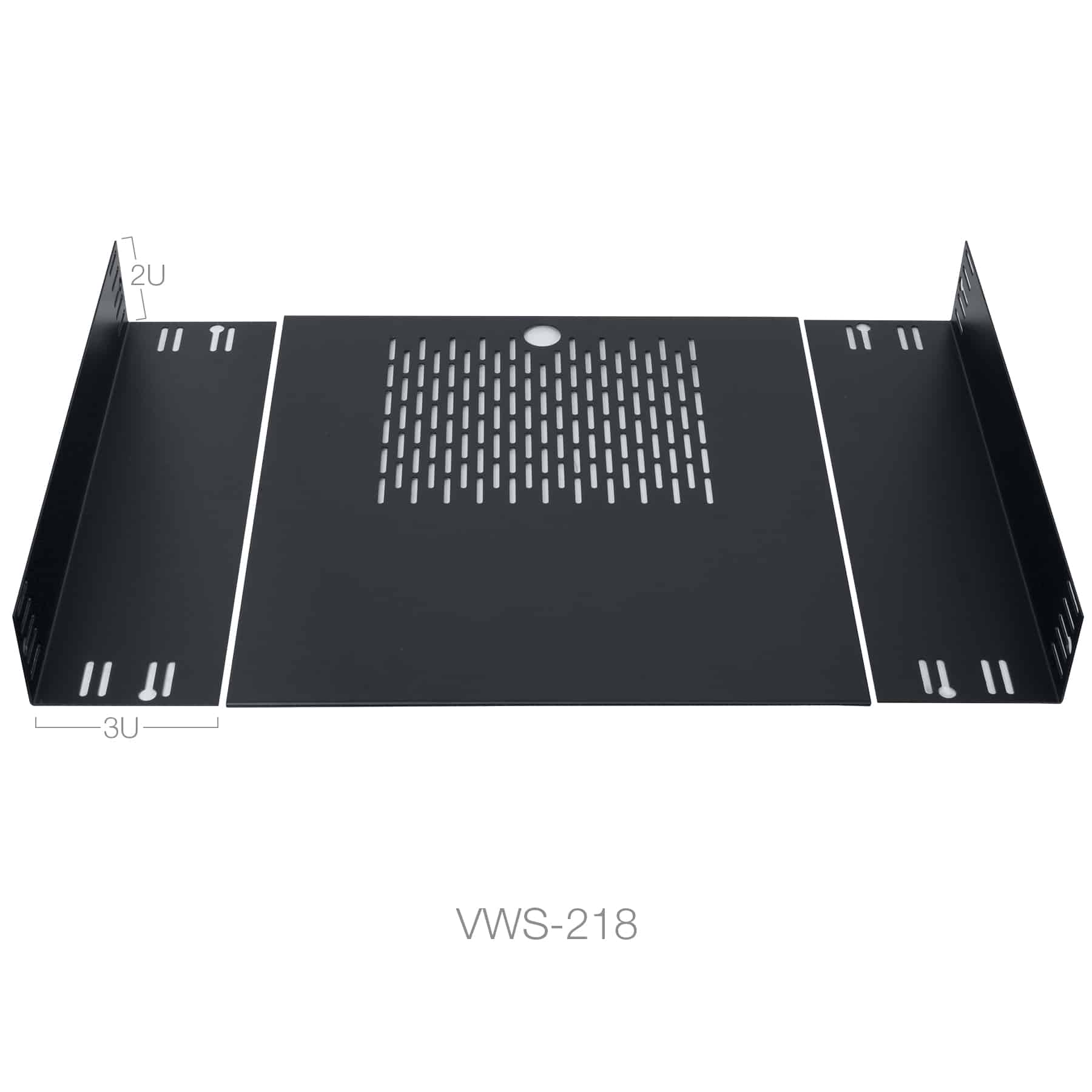

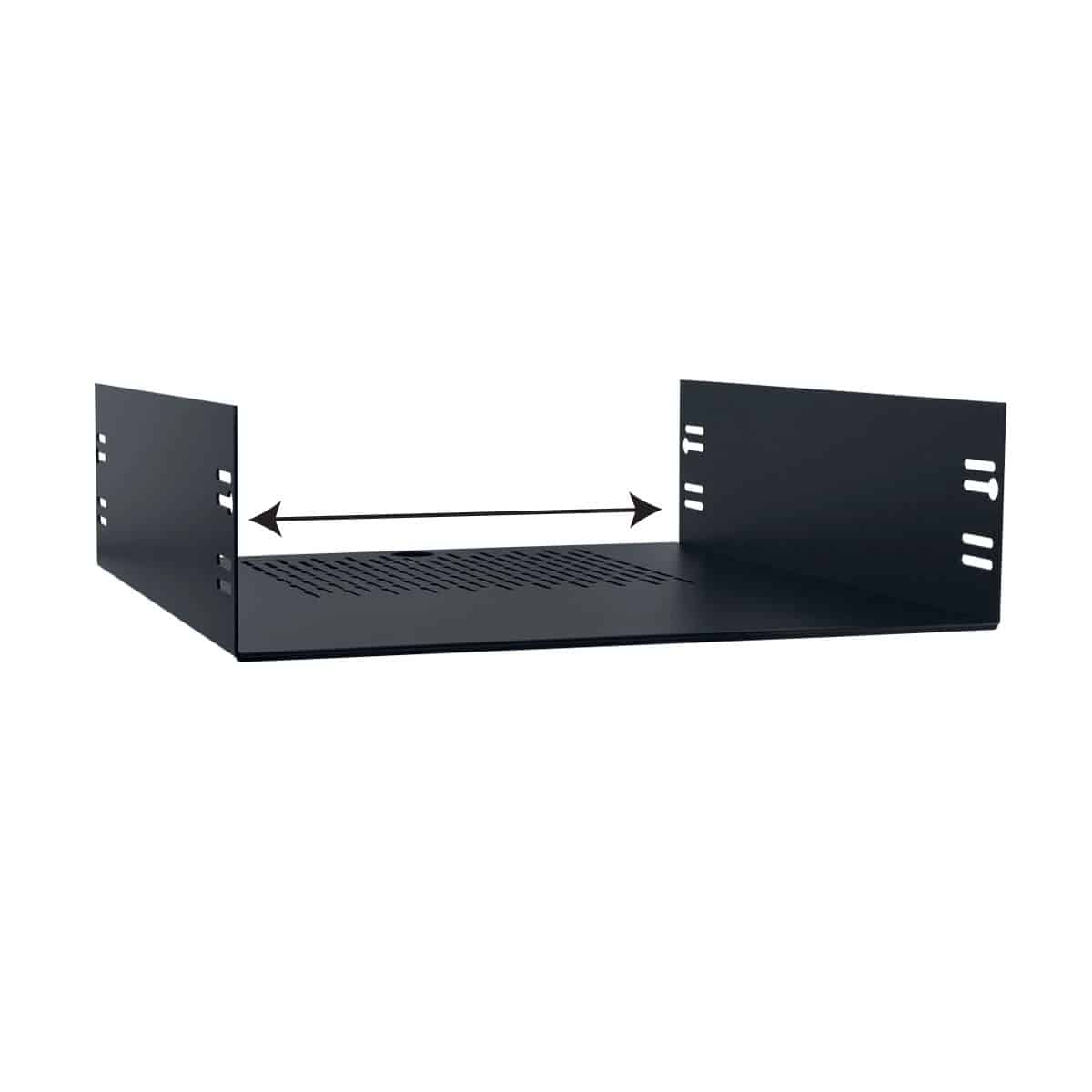

Three-piece shelf with side supports expands from 17.5–22 inches wide to provide extra mounting width behind rack rails — for electronics with a larger chassis. For racks 21U or taller.

Add to Favorites

Compare

Mounts behind front rack rails (screws into holes on inside angle of rails) using two standard rack screws with nuts on inside slots of each side.

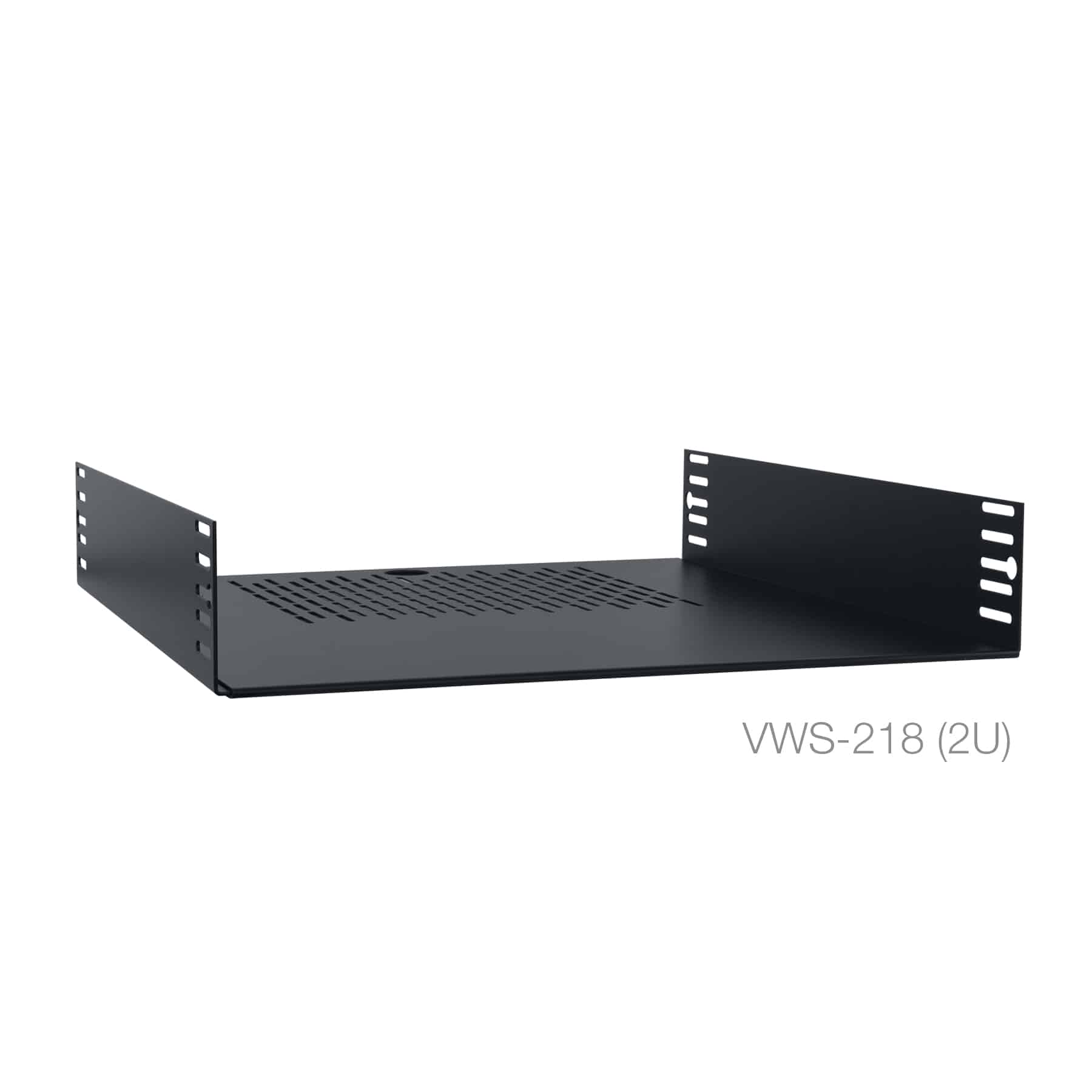

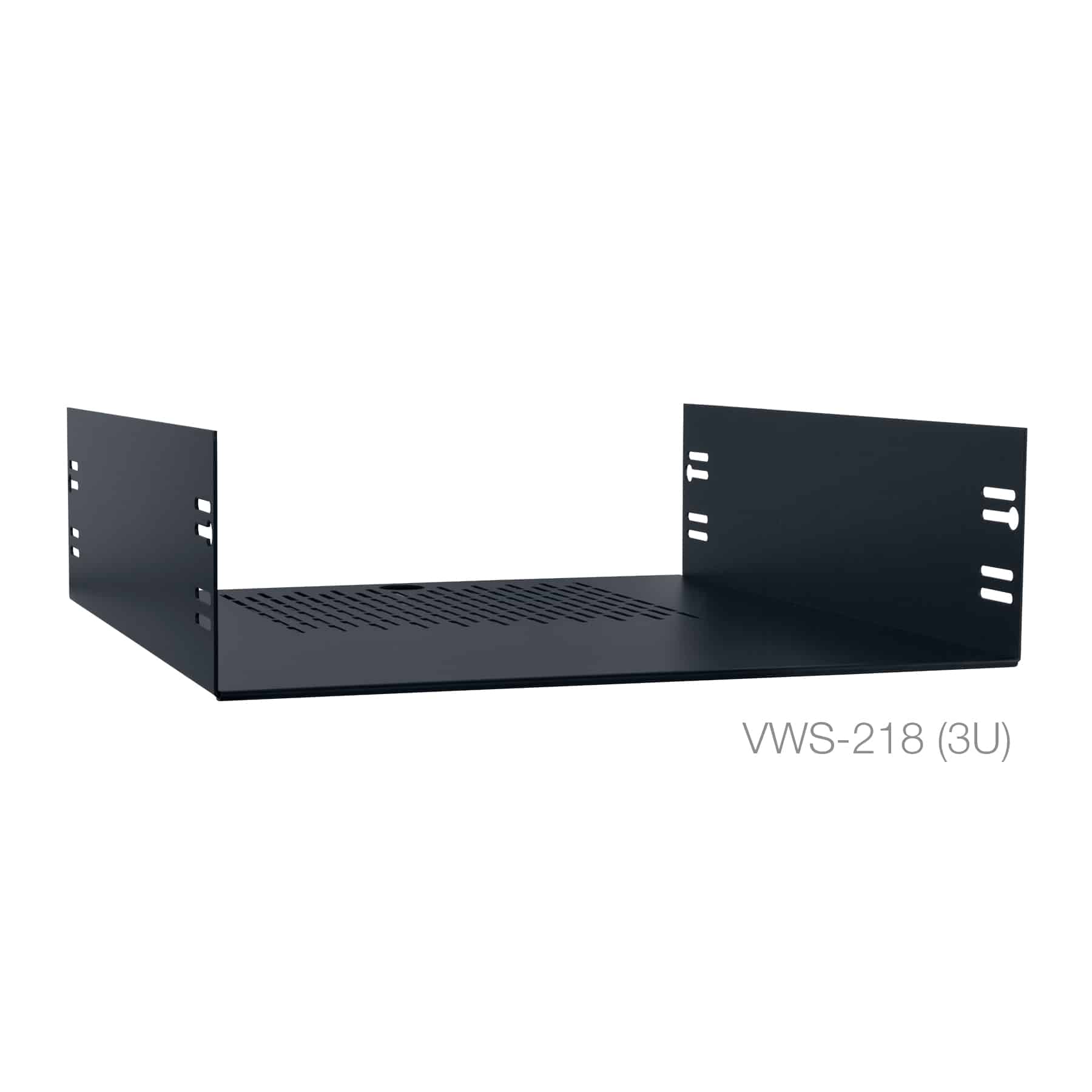

Height: Side supports can be installed with long or short side up to emulate 2U or 3U panel space
Depth: 18 in.
Center section is 16-gauge steel; side supports are 14-gauge steel.
Bottom vents and cable access opening
10-32 mounting screws with nuts
Load Capacity: 50 lbs.

Spec Sheet: 1372-VWS218
Install Sheet: 17242

Made in the U.S.A.
Certified U.S. steel
E.I.A. compliant

The rackmount shelf shall be Lowell Model No. VWS-218 which shall have a depth of 18 inches, adjustable width of 17.5–22 in. and panel space of 2 or 3 rack units, depending on how it is assembled. Load capacity shall be 50 lbs. The shelf shall include provisions for cable entry and wire lacing. The center section shall be formed from 16-gauge US steel; side supports shall be formed from 14-gauge US steel. The shelf shall be finished in black powder epoxy paint. It shall include six 10-32 mounting screws with nuts.
