Impedance Matching Transformer

Name: Impedance Matching Transformer
SKU: TLM-600
Price: 103.60 USD
Availability: InStock

$103.60 MSRP

Model TLM-600

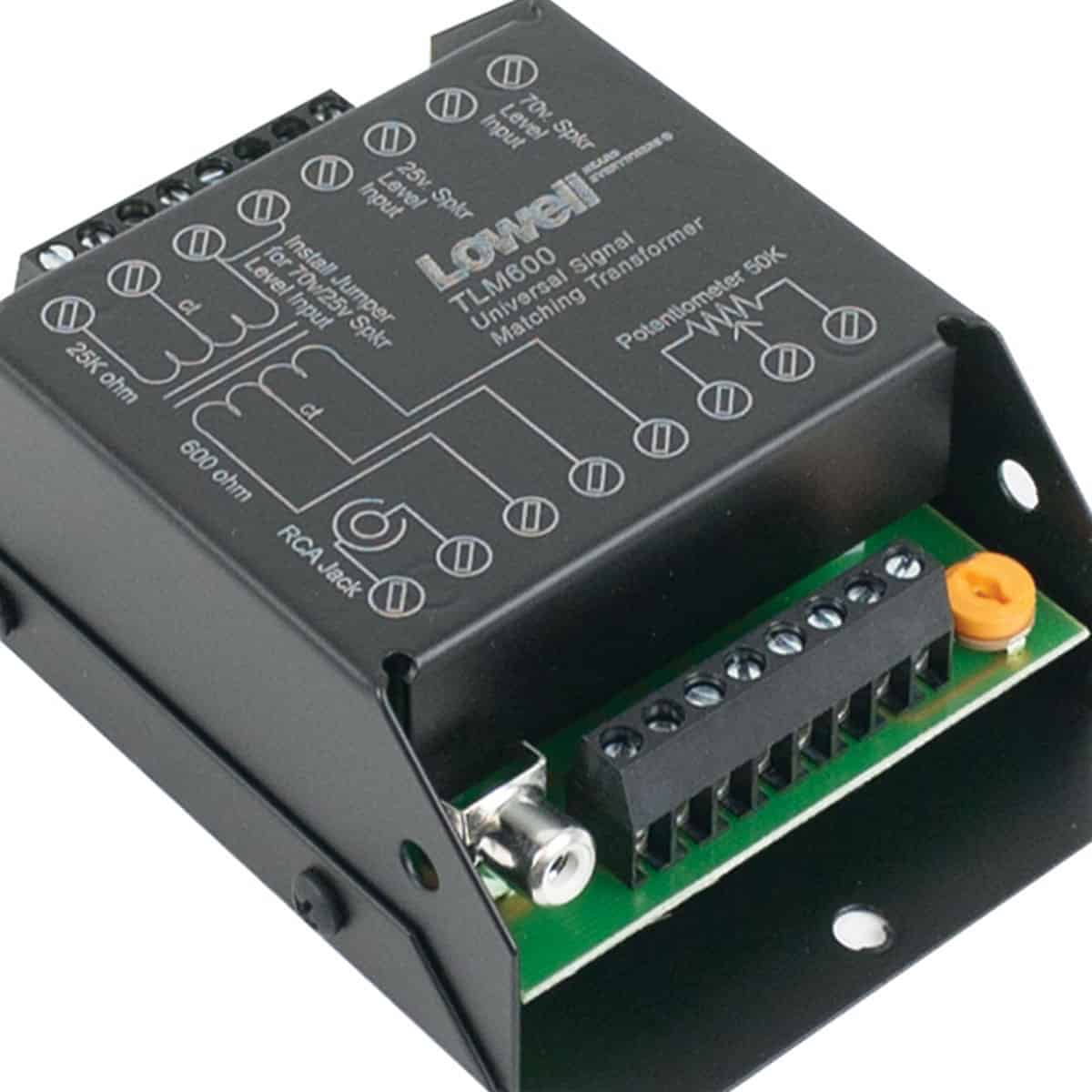

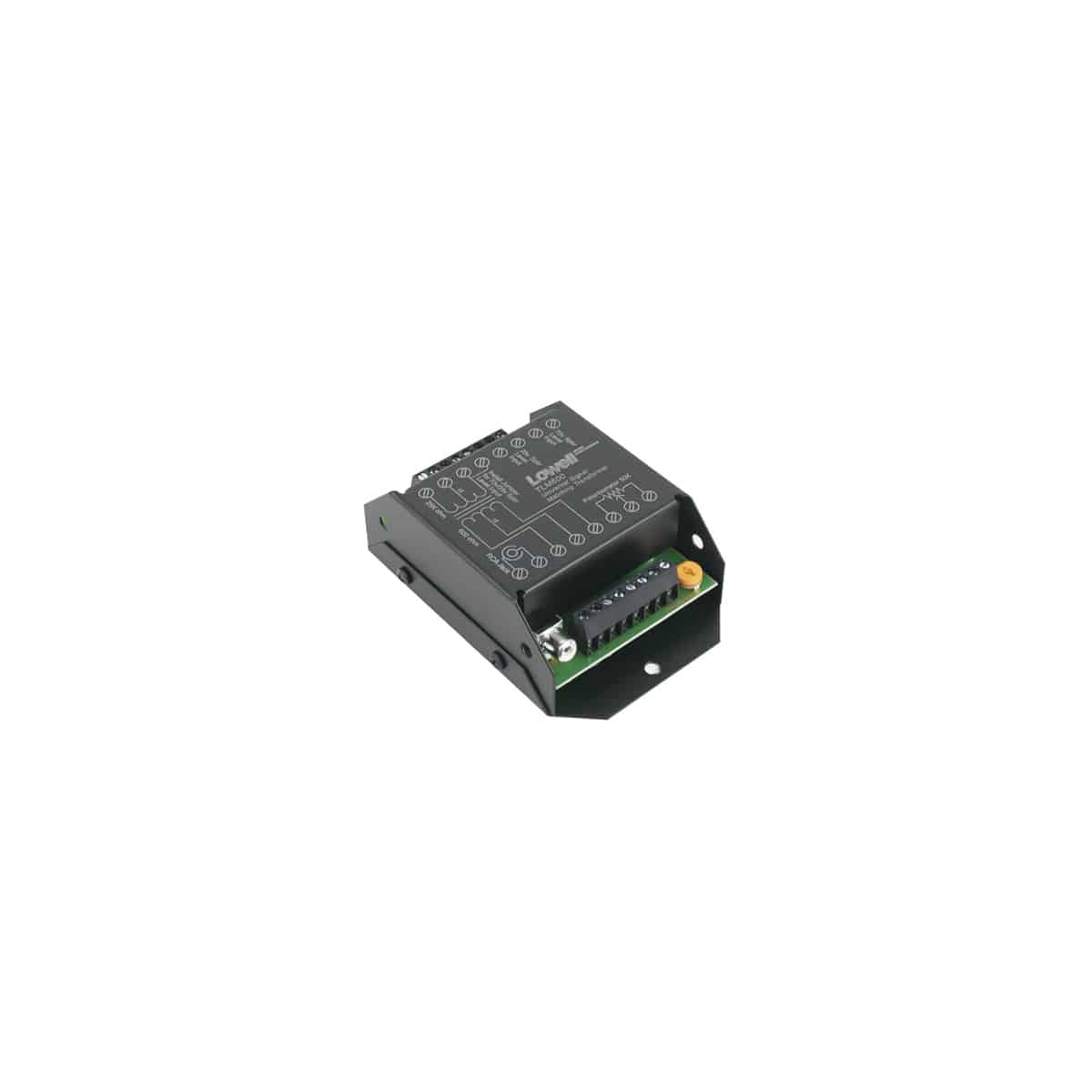

Universal input, impedance matching transformer converts balanced and unbalanced low-Z telephone-type lines to Hi-Z amplifier signals, Hi-Z to low-Z, and attenuates or steps-down 70V or 25V speaker lines to a line level signal suitable for remote amplifier input. Includes phono jack and level control for field connections.

Add to Favorites

Compare

Step down 70 and 25-volt lines to feed amplifier inputs.
Field-connectable level control and phono jack.
Matches telephone lines to Hi-Z amplifier input.
Feed balanced 600 ohm lines from amplifier output.
Convenient mounting and connections
Use with a masking generator when adding masking to an existing music/paging system.
5 in. x 3 in. x 1.75 in.
Barrier strip terminals and mounting holes for fast connection and convenient mounting to a wall or onto a rack panel with pre-punched mounting holes for electronic accessories.

Spec Sheet: 1716-TLM600

The universal input impedance matching transformer shall be Lowell Model TLM-600. The transformer shall be capable of converting balanced and unbalanced low-Z, telephone-type lines to Hi-Z amplifier signals, Hi-Z to low-Z and attenuate 70V or 25V speaker lines to a line level signal suitable for remote amplifier input. Connections to the transformer shall be made via a three-sided barrier strip screw terminal assembly. The steel housing shall have holes for mounting to a wall or onto a rack panel. The housing shall be finished in black powder epoxy.
