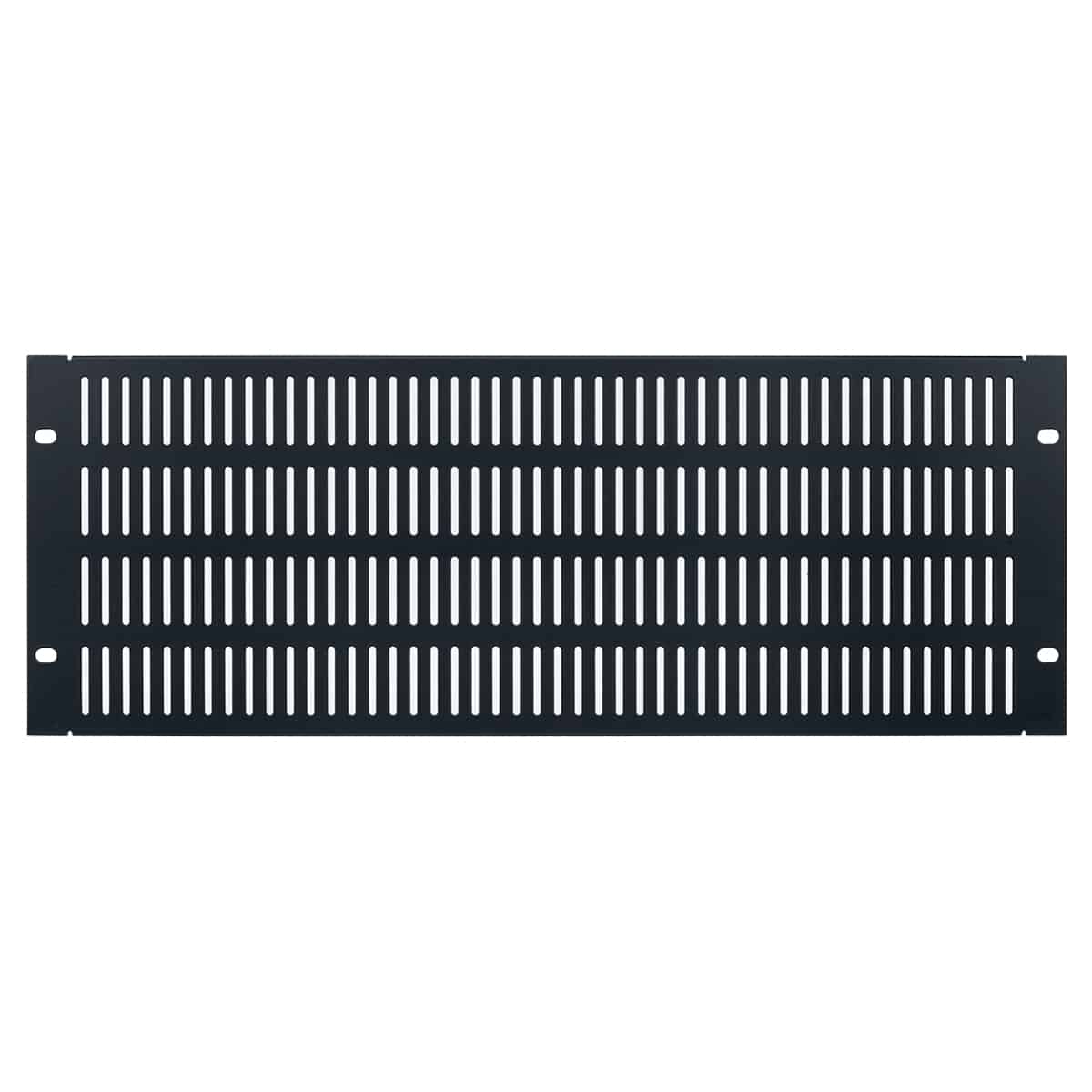

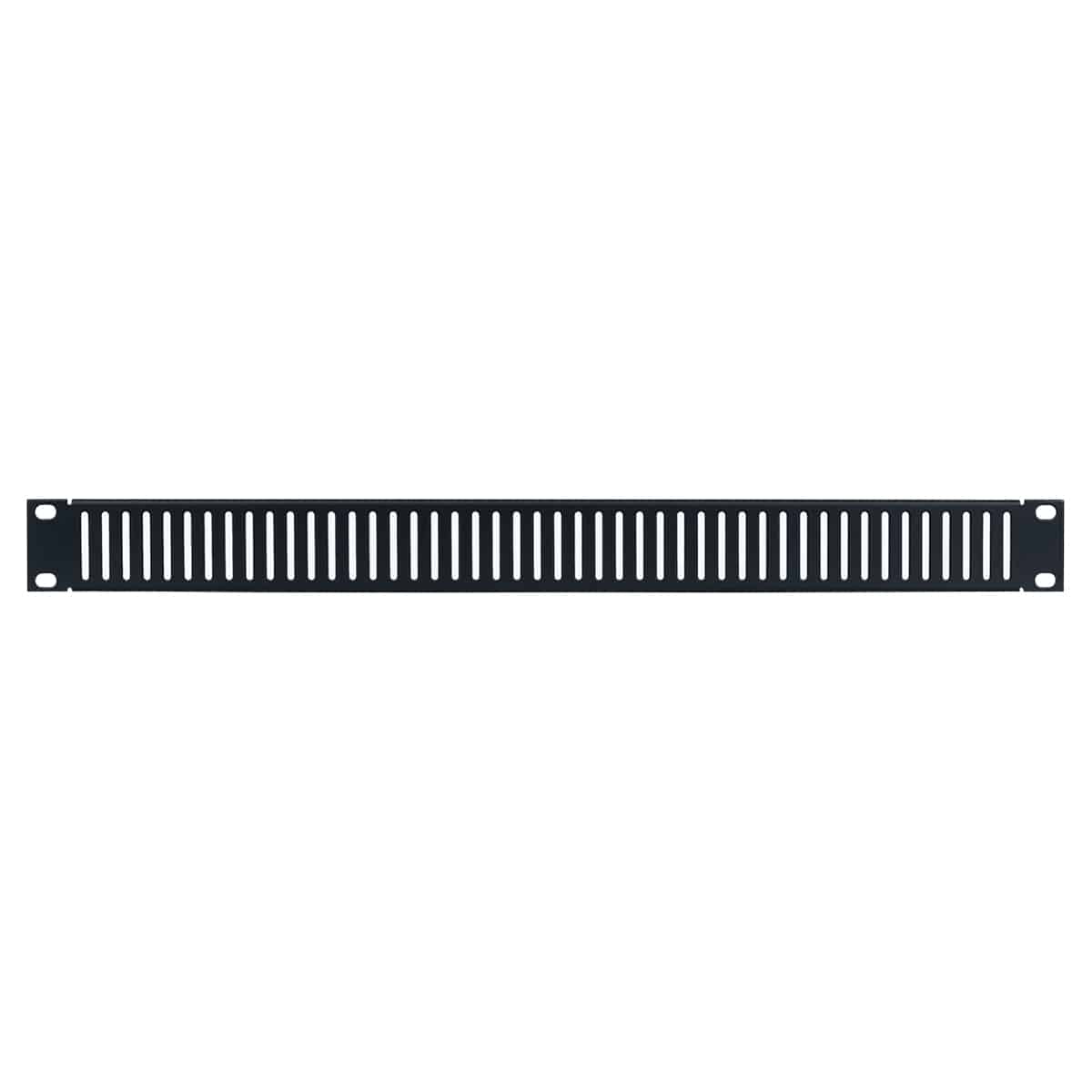

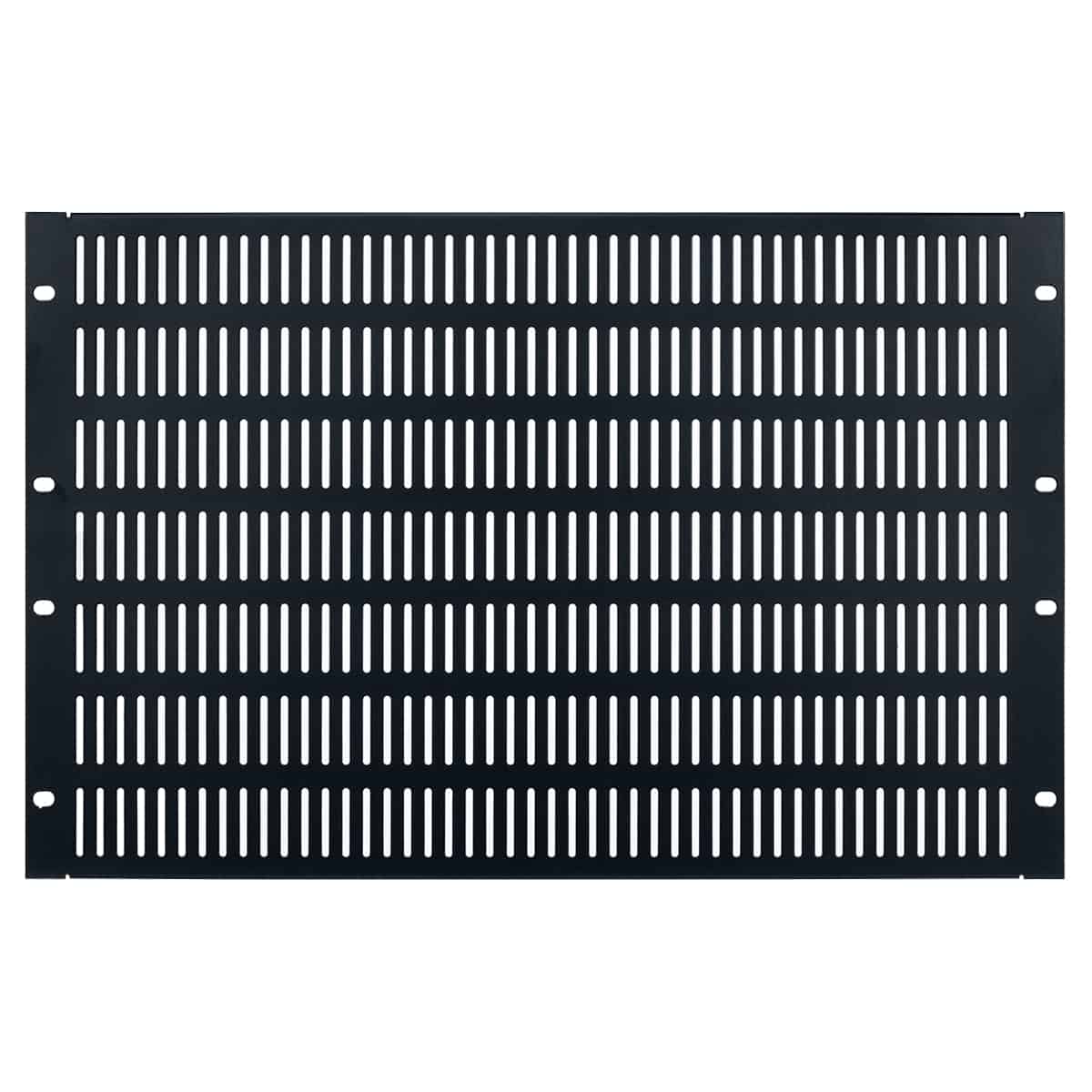

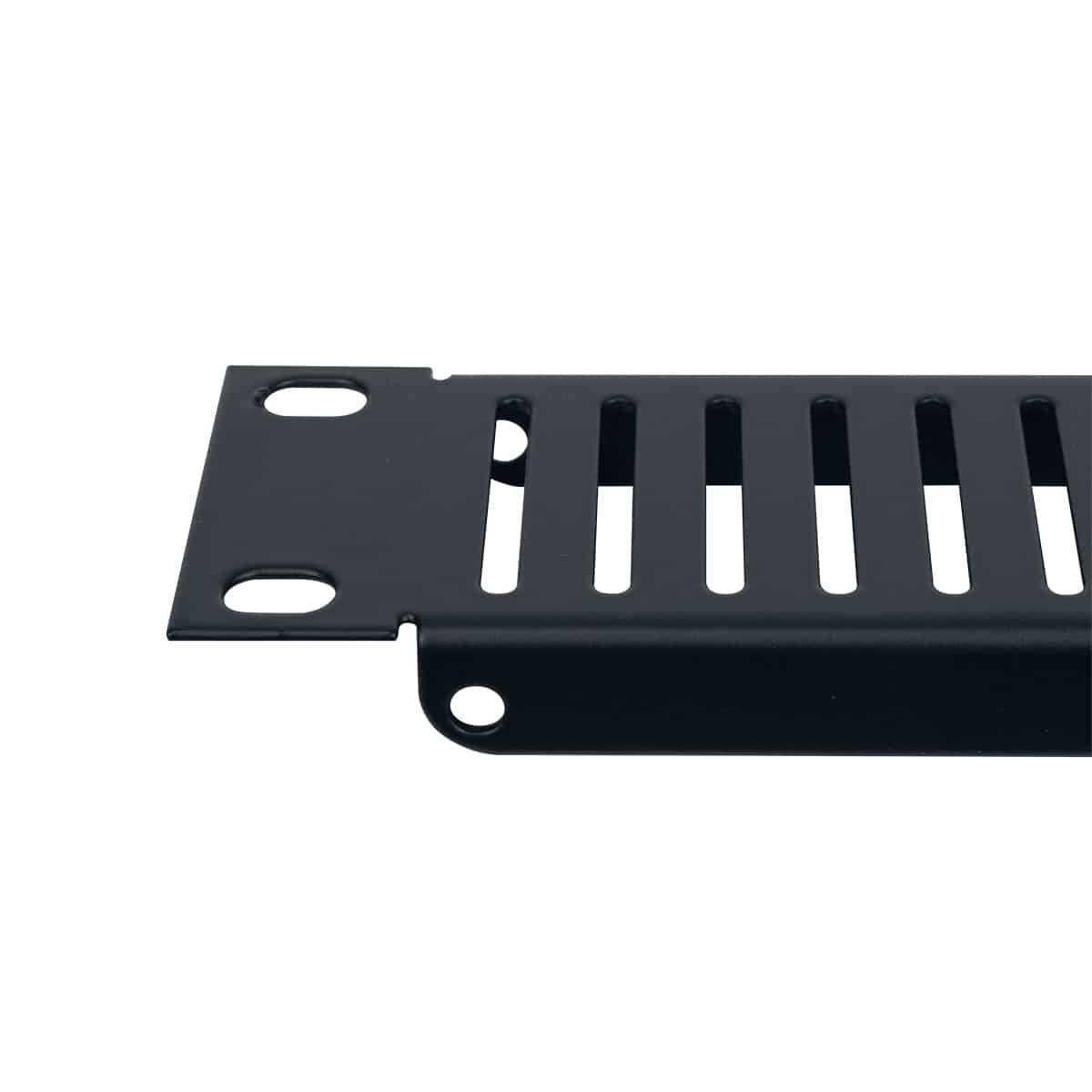

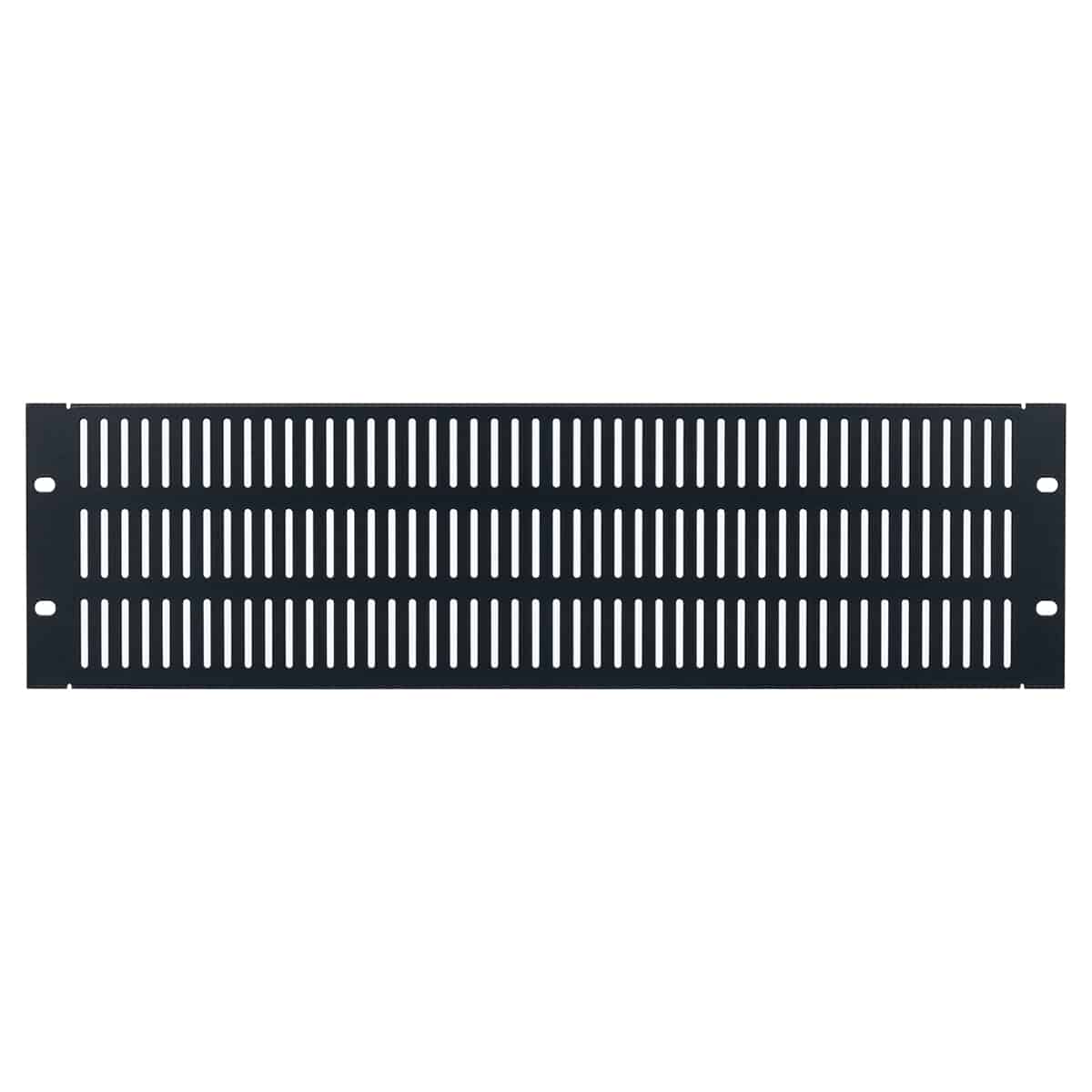

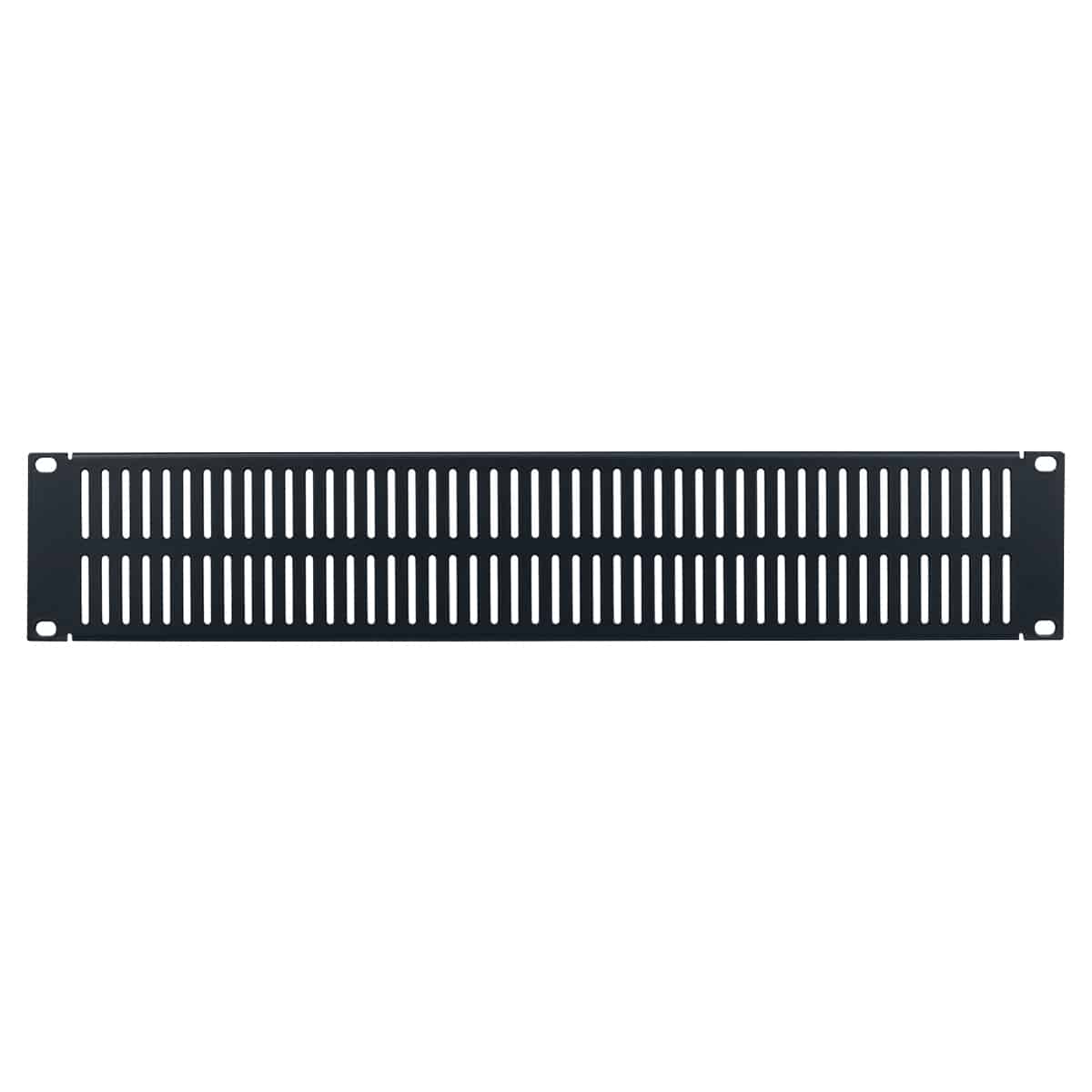

SVSP Series, 1U steel vent panel with flange

SVSP Series, steel vent panel with flange

Steel Rackmount Vent Panel with Slots

Smooth Black, 1U-7U

$16.50 – $735.20 MSRP

SVSP Series

Steel vent panel for 19 inch racks and cabinets features slots for passive ventilation. These panels also feature a flange.

Rack Units

Unit of Measure

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Material: 18-gauge steel
Finish: Smooth black semi-gloss
Flange: 0.625 in.
Obround Slots: 1.25 in. x 0.125 in. (on 0.375 in. centers)
Open Area: 21%
Width: 19 in.
Height: 1U, 2U, 3U, 4U, and 7U
Multi-pack cartons available
3U, 4U and 7U panels are ideally suited for closing tops in open frame racks

Spec Sheet: 1062-SVSP

Made in the U.S.A.
Certified U.S. steel
E.I.A. compliant

The rack vent panel shall be Lowell Model No. SVSP-_______, which shall be 18-gauge certified U.S. steel with a black semi-gloss powder epoxy finish. It shall measure 19″W x ______RU and have a .625″ flange. The panel shall feature 1.25″ x .125″ obround slots on .375″ centers to allow passive ventilation.
