Sound Masking Speaker:
• 8 in Cone Driver
• 70V Transformer
• Enclosure
• Grille

Name: Sound Masking Speaker: <br> • 8 in Cone Driver <br> • 70V Transformer <br> • Enclosure <br> • Grille
SKU: SM805A
Price: 135.40 USD
Availability: InStock

Above Ceiling

$135.40 MSRP

Model SM805A

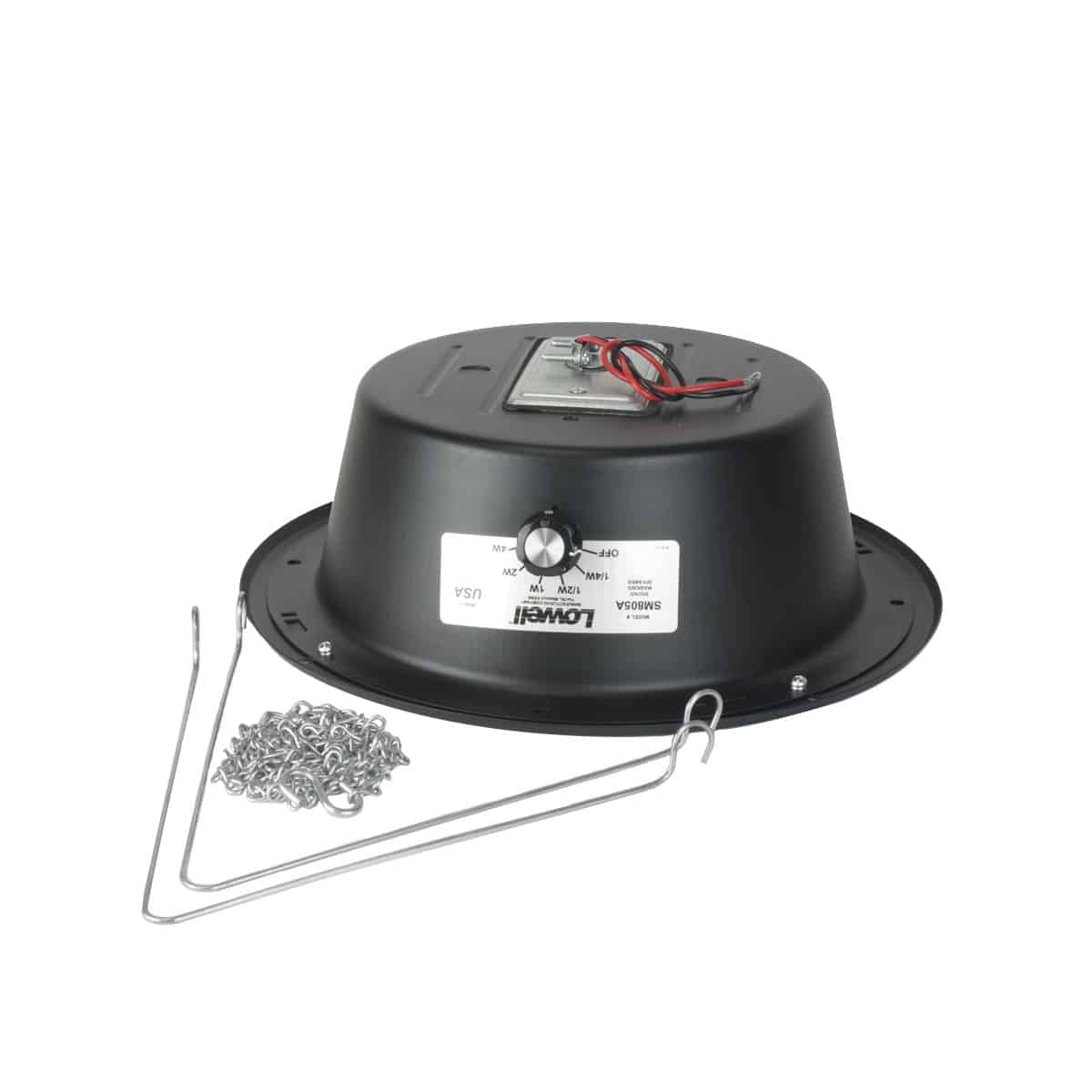

Above ceiling 12W sound masking speaker with 8 in. dual cone driver, 70V transformer, grille and round backbox with wire hangers, S-hooks and chain. Black finish.

Add to Favorites

Compare

Driver: 8 in. 12W dual cone
Transformer: 70V (0.25, 0.5, 1, 2, 4W).

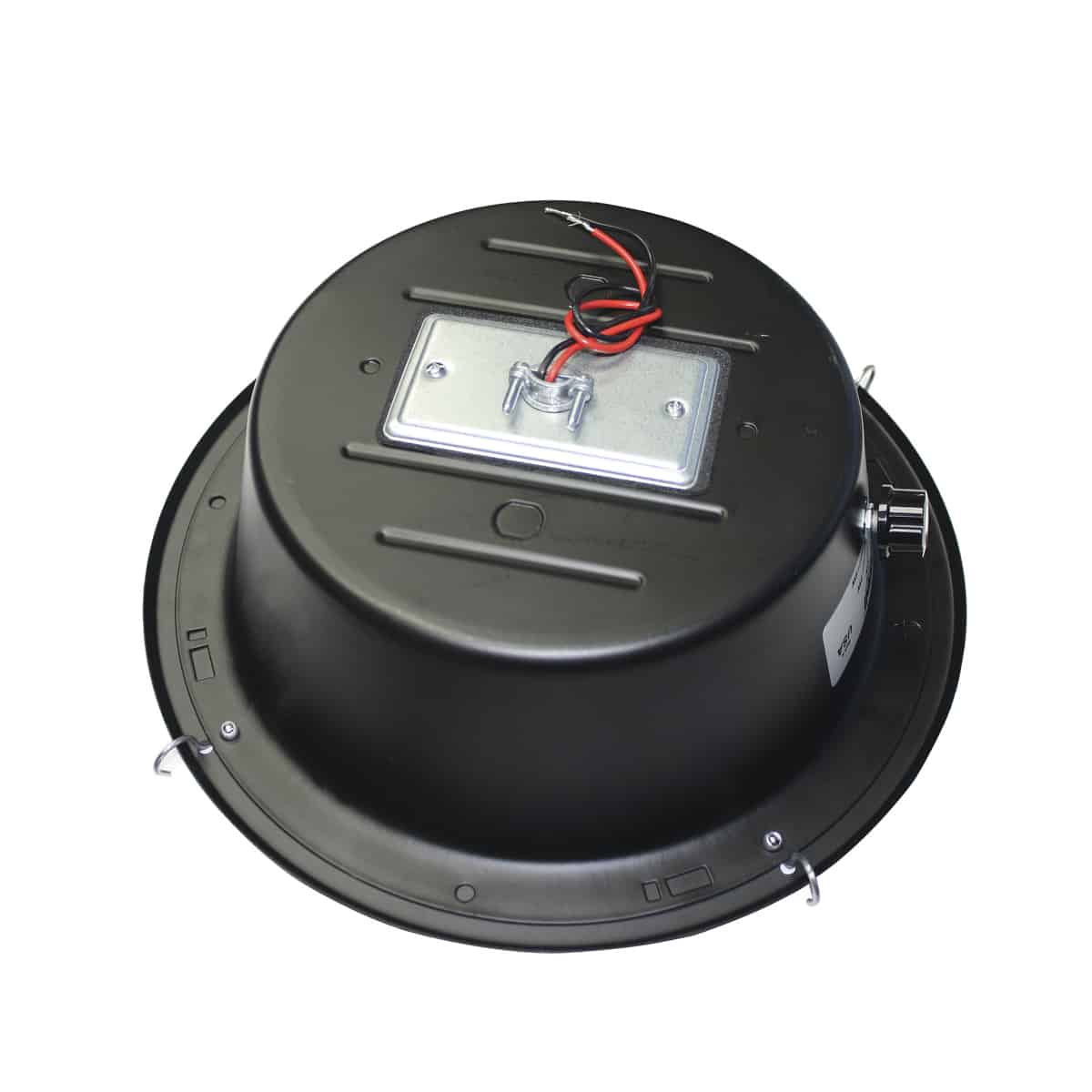

Enclosure: 325 cu.in. volume (3.93 in. deep), externally accessible leads, SG handibox cover with knockouts, Romex connector.

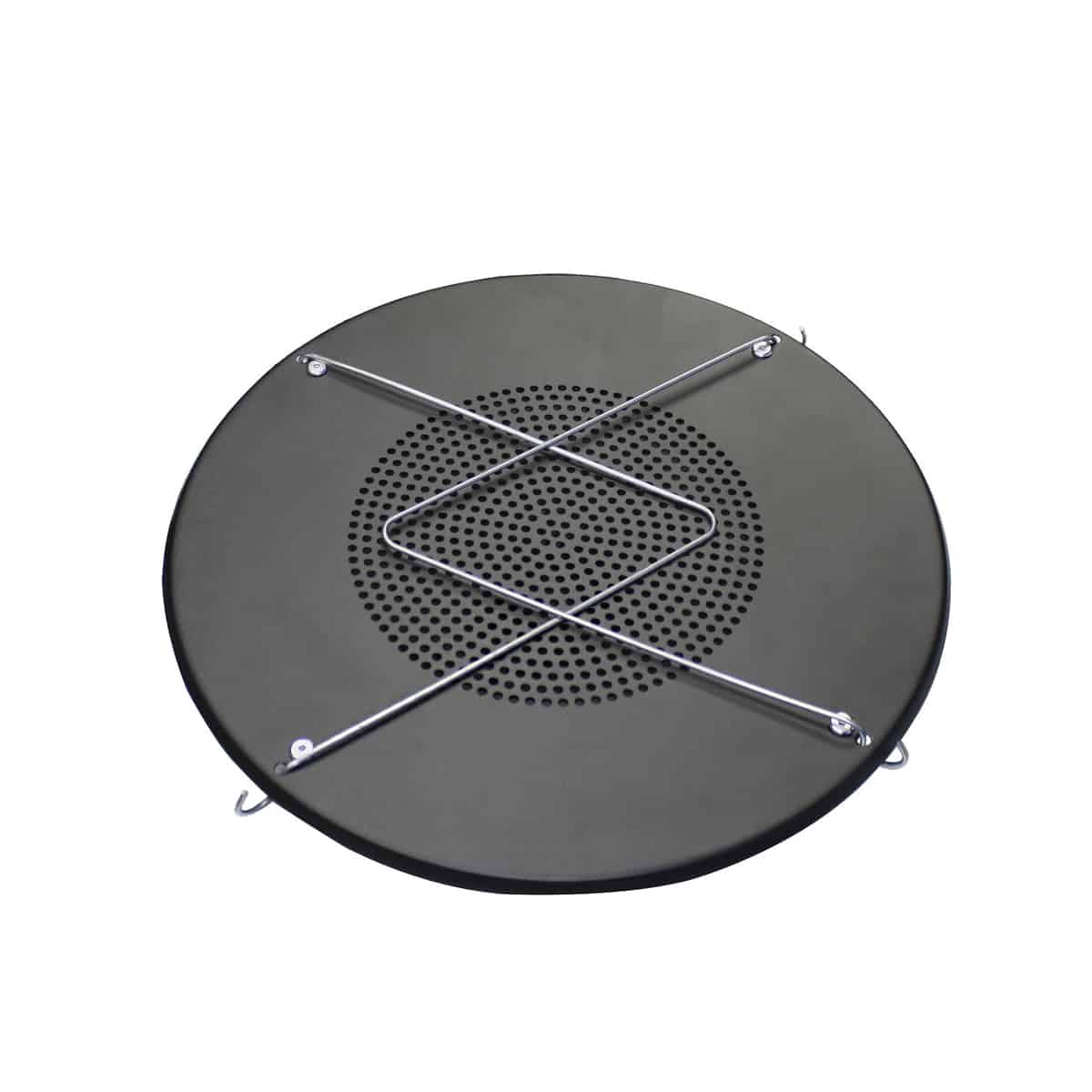

Grille: Perforated steel grille with 12.875 in. diameter. Black.

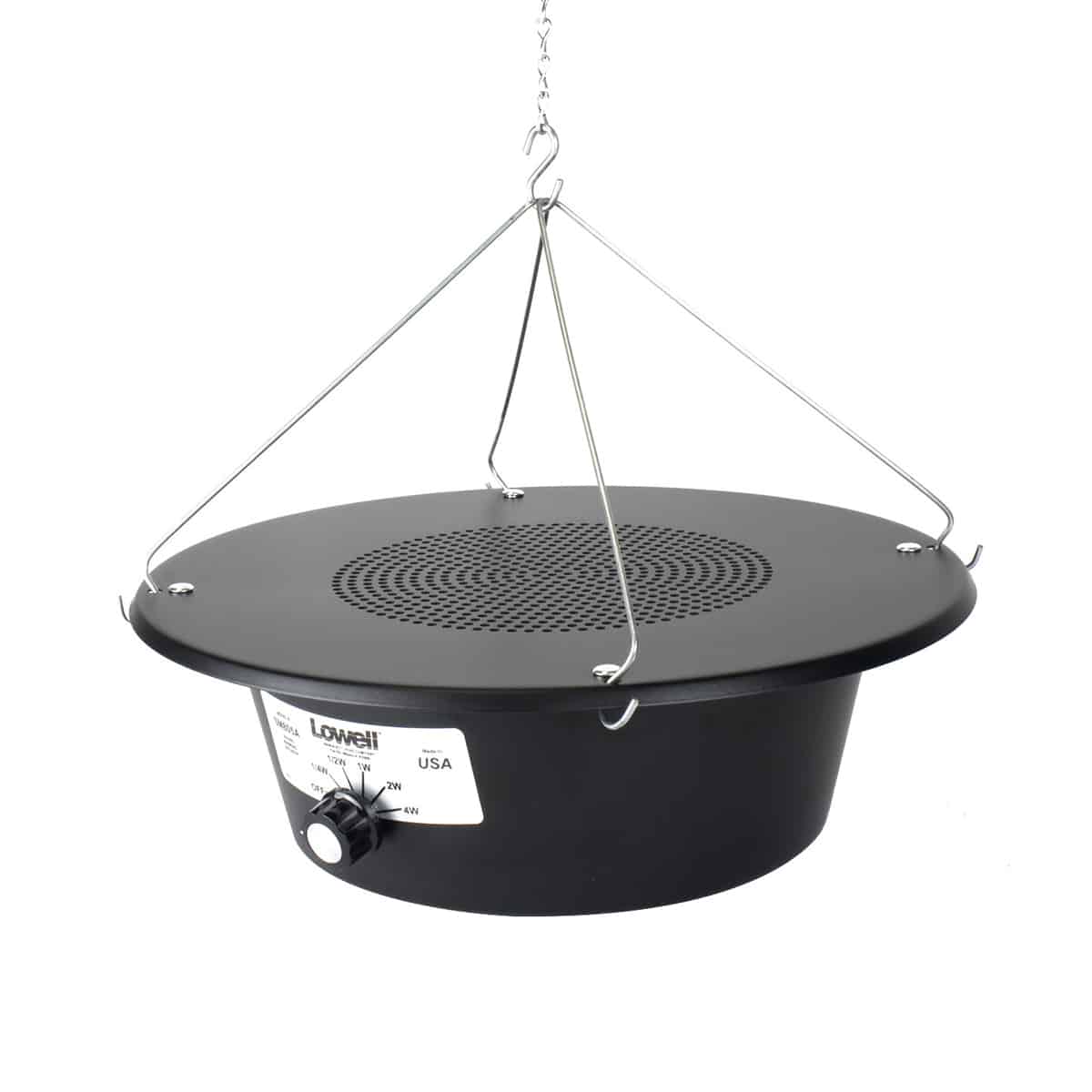

Mounting Aids: Removable wire hangers, S-hooks, and 4 ft. chain. Does not include rigging hardware.

Spec Sheet: 1184-SM805A
Instructions: Install-SM805A
Revit Models: SM Series (Model SM805A)

Made in the U.S.A. with global components
Certified U.S. steel
UL 1480A Listed
UL 2043 Suitable for use in return air plenum space
CSA 22.2 No. 205-12 for use in Canada

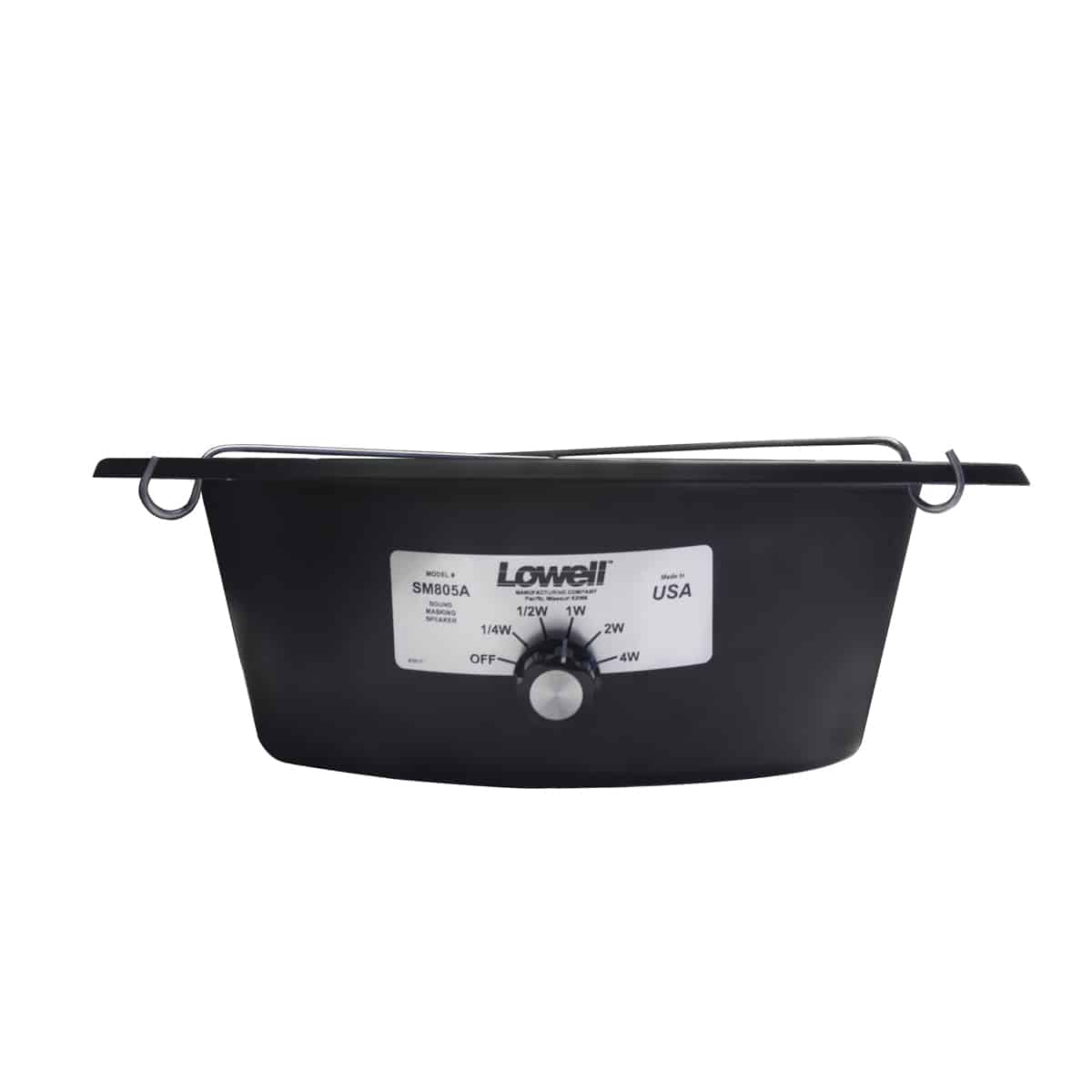

The sound masking speaker assembly for suspended ceiling installation shall be Lowell Model SM805A, which shall include an 8 in. 12W dual cone driver with 70V factory-wired transformer having primary taps at 4, 2, 1, .5, and .25 watts. The assembly shall be mounted in a 325 cu.in. steel backbox and grille with black finish. The unit shall include an externally accessible rotary switch to adjust tap selections. Speaker leads shall exit the backbox through a strain relief clamp on a single gang handibox cover on rear of backbox. The wire hangers shall be factory-mounted for upward sound dispersion. Suspension mounting shall be accomplished by connecting the wire hangers to S-hooks and chain (provided).

SMGA-5: Sound masking generator with amplifier, rackmount
SMG-1R: Sound masking generator, rackmount
SMG-1: Sound masking generator, compact
