8-Step Sequencer with Remote-in/out, Alternate Mode, Switch

Name: 8-Step Sequencer with Remote-in/out, Alternate Mode, Switch
SKU: SEQR-8
Price: 851.76 USD
Availability: InStock

Classic wire connections

$851.76 MSRP

Model SEQR-8

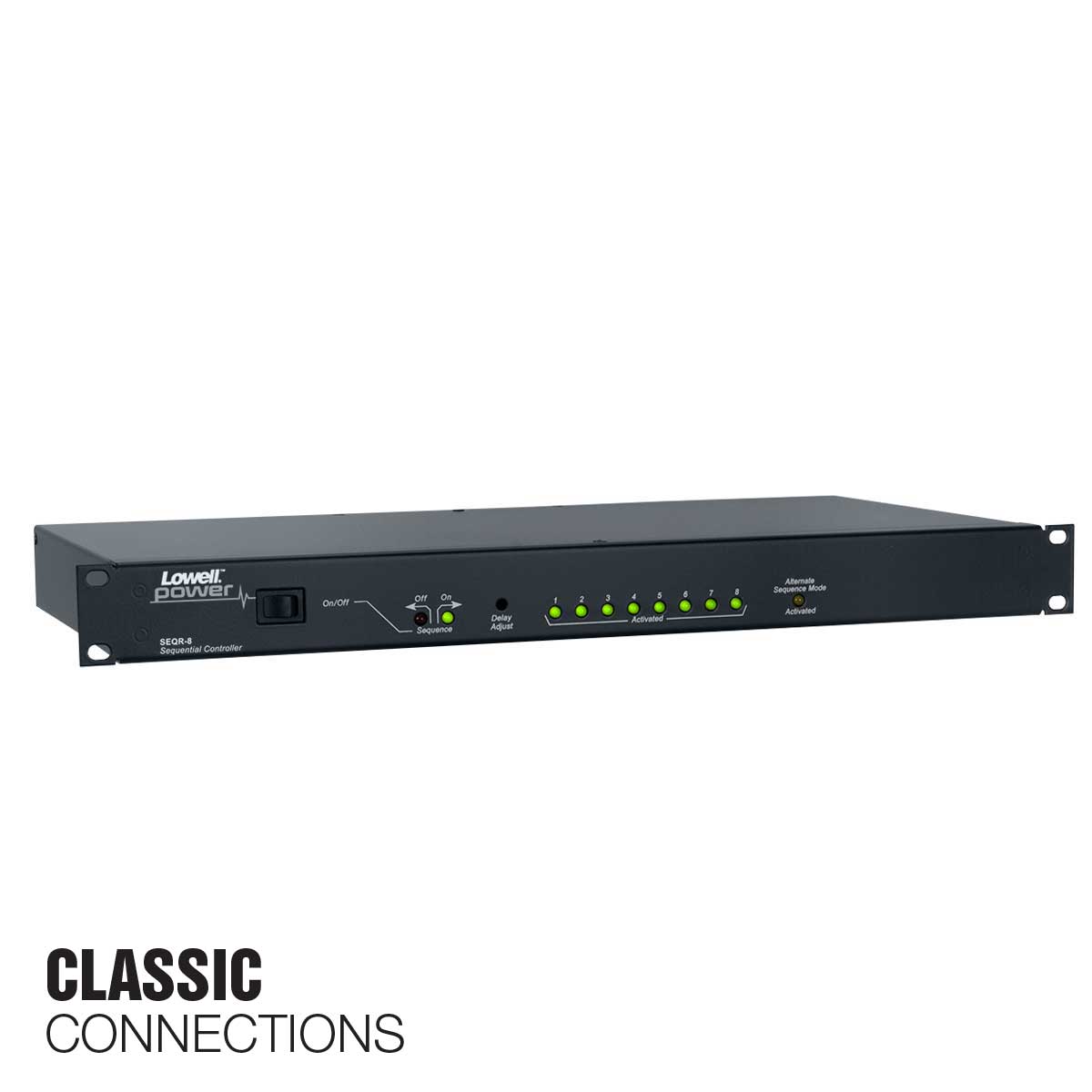

The 8-step sequencer in a 1U rackmount chassis provides time-delayed activation and deactivation of equipment. It's typically used in conjunction with Lowell’s Remote Power Controls (RPC Series) and switches (RPS Series) that feature classic connections. It's not compatible with pass-through connection devices. In addition to the full startup, this model includes an ASM Mode (Alternate Sequence Mode) to designate partial system startup, useful for small events like rehearsals.

Add to Favorites

Compare

Chassis: Steel rackmount chassis with black finish, 19.00 in. x 9.00 in. x 1.75 in. (1U)
Activation: Rocker switch

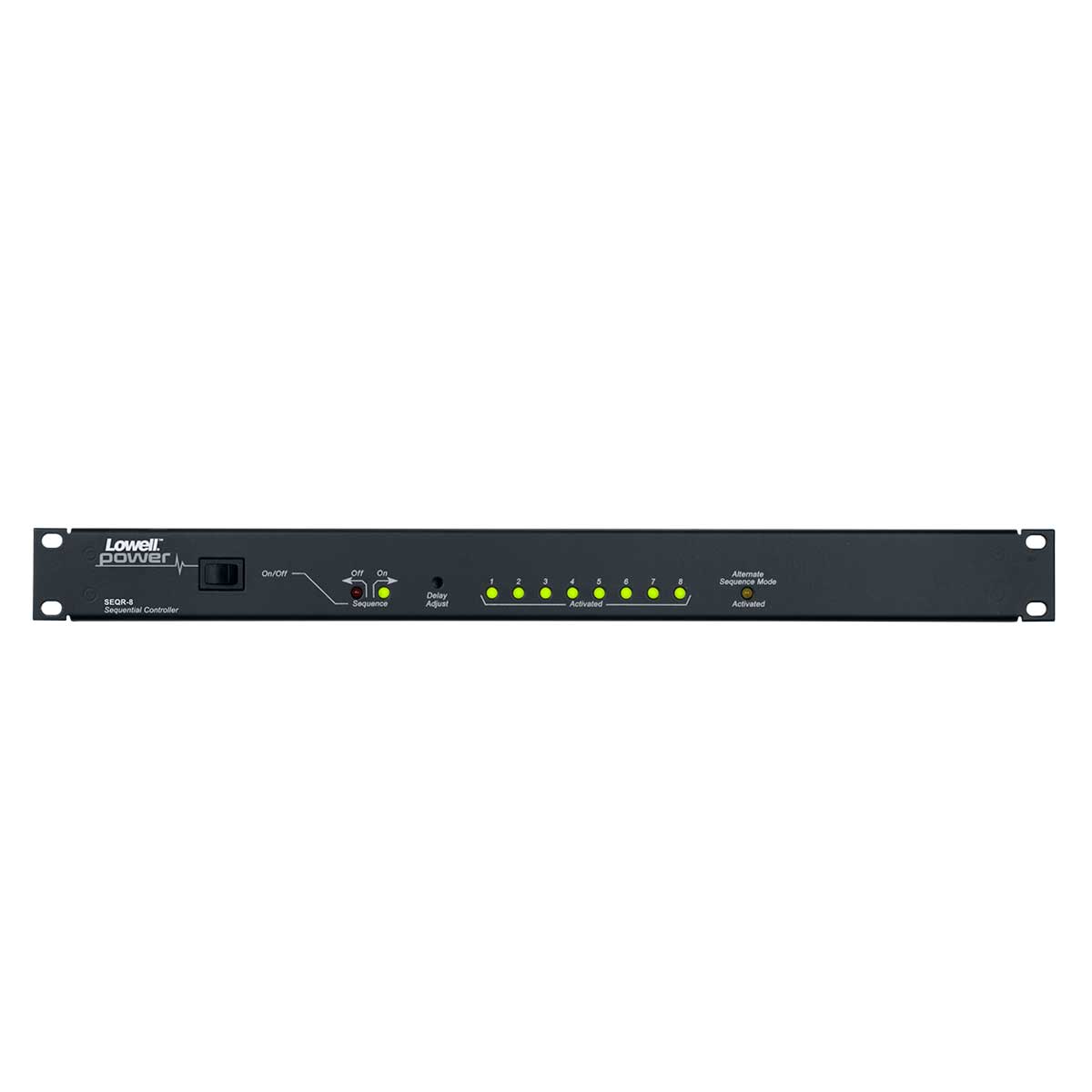

LED status indicators
Adjustable delay allows 0.5 to 10 seconds between steps.

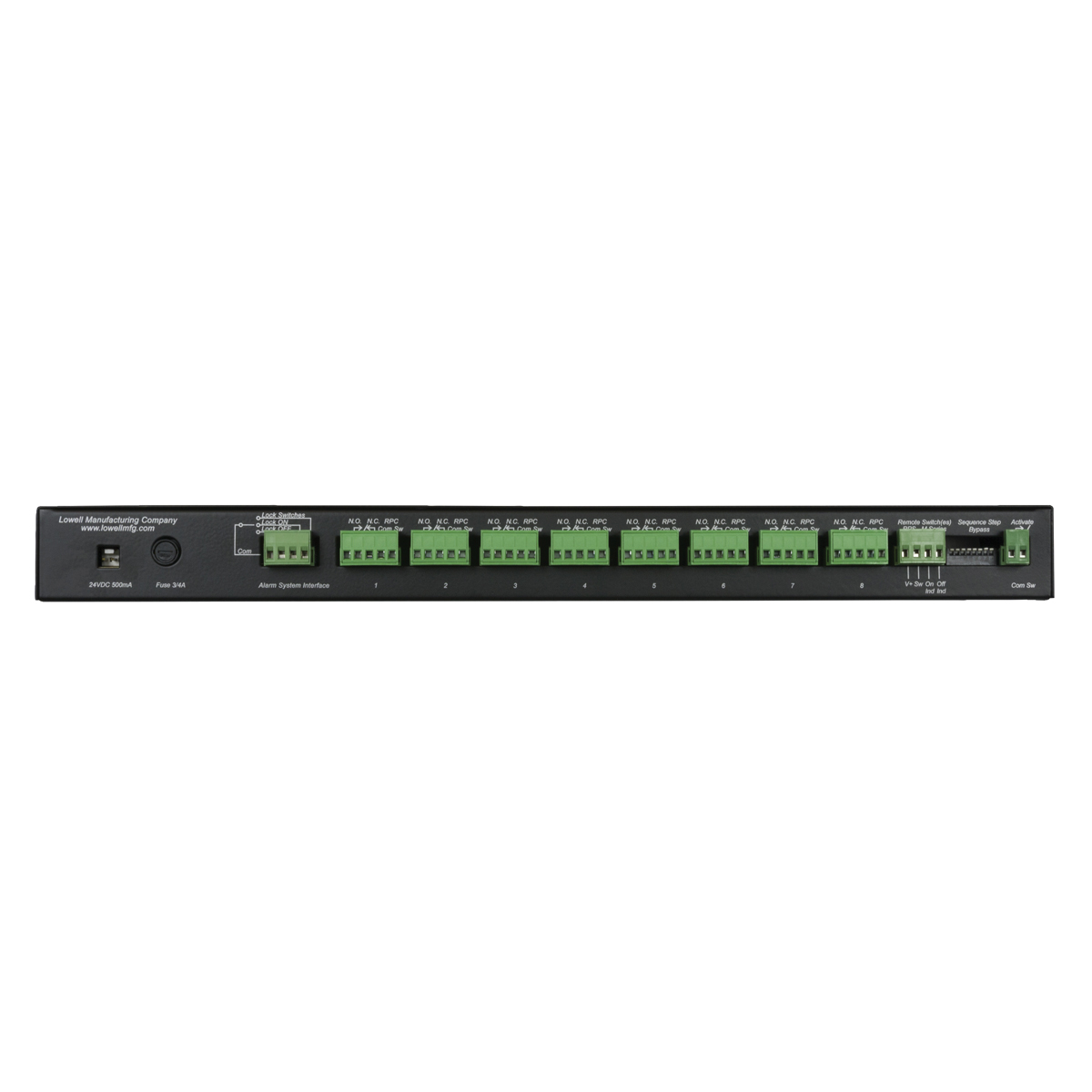

Eight rear-access barrier strip control outputs
Alternate Sequence Mode allows selected outputs to be bypassed for partial system operation (eg. rehearsals).
Alarm Interface: Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
UL Listed power supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112)

Spec Sheet: 1605-SEQR8

Made in U.S.A. with global components

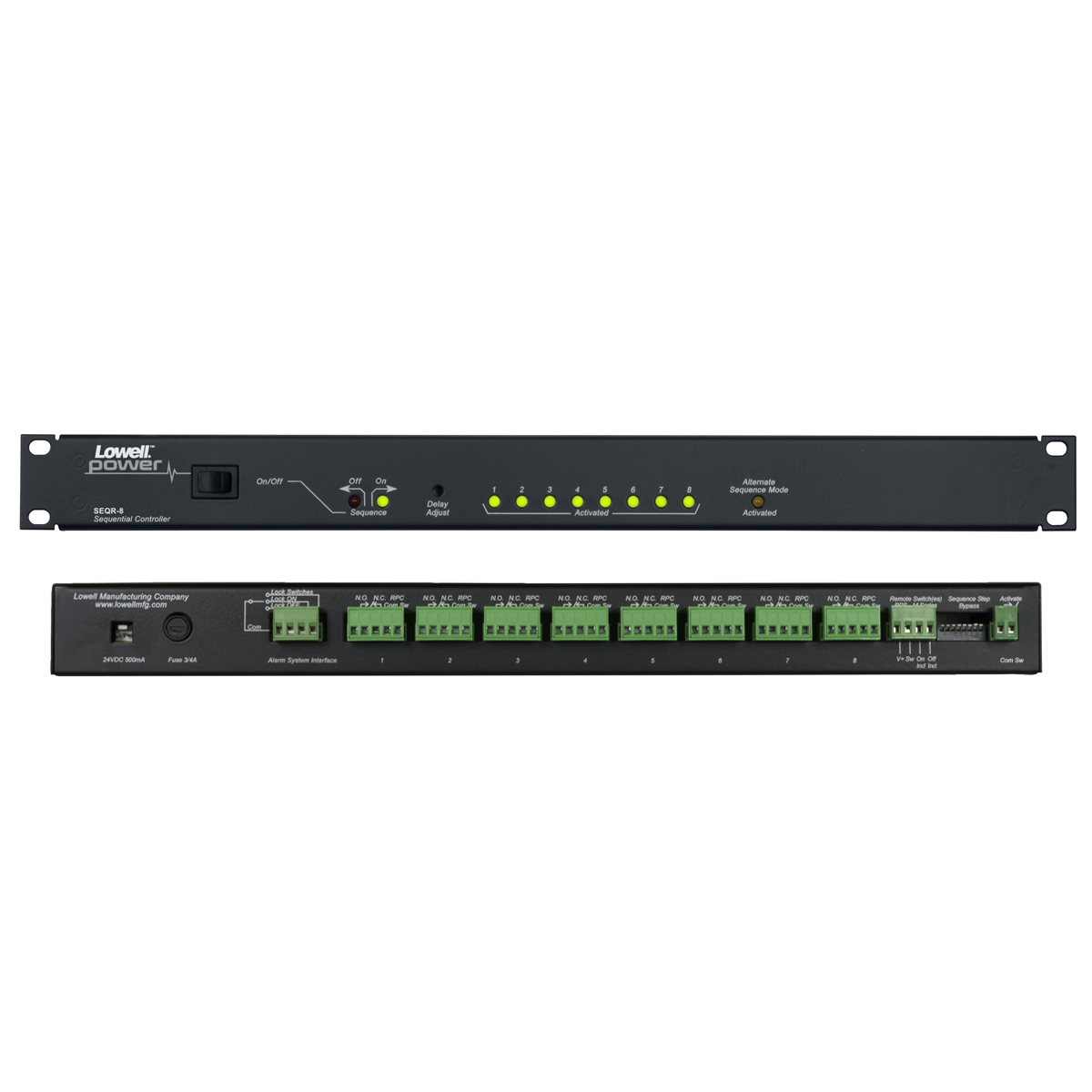

The device for sequentially activating equipment shall be Lowell rackmount Model No. SEQR-8 which shall feature a rocker activation switch, LEDs and front accessible trim pot for delay adjustment of sequence operation. Rear panel shall feature eight barrier strip terminals for remote power control units plus dry auxiliary contacts for accessory devices. It shall have a separate alarm interface connection and dip switch settings to bypass selected outputs. Equipment to be controlled shall be connected to the sequencer using 2-conductor wire and Lowell’s Remote Power Control __________ (RPC Series required, order separately). Rear panel shall include contacts to connect momentary switch ________ (RPSW-M, RPSB-M Series optional, order separately) for remote full sequence operation of sequencer and contacts for maintained style ASM switch ________ (RPSW-KP-ASM. RPSB-KP-ASM optional, order separately) to control alternate sequence operation.

RPC Series: Remote power controls.
RPS Series: Switches
