8-Step Sequencer with Remote-in/out

Name: 8-Step Sequencer with Remote-in/out
SKU: SEQ-8
Price: 414.40 USD
Availability: InStock

Classic wire connections

$414.40 MSRP

Model SEQ-8

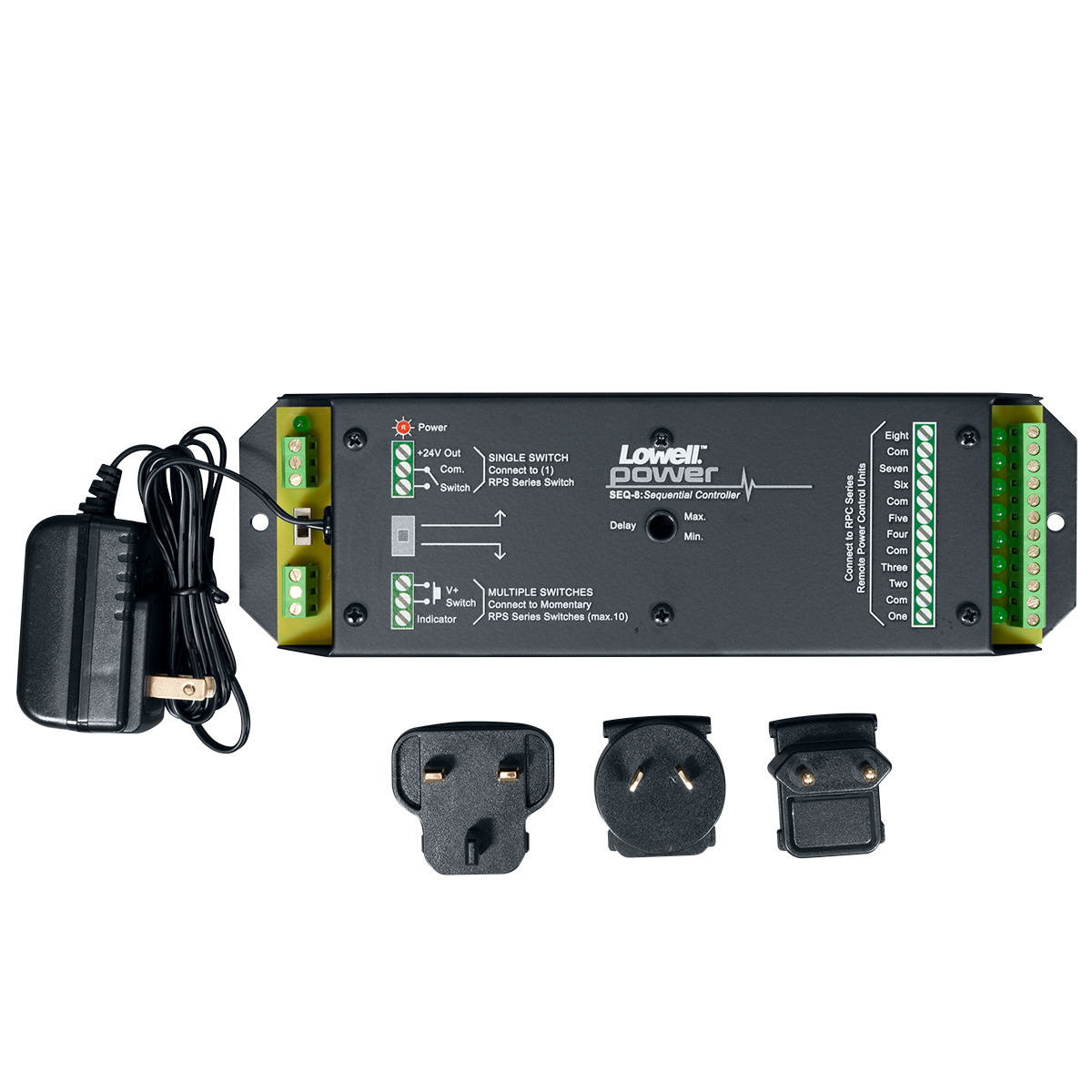

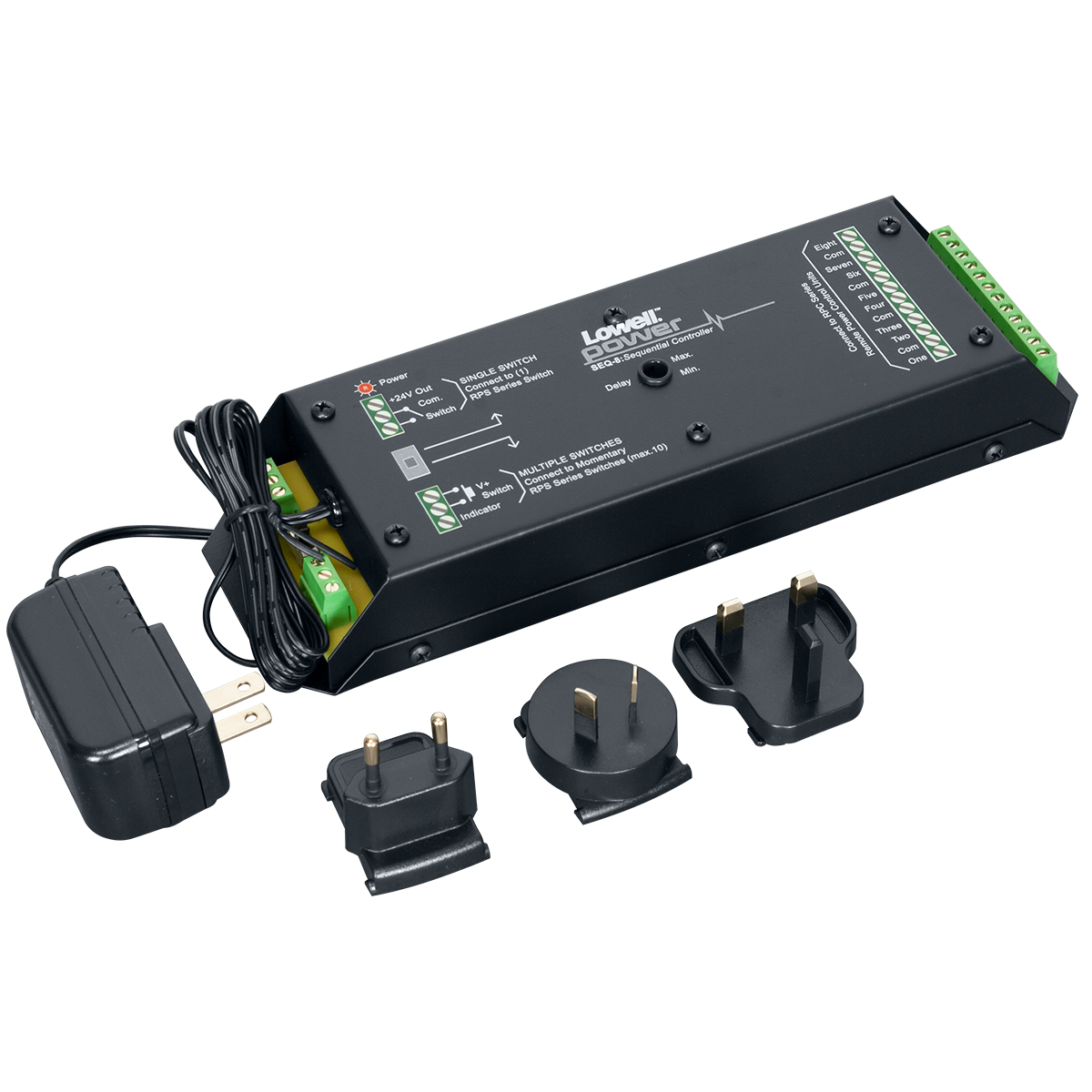

Compact low voltage eight step sequencer model SEQ-8 is designed to work with single or multiple external switches and low voltage remote power controls (RPCs) to provide time-delayed activation/deactivation of AC powered equipment on site or at remote locations. Sequencing is initiated by an external SPST switch or switches (order separately). Slide the bar to select single or multiple switch mode. Includes auxiliary 24VDC output (300mA max.) for use with remote indicators, and UL Listed power supply. Made in the U.S.A. with global components.

Add to Favorites

Compare

Eight delayed closure circuits activate in sequential order and deactivate in reverse order. Sequencing is initiated by a single remotely located SPST maintained contact closure switch or multiple SPST normally open momentary closure switches (order separately).
Chassis: 10.00 in. x 3.281 in. x 1.687 in.
LED status indicators
Slide switch allows selection of single or multiple switch modes.
Adjustable delay allows 0.5 to 10 seconds between steps.
Includes auxiliary 24VDC, 300mA (max) output for remote indicators
UL Listed power supply with input 100-240VAC, output 24VDC, 500mA, 6 ft. cord and four plug adaptors (NEMA 1-15, Schuko CEE 7/16, BS1362, AS3112)

Spec Sheet: 1603-SEQ8

Made in U.S.A. with global components

The device for sequentially activating equipment connected to remote power controls shall be Lowell Model No. SEQ-8, which shall feature barrier strip terminals for connection to remote power control Model No. RPC- ________. Contacts shall also be available for connecting remote switches (required) for activation.[ Applications with multiple switch actuation shall use momentary wall switch Model No. _____ or momentary rack panel switch Model No. ______. Applications with single switch actuation shall use maintained wall switch Model No. ___ or maintained rack panel switch Model No. _____.]

RPC Series: Remote power controls.
RPS Series: Switches (momentary, maintained)
