Rackmount Panel for Connectors

Name: Rackmount Panel for Connectors
SKU: N10P-ID-1
Price: 64.36 USD
Availability: InStock

With label pocket

$64.36 MSRP

Model N10P-ID-1

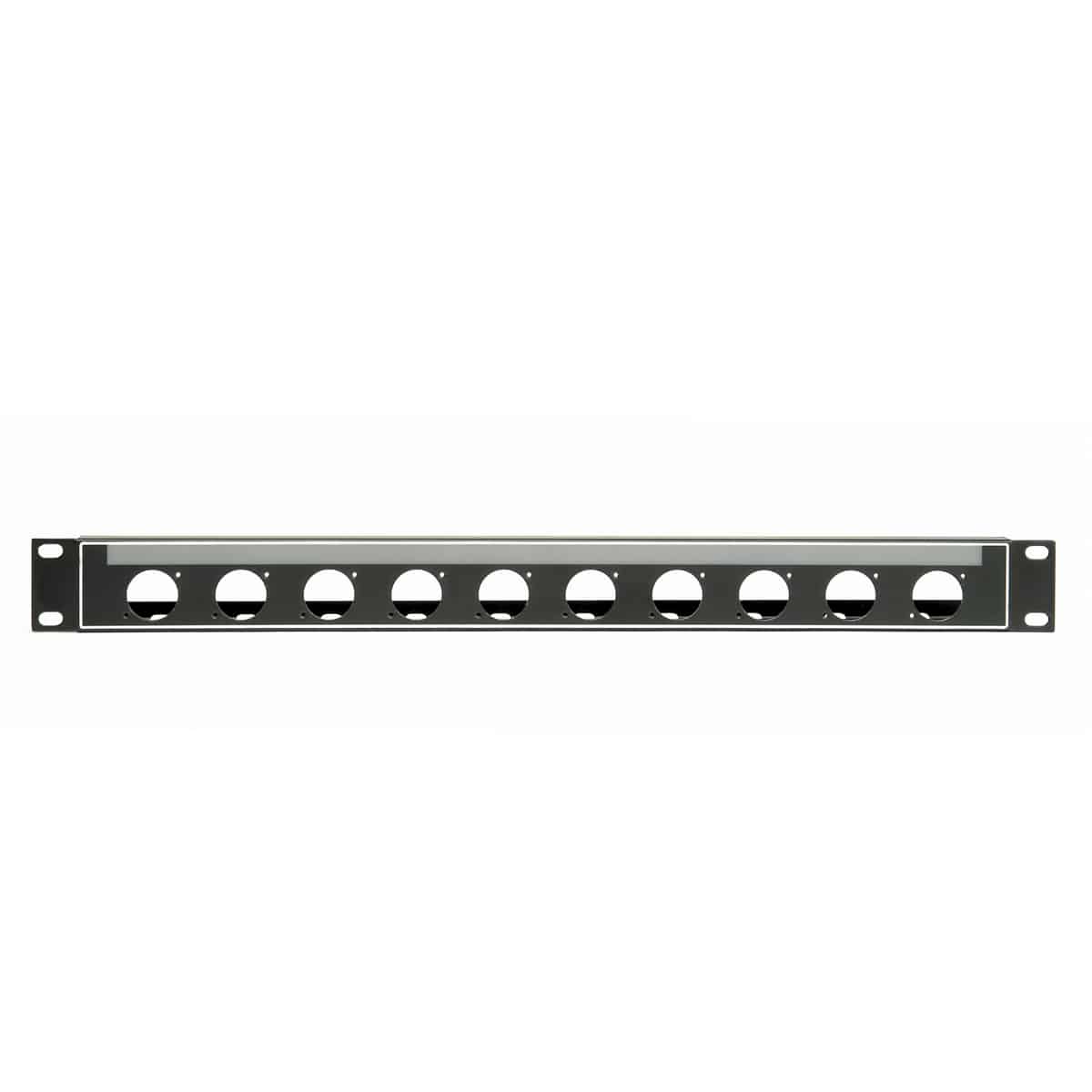

Rackmount panel with 10 punches to mount Neutrik® D or Switchcraft® E style connectors. The 1U panel features a plastic sleeve to hold a paper label.

Add to Favorites

Compare

18-gauge steel
0.625 in. flange
Polycarbonate overlay window for paper label (not included)
10 punches for Neutrik D or Switchcraft E connectors (not included)
Black and nickel-plated self-tapping screws
Black powder epoxy finish

Rack Space: 1U
Height: 1.75 in.
Width: 19.00 in.
Depth: 0.625 in. flange

Spec Sheet: 1068-N10PID1
Label Template: PocketID “Template C”

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

>The rackmount panel shall be Lowell Model N10P-ID-1. It shall be 19 in. x 1.75 in. (1U) formed steel construction with a 0.625 in. flange and punched holes made to mount up to ten Neutrik D or Switchcraft E Series connectors. The panel shall feature a smooth black semi-gloss powder epoxy finish and include a polycarbonate overlay window to hold a half inch high paper label. The unit shall include black and nickel plated self-tapping screws. It shall not include the connectors or paper for the label.

*Brands owned by Neutrik AG (Liechtenstein) and Switchcraft, Inc. (U.S.A.), respectively.
