Tile Bridge

Name: Tile Bridge
SKU: LUH-TBAR
Price: 23.90 USD
Availability: InStock

For Unihorn

$23.90 MSRP

Model LUH-TBAR

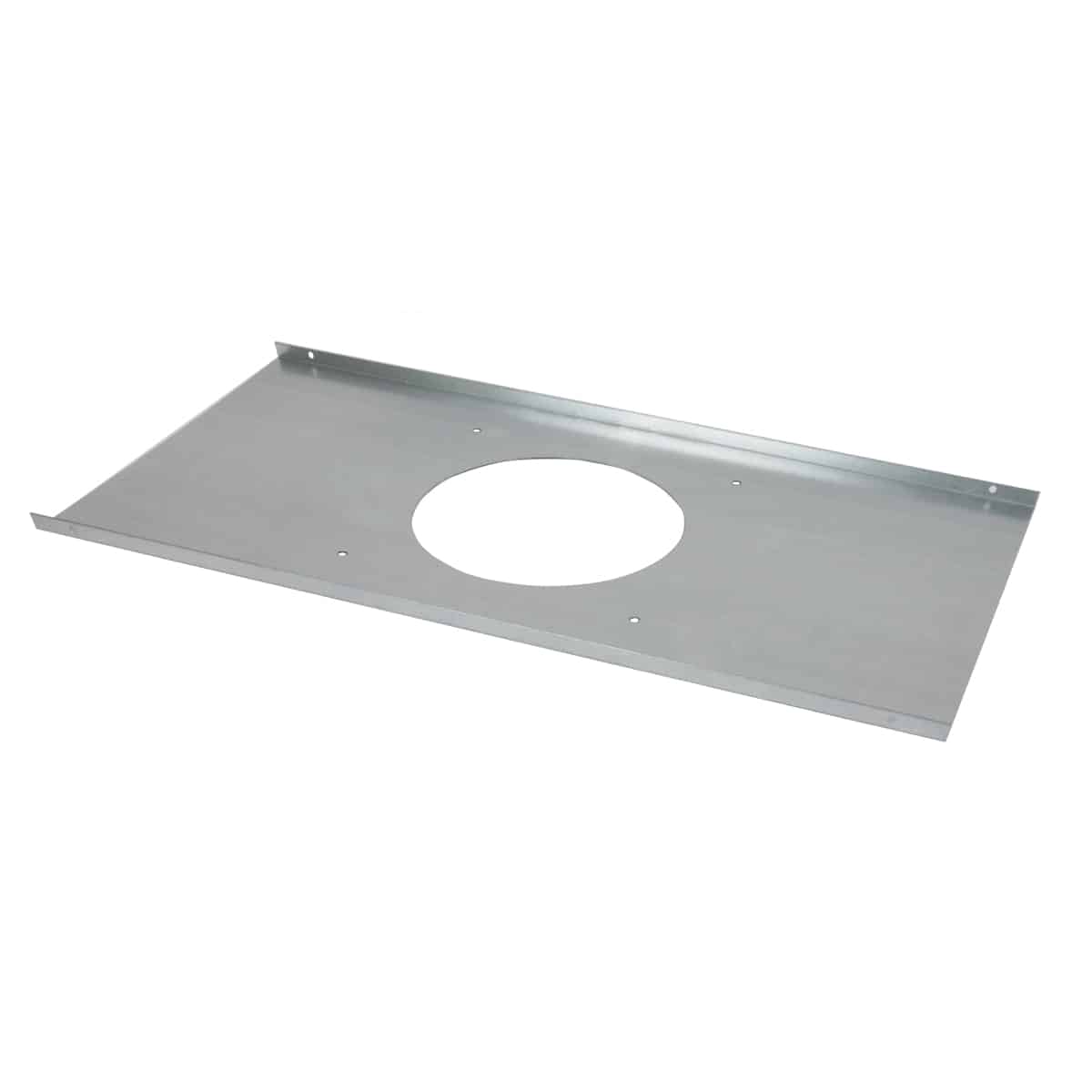

The LUH tile bridge is for use with Unihorn Model #LUH-15TA. A tile bridge is often required by local building codes for safety reasons and for aesthetics to reduce the potential of tile ceiling sag.

Add to Favorites

Compare

Material: 22-gauge galvanized steel
Size: 23.75 in. x 12.101 in.
Center Opening: 7.25 in. diameter

Spec Sheet: 1258-LUHTBAR

Made in the U.S.A.

The tile bridge shall be Lowell Model LUH-TBAR. It shall measure 23.75”L x 12.10”W and have a round center opening with a 7.25” diameter. It shall be formed from 22-gauge galvanized steel, engineered to support and distribute the weight of Lowell Unihorn model #LUH-15T or LUH-15TA (ordered separately), to the ceiling support system in a 2′ x 2′ or 2′ x 4′ suspended ceiling installation.
