Two-bay Rack w/Manual Tilt-down Door (Surface-mount, 3U+3U)

Name: Two-bay Rack w/Manual Tilt-down Door (Surface-mount, 3U+3U)
SKU: LTR-320S
Price: 905.80 USD
Availability: InStock

7"D x 24"W

$905.80 MSRP

Model LTR-320S

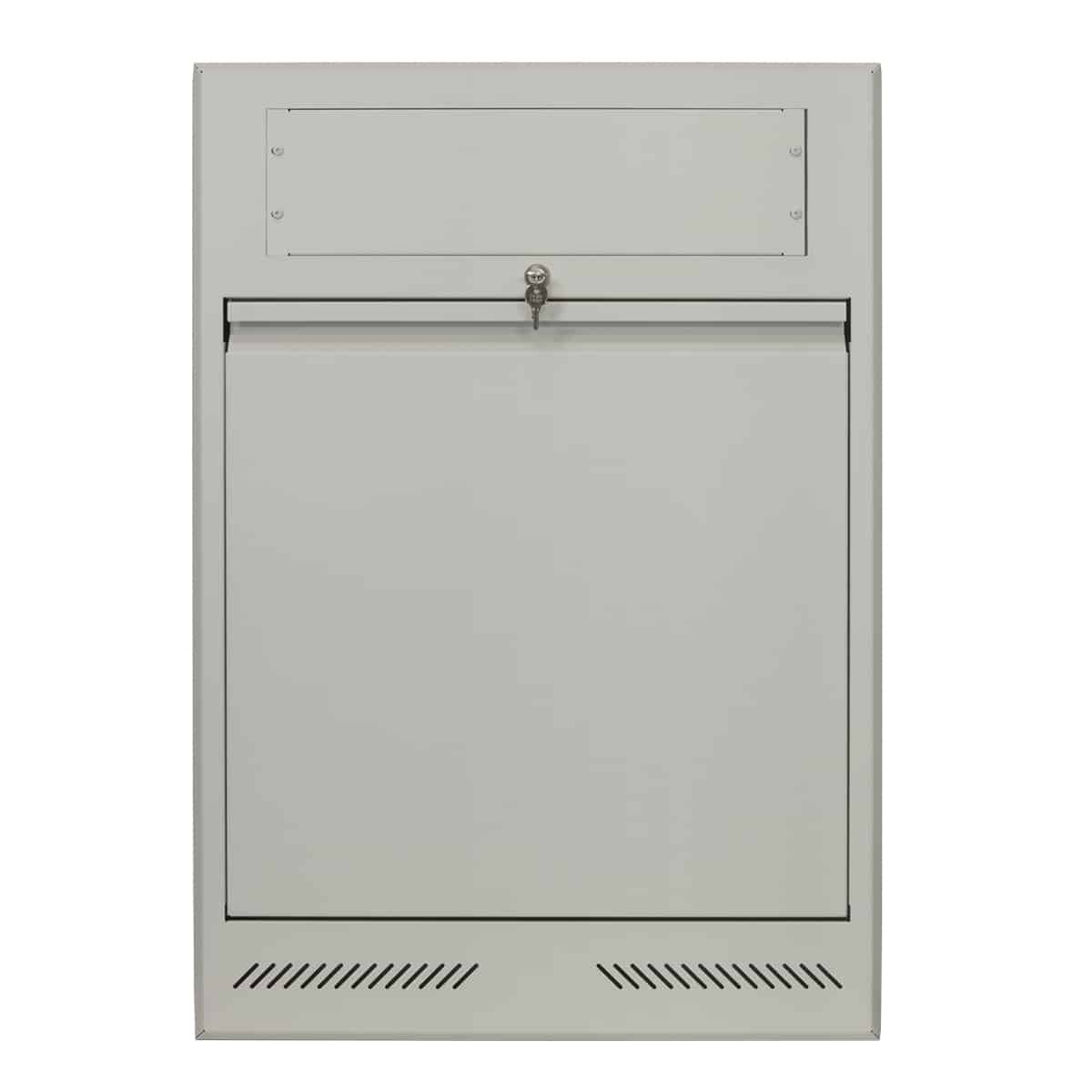

The surface-mount, tilt-open wall rack with Network Grey finish can mount amplifiers, small mixers, PA systems or consumer electronics. The 3U main compartment stores equipment vertically——just lift the integral handle to manually lower the bay to a positive stop for equipment servicing or operation. Remove the blank top panel to utilize the 3U pocket and add a control panel. Includes electrical box and DIN rail in base.

Add to Favorites

Compare

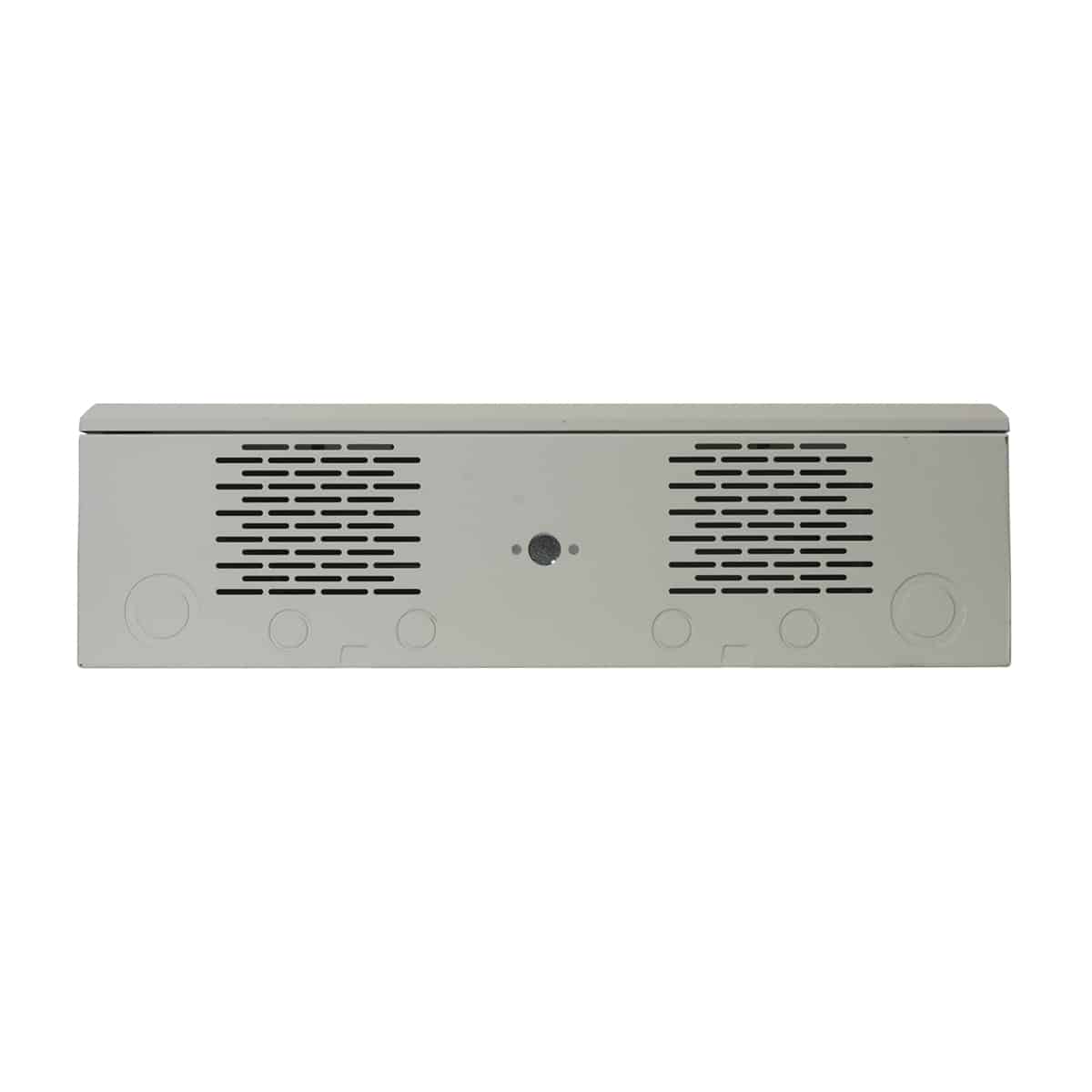

Surface-mount wall rack features steel construction with beveled edges and Network Grey finish, vents in front and base, and compound knockouts for cables (top and base).

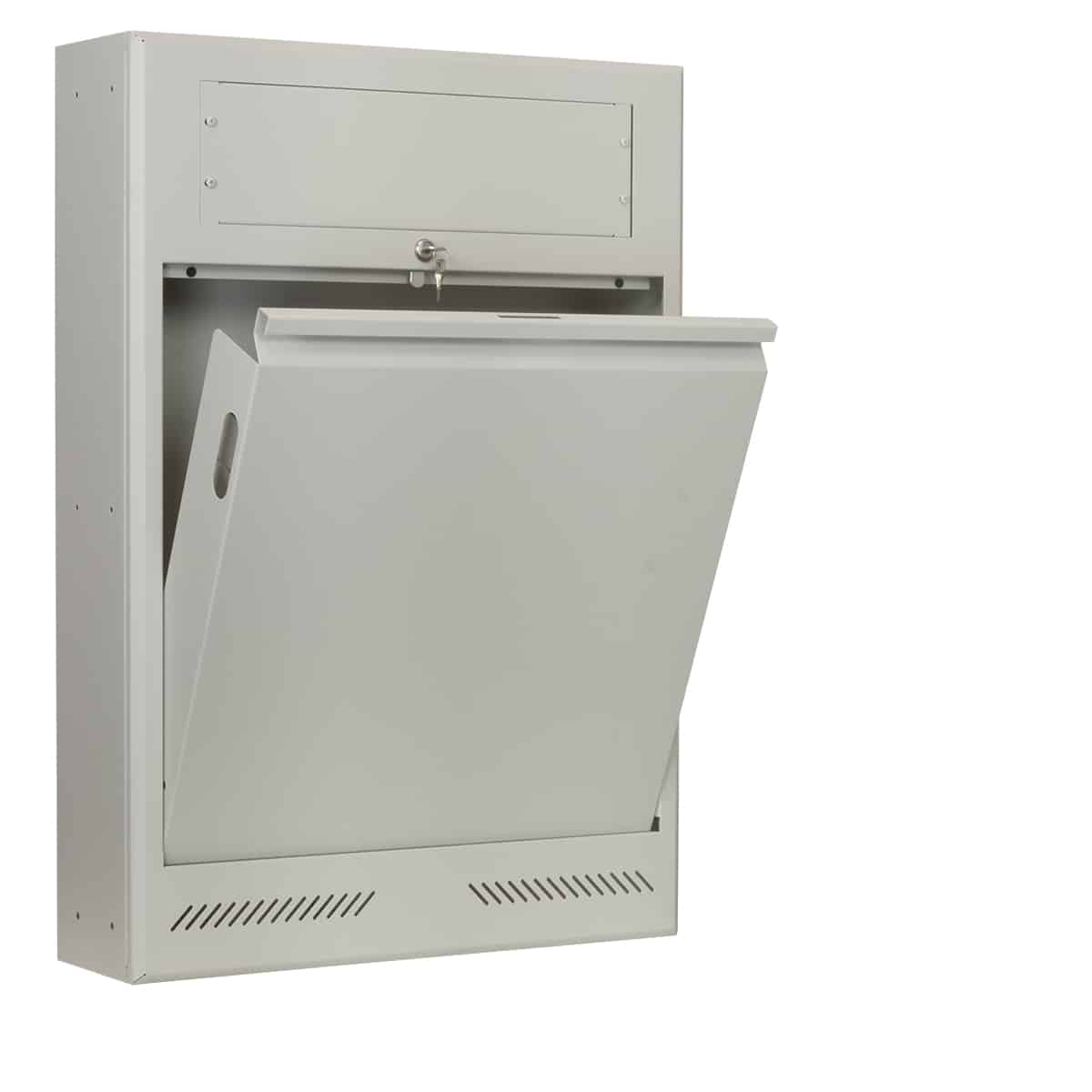

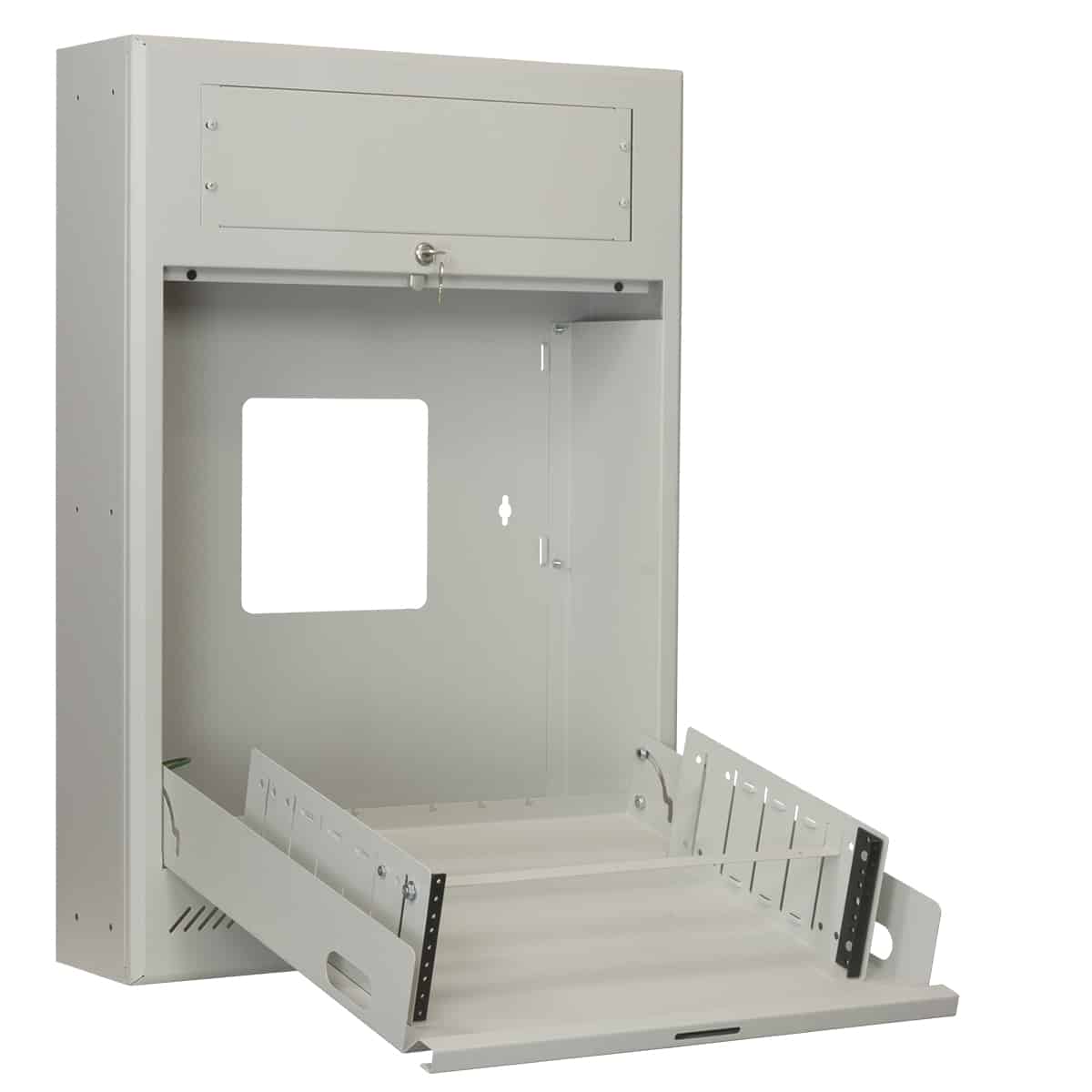

Main compartment tilts open 18 degrees for equipment operation, 105 degrees for servicing.
Includes integral handle, key lock, 1 pair adj. mounting rails, and a clamping bracket to secure equipment.
Factory-installed E.O. box and DIN rail in base.
Removable 3U top panel for accessories.
Pilot Point screws with captive washers

Rack Space: 3U (vertical)
Height: 35.00 in.
Width: 24.50 in.
Depth: 6.88 in. (usable first panel space max. 18 in., 2-3 spaces max. 20 in.)
Load capacity 100 lbs.

Spec Sheet: 1853-LTR320S
CAD drawings: LTR-320S

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The surface-mount wall rack with tilt-open operation shall be Lowell Model LTR-320S, which shall provide three rack units for vertical mounting of 19 inch wide equipment (useable depth — first panel space max. 18 in., 2-3 panel spaces max. 20 in.). Overall rack measurements shall be 35.00″H x 24.50″W x 6.88″D. The rack shall feature vents in front and base, compound knockouts in top and base, center key lock and integral handle for main compartment, removable 3U top panel, center cutout in back, clamping bracket to secure equipment, DIN rail and E.O. box in base, and one pair of adjustable mounting rails tapped 10-32. The assembly shall have a load capacity of 100 lbs. The rack shall be manufactured in the U.S.A. with certified U.S. steel, beveled edges, and Network Grey wrinkle powder epoxy finish.

Hardware
Panel for up to 8 devices: D8P-ID-3
Panel for up to 9 devices: D9P-ID-3
