1×2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver

Name: 1x2 Lay-in-tile Ceiling Speaker with 8 inch Dual Cone Driver
SKU: LT-810
Price: 93.90 USD
Availability: InStock

BKG MUSIC & PAGING – includes driver, grille

$93.90 MSRP

Model LT-810

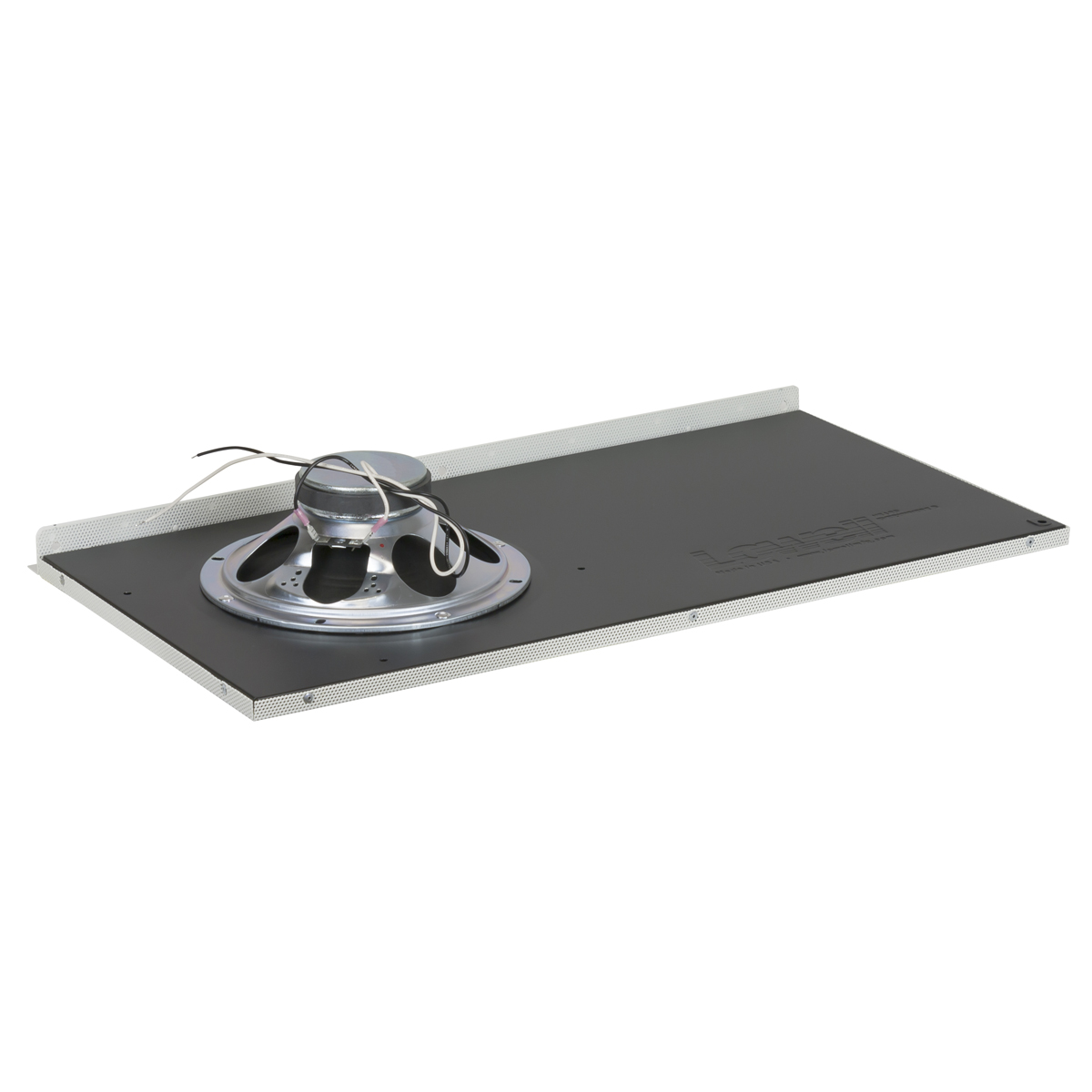

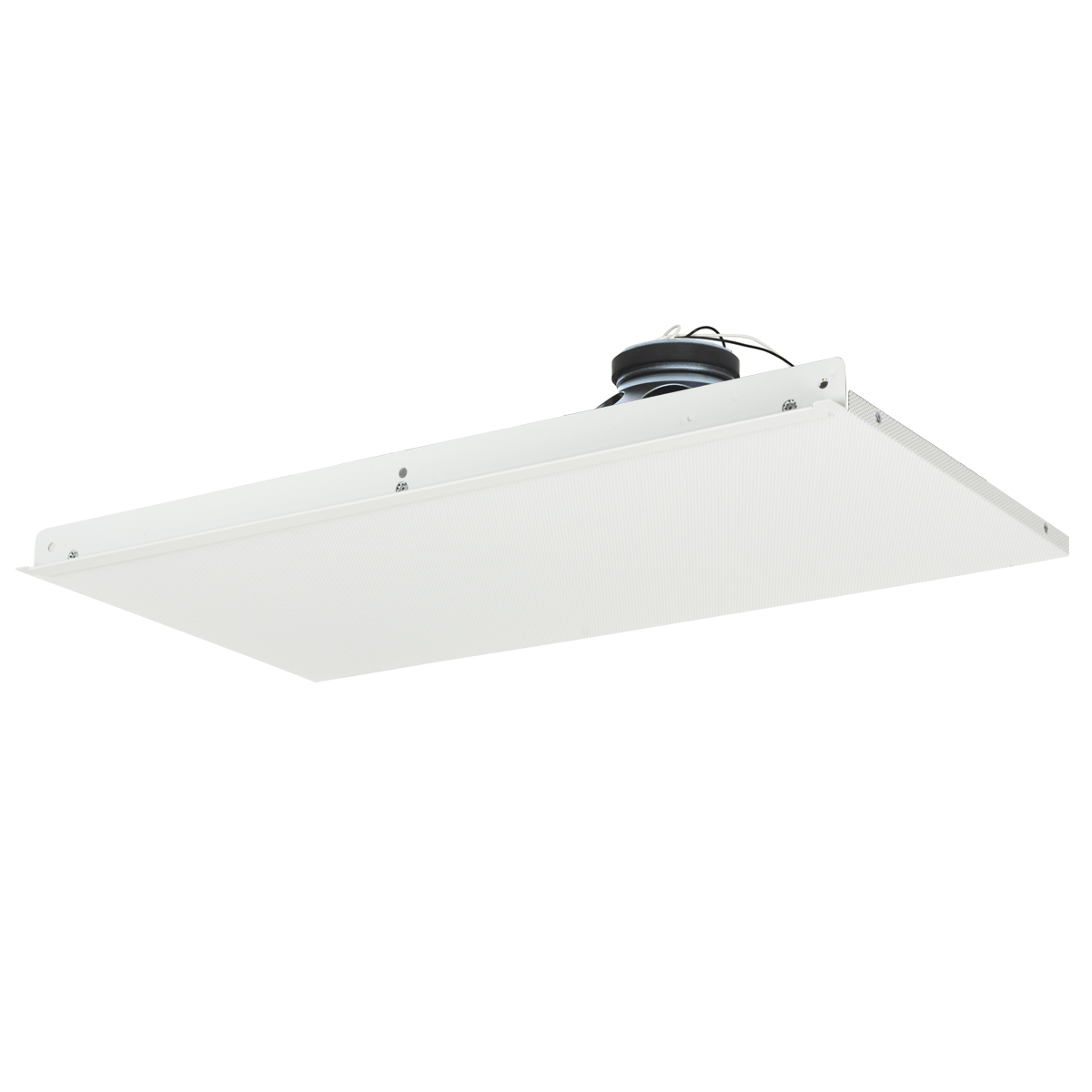

Lay-in tile paging speaker for suspended tile ceilings features 8 in. 15W dual cone driver and fine perforation grille with subplate. The patented 1x2 assembly with integral T-bar quickly replaces half a non-tegular (2x2) ceiling tile. U.S. patents 7120269, D467579, 7643647.

Add to Favorites

Compare

Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M.
Grille with Subplate (1 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.
Mounting Aid: Patented integral T-bar supports neighboring non-tegular ceiling tile. Restraint tab and hole for two-cable code compliance (cables not included).

Spec Sheet: 1047-LT810
Revit Models: LT Series (Music/Paging)

Made in the U.S.A. with global components.
Note: This model is not third-party listed

The lay-in tile paging speaker system for suspended tile ceilings shall be Lowell Model LT-810. The 1’x2′ system shall replace half of a non-tegular 2’x2′ ceiling tile or one-fourth of a non-tegular 2’x4′ ceiling tile and shall include an integral T-bar to support adjacent cut ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 in. dual cone with a power rating of 15W and dispersion of 95 degrees conical. It shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M.
