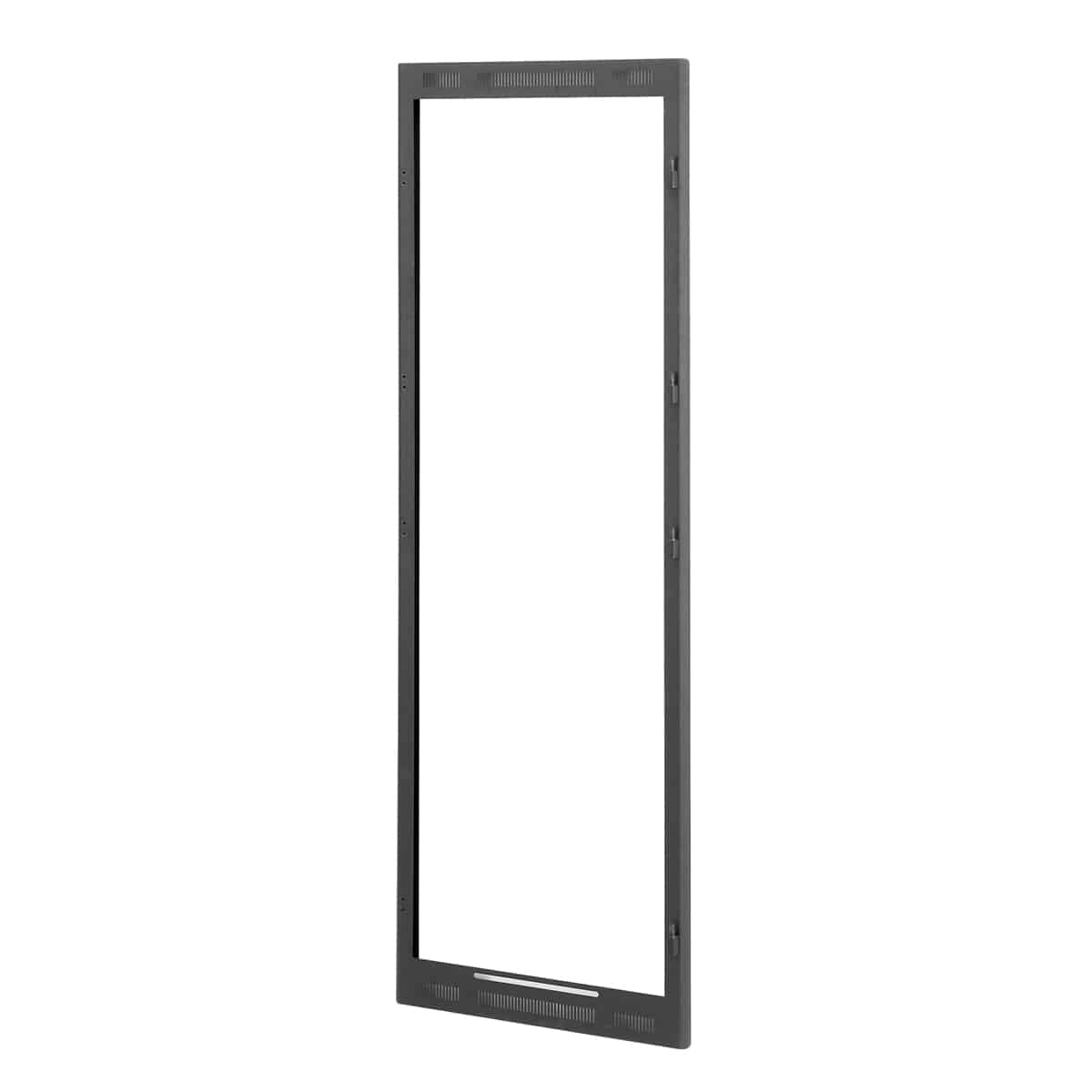

Dual Door Frame

For 23"W Racks

$207.60 – $298.80 MSRP

Model LDDF

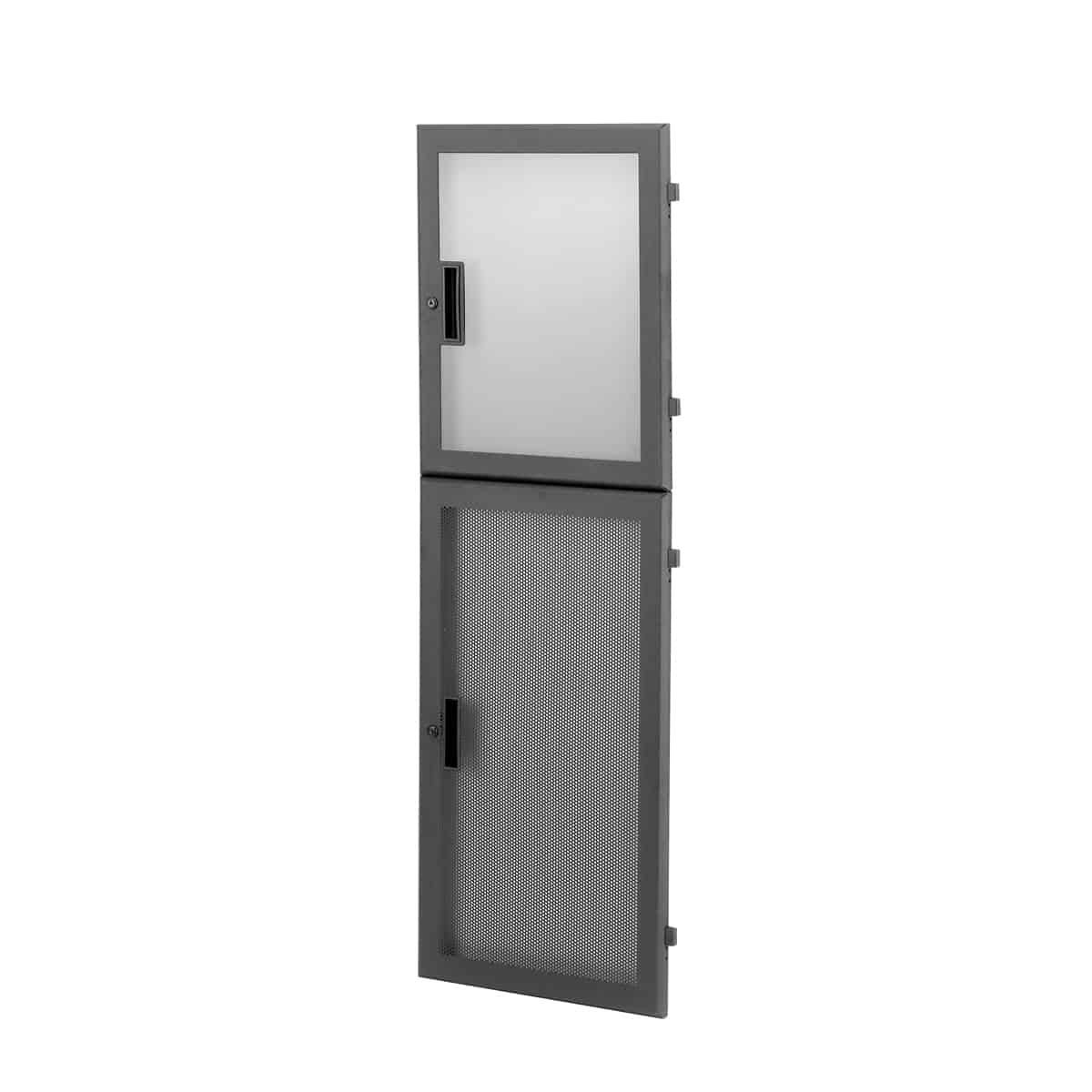

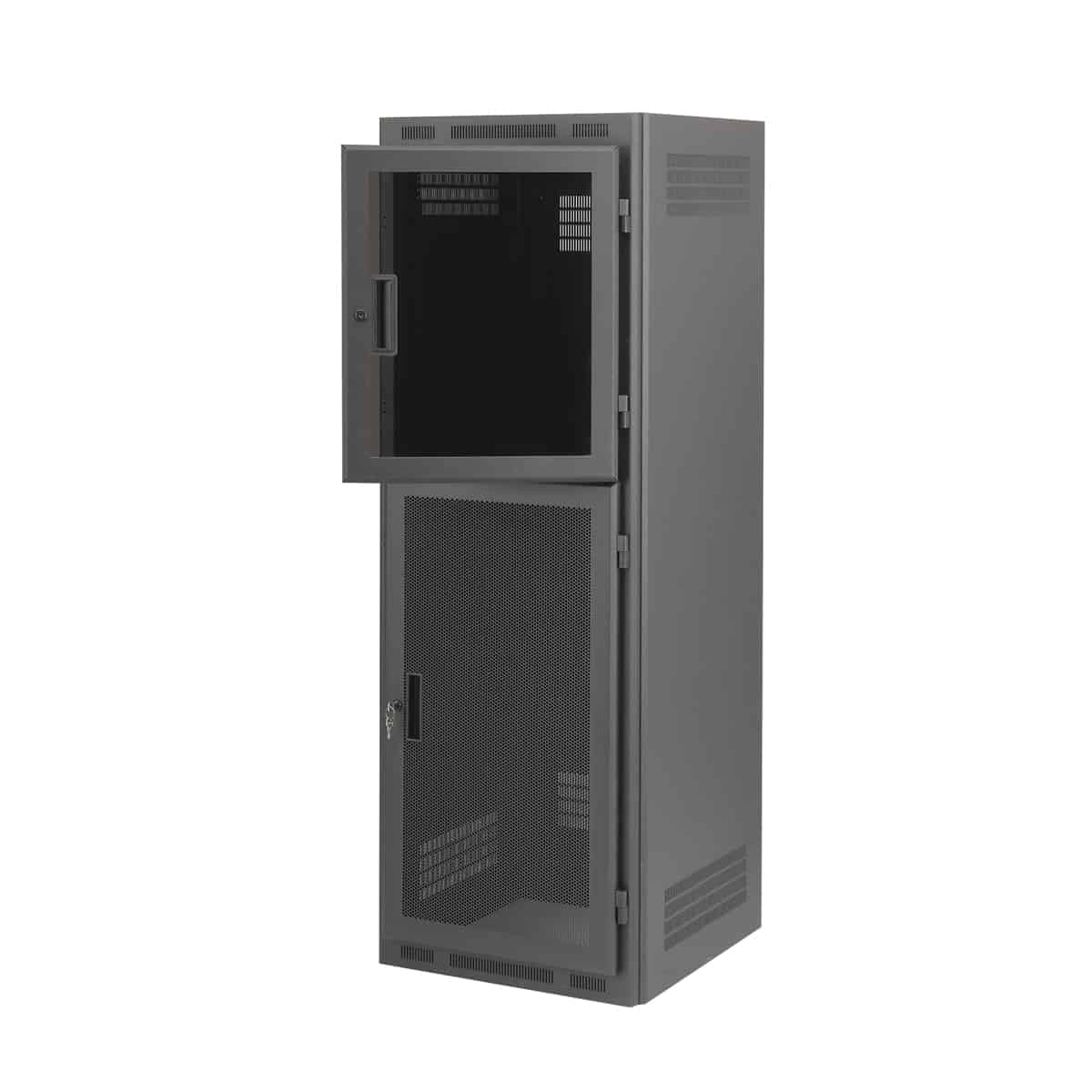

The dual door rack frame is made to fit most Lowell 23"W racks. The frame can be used to mount a single short door to secure some mounted equipment, while allowing open access to other equipment. It can also be used to mount two short doors with different key locks for separate security within the same rack. Order doors separately.

Rack Units

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Frame mounts without using panel mounting space.
Included security bracket mounts to top of lower door projecting into rack within 1/4 inch of mounting rails thus securing contents of the lower section when the top door is open.
Security bracket is factory-installed when the LDDF frame is ordered with the rack, but it can also be field-installed with two screws
Equipment with protruding knobs may need to be re-positioned to accommodate the security bracket.
Order door(s) separately

Spec Sheet: 1025-LDDF
Frame Installation (optional alternate key lock): 18352-KeyAssm

Made in the U.S.A.
Certified U.S. steel

The rack shall be equipped with dual-door frame model __________, which will accept 1 or 2 short surface-mount front doors to separate and/or secure access to mounted equipment. The surface-mount steel frame shall extend 1″ from the rack. It shall attach to factory-installed threaded inserts on the rack, without drilling. Inserts shall be located on right and left to accommodate mounting on either side. The dual-door frame shall be steel with black powder epoxy paint. The doors and an alternate key lock, if needed, shall be ordered separately.

LFD Series: Front door
LLKRD: Key and lock assembly with alternate lock
