Recessed Enclosure for 8 inch driver

Name: Recessed Enclosure for 8 inch driver
SKU: IX810-EL
Price: 104.96 USD
Availability: InStock

For torsion grille

$104.96 MSRP

Model IX810-EL

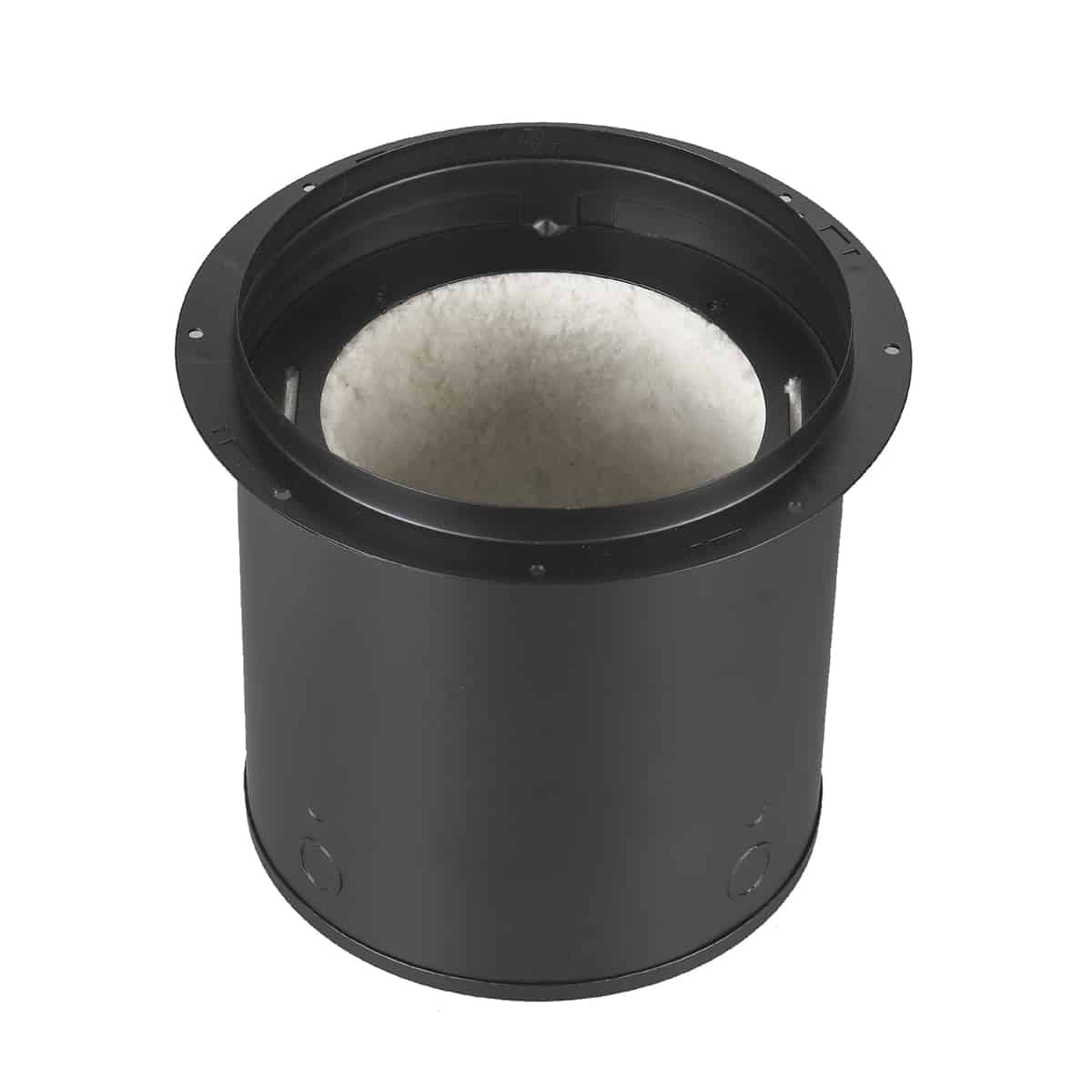

Acoustic enclosure direct mounts a standard 8 inch speaker, which allows a heavier speaker to be used with a non-loadbearing torsion grille. The larger-than-average volume and acoustic treatment allow an 8 in. speaker to operate at optimum levels for improved low frequency response. The extended lip is ideal for sheetrock or plaster ceilings where the backbox is installed ahead of the speaker. Note: Discontinued style, available while supplies last.

Add to Favorites

Compare

Material: Welded heavy gauge unitized steel
Finish: Black
Diameter: 10.06 in.
Depth: 10.06 in.
Volume: 0.405 cu.ft.
Acoustical Treatment: Undercoated, 1.5 in. batting
Flange Type: Extended lip (recessed for driver)
Mounting Aids: Internal bracket to field-mount optional transformer, torsion slots, knockouts
For Grille Type: Torsion

Spec Sheet: 1345-IX810EL

Made in U.S.A.
Certified U.S. steel

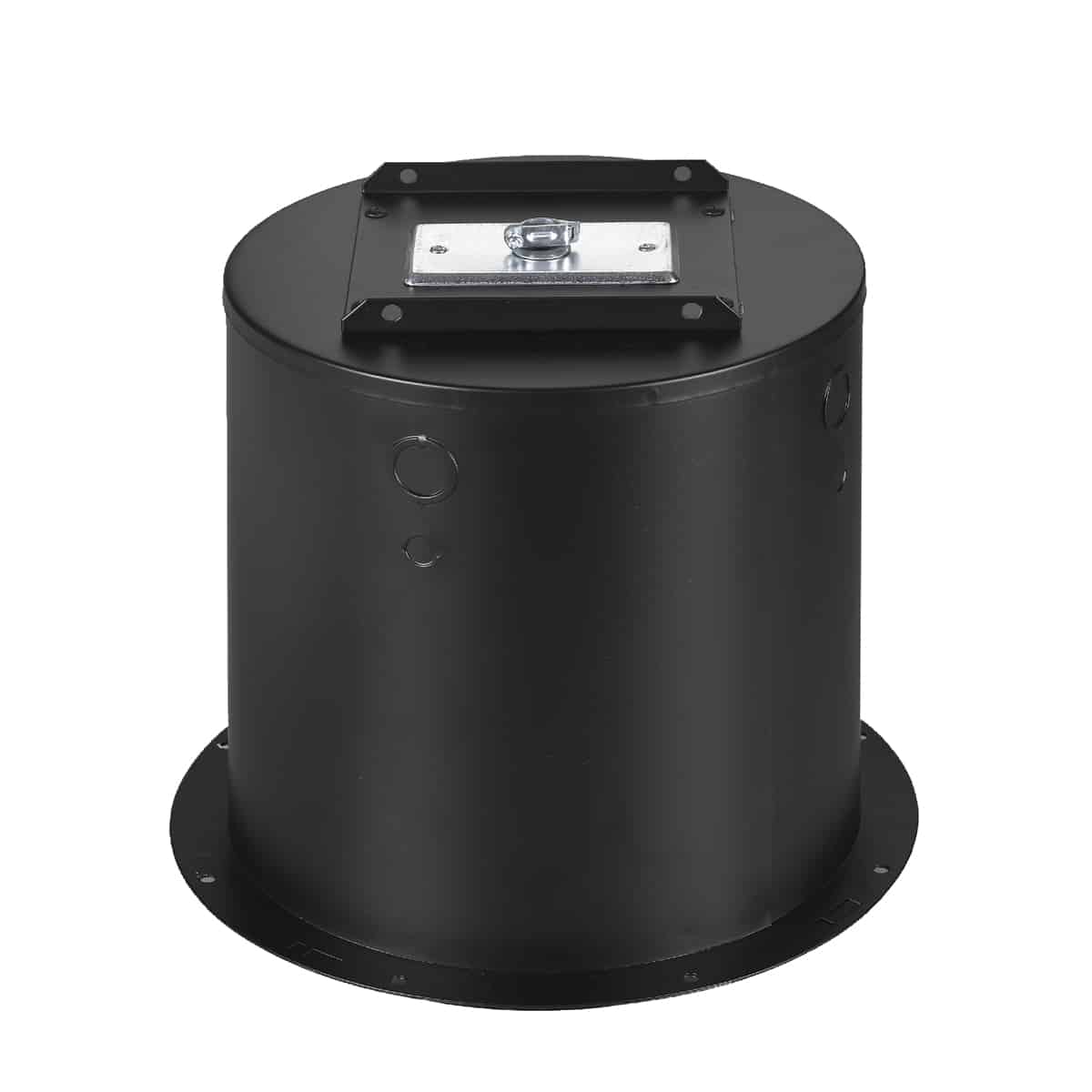

The recessed backbox shall be Lowell Model No. IX810-EL. It shall be made from 22-gauge steel, undercoated and lined with 1.5 in. thick acoustic batting to eliminate acoustic and mechanical resonance. It shall have an overall depth of 10.06 in., a recessed flange to direct-mount an 8 in. speaker and an extended lip that will extend through ceiling material .688 in. It shall have four 0.5–0.75 in. knockouts, four 0.5 in. wire knockouts, and an internal transformer bracket accessible through a rear mounted plate with a separate 1-gang wire access panel and metal cable clamp. It shall be finished in black powder epoxy paint.

Torsion Grilles: CN-8M, WB-8T
Drivers: 8 inch
Tile Bridge: LBS8-R1
