Multi-output Power Supply

Name: Multi-output Power Supply
SKU: DCP-1212
Price: 843.44 USD
Availability: InStock

16-outputs (12VDC)

$843.44 MSRP

Model DCP-1212

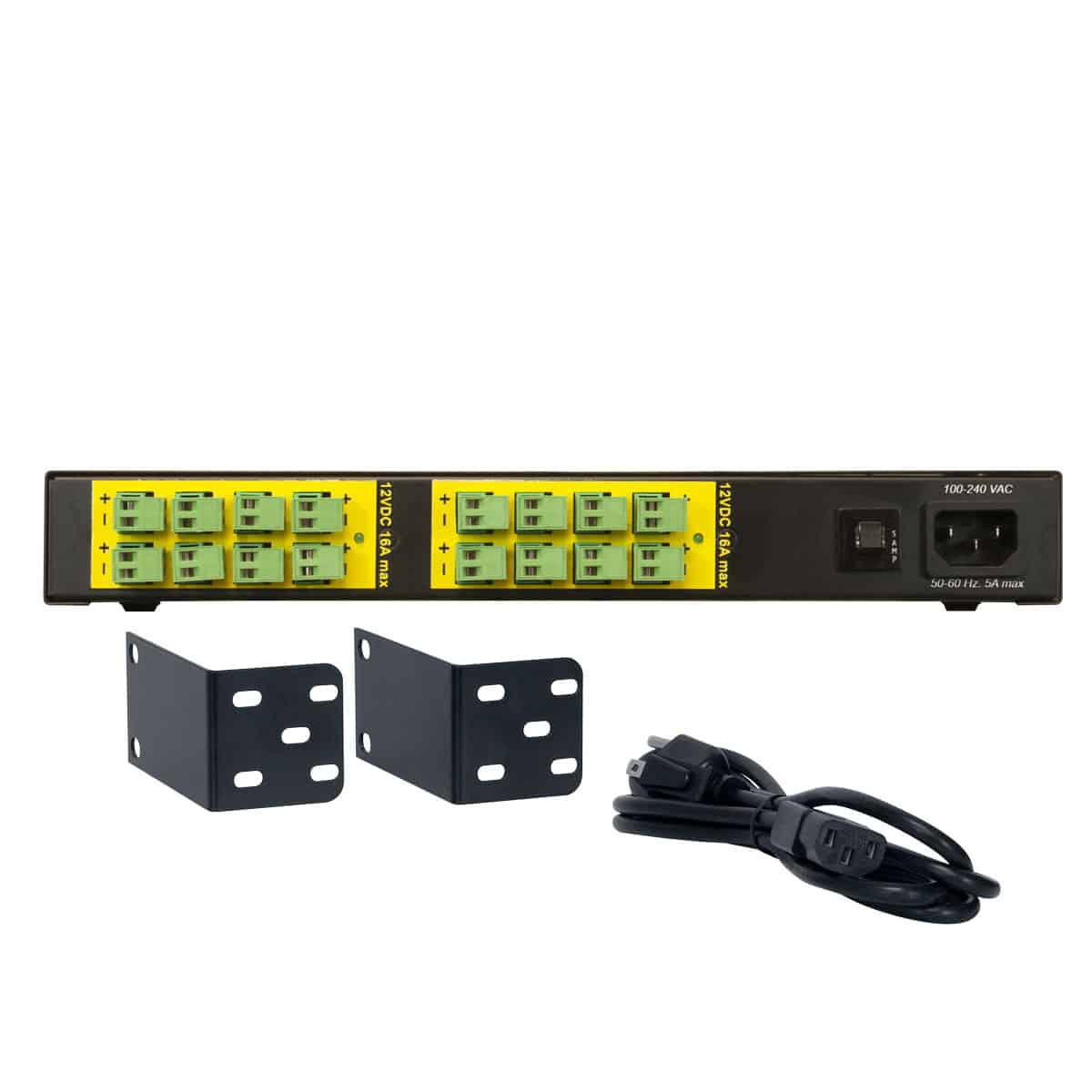

This space saving power distribution device is designed for continuous operation and provides two banks of voltage outputs (12VDC) in a single unit. It's an ideal format to streamline installations that use DC powered devices. The 12-in. x 6-in. chassis includes a fan and universal input (100-240VAC, 50/60Hz), C14 power inlet, and a 6-ft. detachable power cord (C13 to NEMA 5-15P plug). Each output is protected by a PTC fuse with auto reset overload protection. Includes (16) detachable voltage output terminals and mounting brackets. ETL Listed. Made in the U.S.A. with global components.

Add to Favorites

Compare

Each unit features 2 voltage banks, color coded for easy identification of outputs. Two banks of eight outputs (12VDC 16A)
Each output is protected by PTC fuse with auto reset for overload protection.
LED on each voltage bank indicates power status (active/inactive).
Detachable voltage output terminals (16) with quick-install screw terminal connectors.
Universal Input: 100-240VAC, 50/60Hz
6 ft. power cord (C13 to NEMA 5-15P plug)
Chassis: 12 in. x 6 in. x 1.625 in. (5 lbs.)
Universal mounting brackets (wall, rack, shelf)

Spec Sheet: 2148-DCP1212

ETL Listed (UL60065)
Made in the U.S.A. with domestic and international components

Power distribution shall be Lowell model DCP-1212, which shall feature a 12″ x 6″ x 1.625″ steel chassis with black finish and universal mounting brackets for shelf, wall, or rackmount. The unit shall feature two voltage modules with 8 outputs each (16 total). Voltage outputs shall be Euro style output terminals (12VDC 16A). Each output shall be protected by an auto-reset PTC fuse. The unit shall feature universal input (100-240VAC 50/60Hz) with C14 power inlet compatible with international standards. It shall include a 6 ft. power cord (C13 to NEMA 5-15) and variable speed fan. The power distribution shall be made in the U.S.A. with global components.
