6"D outdoor vandal-resistant enclosure, CB86-SGVPO

Vandal-resistant Enclosure (outdoor)

Name: Vandal-resistant Enclosure (outdoor)
SKU: CB86-SGVPO
Price: 85.00 USD
Availability: InStock

For screw-mount grille

$85.00 MSRP

Model CB86-SGVPO

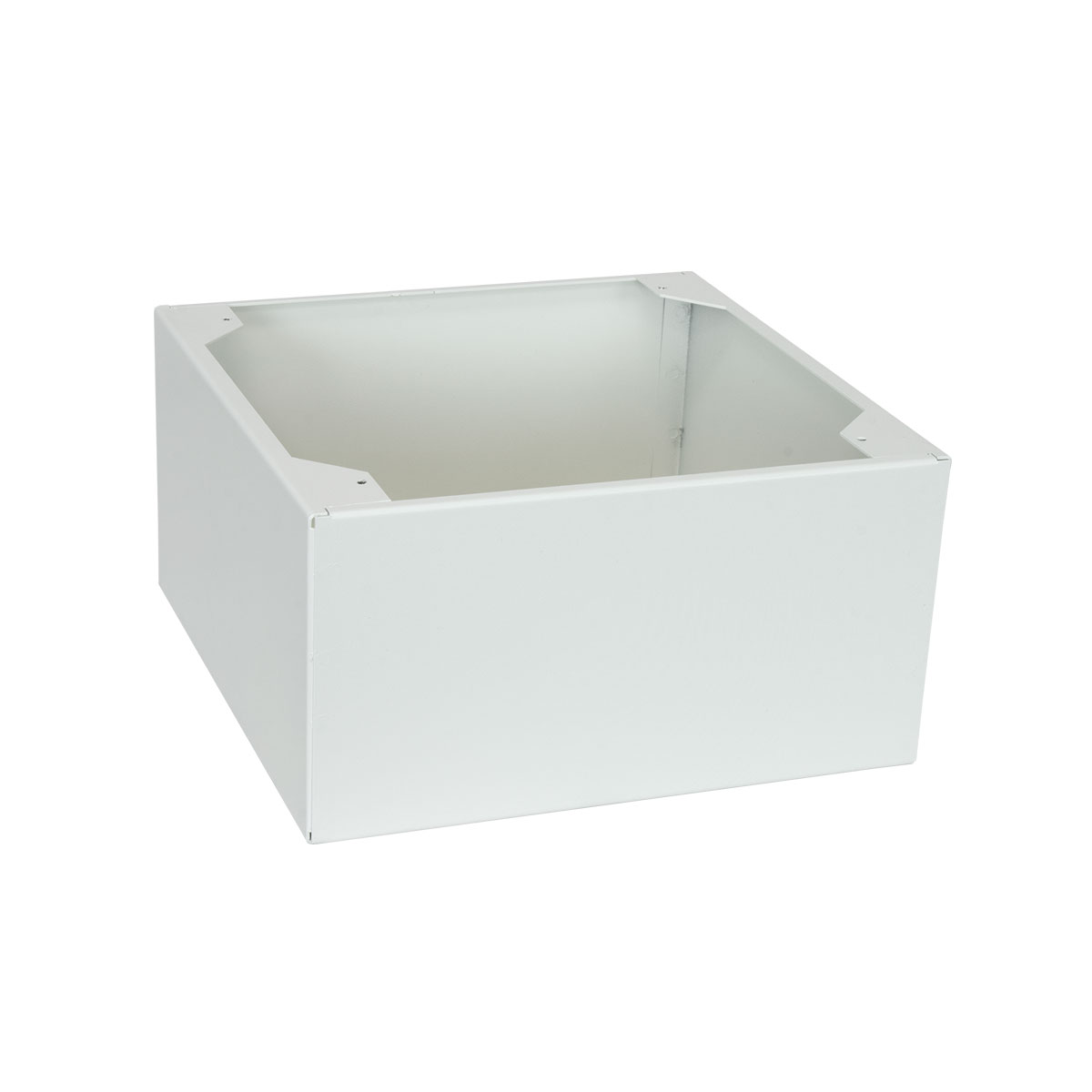

Surface-mount, 6"D galvanized steel enclosure is designed to screw-mount a vandal-resistant grille (Lowell model VRG-8) with an 8" speaker in vandal-prone areas or where tampering is a concern. The box can be mounted in protected outdoor areas when used with a moisture-resistant speaker.

Add to Favorites

Compare

Material: 16-gauge galvanized steel, welded seams, white finish
Height: 11.50 in.
Width: 11.50 in.
Depth: 6.00 in.
Volume: 0.459 cu.ft.
Acoustical Treatment: 1 in. thick batting
For Grille Type: Screw-mount, tamper-resistant
Mounting Aids: U-clips, holes for a tamper-resistant grille, universal mounting pattern for E.O. box, 0.875 in. hole for conduit

Spec Sheet: 2333-CB86SGVPO

Made in U.S.A.
Certified U.S. steel

The vandal-resistant surface-mount enclosure for 8″ speakers shall be Lowell model CB86-SGVPO, which shall be galvanized steel with white powder epoxy finish measuring 11.5″ square x 6″D. It shall feature a rear hole (.875 dia.) for 1/2″ conduit or wire access and provisions to mount to an electrical box (4″ square, 4″ octagon, 1-gang, or 2-gang – not included). It shall also feature four mounting holes and 8-32 stainless steel press nuts to accept the specified screw-mount grille. The enclosure shall include 1″ thick acoustic batting. It can be mounted in protected outdoor areas when used with a moisture-resistant speaker.

Grille: VRG-8
Driver: 8″ moisture-resistant
Driver w/transformer: 8″ moisture resistant
