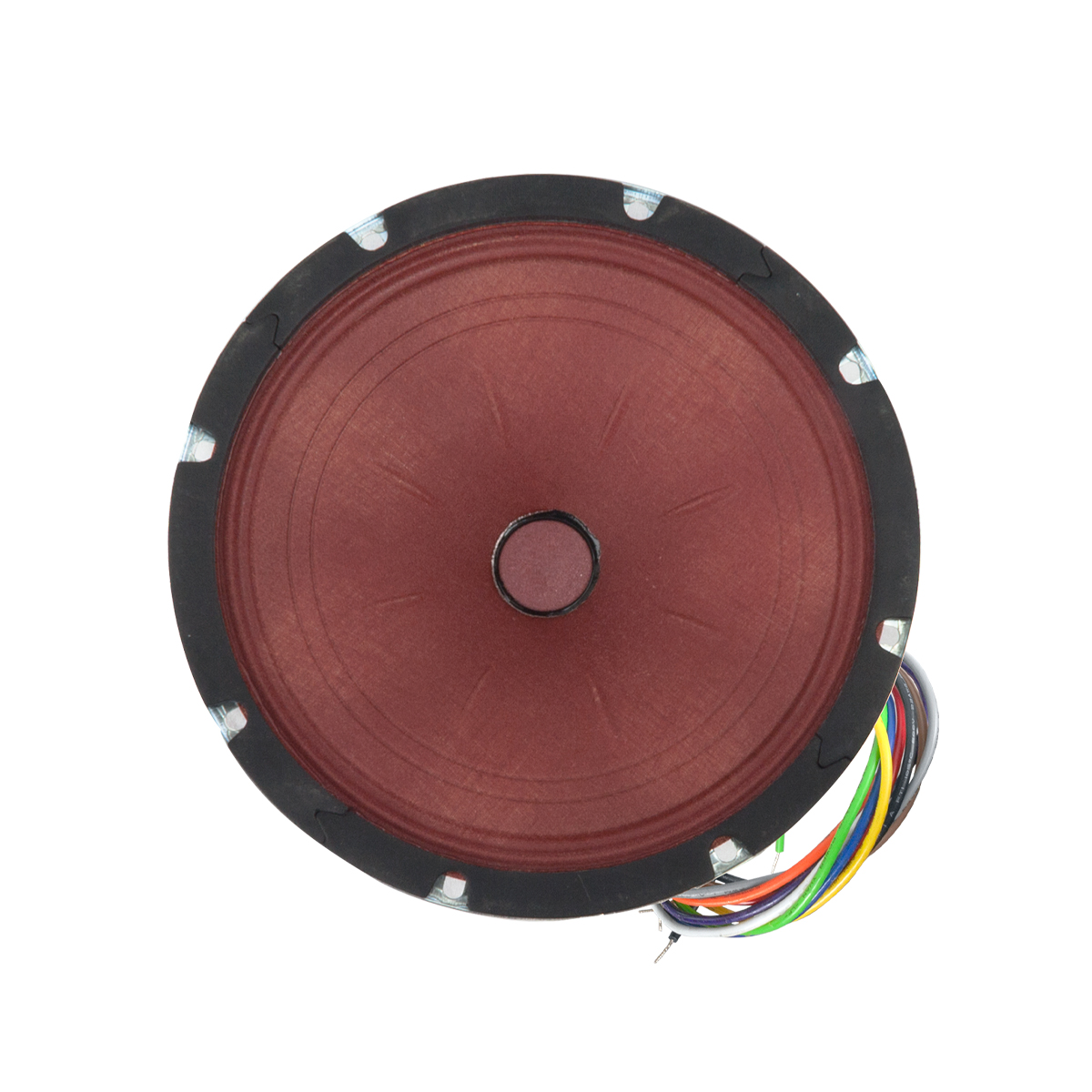

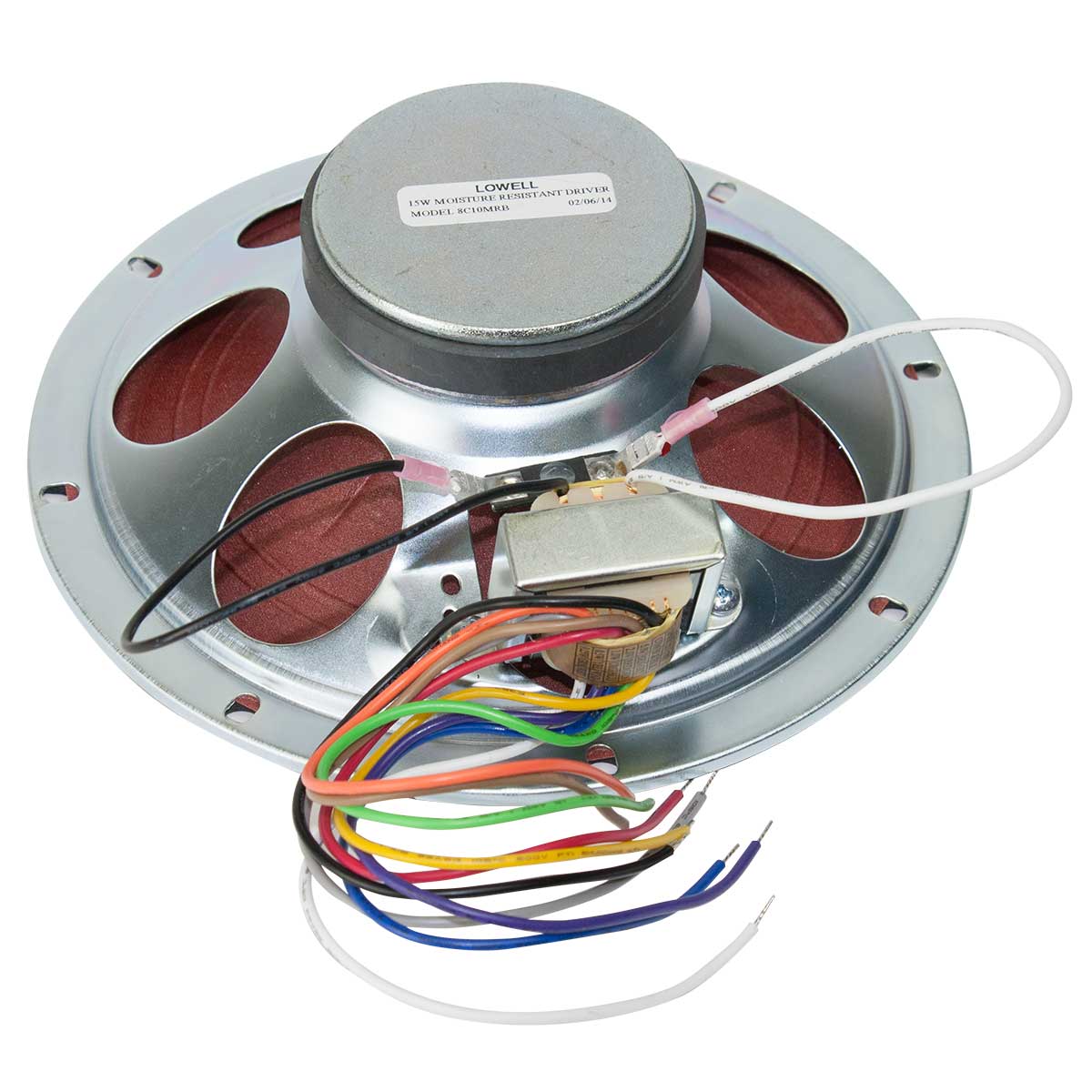

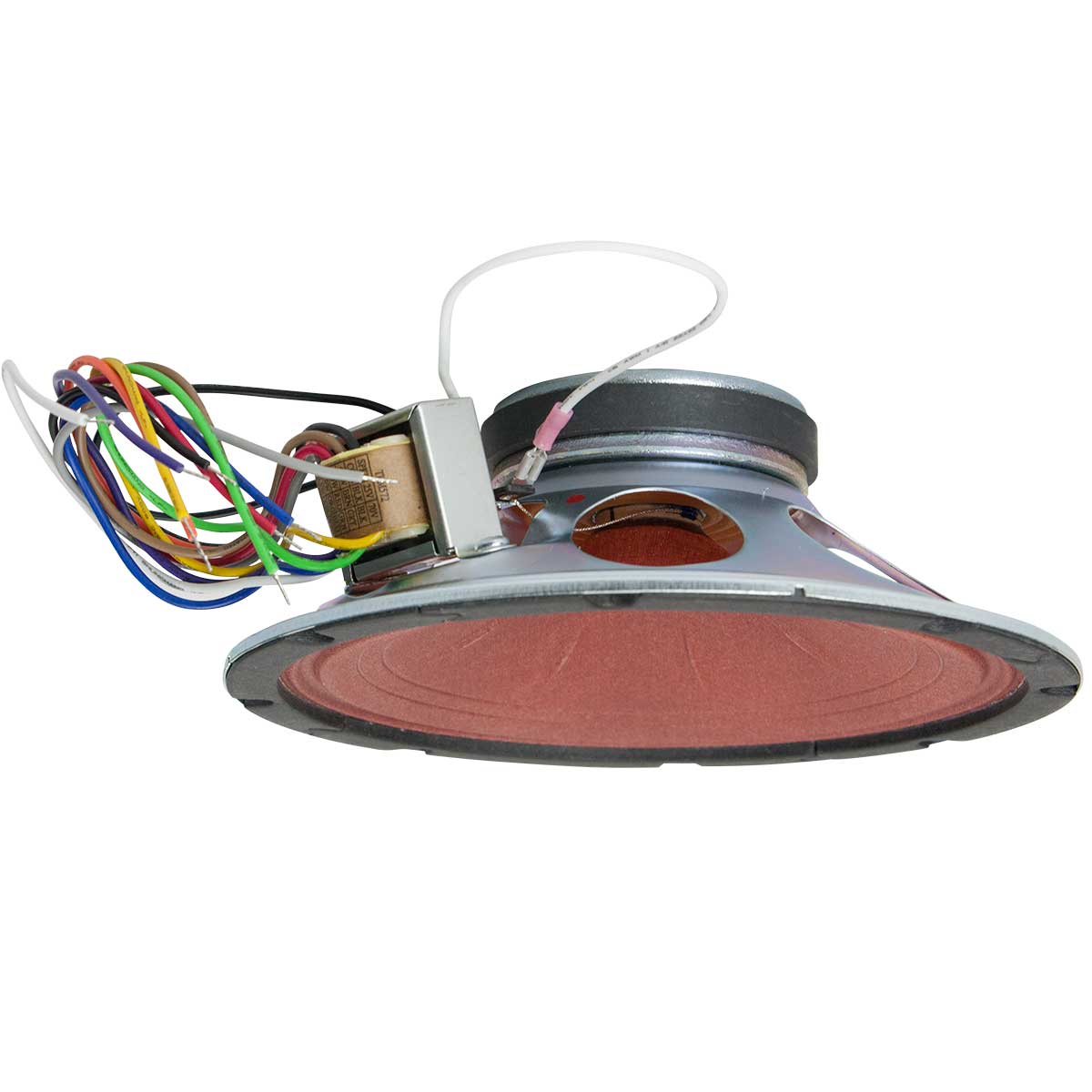

8C10MRB: 8" 15W single cone driver, moisture resistant, 5W transformer

8 inch (15W) Moisture-resistant Driver with xfmr

Name: 8 inch (15W) Moisture-resistant Driver with xfmr
SKU: 8C10MRB-T72
Price: 52.94 USD
Availability: InStock

Includes driver with 25V/70V (5W) xfmr

$52.94 MSRP

Model 8C10MRB-T72 Moisture-resistant 8" 15W driver with dual-voltage transformer for systems subjected to high humidity (e.g. greenhouses, locker rooms, etc.). When used outdoors, install in an area protected from direct exposure to the elements.

Add to Favorites

Compare

Driver: 8 in. single cone driver with 10 oz. magnet, 1 in. voice coil and cotton cloth cone that’s treated with phenolic resin and coated with acrylic lacquer for moisture-resistant performance.
Frame: Stamped 20-gauge steel basket with zinc-plated finish.
Mounting Bolt Circle: 7.625 in.
Transformer: 25V/70V with taps at .25, .5, 1, 2, 5W
Assembly Frequency Response: 75Hz–7.5kHz (±6dB) and 50Hz-20kHz (±17.8dB)
Assembly Mounting Depth: 2.84 in.
Assembly Dispersion Angle: 90 degrees conical
Assembly Average Sensitivity: 96.8dB

Spec Sheet: 1429-8C10MRBT72

Made in U.S.A. with global components
Meets or exceeds industry standards

The 8-inch moisture-resistant single cone driver with mounted transformer shall be Lowell Model 8C10MRB-T72. It shall be the permanent magnet type with a cotton cloth cone treated with phenolic resin and coated with acrylic lacquer for moisture resistant performance. The voice coil shall have a diameter of 1 in. and operate in a magnetic field derived from a strontium ferrite (ceramic) magnet having a nominal weight of 10 oz. Voice coil impedance shall be 8ohms. Rated power capacity shall be 15 watts RMS. The frame shall be stamped 20-gauge steel with overall diameter of 8.062 in. and eight obround holes equally spaced at 45 degrees on a 7.625 in. diameter mounting bolt circle. External metal parts shall be zinc-plated to resist rust and corrosion. The mounted transformer shall be 70/25V dual voltage with primary taps at 0.25, 0.5, 1, 2 and 5W. The driver with transformer assembly depth shall not exceed 2.84 inches. It shall be capable of producing a uniform audible frequency response over the range of 75Hz–7.5kHz (±6dB) and 50Hz-20kHz (±17.8dB) with dispersion angle of 90 degrees conical @2000Hz (-6dB). Average sensitivity shall measure 96.8dB (SPL at 1W/1M).
