Surface Enclosure for 4 inch driver

Name: Surface Enclosure for 4 inch driver
SKU: CB44
Price: 52.28 USD
Availability: InStock

For screw-mount grille

$52.28 MSRP

Model CB44

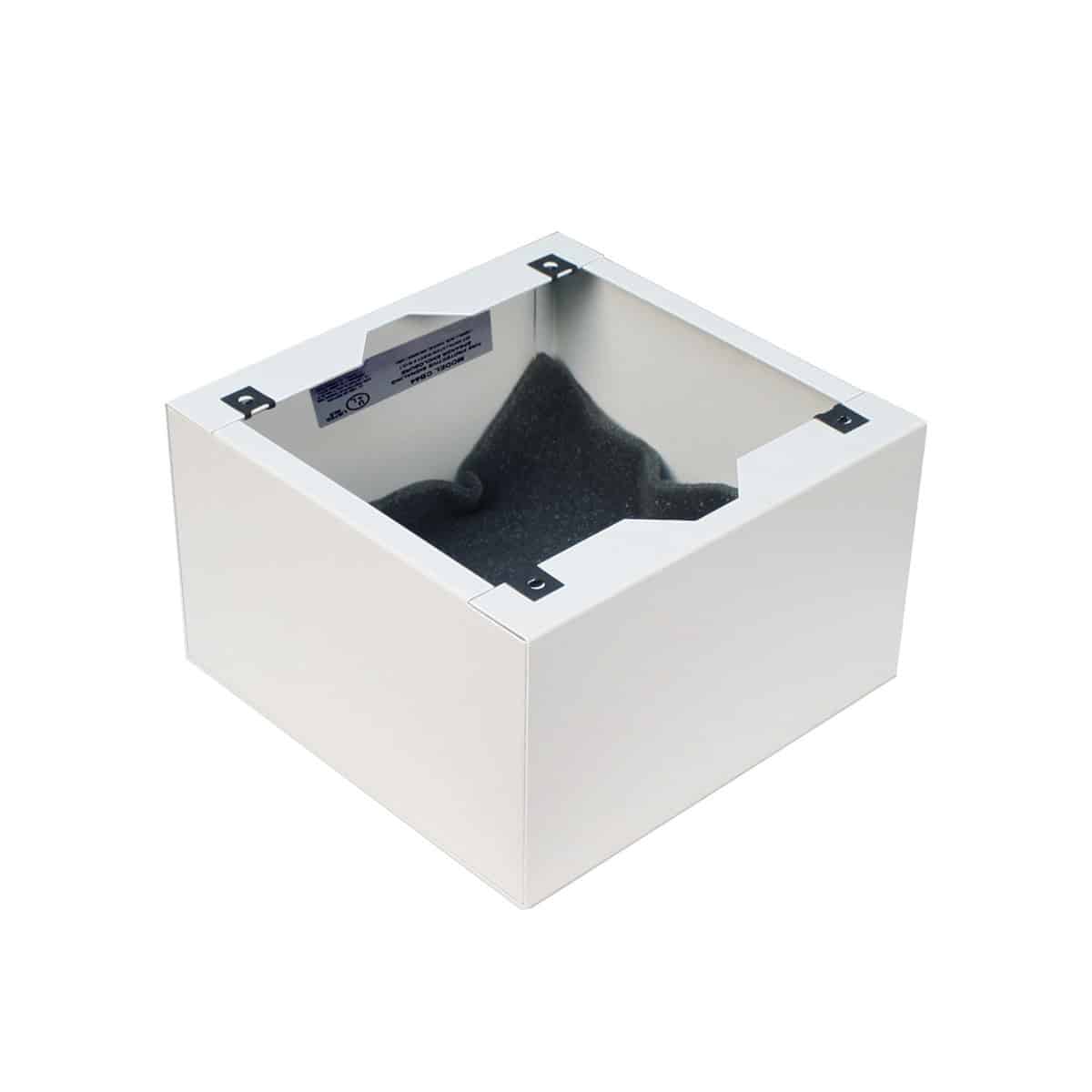

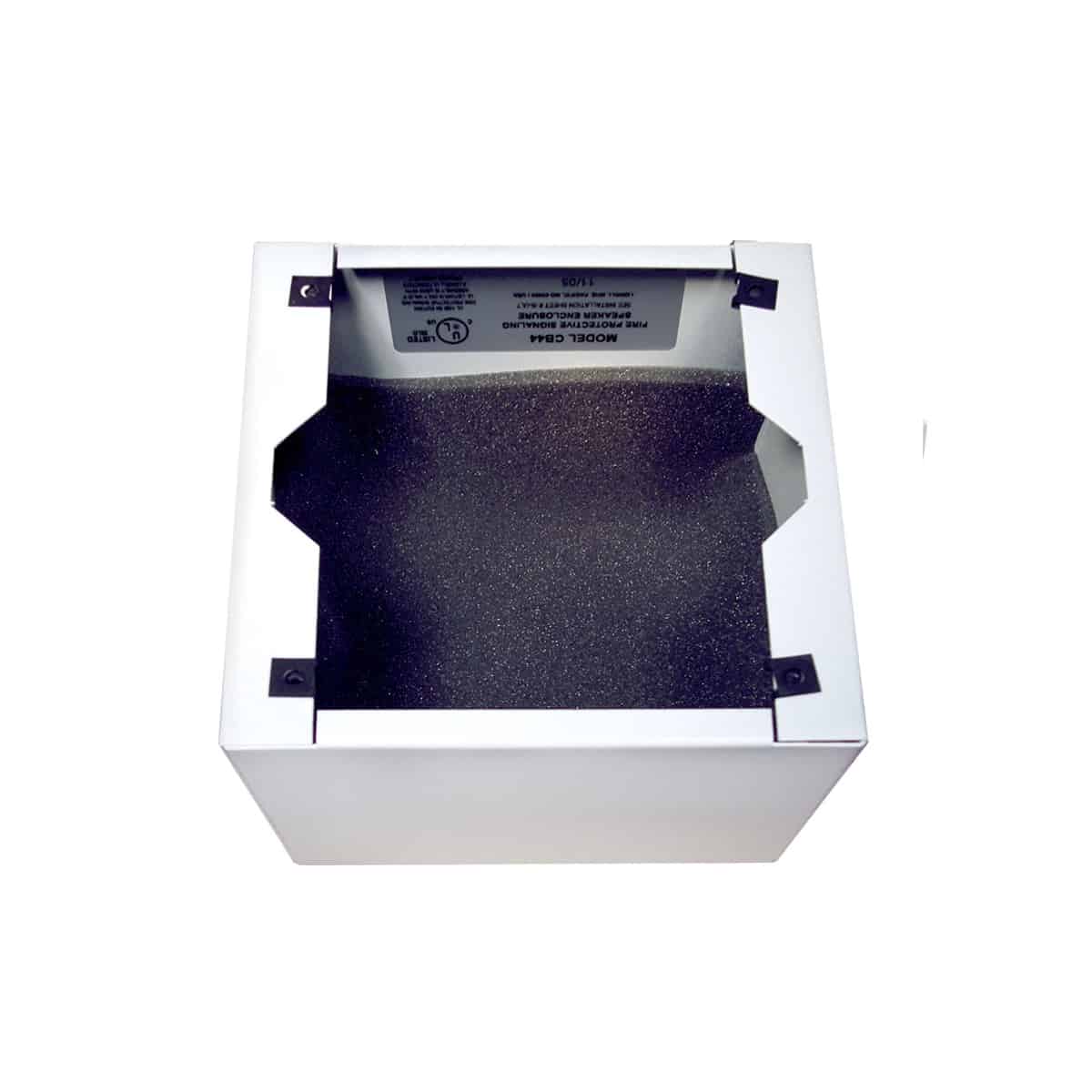

Steel surface-mount enclosure with white finish is made for use with a 4 inch driver and screw-mount grille. Made in the U.S.A.

Add to Favorites

Compare

Material: 20-gauge steel, welded seams, white finish
Height: 7.13 in.
Width: 7.13 in.
Depth: 4.25 in.
Volume: 0.125 cu.ft.
Acoustical Treatment: 0.25 in. foam pad
Mounting Aids: Universal mounting pattern for E.O. box (not included), 0.375 in. hole for wire access
For Grille Type: Screw-mount

Spec Sheet: 1275-CB44

Made in U.S.A.
Certified U.S. steel

The surface-mount backbox shall be Lowell Model CB44, which shall be fabricated of 20-gauge steel and lined with a 0.25 in. thick foam pad. The rear shall include provisions to mount a 4 in. square, 4 in. octagon, 2-gang or 1-gang E.O. box (not included). The rear shall also have a 0.375 in. diameter hole for wire access. The backbox shall measure 7.13 in. square x 4.25 in. deep and have a white powder epoxy finish. It shall feature four holes and 8-32 U-clips at flanged corners to accept a square screw-mount grille.

Grille: SG-4
Driver: 4 in.
Support Rails: SS-24, SS-30, SS-48
