Model ACS-2018-5C-RPCP-HW

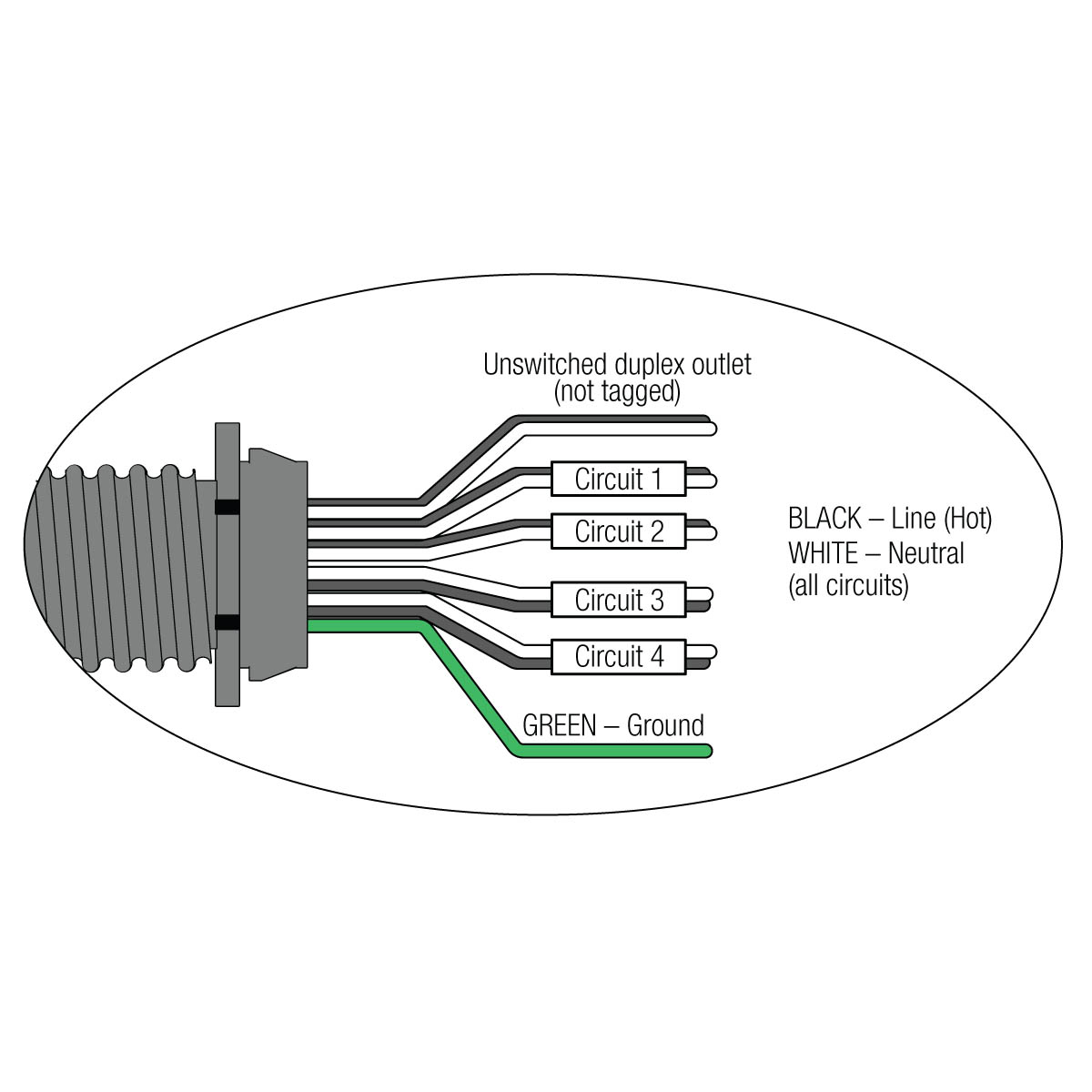

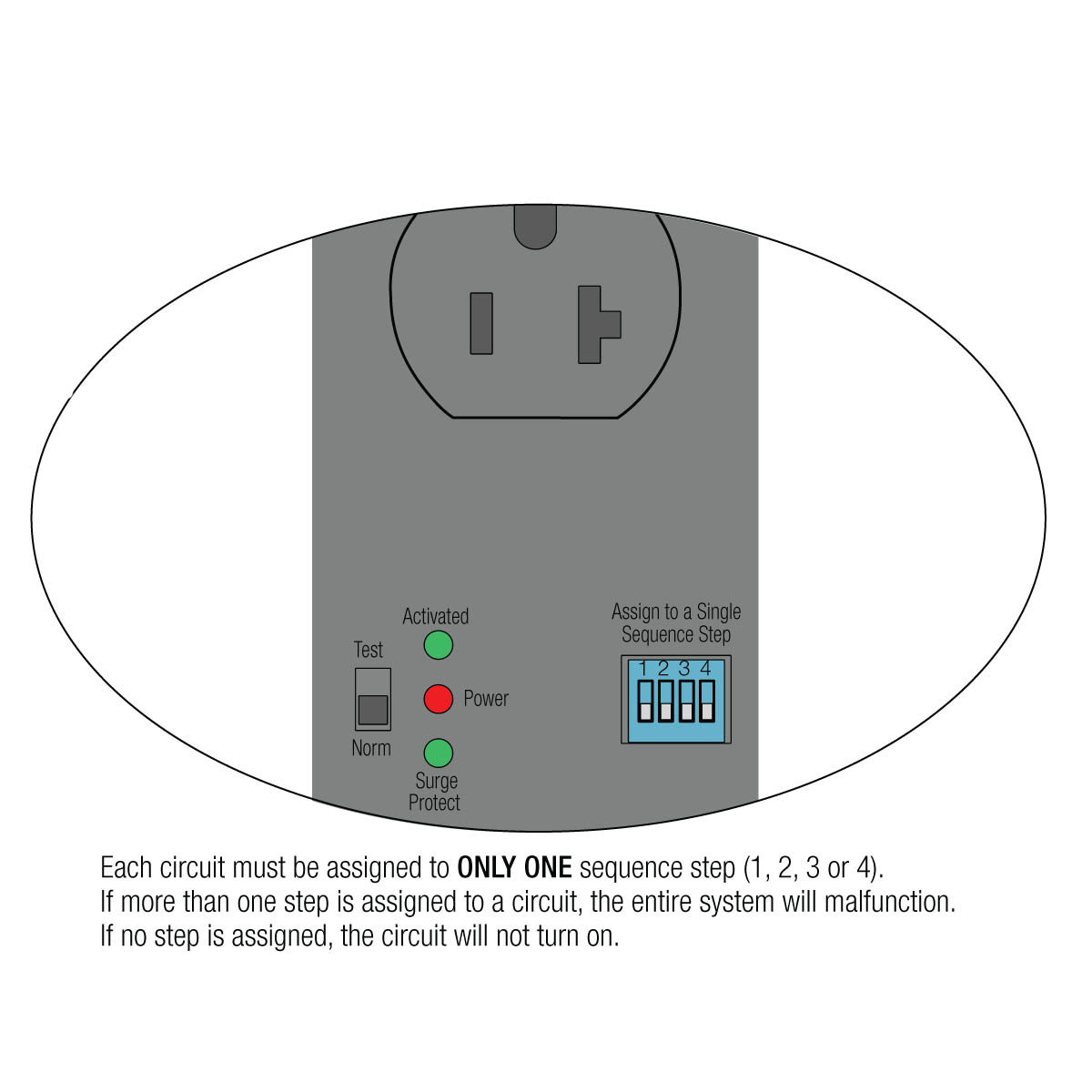

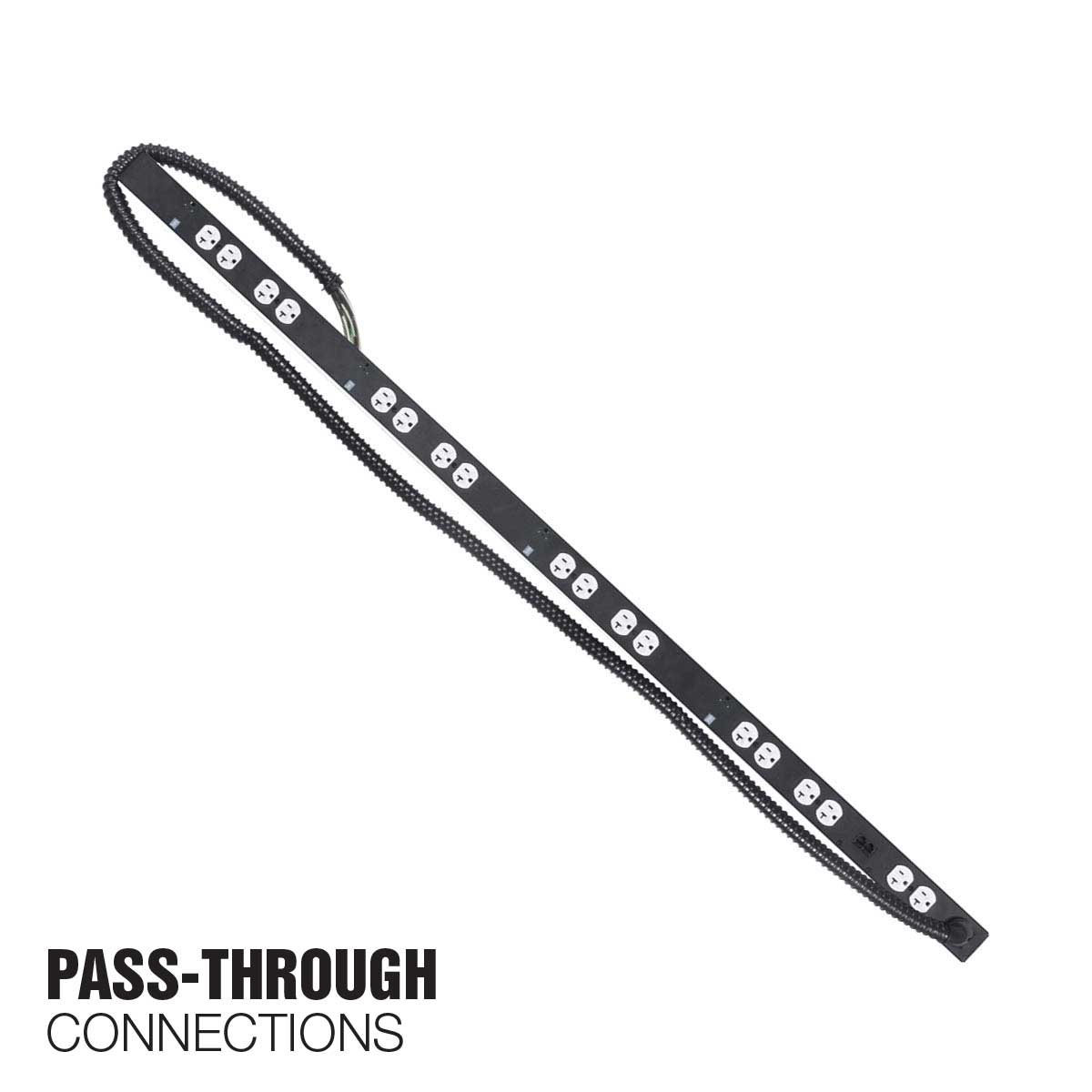

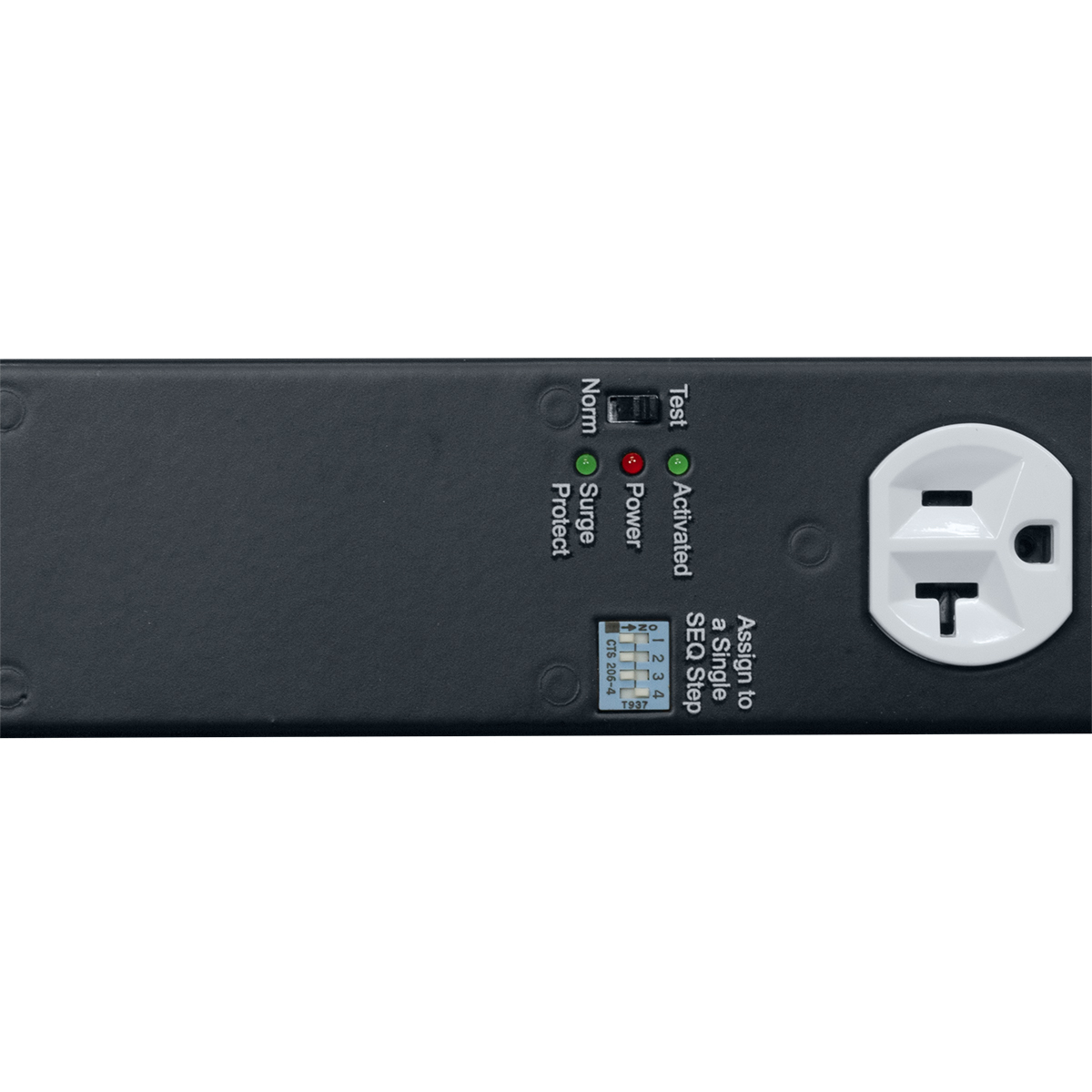

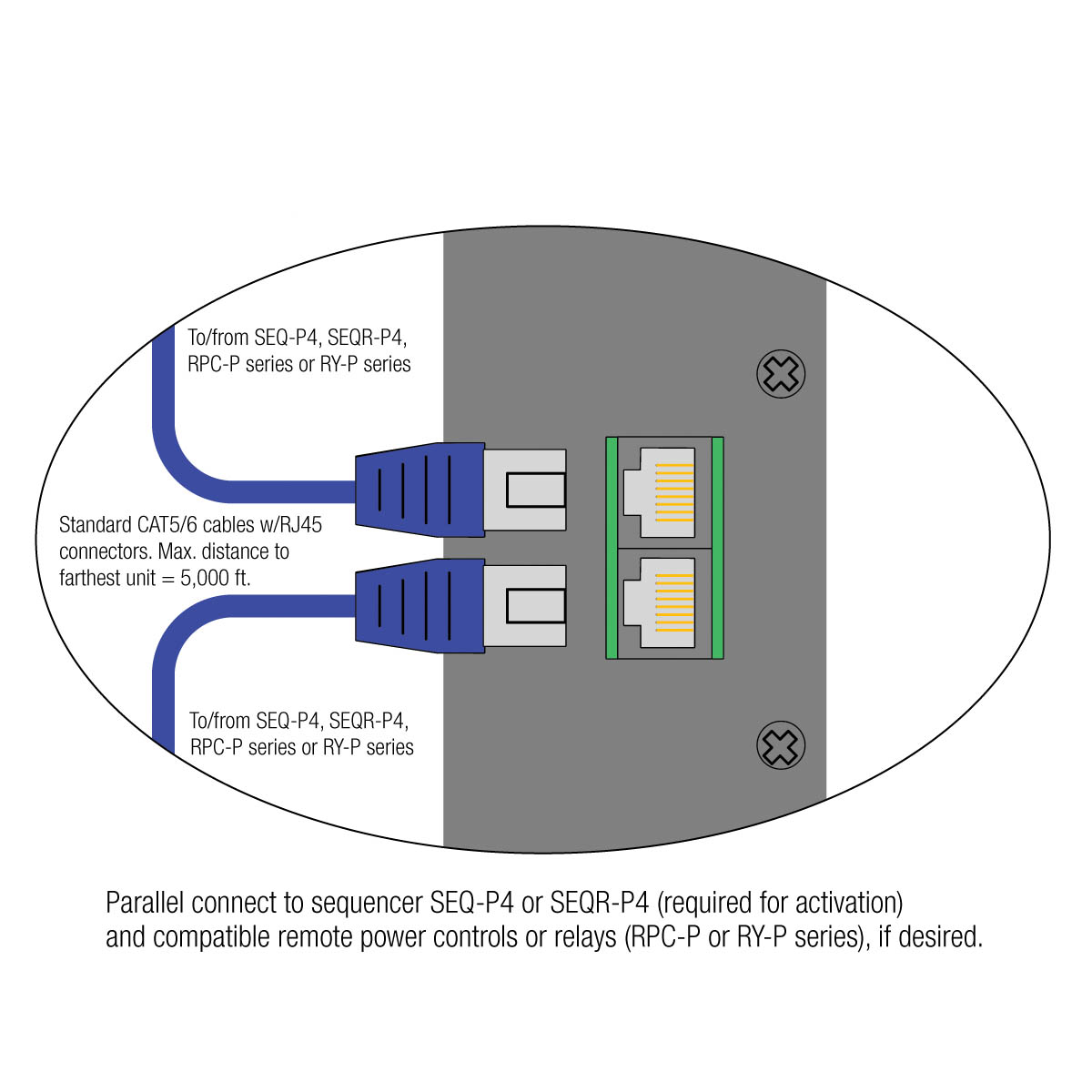

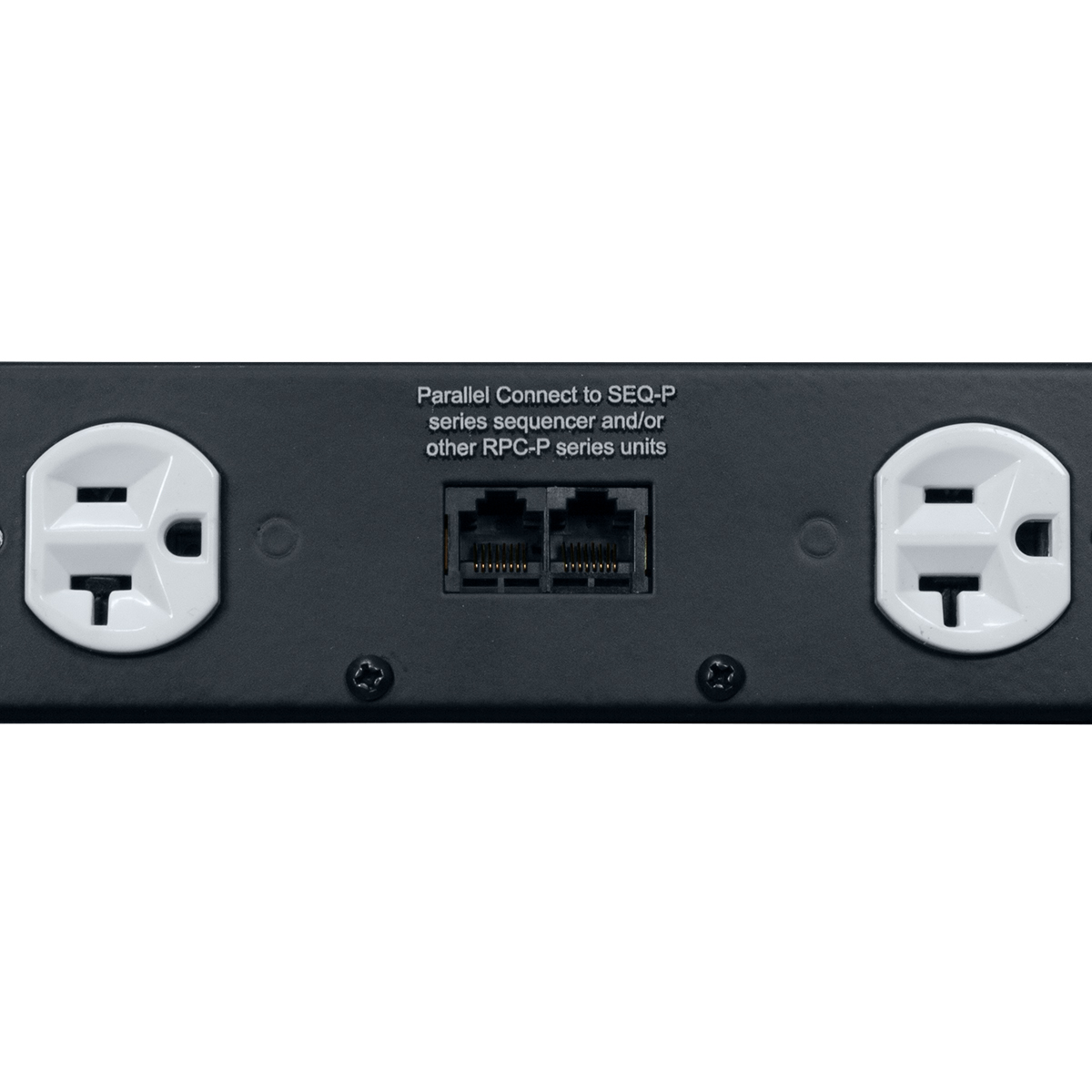

The five-circuit, 120VAC 60Hz 20A power strip is part of the "pass-thru" series of sequencers, remote power controls, and relays that feature dual RJ45 jacks to pass Cat5 cable from one device to another, with just the first device connected to the sequencer. Each device has its own DIP switch to select its place in the sequencing order so it's easy to change without re-wiring. The power strip features nine (9) duplex NEMA 5-20R receptacles on five circuits. Four circuits control 2 duplex each and are controlled by the external sequencer connected to the RPC-P terminal. These circuits have basic surge protection (maximum surge current 10,000A). The other (un-switched) circuit controls 1 duplex and is always on (this circuit is not protected). This power strip requires sequencer model SEQ-P4 or SEQR-P4  for activation (order separately).
