200W (3dB step) Mono Attenuator

Name: 200W (3dB step) Mono Attenuator
SKU: 200LVC-DSB
Price: 172.20 USD
Availability: InStock

With wall plate

$172.20 MSRP

Model 200LVC-DSB

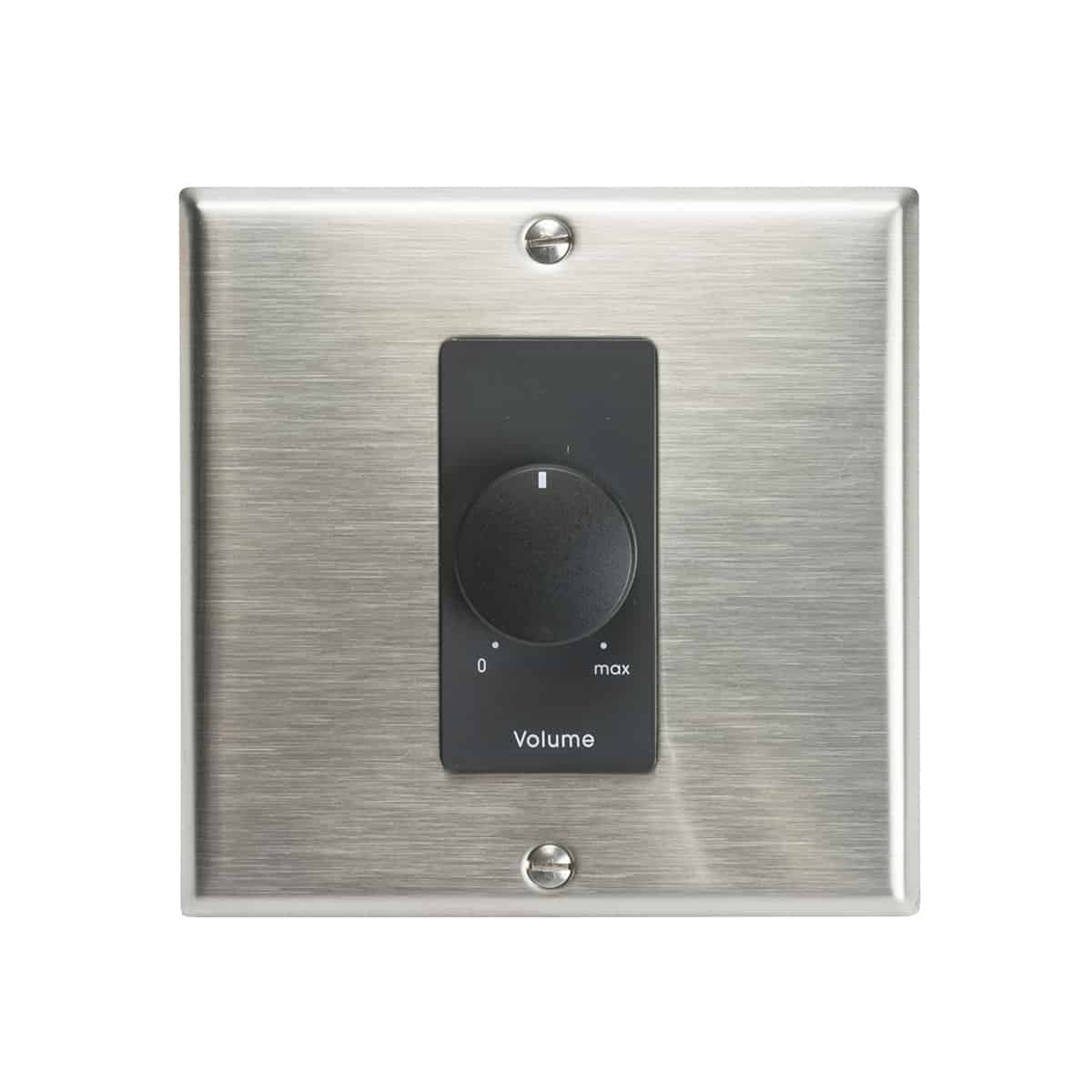

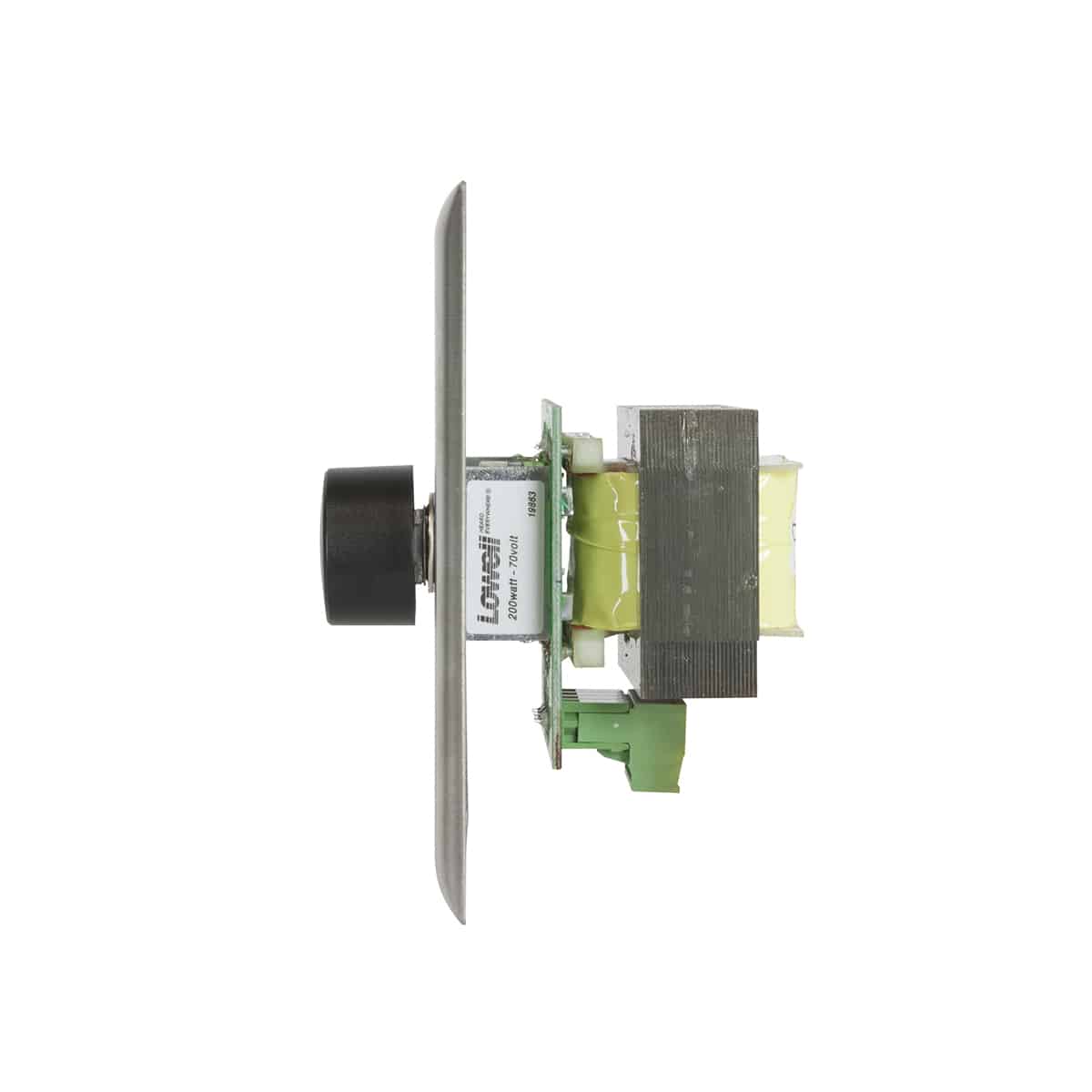

The 200W mono autoformer attenuator style volume control has a rotary switch and a two-gang decorator style wall plate (stainless steel with black subplate).

Add to Favorites

Compare

Power Rating: 200W
Attenuation: 3dB per step (two positions of 6dB before “off”)
Use With: 70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 2-gang decorator style
Finish: Stainless Steel and black
Fits standard 2-gang E.O. box (2.5 in. min. depth)

Spec Sheet: 2266-200LVCDSB

Assembled in the U.S.A.
ETL Listed

The volume control shall be Lowell Model 200LVC-DSB with 200W power rating, 3dB per step attenuation and two 6dB positions before “Off.” The control shall have plug-in termination for up to 14-gauge wire for 70V or 100V input connections from the amplifier and 70V or 100V output to the speaker/transformer assemblies. The plate shall be two-gang decorator style with stainless steel and black finish and shall feature a black rotary knob. The volume control shall mount in a standard two-gang E.O. box with minimum depth of 2.5″ including mud ring, if used (not included).
