200W (3dB step) Mono Attenuator

Name: 200W (3dB step) Mono Attenuator
SKU: 200LVC
Price: 161.40 USD
Availability: InStock

With wall plate

$161.40 MSRP

Model 200LVC

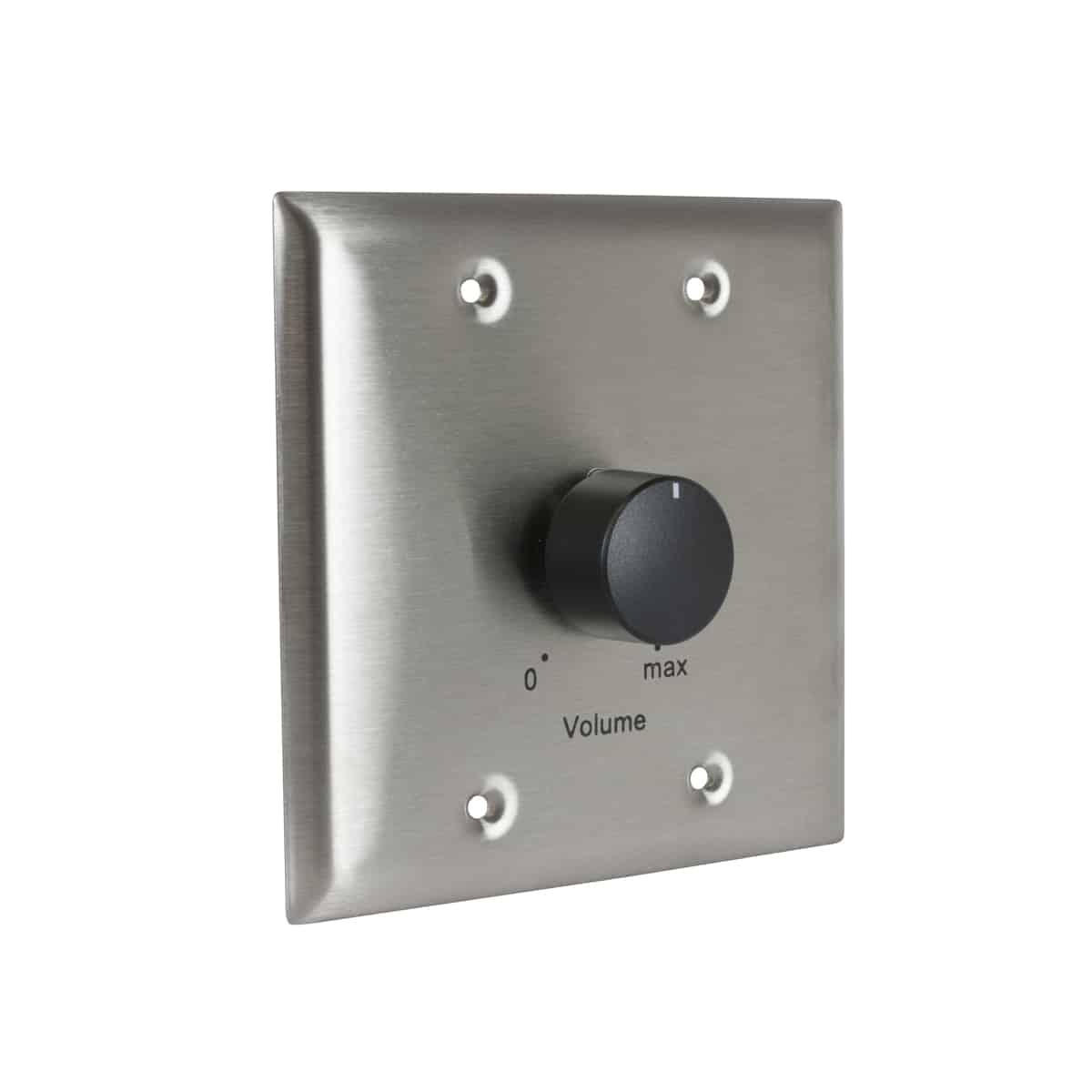

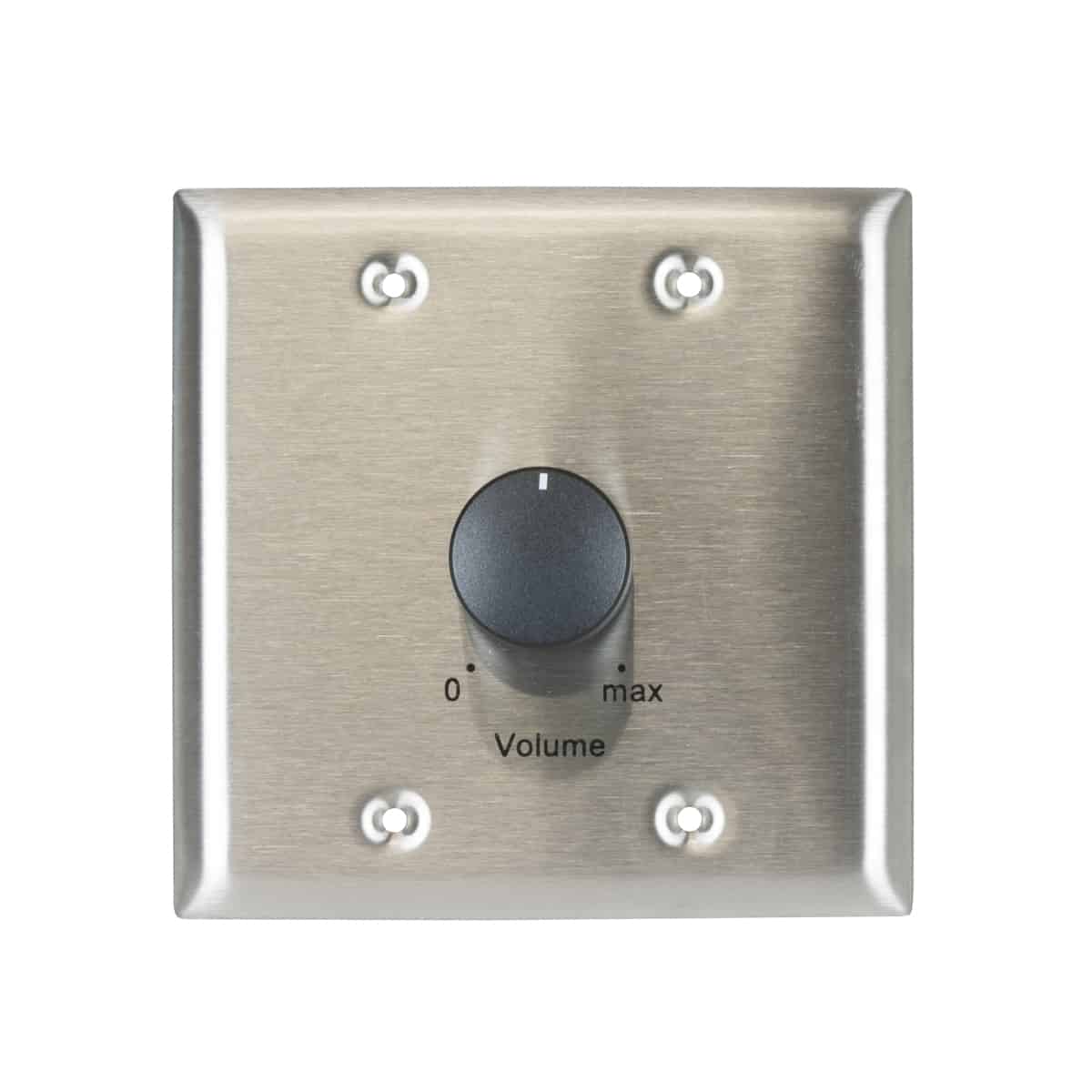

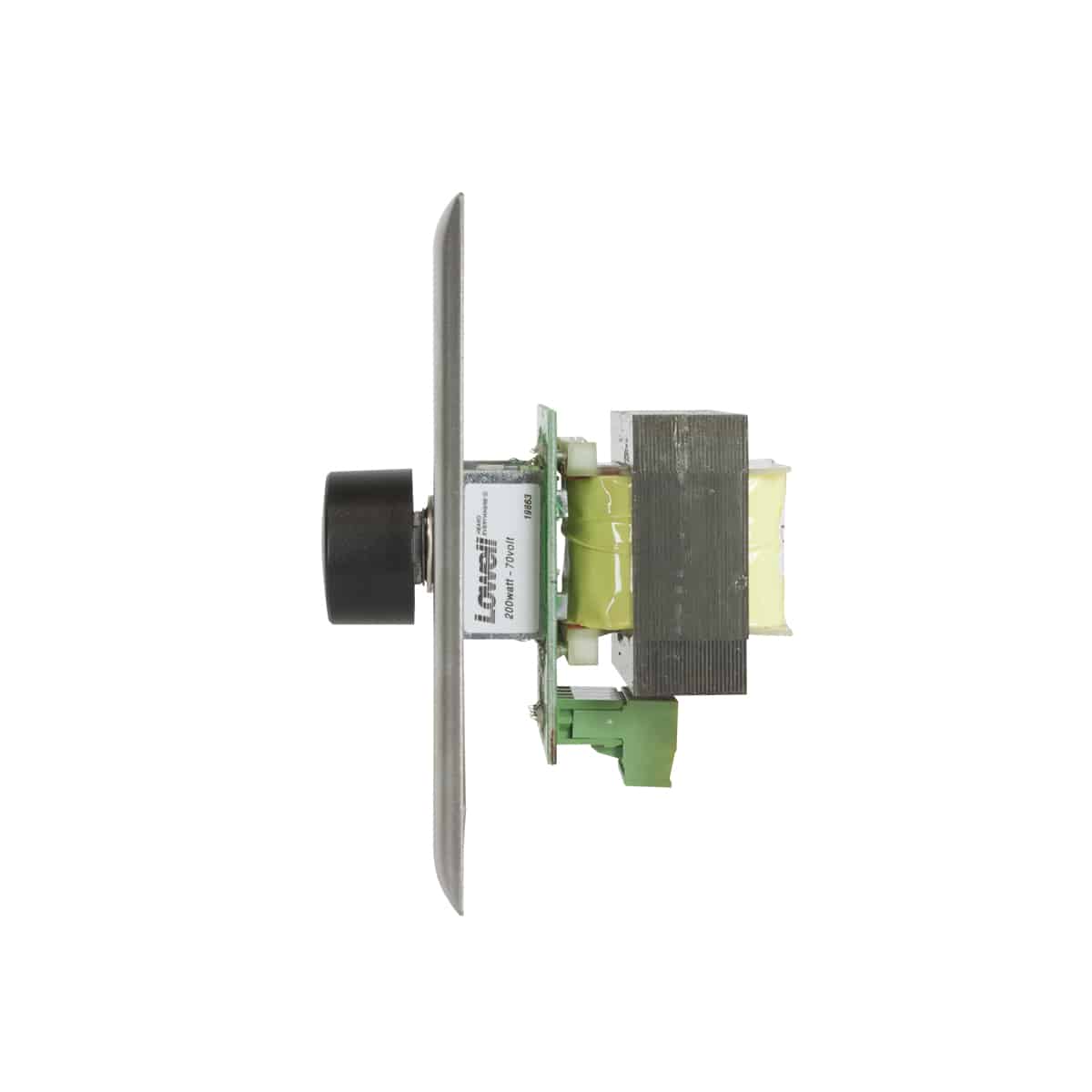

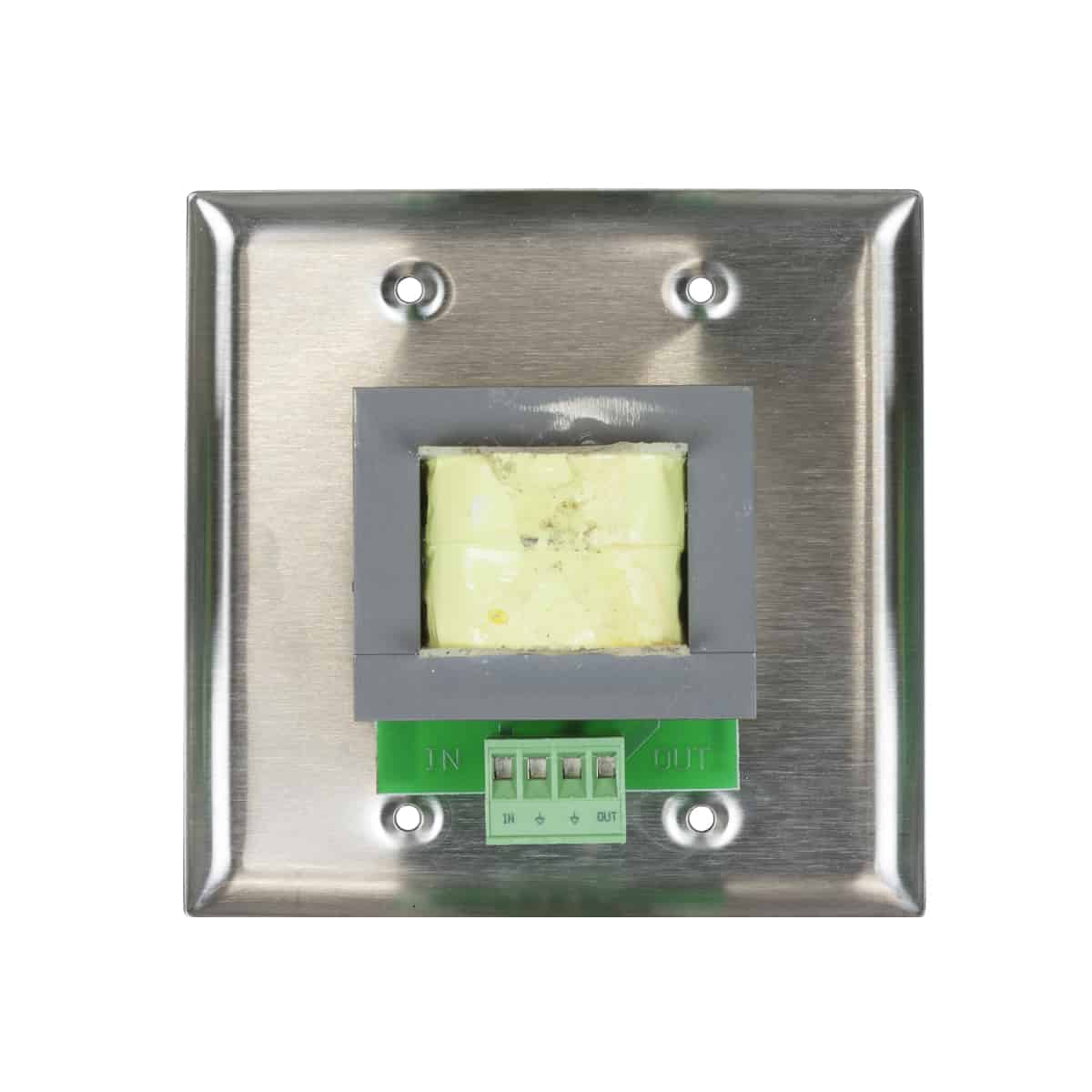

The 200W mono autoformer attenuator style volume control includes a rotary switch and two-gang stainless steel wall plate.

Add to Favorites

Compare

Power Rating: 200W
Attenuation: 3dB per step (two positions of 6dB before “off”)
Use With: 70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 2-gang standard
Finish: Stainless Steel
Fits standard E.O. box (2.5 in. min. depth)

Spec Sheet: 1784-200LVC

Made in the U.S.A. with global components
ETL Listed

The volume control shall be Lowell Model 200LVC with 200W power rating, 3dB per step attenuation and two 6dB positions before “Off.” The control shall have plug-in termination for up to 14-gauge wire for 70V or 100V input connections from the amplifier and 70V or 100V output to the speaker/transformer assemblies. The plate shall be a standard two-gang with stainless steel finish and shall feature a black rotary knob. The volume control shall mount in a standard two-gang E.O. box with minimum depth of 2.5 in. including mud ring, if used (not included).
