100W (3dB step) Mono Attenuator with Bypass

Name: 100W (3dB step) Mono Attenuator with Bypass
SKU: 100LVC-PA-RM
Price: 73.00 USD
Availability: InStock

With adhesive scale

$73.00 MSRP

Model 100LVC-PA-RM

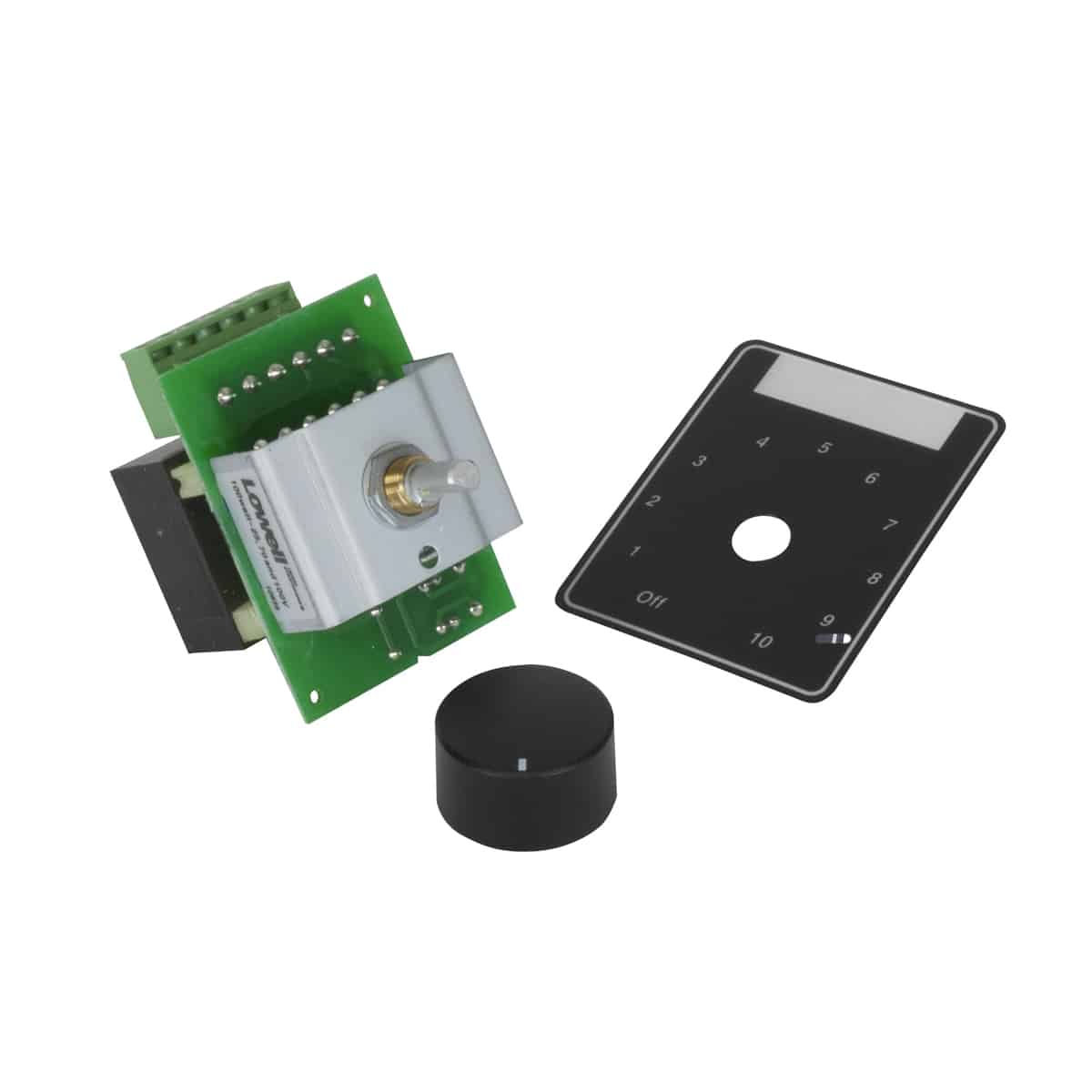

100W volume control with rotary switch and emergency bypass for custom installations, includes an adhesive dial scale with a pocket where a paper label can be inserted to identify the control.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (two steps of 6dB each before off)
Use With: 25/70/100V speaker line
Activation: Rotary dial
Volume Positions: 0-10
Termination: Phoenix-style
Wire Capacity: 14-gauge
Adhesive dial scale with label area
Emergency Bypass: 24VDC@15mA relay for applications requiring emergency and paging signals to bypass/override the attenuator.

Spec Sheet: 1415-100LVCPARM

ETL Listed

The volume control shall be Lowell Model No. 100LVC-PA-RM which shall have a 100W power rating and 3dB attenuation per step with two steps of 6dB each before off. The volume control shall feature an emergency bypass (24VDC@15mA relay), rotary knob and adhesive label with dial scale. The control shall be ETL Listed.

LVC8P-ID2: Rackmount panel for attenuator installation (holds up to eight)
