Powerstac Library: Power Modules

Module No. Image Length Description

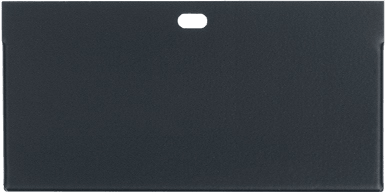

1 Module 1Module 1 5-inch blank module (space filler)

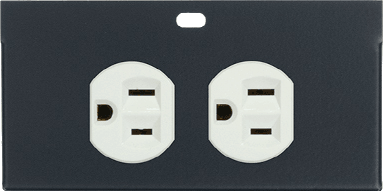

2 Module 2Module 2 5-inch 15A – 1 duplex outlet NEMA 5-15R

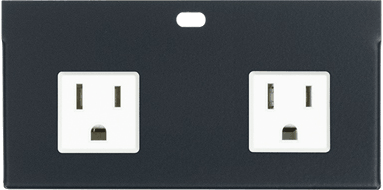

3 Module 3Module 3 5-inch 15A – 2 single outlets NEMA 5-15R

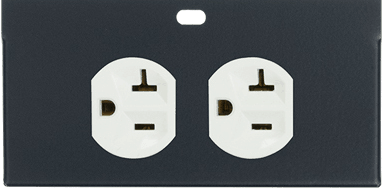

4 Module 4Module 4 5-inch 20A – 1 duplex outlet NEMA 5-20R

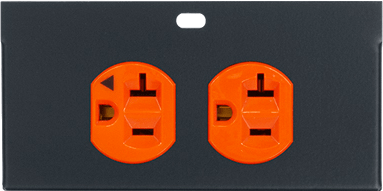

5 Module 5Module 5 5-inch 20A – 1 duplex (IG) outlet NEMA 5-20R

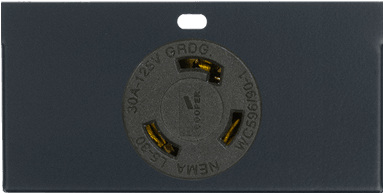

6 Module 6Module 6 5-inch 30A – 1 twistlock outlet NEMA L5-30R

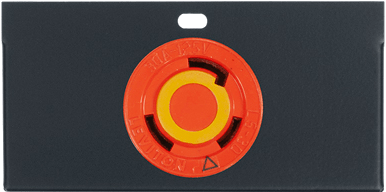

7 Module 7Module 7 5-inch 30A – 1 twistlock (IG) outlet NEMA L5-30R

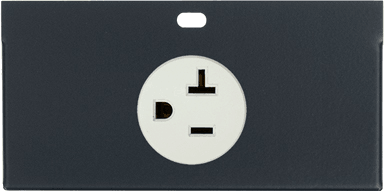

8 Module 8Module 8 5-inch 20A – 1 single outlet NEMA 5-20R

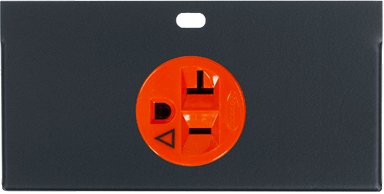

9 Module 9Module 9 5-inch 20A – 1 single (IG) outlet NEMA 5-20R

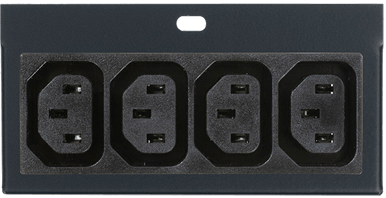

G Module GModule G 5-inch 15A – 4 IEC-C13 outlets
L Module LModule L 5-inch NEMA L6-20R IG (250V 20A, twistlock, iso. ground)
M Module MModule M 5-inch NEMA L6-30R (250V 30A, twistlock)
V Module VModule V 5-inch NEMA L5-20R (125V 20A, twistlock)
X Module XModule X 5-inch NEMA L5-20R IG (125V 20A, twistlock, iso. ground)
Y Module YModule Y 5-inch NEMA L6-20R (250V 20A, twistlock)
Z Module ZModule Z 5-inch NEMA L6-30R IG (250V, 30A, twistlock, iso. ground)

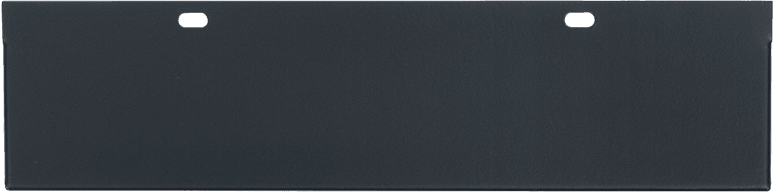

B1 Module B1Module B1 10-inch blank module (space filler)

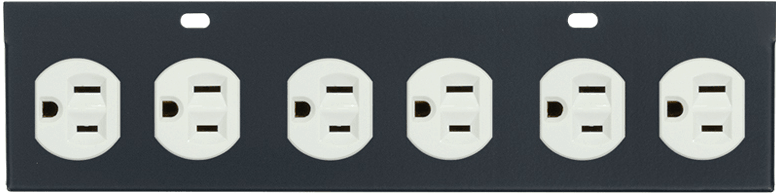

B2 Module B2Module B2 10-inch 15A – 3 duplex outlets NEMA 5-15R

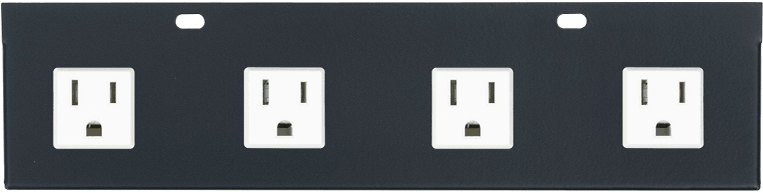

B3 Module B3Module B3 10-inch 15A – 4 single outlets NEMA 5-15R

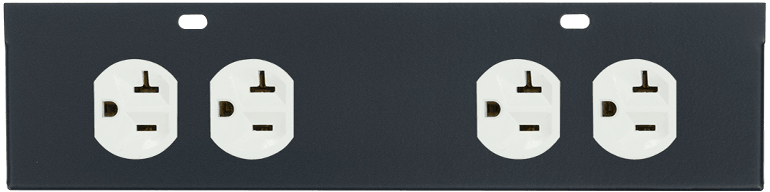

B4 Module B4Module B4 10-inch 20A – 2 duplex outlets NEMA 5-20R

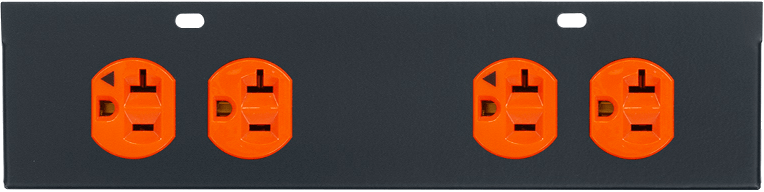

B5 Module B5Module B5 10-inch 20A – 2 duplex (IG) outlets NEMA 5-20R

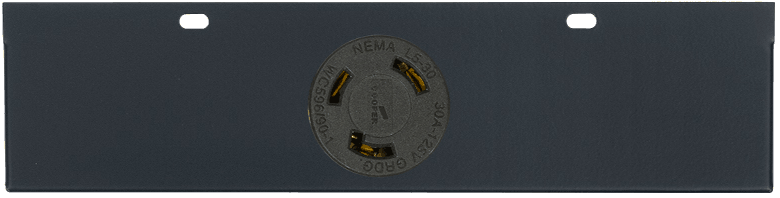

B6 Module B6Module B6 10-inch 30A – 1 twistlock outlet NEMA L5-30R

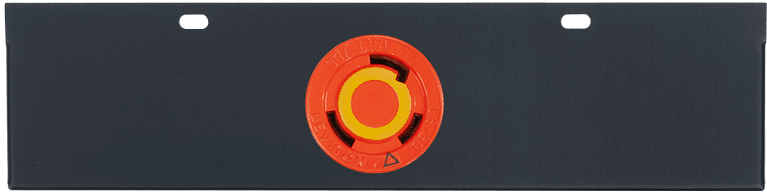

B7 Module B7Module B7 10-inch 30A – 1 twistlock (IG) outlet NEMA L5-30R

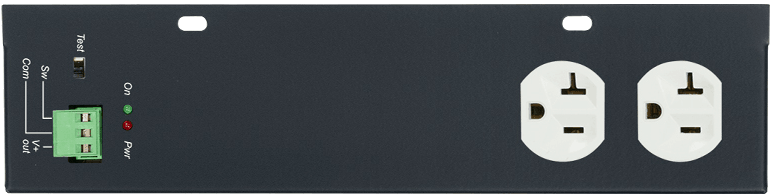

B8 Module B8Module B8 10-inch 20A – 1 duplex outlet NEMA 5-20R with remote control

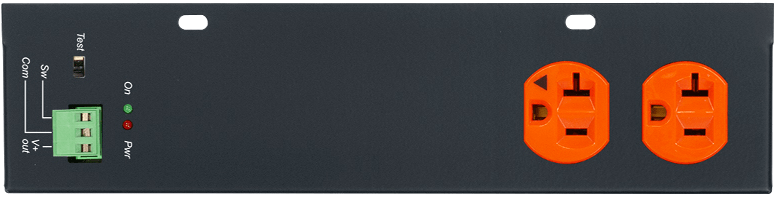

B9 Module B9Module B9 10-inch 20A – 1 duplex (IG) outlet NEMA 5-20R with remote control

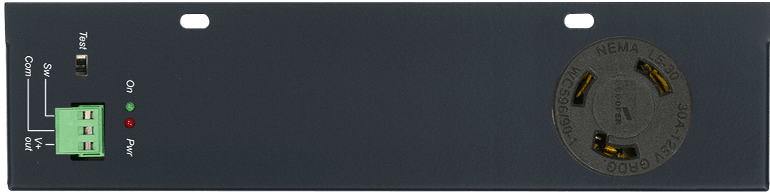

BA Module BAModule BA 10-inch 30A – 1 twistlock outlet NEMA L5-30R with remote control

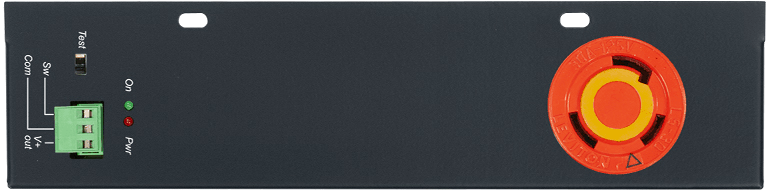

BB Module BBModule BB 10-inch 30A – 1 twistlock (IG) outlet NEMA L5-30R with remote control

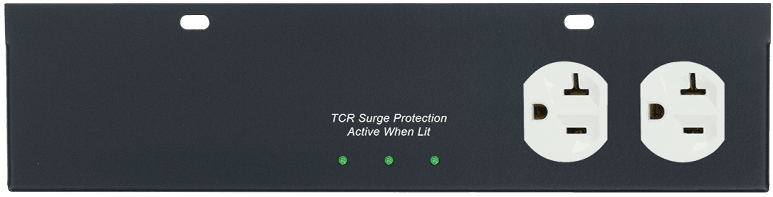

BC Module BCModule BC 10-inch 20A – 1 duplex outlet NEMA 5-20R with surge suppressor

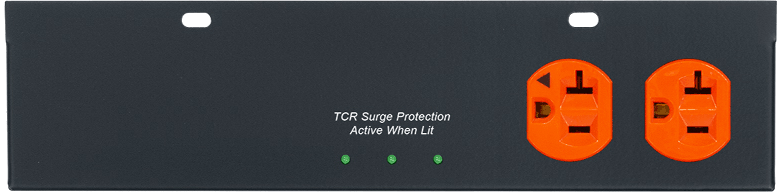

BD Module BDModule BD 10-inch 20A – 1 duplex (IG) outlet NEMA 5-20R with surge suppressor

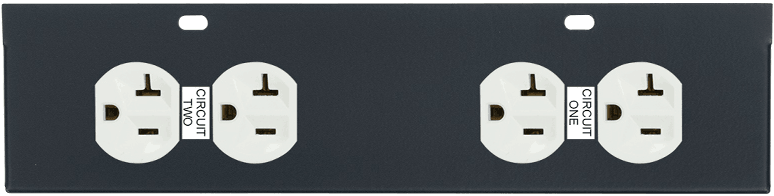

BE Module BEModule BE 10-inch 20A – 2 duplex outlets NEMA 5-20R, 2-circuits (1 duplex each)

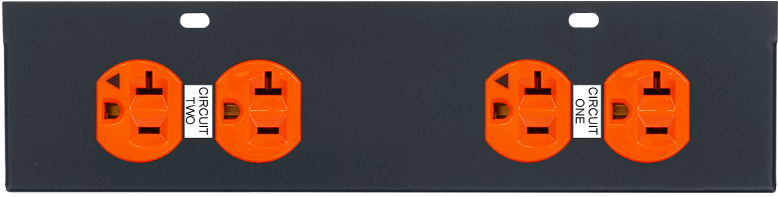

BF Module BFModule BF 10-inch 20A – 2 duplex (IG) outlets NEMA 5-20R, 2-circuits (1 duplex each)

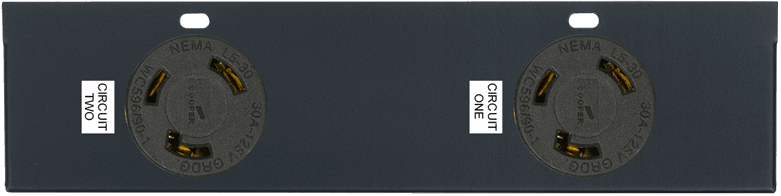

BG Module BGModule BG 10-inch 30A – 2 twistlock outlets NEMA L5-30R, 2-circuits (1 outlet each)

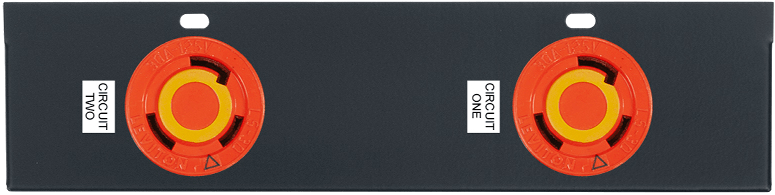

BH Module BHModule BH 10-inch 30A – 2 twistlock (IG) outlets NEMA L5-30R, 2-circuits (1 outlet each)

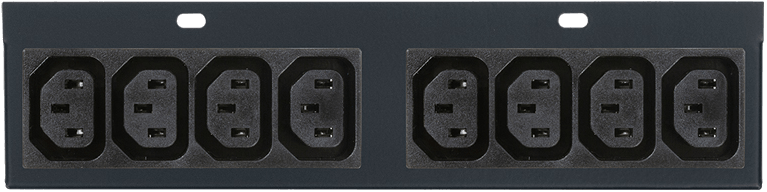

BJ Module BJModule BJ 10-inch 15A – 8 IEC-C13 outlets

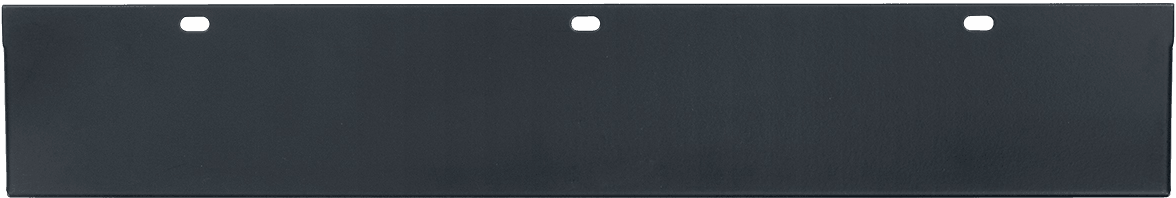

C11 Module C11Module C11 15-inch blank module (space filler)

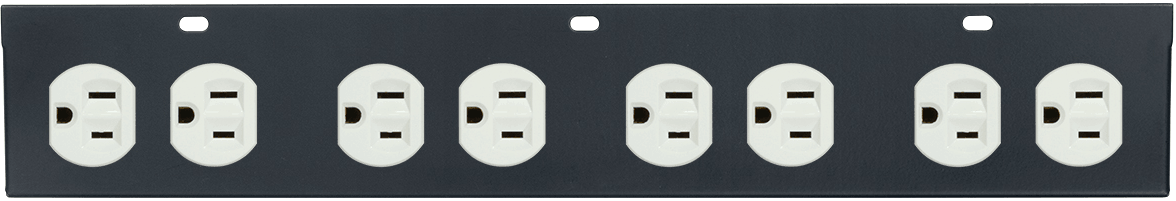

C12 Module C12Module C12 15-inch 15A – 4 duplex outlets NEMA 5-15R

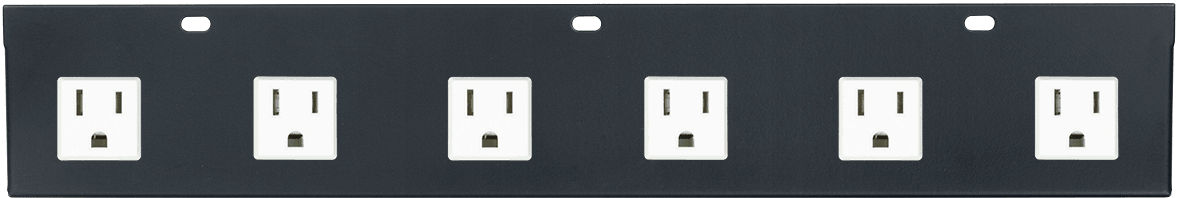

C13 Module C13Module C13 15-inch 15A – 6 single outlets NEMA 5-15R

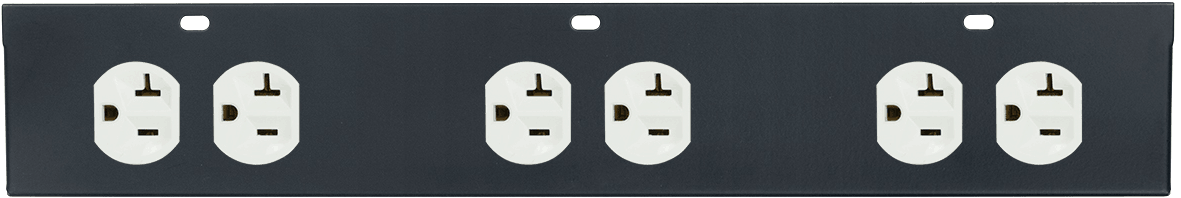

C14 Module C14Module C14 15-inch 20A – 3 duplex outlets NEMA 5-20R

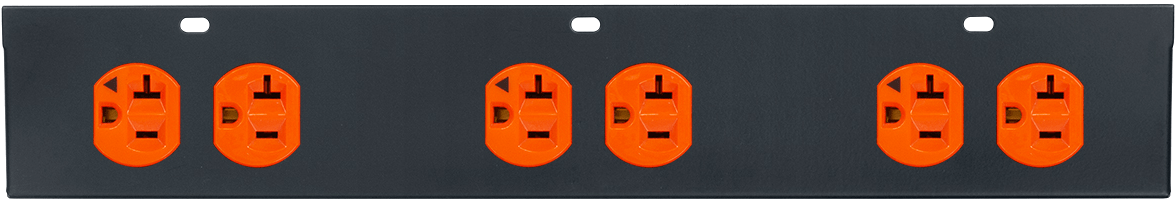

C15 Module C15Module C15 15-inch 20A – 3 duplex (IG) outlets NEMA 5-20R

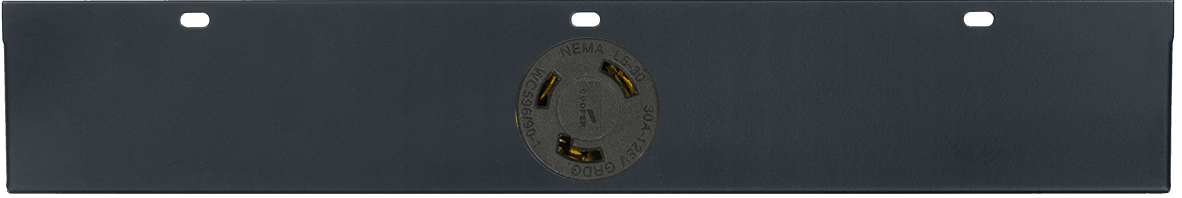

C16 Module C16Module C16 15-inch 30A – 1 twistlock outlet NEMA L5-30R
C17 Module C17Module C17 15-inch 30A – 1 twistlock (IG) outlet NEMA L5-30R

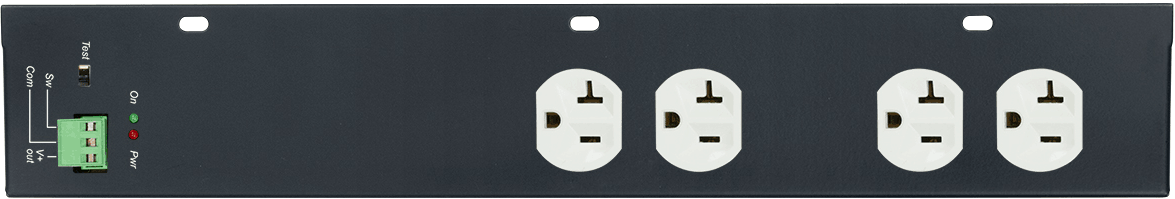

C18 Module C18Module C18 15-inch 20A – 2 duplex outlets NEMA 5-20R with remote control

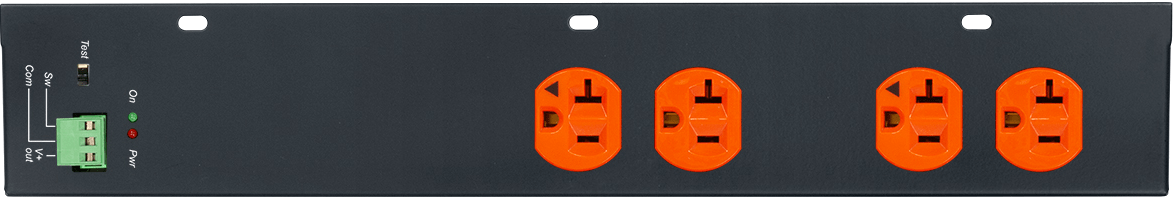

C19 Module C19Module C19 15-inch 20A – 2 duplex (IG) outlets NEMA 5-20R with remote control

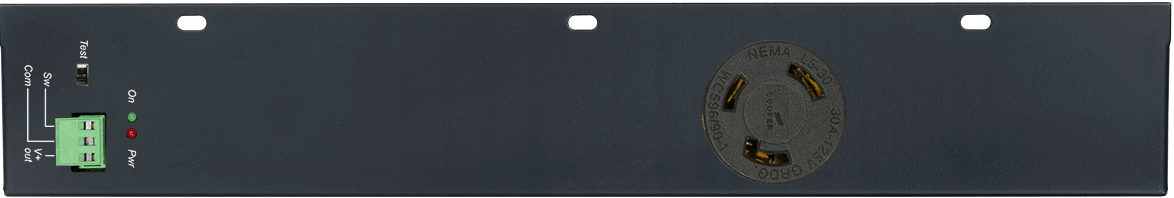

C20 Module C20Module C20 15-inch 30A – 1 twistlock outlet NEMA L5-30R with remote control

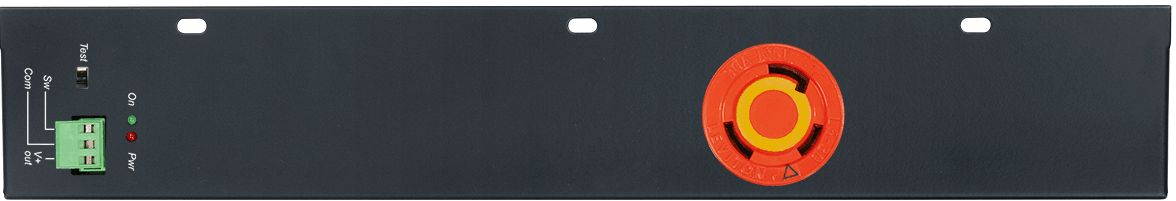

C21 Module C21Module C21 15-inch 30A – 1 twistlock (IG) outlet NEMA L5-30R with remote control

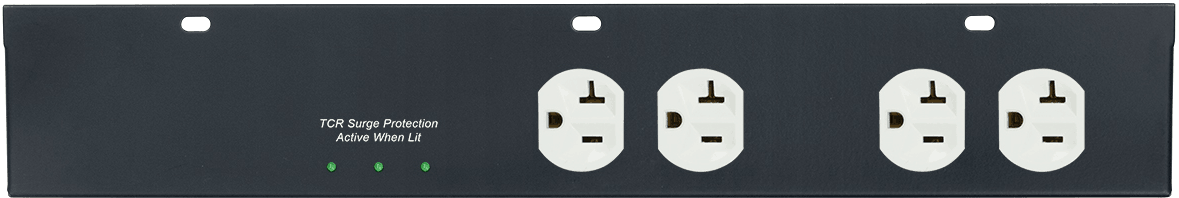

C22 Module C22Module C22 15-inch 20A – 2 duplex outlets NEMA 5-20R with surge suppressor

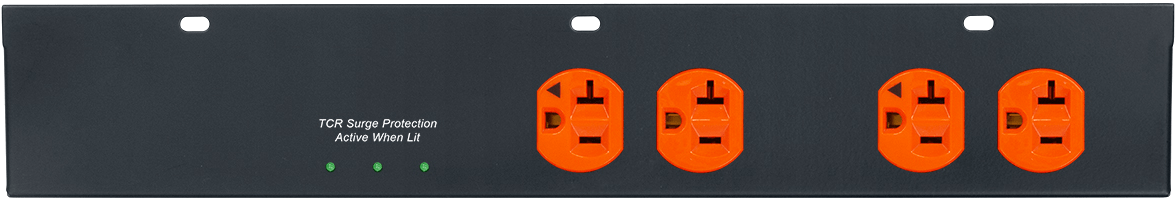

C23 Module C23Module C23 15-inch 20A – 2 duplex (IG) outlets NEMA 5-20R with surge suppressor

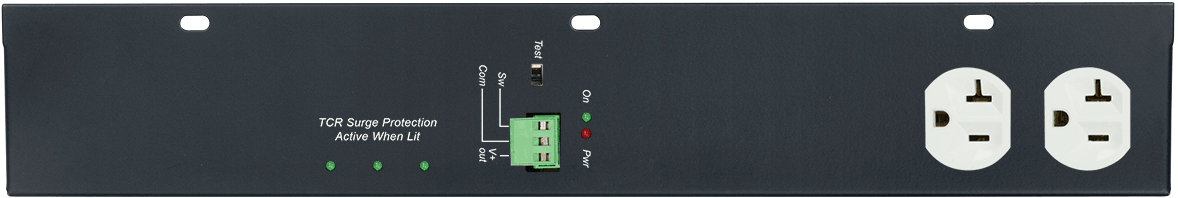

C24 Module C24Module C24 15-inch 20A – 1 duplex outlet NEMA 5-20R with surge suppressor & remote control

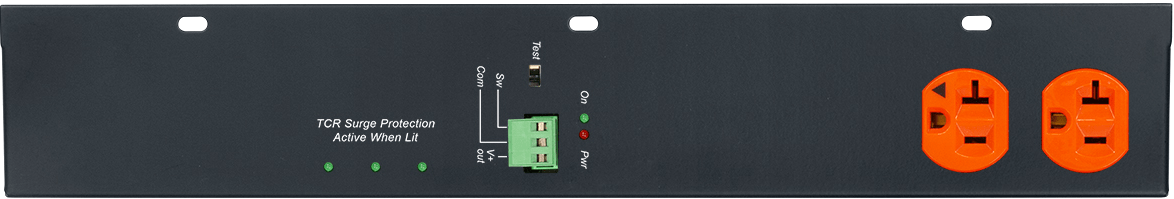

C25 Module C25Module C25 15-inch 20A – 1 duplex (IG) outlet NEMA 5-20R with surge suppressor & remote control

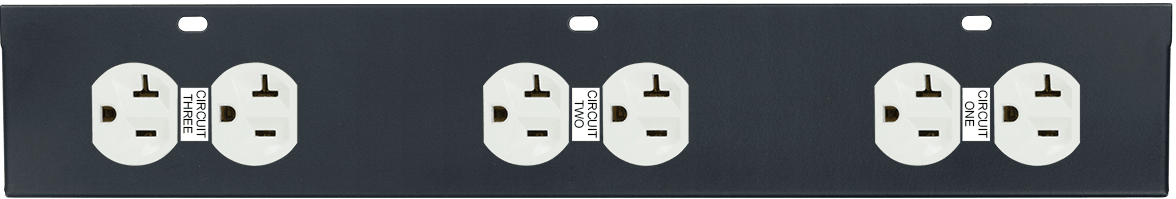

C26 Module C26Module C26 15-inch 20A – 3 duplex outlets NEMA 5-20R, 3-circuits (1 duplex each)

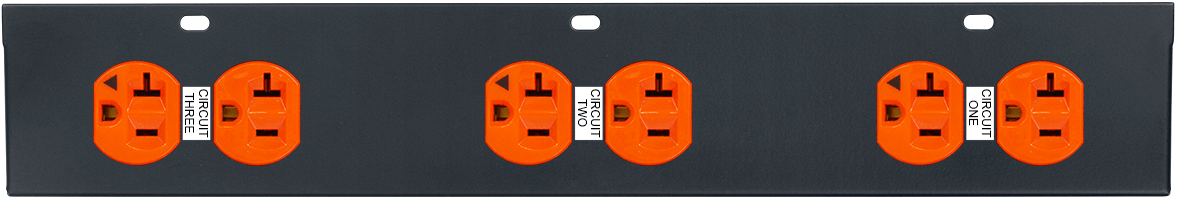

C27 Module C27Module C27 15-inch 20A – 3 duplex (IG) outlets NEMA 5-20R, 3-circuits (1 duplex each)

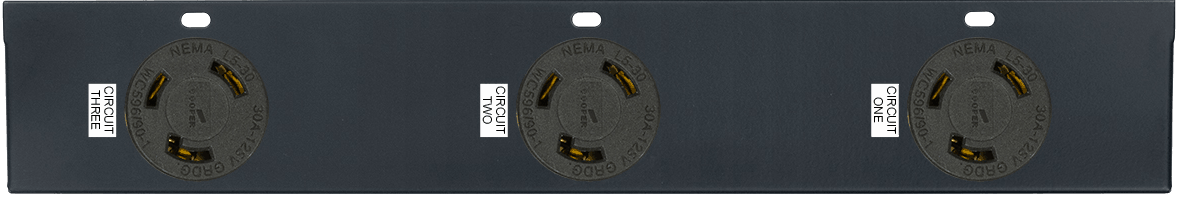

C28 Module C28Module C28 15-inch 30A – 3 twistlock outlets NEMA L5-30R, 3-circuits (1 outlet each)

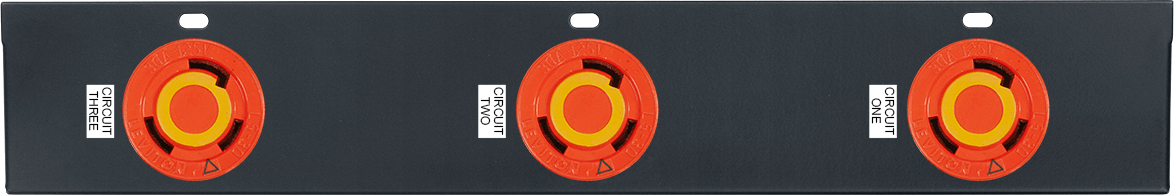

C29 Module C29Module C29 15-inch 30A – 3 twistlock (IG) outlets NEMA L5-30R, 3-circuits (1 outlet each)

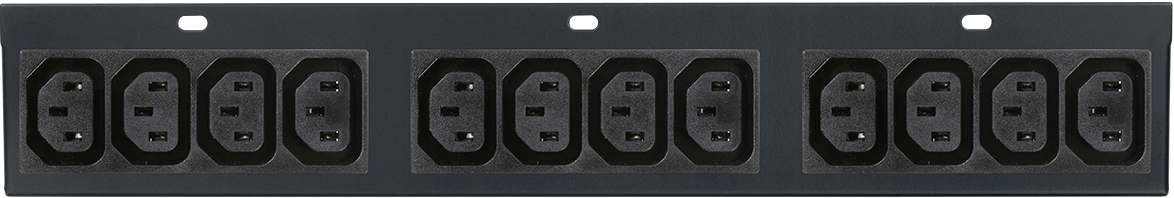

C30 Module C30Module C30 15-inch 15A – 12 IEC-C13 outlets
