Recessed Enclosure for 8 inch driver

Name: Recessed Enclosure for 8 inch driver
SKU: XCP87
Price: 49.90 USD
Availability: InStock

For screw-mount or torsion grille

$49.90 MSRP

Model XCP87

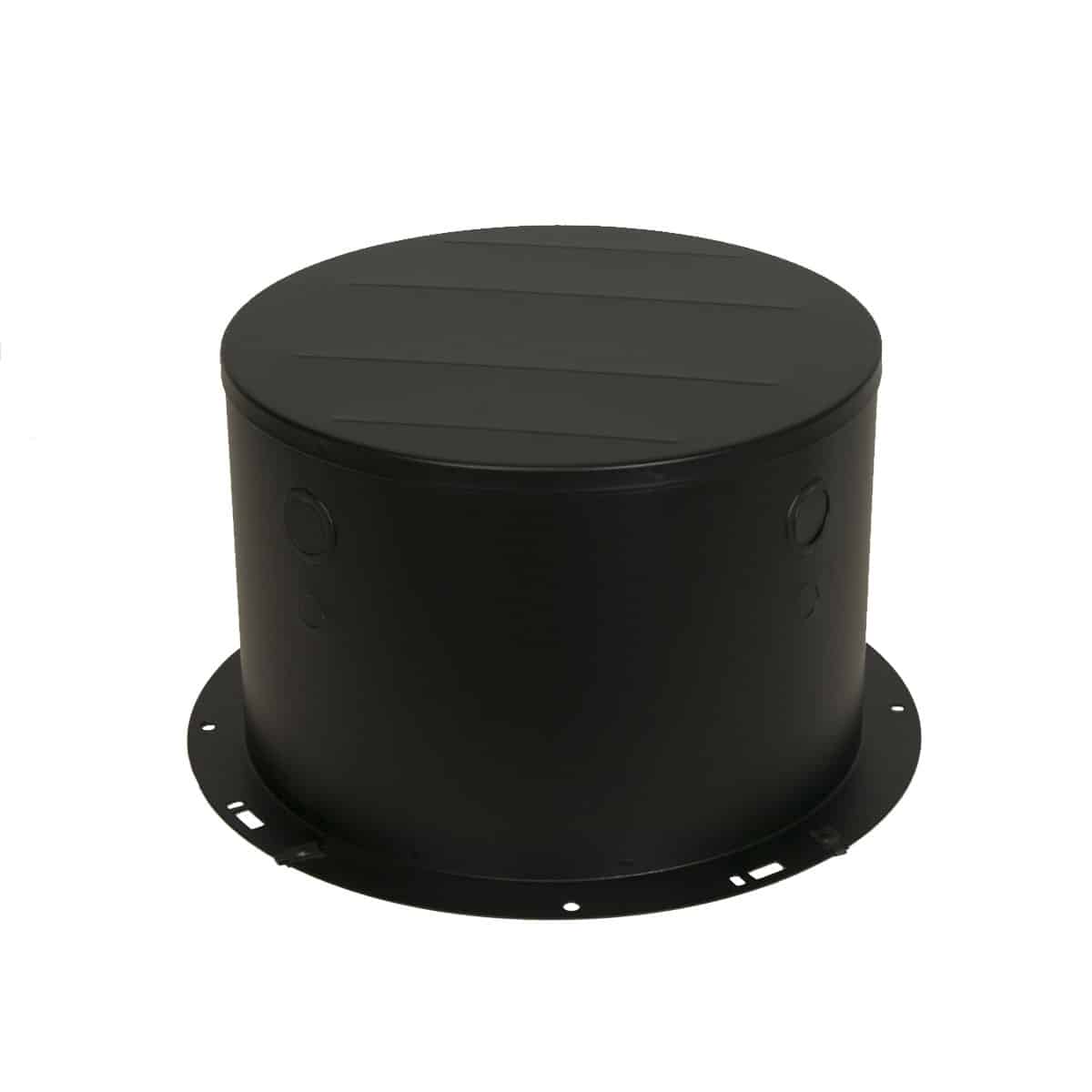

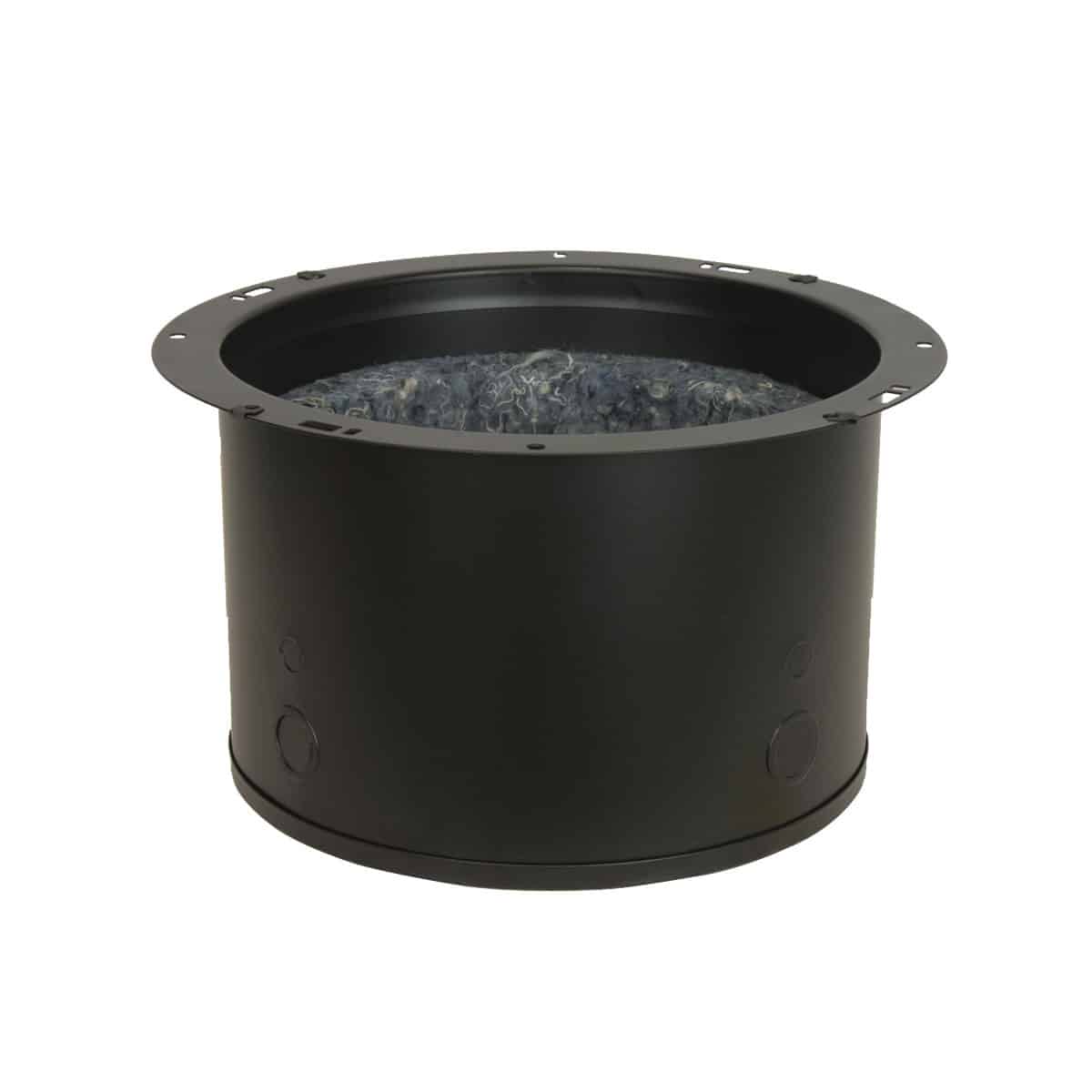

Speaker enclosure with flat grille mounting flange will accept an 8 inch driver and torsion or screw-mount grille for in-wall/ceiling installations.

Add to Favorites

Compare

Material: Welded unitized heavy gauge steel
Diameter: 10.06 in.
Depth: 6.69 in.
Volume: 0.308 cu.ft.
Flange: Flat

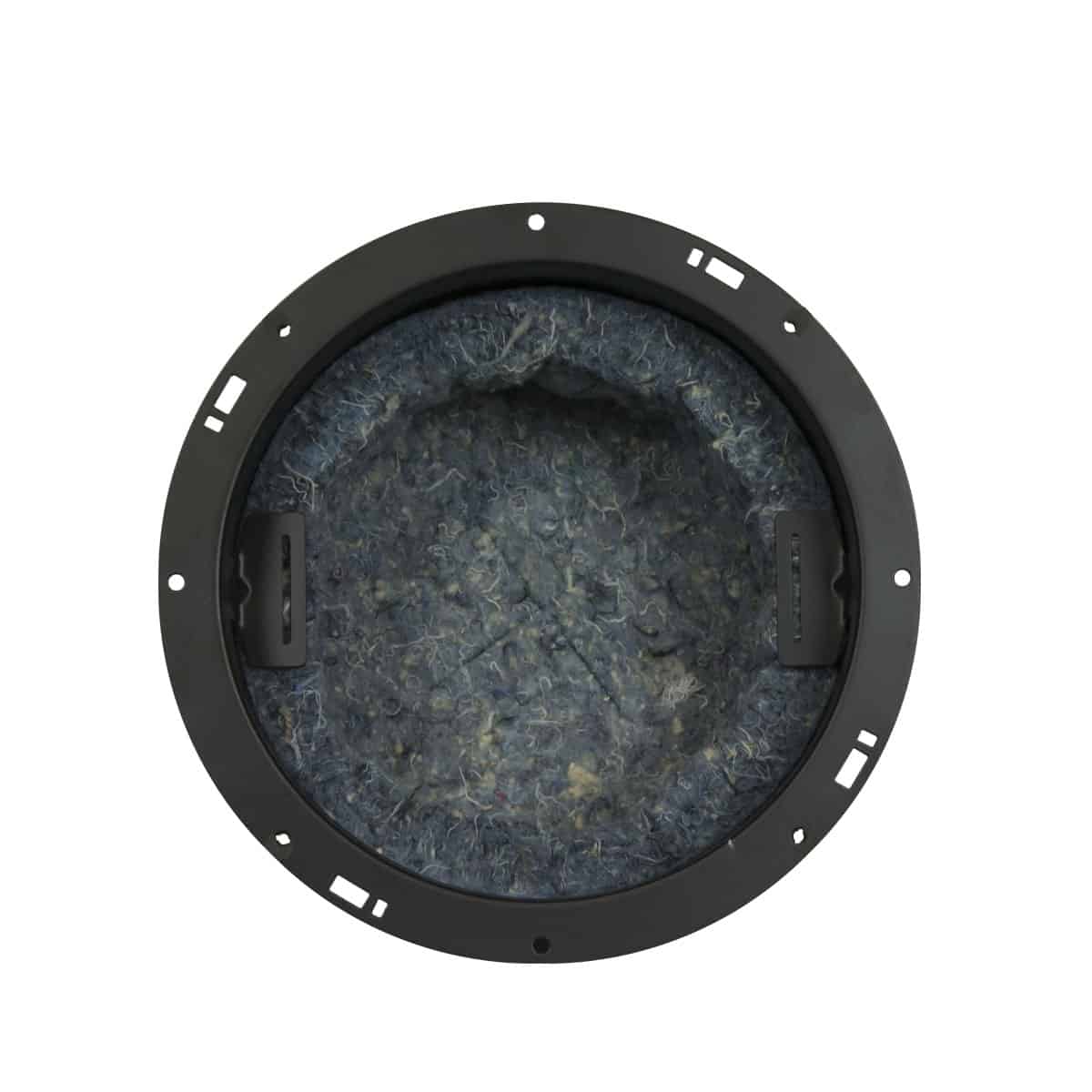

Acoustical Treatment: Undercoated, 1.5 in. acoustic batting
Mounting Aids: U-clips, torsion receptacles, knockouts
For Grille Type: Screw-mount or torsion

Spec Sheet: 1283-XCP87

Made in U.S.A.
Certified U.S. steel
UL Listed only when used with Lowell Driver/Grille Assembly WB8-8A50-T870

The recessed enclosure shall be Lowell Model No. XCP87, which shall be 22-gauge steel undercoated to eliminate acoustic and mechanical resonance and finished with a black powder epoxy paint. The enclosure shall measure 10.06 in, diameter x 6.69 in. depth. It shall feature four .5–.75 knockouts for conduit, four .5″ knockouts for wires and 1.5 in. batting.

Screw-Mount Grilles: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
Torsion Grille: CN-8M, WB-8T
Driver: 8 inch
Driver/Grille Assembly: WB8-8A50-T870
Tile Bridge: LBS8, LBS8-R1
