12U Slim Open-frame Wall Rack

Name: 12U Slim Open-frame Wall Rack
SKU: WXR-1212
Price: 265.78 USD
Availability: InStock

12"D x 19"W

$265.78 MSRP

Model WXR-1212

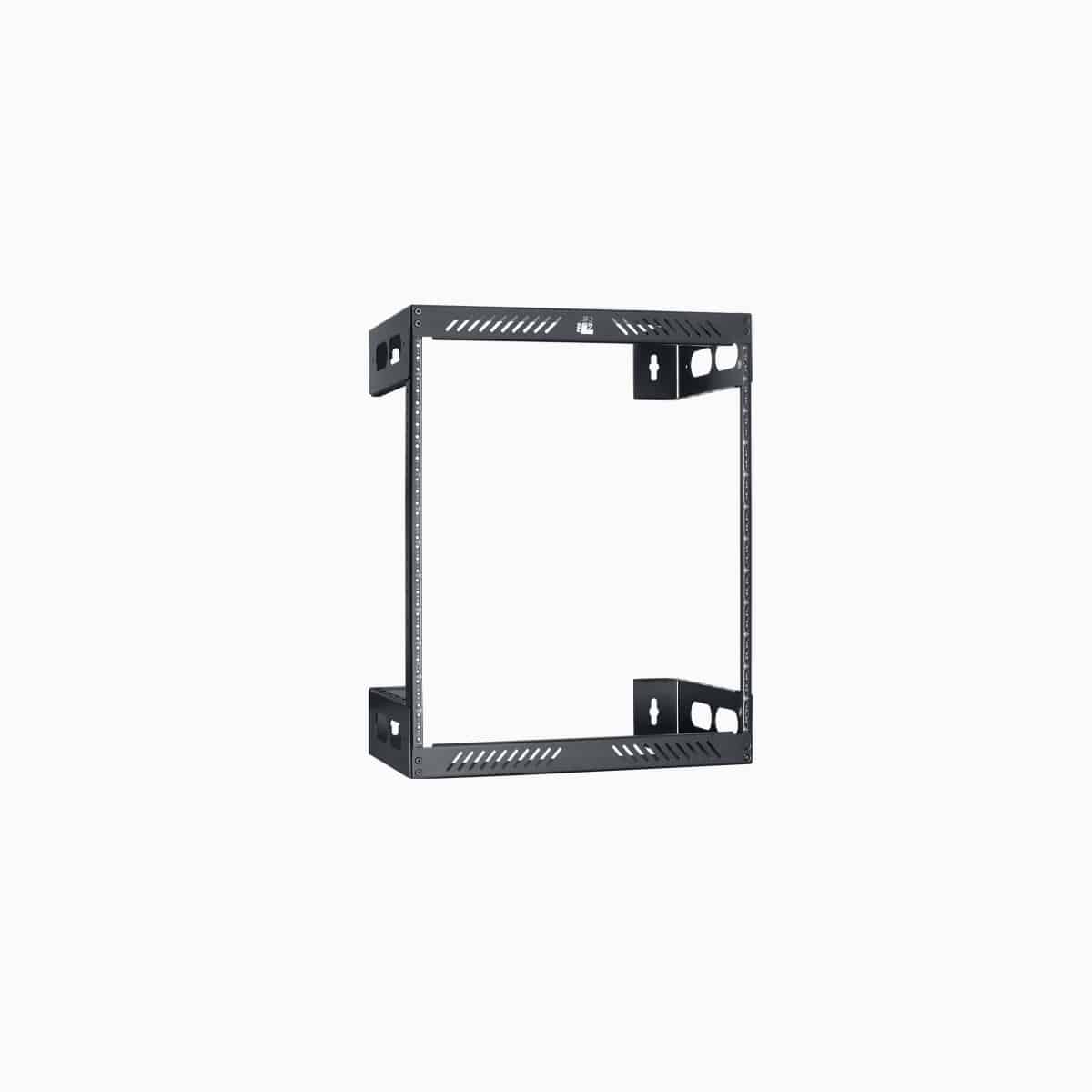

Slim open-frame wall rack mounts 19"W equipment to a wall or backboard. Top and base are heavy gauge steel that can be mounted on 16" centers to form a stable platform for patch panels, routers, switches, telecommunications, or computer equipment. Ships unassembled.

Add to Favorites

Compare

14-gauge steel top and base
11-gauge steel corner post rails tapped 10-32 (1 pr.)
Upper and lower front vents
Open sides with obrounds in top/base for cable management
Smooth black powder epoxy finish

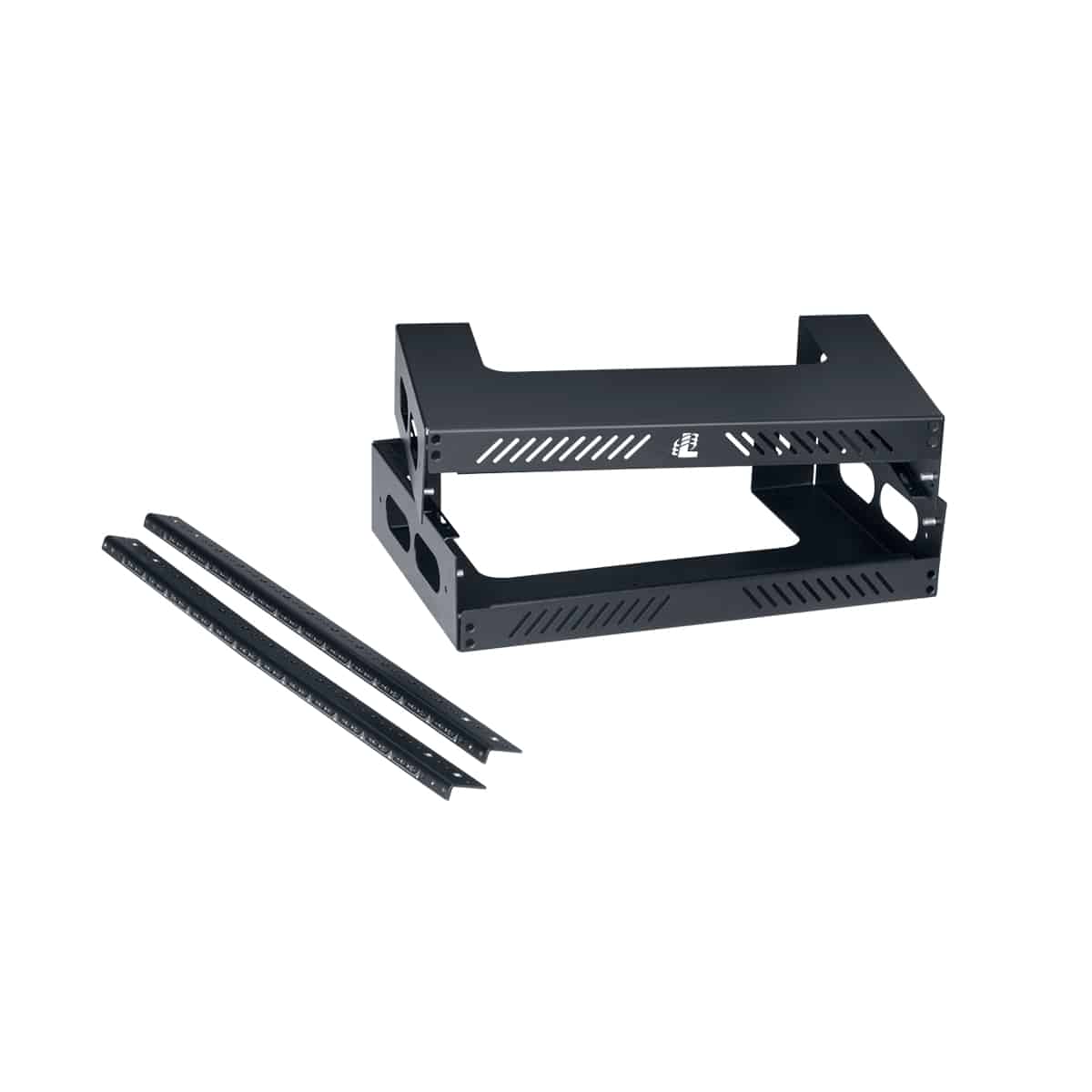

Ships unassembled

Rack Space: 12U
Rack Height: 21.28 in.
Rack Width: 19.21 in.
Rack Depth: 12.00 in. (11.85 usable)
Load Capacity: 200 lbs.

Spec Sheet: 2051-WXR1212

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The slim open frame wall-mount rack shall be Lowell WXR-1212 with overall dimensions of 21.28″H x 12.00″D x 19.21″W. It shall provide 12 rack units of panel space. Rack construction shall be 14-gauge steel top/base with (1 pr.) 11-gauge steel corner post rails tapped 10-32 on E.I.A. spacing, with smooth black powder epoxy finish. The rack shall be manufactured in the U.S.A. with certified U.S. steel. It shall have a load capacity of 200 lbs. when properly mounted. It shall ship unassembled.
