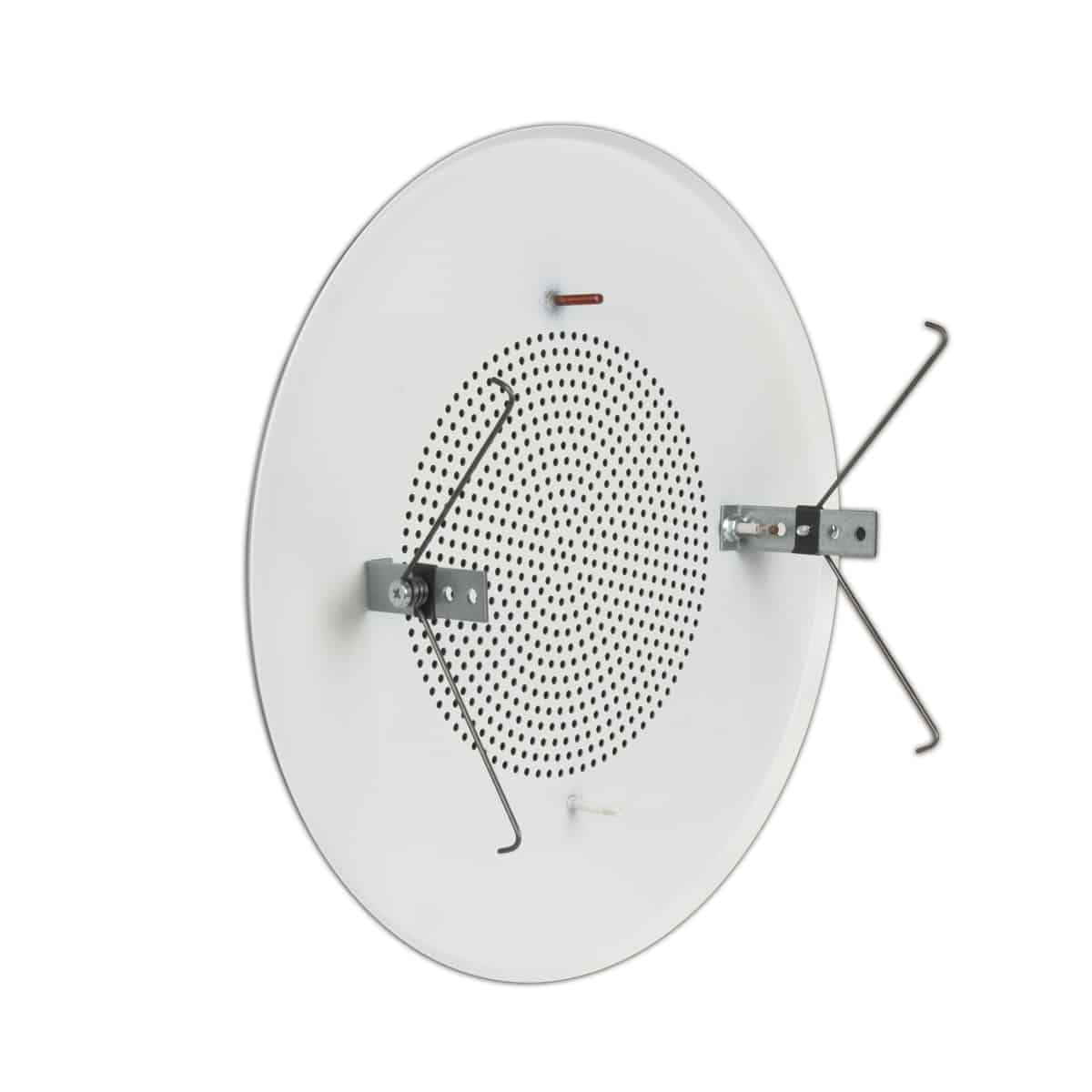

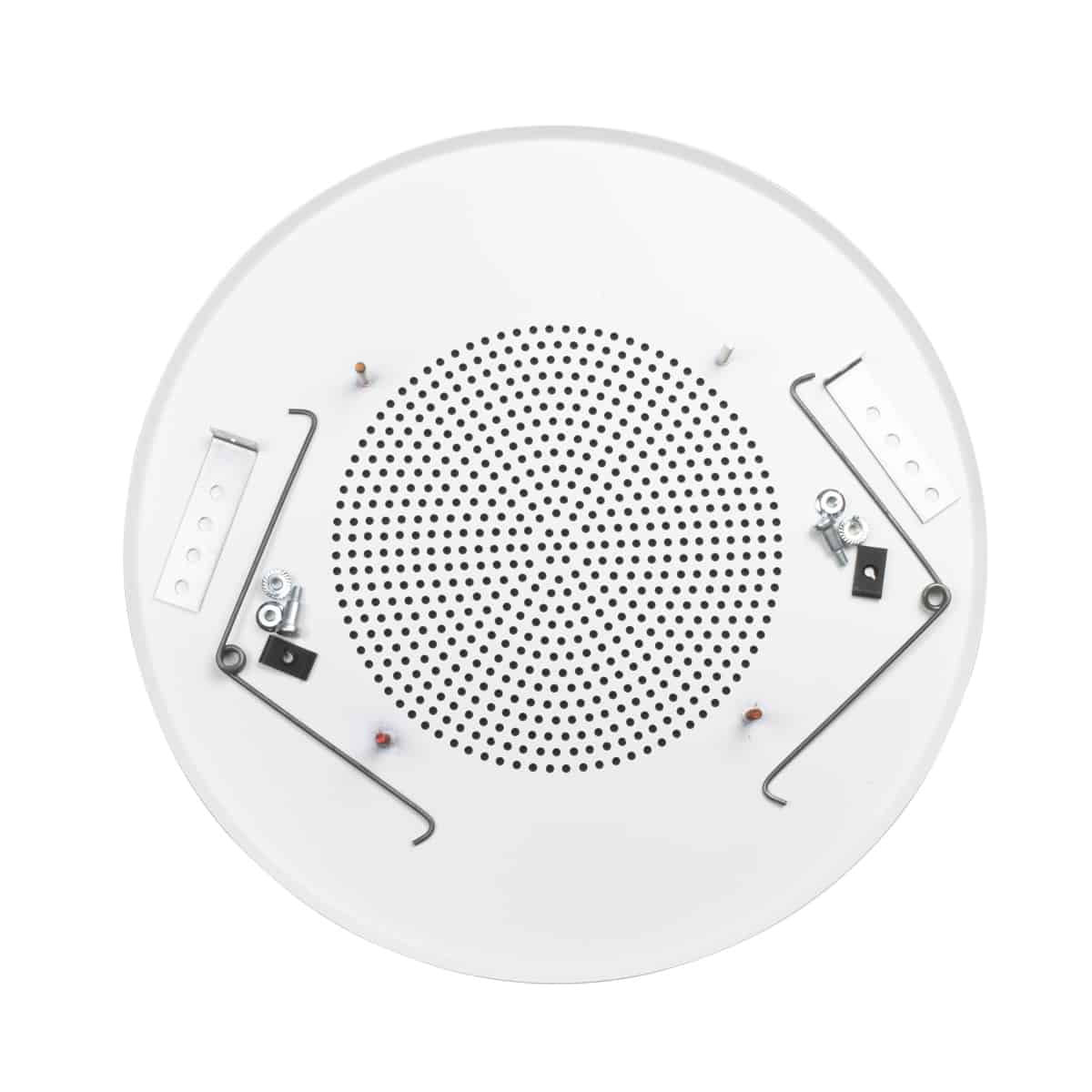

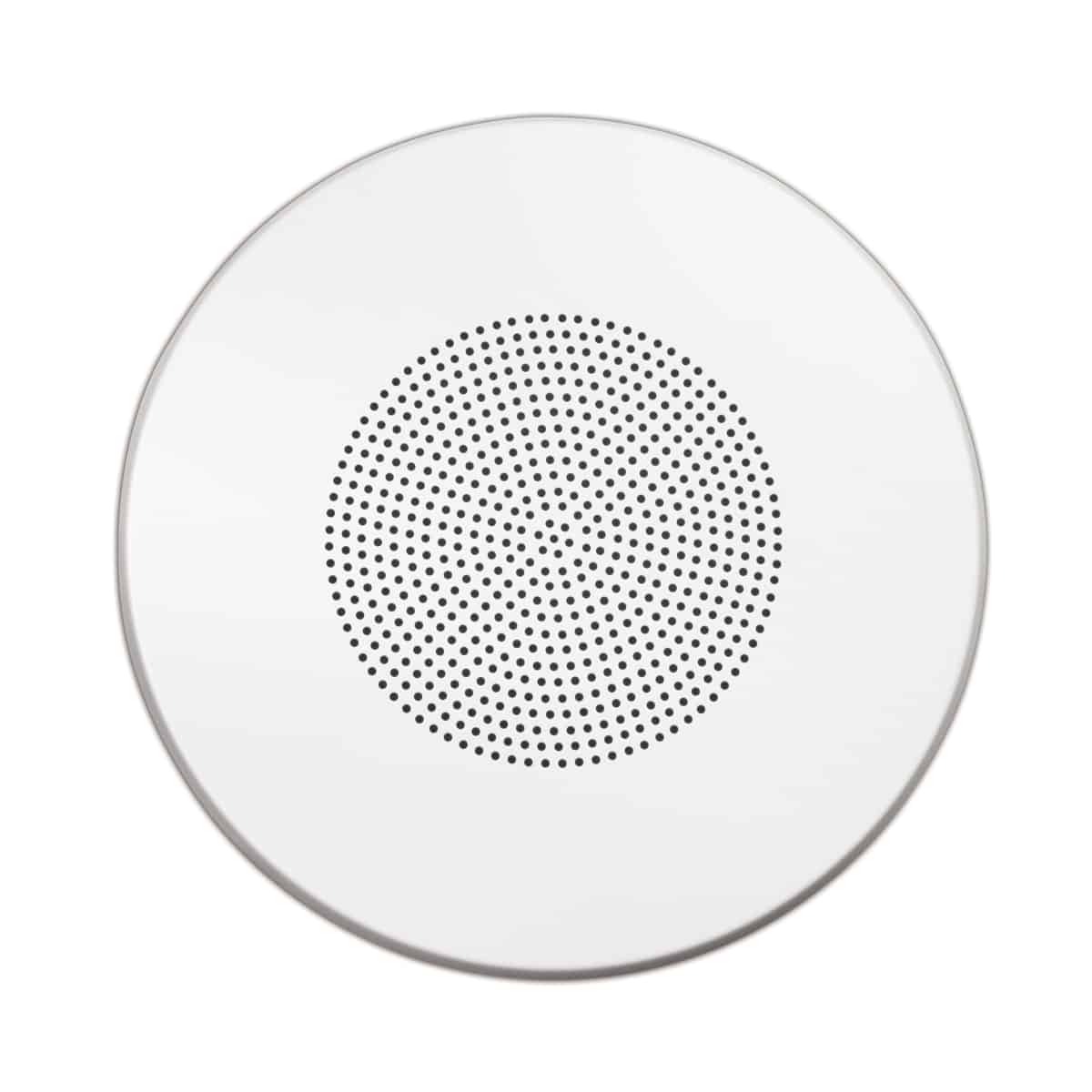

Steel Torsion Grille

For 8 inch driver

Model WB-8T

Steel grille for use with 8 in. assemblies weighing less than 3.5 lbs. Note: Discontinued model, limited availability.

Add to Favorites

Compare

Style: Torsion
Material: 20-gauge steel with punched center
Finish: White
Size: 12.875 in. diameter
Mounting Projection: 0.25 in.
Mounting Provisions: Torsion bracket spring devices accommodate a variety of ceiling depths, welded studs w/nuts

Spec Sheet: 1642-WB8T
Instructions: Install-CNM+WBT

Made in U.S.A.
Certified U.S. steel

The torsion speaker grille for 8 in. drivers shall be Lowell Model WB-8T. It shall be fabricated from 20-gauge steel with a punched center and mount using torsion bracket/spring devices. The diameter shall be 12.875 in. with a shallow mounting projection of .25 in. The grille shall be finished in white powder epoxy. It shall include welded studs, serrated hex nuts, two torsion bracket-spring devices and installation accessories for mounting to specified Lowell backbox or mounting ring with torsion receptacles.

Drivers: 8 inch
Recessed Backboxes: IX810, IX810-EL, XCP84, XCP87, XCP810, BME84, BME87
Tile-Bridges: LBS8, LBS8-R1
