Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: WB-8
Price: 28.00 USD
Availability: InStock

For 8 inch driver

$28.00 MSRP

Model WB-8

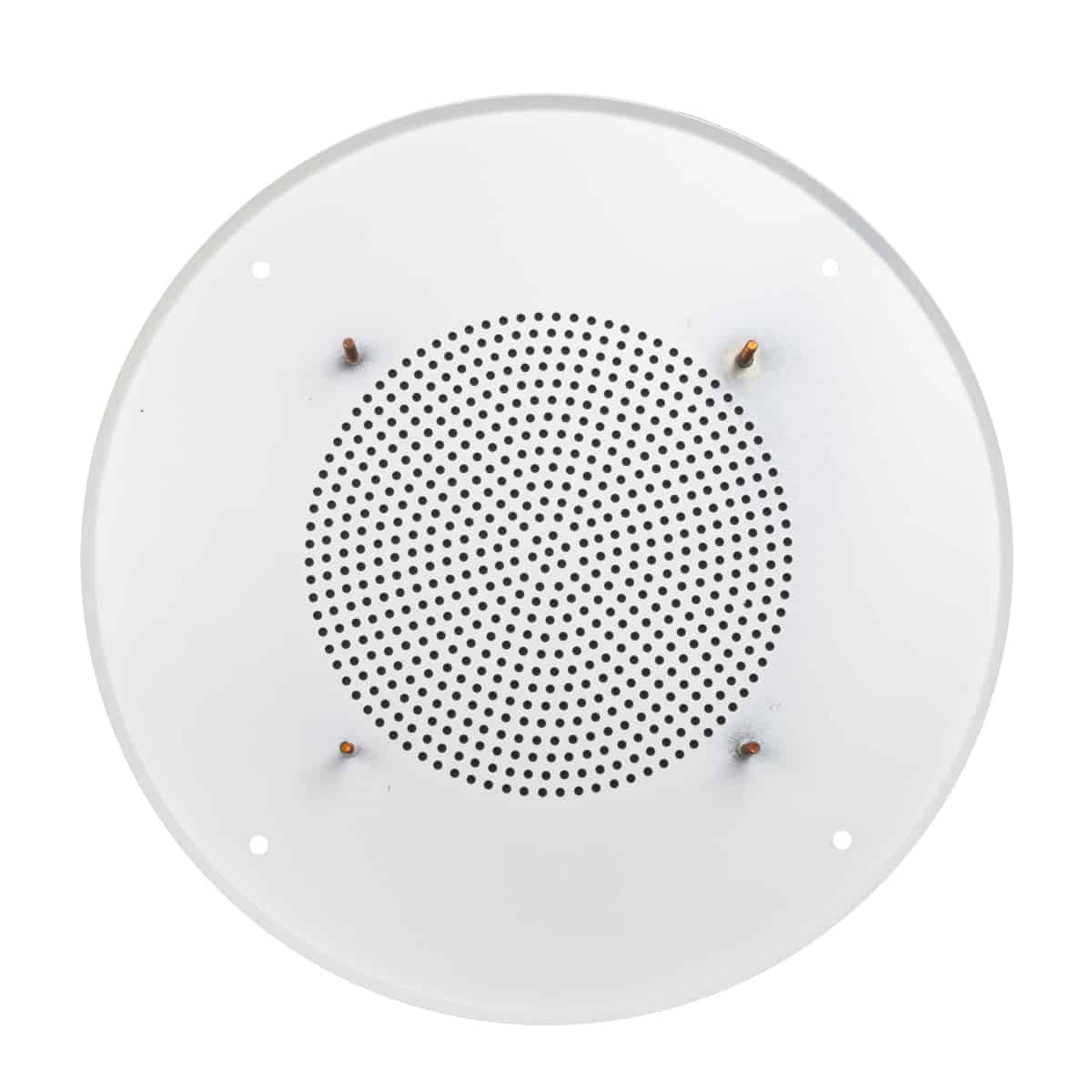

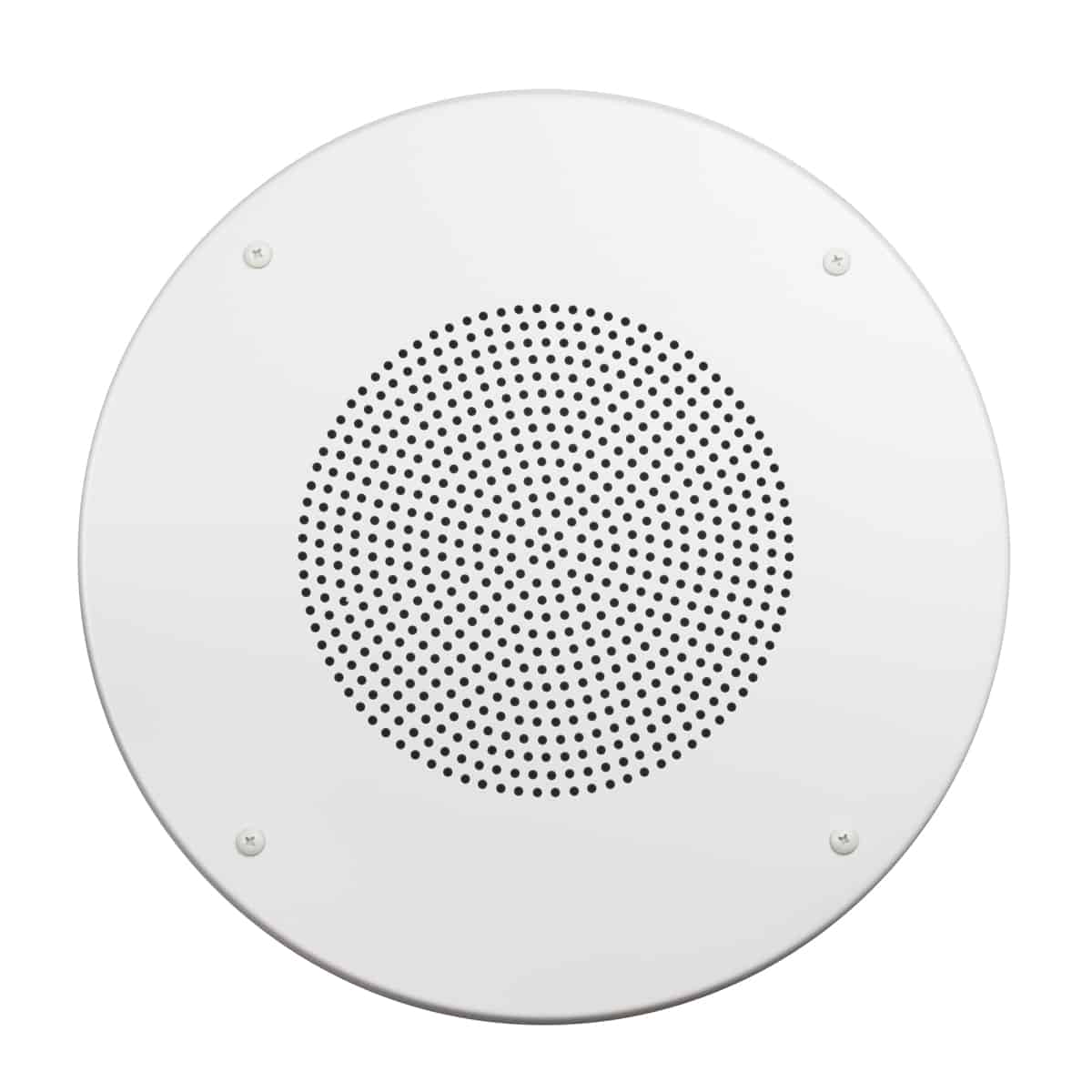

Contoured speaker grille with white finish is for use with an 8 inch driver. This style is a popular choice for offices, hotels, schools, medical, retail, and commercial facilities.

Add to Favorites

Compare

Style: Screw-mount
Material: Precision formed single piece of 20-gauge steel reinforced with 60-degree peripheral flange, perforated center, contoured edge
Finish: White
Size: 12.875 in. diameter
Mounting Projection: 0.25 in. mounting projection
Mounting Provisions: 4 screws (white), welded studs w/nuts

Spec Sheet: 1676-WB8

Made in the U.S.A.
Certified U.S. steel

The contoured speaker grille for 8 inch speakers shall be Lowell Model WB-8. It shall be fabricated one-piece 20-gauge steel reinforced with a peripheral flange of 60-degrees. The grille diameter shall be 12.875 inch with a shallow mounting projection of 0.25 in. Each grille shall have four 0.25 in. holes spaced at 90-degree intervals on an 11.25 in. bolt circle for mounting grille to specified backbox or mounting ring. It shall be finished in white powder epoxy coating and include white screws for backbox mounting and welded studs for mounting specified 8 in. speaker.

Drivers (8 in.): 810, 8A50, 8C10MRB, CT830A
Backboxes: CP84, CP87, CP810, DX108, XCP84, XCP84-S, XCP87, XCP810, 8XD4, 8PSBX, BME84, BME87, 8XD4-S, 8XD4-P
Tile-Bridges: LBS8, LBS8-CP, LBS8-RI
