Steel Torsion Grille

Name: Steel Torsion Grille
SKU: WB-4T
Price: 37.60 USD
Availability: InStock

For 4 inch driver

$37.60 MSRP

Model WB-4T

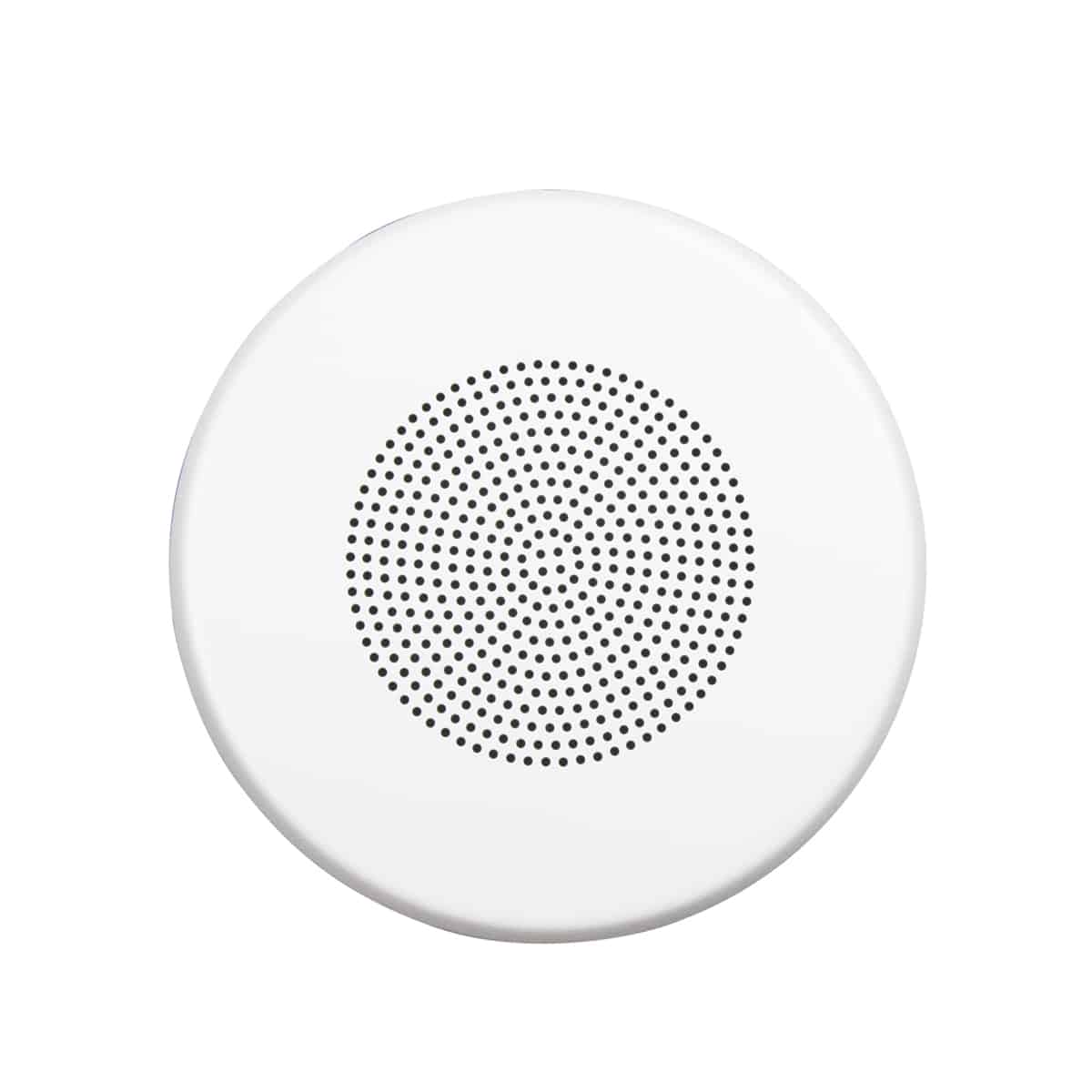

WB-4T torsion speaker grille with contoured edge and very low projection is made for use with a 4 inch speaker (E.I.A. 5 inch). Steel with white finish.

Add to Favorites

Compare

Style: Torsion
Material: 20-gauge steel outer ring with punched center, contoured edge
Finish: White
Size: 7.25 in. diameter
Mounting Projection: 0.25 in.

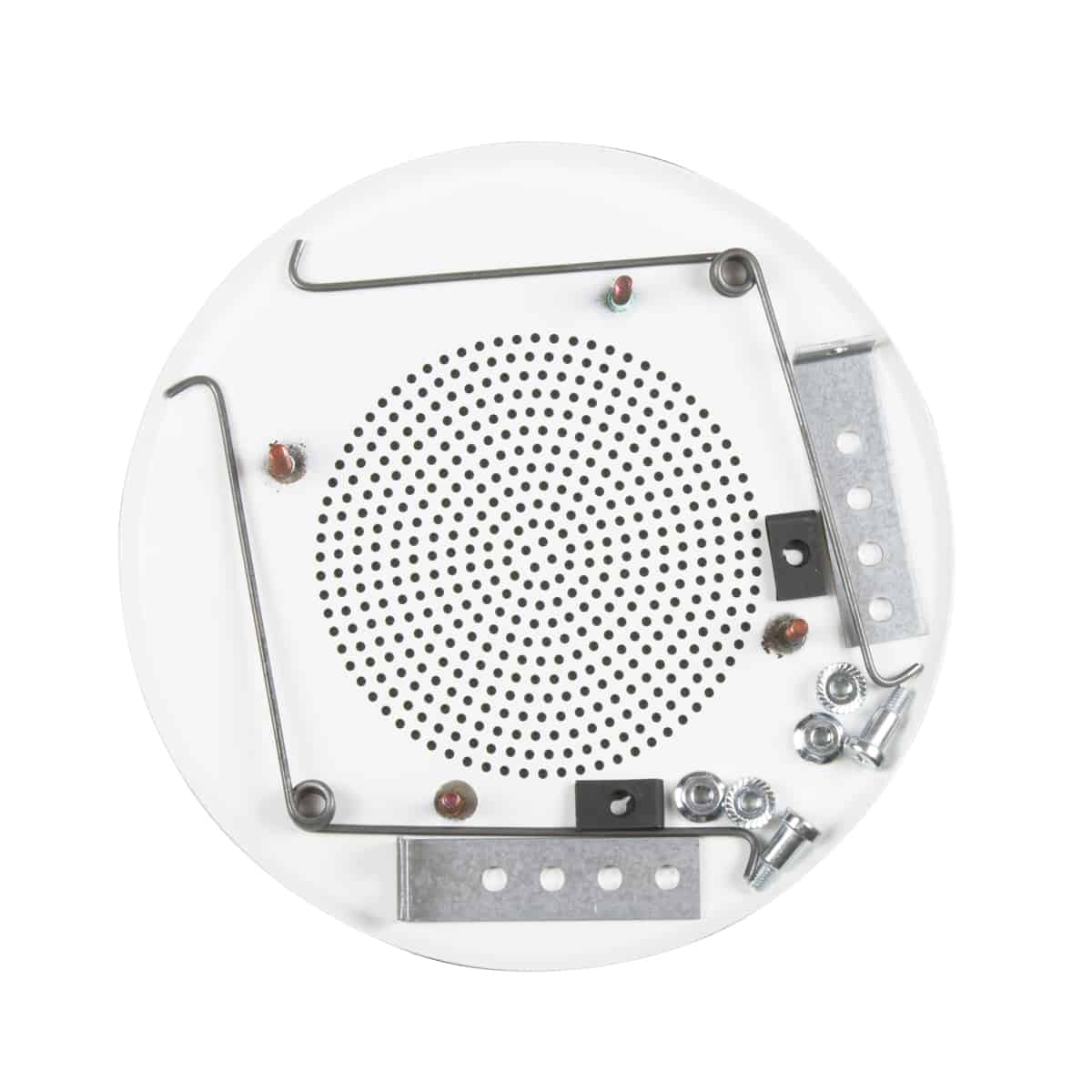

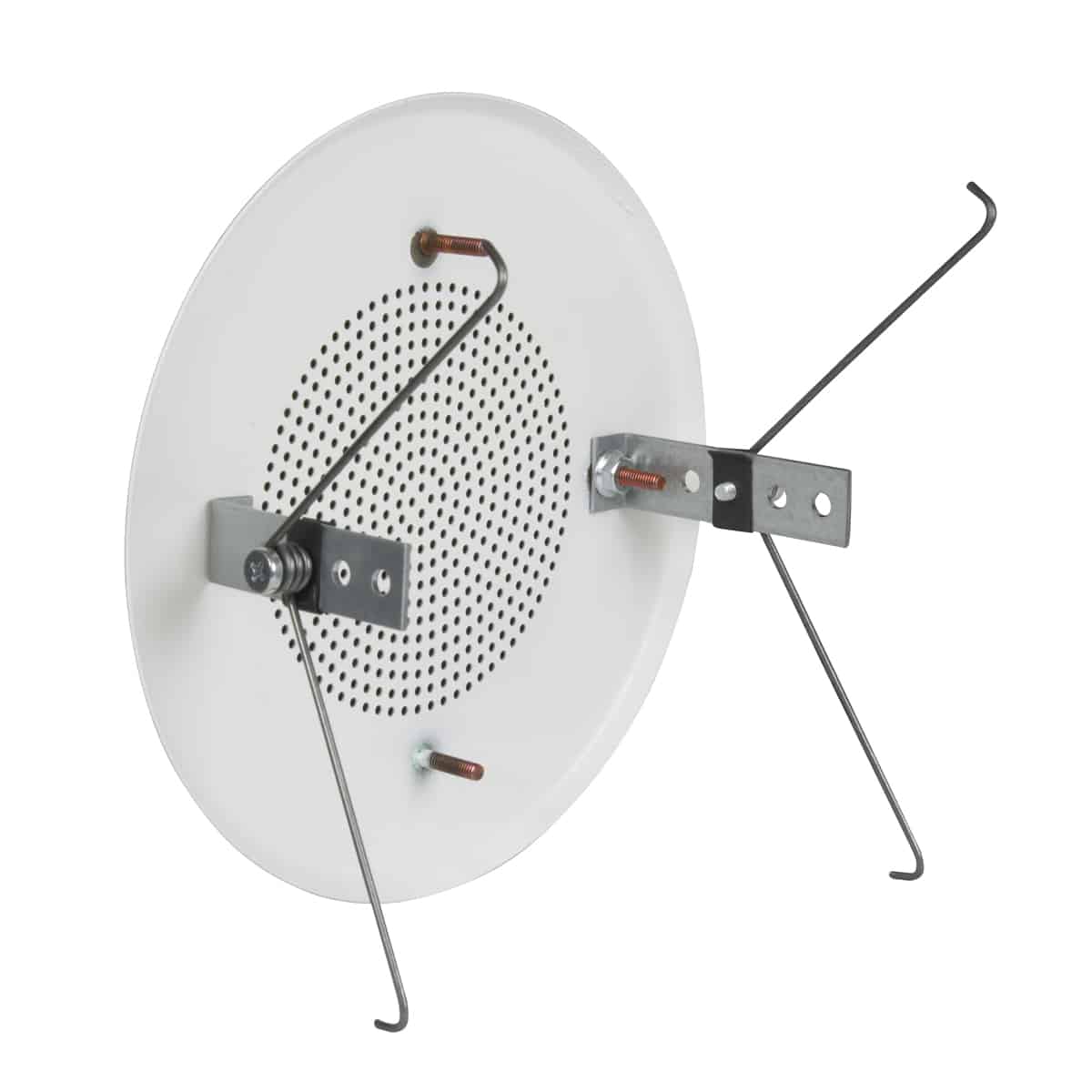

Mounting Provisions: Torsion bracket spring devices accommodate a variety of ceiling depths, welded studs w/nuts

Spec Sheet: 1644-WB4T
Instructions: Install-CNM+WBT

Made in U.S.A.
Certified U.S. steel

The torsion speaker grille for 4 in. drivers shall have no visible screws or hardware and shall be Lowell Model WB-4T. It shall be fabricated from one-piece 20-gauge steel reinforced with a peripheral flange and finished in white powder epoxy. The grille diameter shall be 7.25” with a shallow mounting projection of 0.25 in. Model WB-4T shall include welded studs and nuts for mounting specified 4 in. (EIA 5 in.) speaker. It shall also include two torsion bracket/spring devices and installation accessories for mounting a speaker/grille assembly weighing up to 3.5 lbs. to specified Lowell backbox. The torsion/bracket method shall have no visible hardware and shall be adjustable for varying ceiling depths.

Drivers (4 in.): 4A30, JR410
Recessed Backbox: DX104-T
Tile-Bridge: LBS4-DX
