Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: WB-4
Price: 26.00 USD
Availability: InStock

For 4 inch driver

$26.00 MSRP

Model WB-4

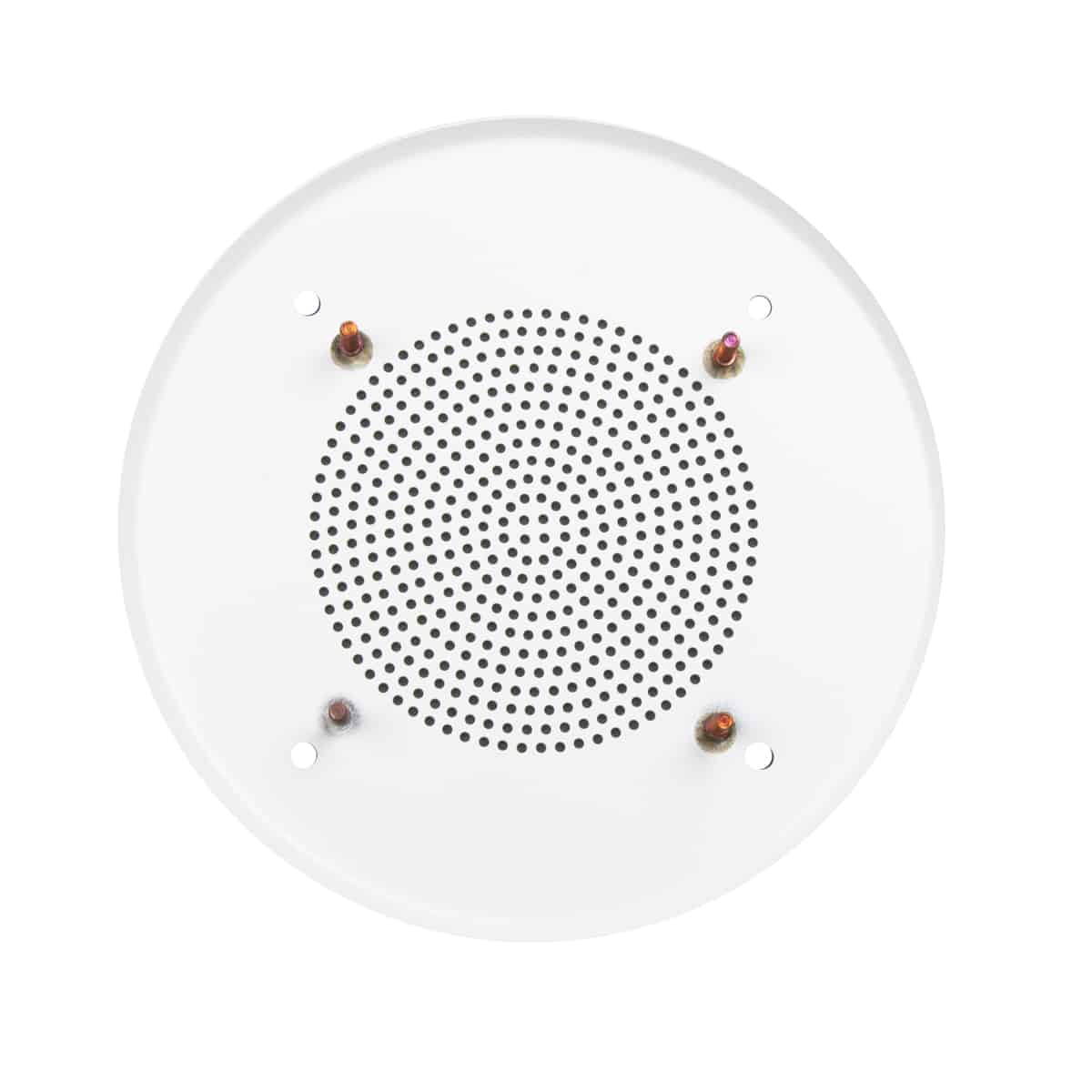

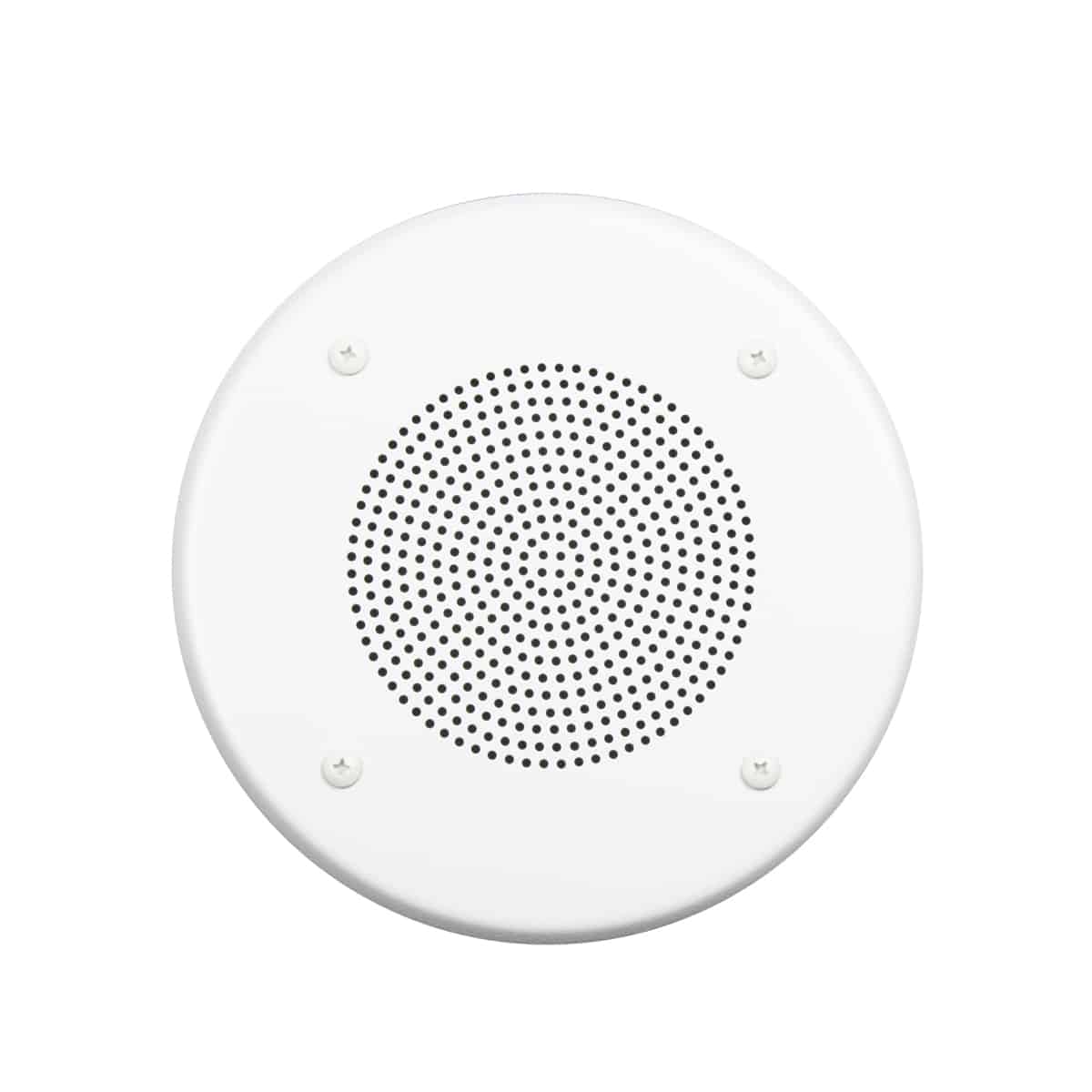

Steel speaker grille for 4 inch speaker features a contoured edge and white powder epoxy finish.

Add to Favorites

Compare

Style: Screw-mount
Material: Precision formed single piece 20-gauge steel with punched center, contoured edge
Size: 7.25 in. diameter
Finish: White
Mounting Projection: 0.25 in.
Hardware: 4 screws, 4 welded studs w/nuts

Spec Sheet: 1598-WB4

Made in the U.S.A.
Certified U.S. steel

The steel speaker grille for 4 inch drivers shall be Lowell Model WB-4. It shall be fabricated one piece 20-gauge steel reinforced with a peripheral flange. The grille diameter shall be 7.25 in. with a shallow mounting projection of 0.25 inches. Model WB-4 shall include welded studs for mounting specified 4 in. (EIA 5 in.) speaker. The grille shall also have four 0.218 in. holes spaced at 90 degree intervals on a 5.625 in. bolt circle plus four 8-32 x 1-1/2 in. white Phillips-head screws for mounting the speaker/ grille assembly to specified backbox or mounting ring. The grille shall be finished in white powder epoxy and include white screws for backbox installation.

Drivers: 4A30, JR410
Recessed Backboxes: DX104, CP4
Tile-Bridges: LBS4-DX, LBS4-R
Mounting Ring: PR4
