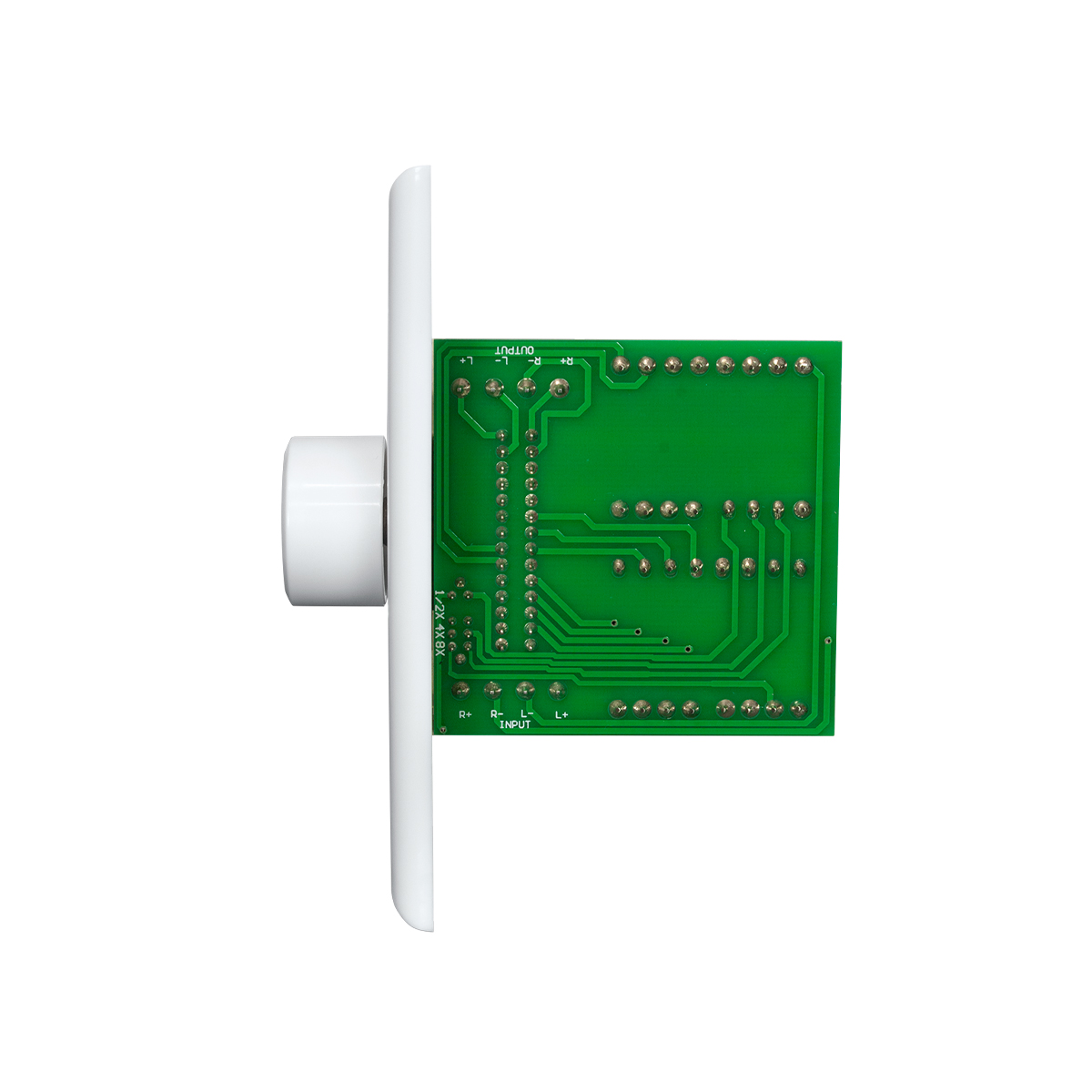

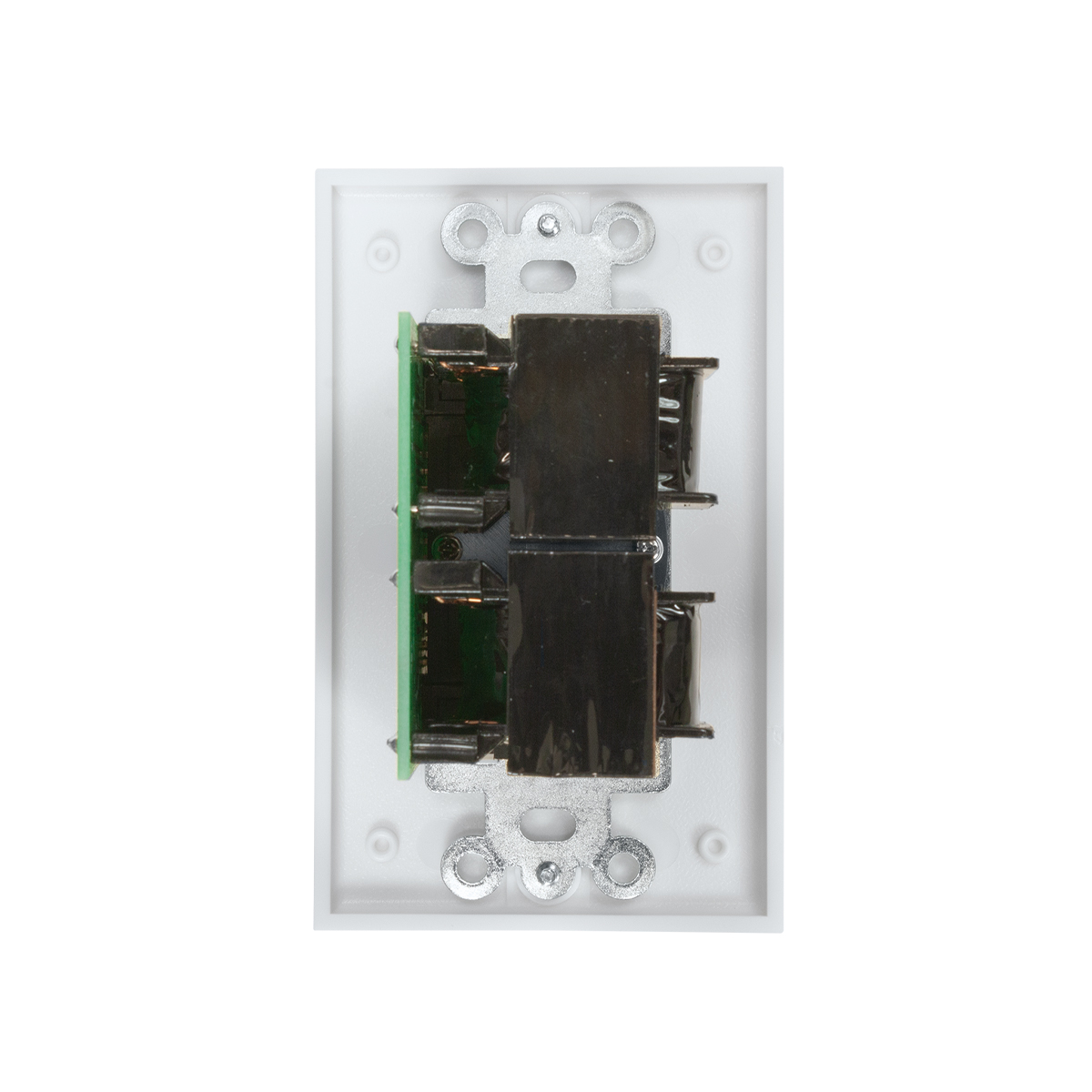

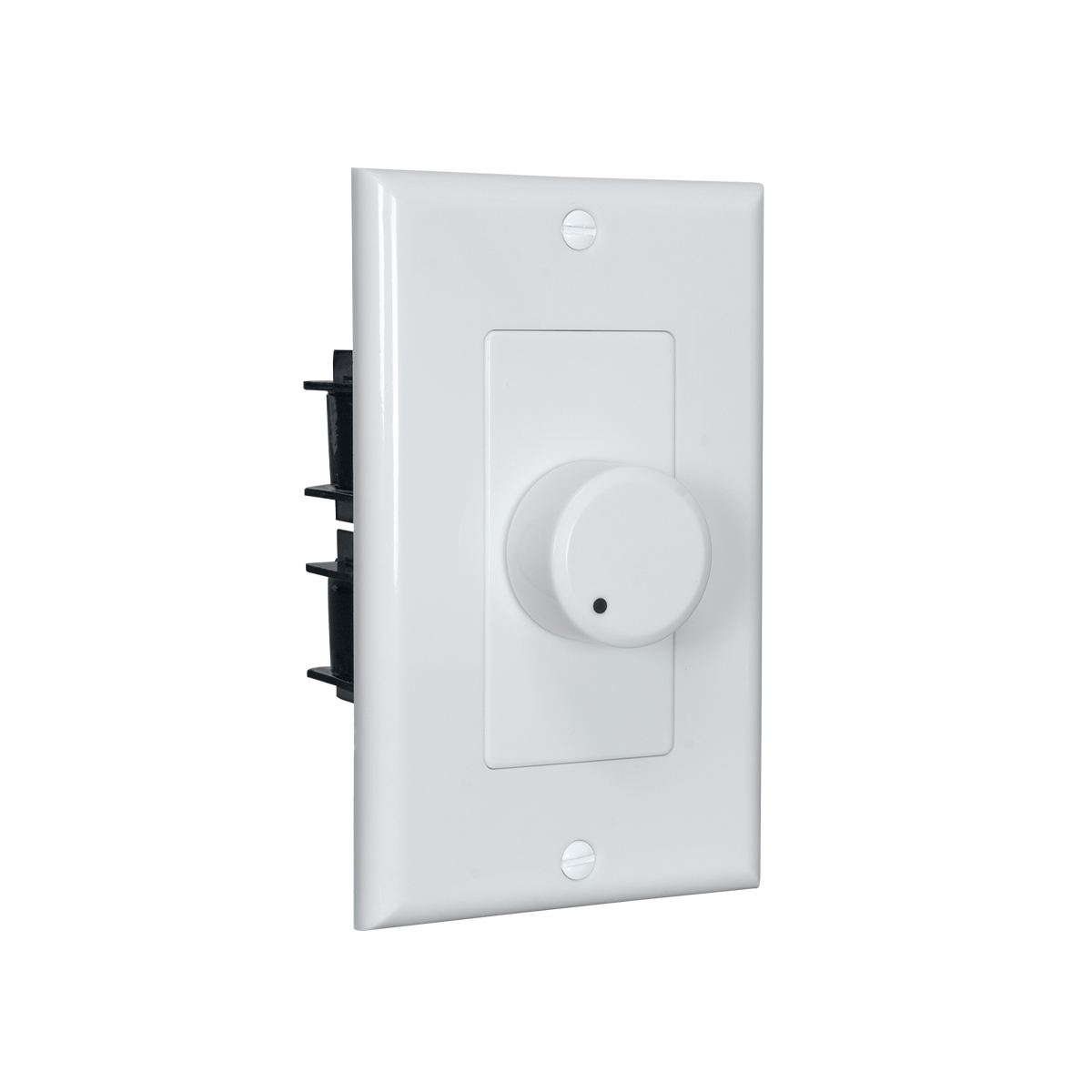

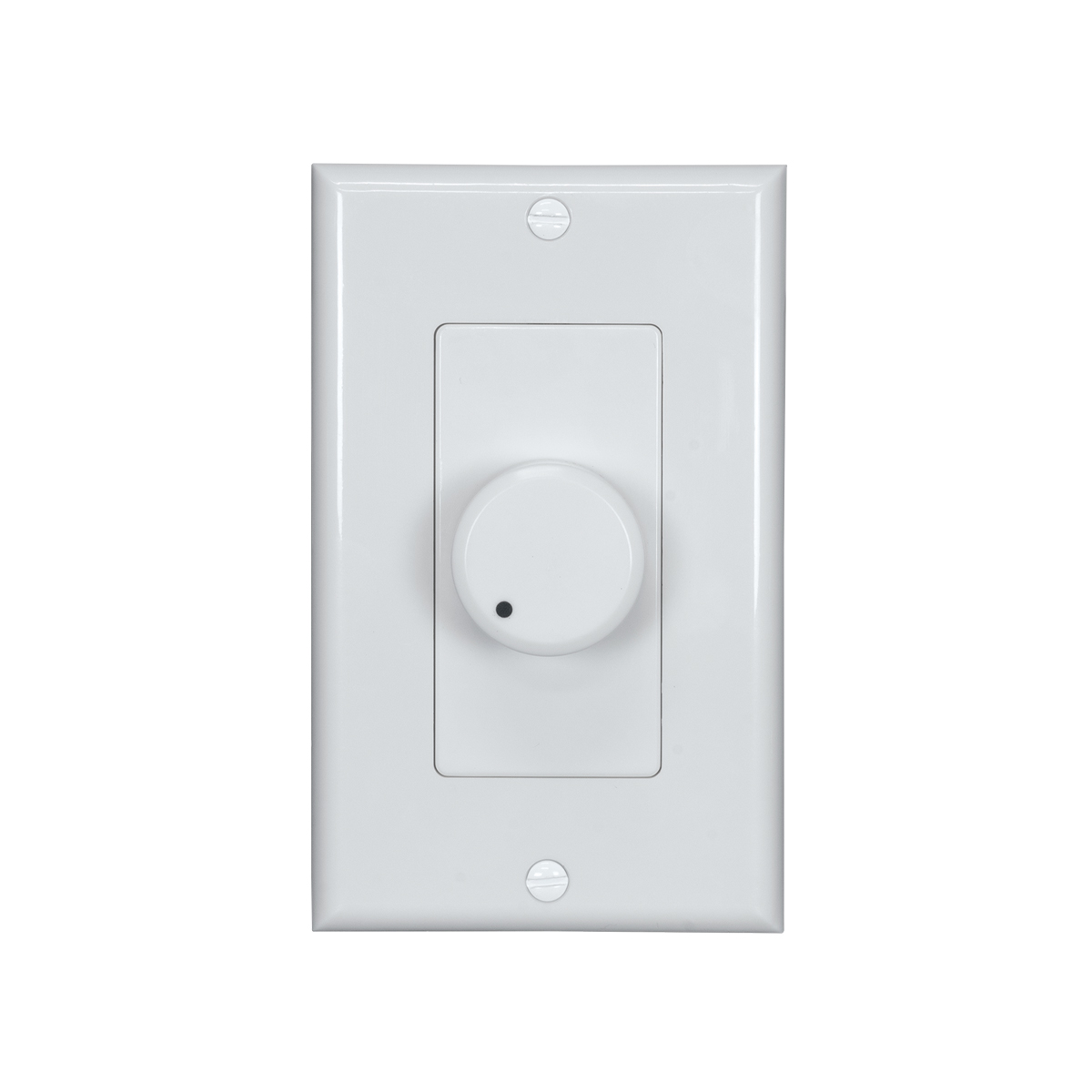

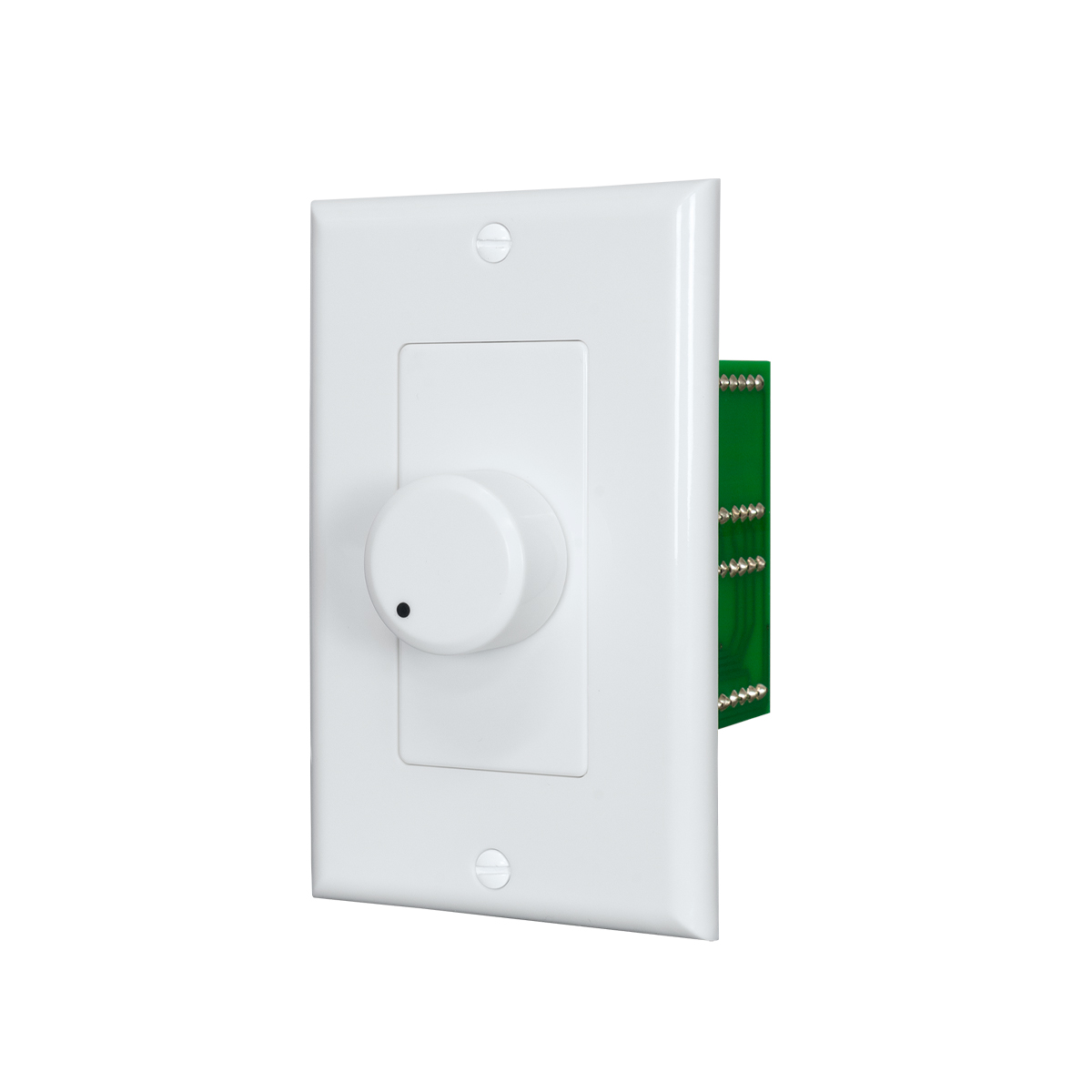

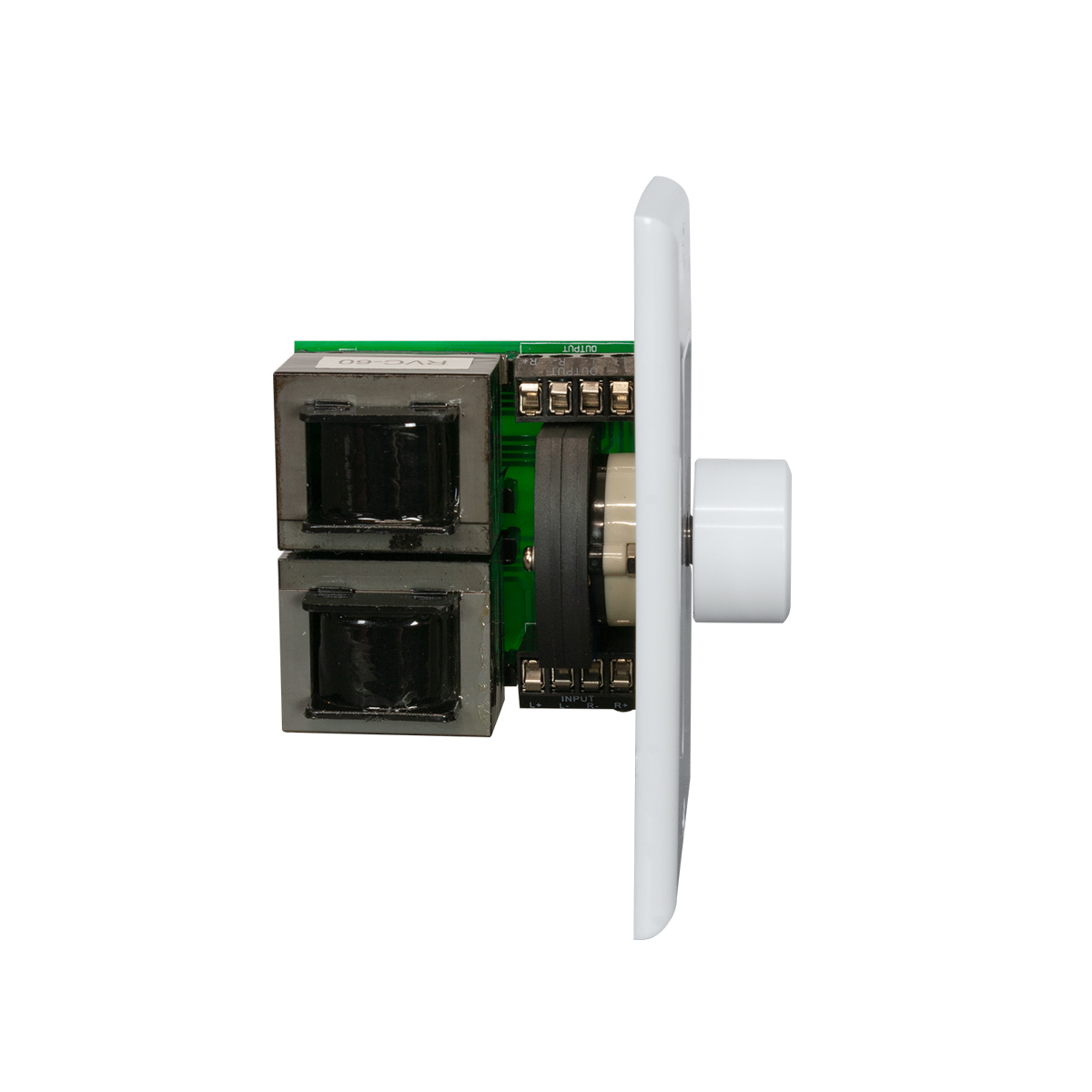

50LVCS-DW: decorator style, white finish

8 ohm Impedance-matching Home Stereo Attenuator

With wall plate

Model VCS8-DW

IMPEDANCE-MATCHING STEREO attenuator style volume control with white decorator style wall plate is used to connect multiple speaker pairs to a power amplifier (or receiver), to increase or decrease the impedance of the speakers to avoid causing damage to the amplifier. This volume control can support up to 50W amplifiers and is made to fit a standard one-gang E.O. box. NOTE: For home/residential systems only. Not for use in 25/70/100V systems or for amplifiers with more than 50W per channel output.

Add to Favorites

Compare

Power Rating: 50W
Attenuation: 3dB per step
Use With: 8ohm speaker line
Activation: Rotary dial
Volume Positions: 0-max
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decorator style
Finish: White
Fits standard E.O. box (2.5 in. min. depth)

Spec/Install Sheet: 2316-VCS8

Imported
Note: Model is not third party listed

The stereo volume control for use with 8ohm speaker line shall be Lowell model VCS8-DW with 50W power rating, 3dB per step attenuation, and phoenix style plug-in screw termination strips for pre-wire convenience (wire capacity up to 14-gauge). It shall include a one-gang decorator style white wall plate. The device shall include a rotary switch with stops at “off” and “max”. The unit shall be able to mount in an E.O. box that has minimum inside dimensions of 1.875″W x 3″H x 2.5″D.
