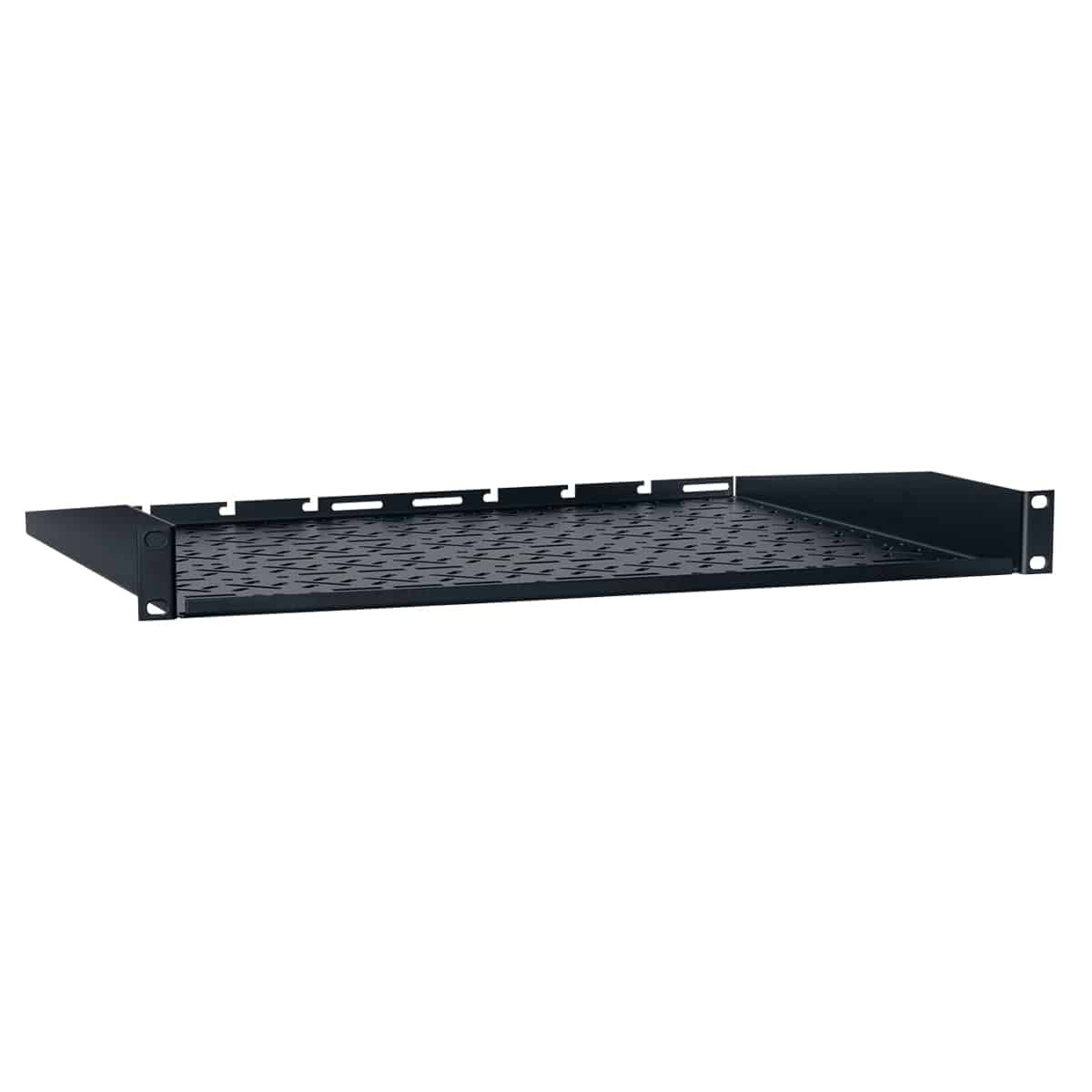

Steel utility shelf with multiple mounting holes and slots features a variety of tie-down points to accommodate small devices such as sequencers, remote power control modules, and switching gear. the rear flange features notches to mount an optional power strip.

New Product 2020

FEATURES

• Height:  1U
• Width:  19 in.
• Depth:  14 in.
• Material:  16-gauge certified U.S. steel
• Finish:  Smooth black powder epoxy

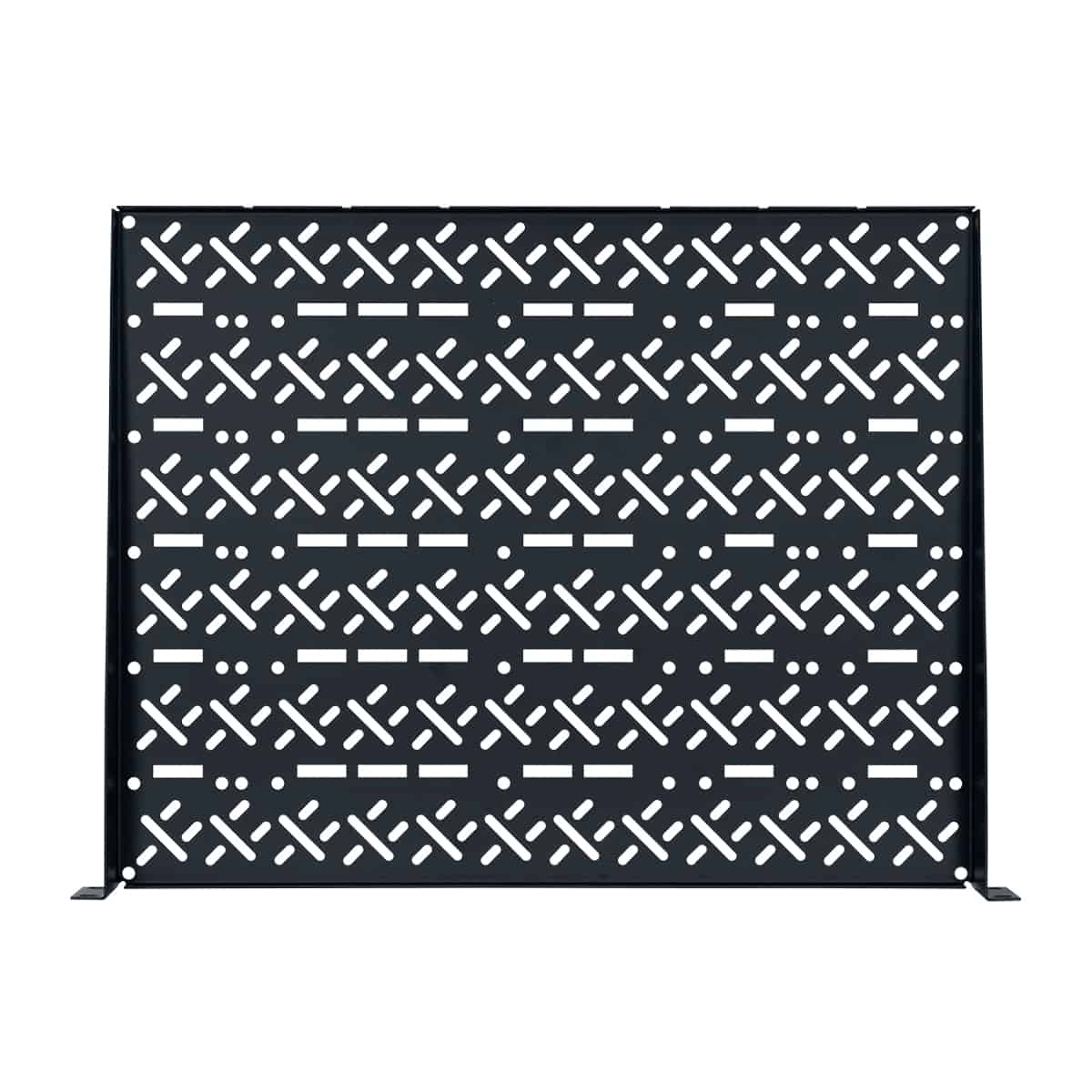

• Base: Unique hole and slot arrangement in base is designed to accommodate a variety of device mounting patterns, while contributing to enhanced ventilation.
• Front/Rear Flanges: Notches in the rear flange will accommodate an optional 12" power strip (order separately).
• Load Capacity:  25 lbs.

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

TECHNICAL DOWNLOADS

• Spec Sheet (1U):  [lwl_spec_sheet_link id="2115-USMG114"]

A&E SPECIFICATIONS

• The rackmount utility shelf with multiple mounting slots in the base shall be Lowell model USMG-114. It shall be 16-gauge certified U.S. steel construction with a smooth black powder epoxy finish. The base shall feature multiple holes and slots to provide tie-down positions for a variety of small devices and modules. The front and back shall have flanges, with notches on the rear flange to mount an optional power strip (not included). Overall dimensions shall be 19"W x 14"D x 1 rack unit. The shelf shall be made in the U.S.A. and have a load capacity of 25 lbs.
