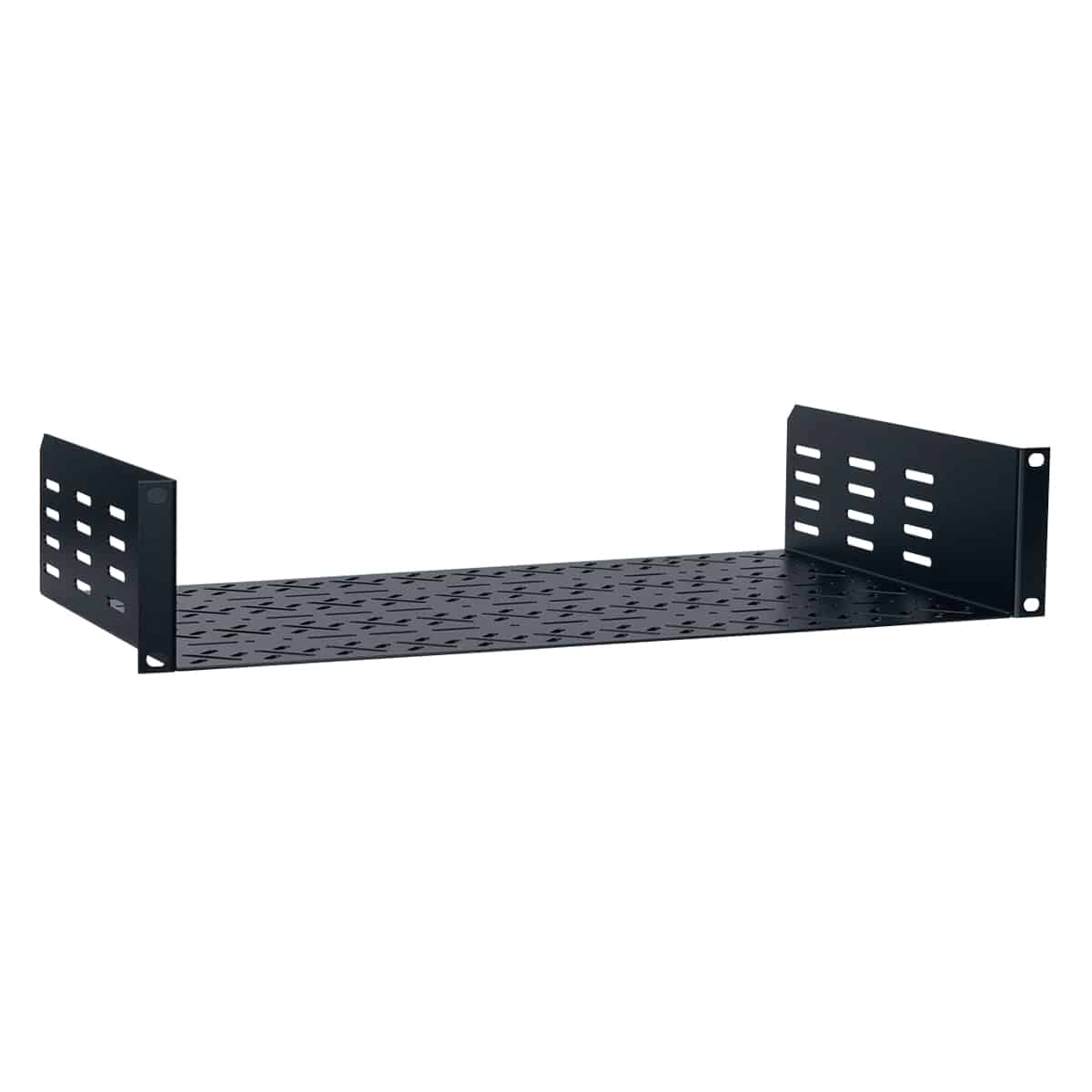

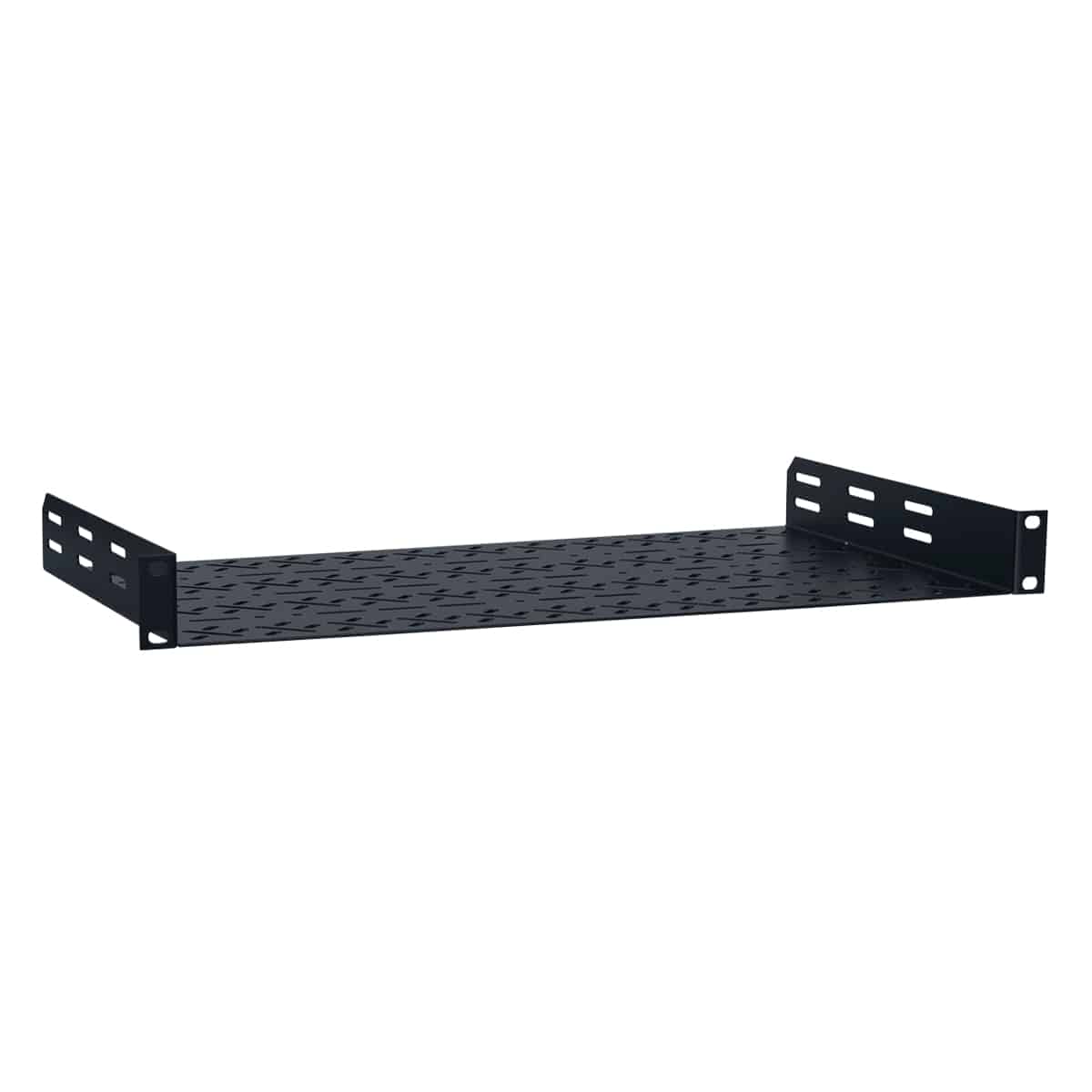

This 19 inch rack mount utility shelf features multiple mounting holes and slots in the base to provide a variety of tie-down points for small devices. It's an ideal platform to secure sequencers and remote power control modules, as well as switching equipment.

FEATURES

• Height:  1U or 2U
• Width:  19 in.
• Material:  16-gauge certified U.S. steel
• Finish:  Smooth black powder epoxy

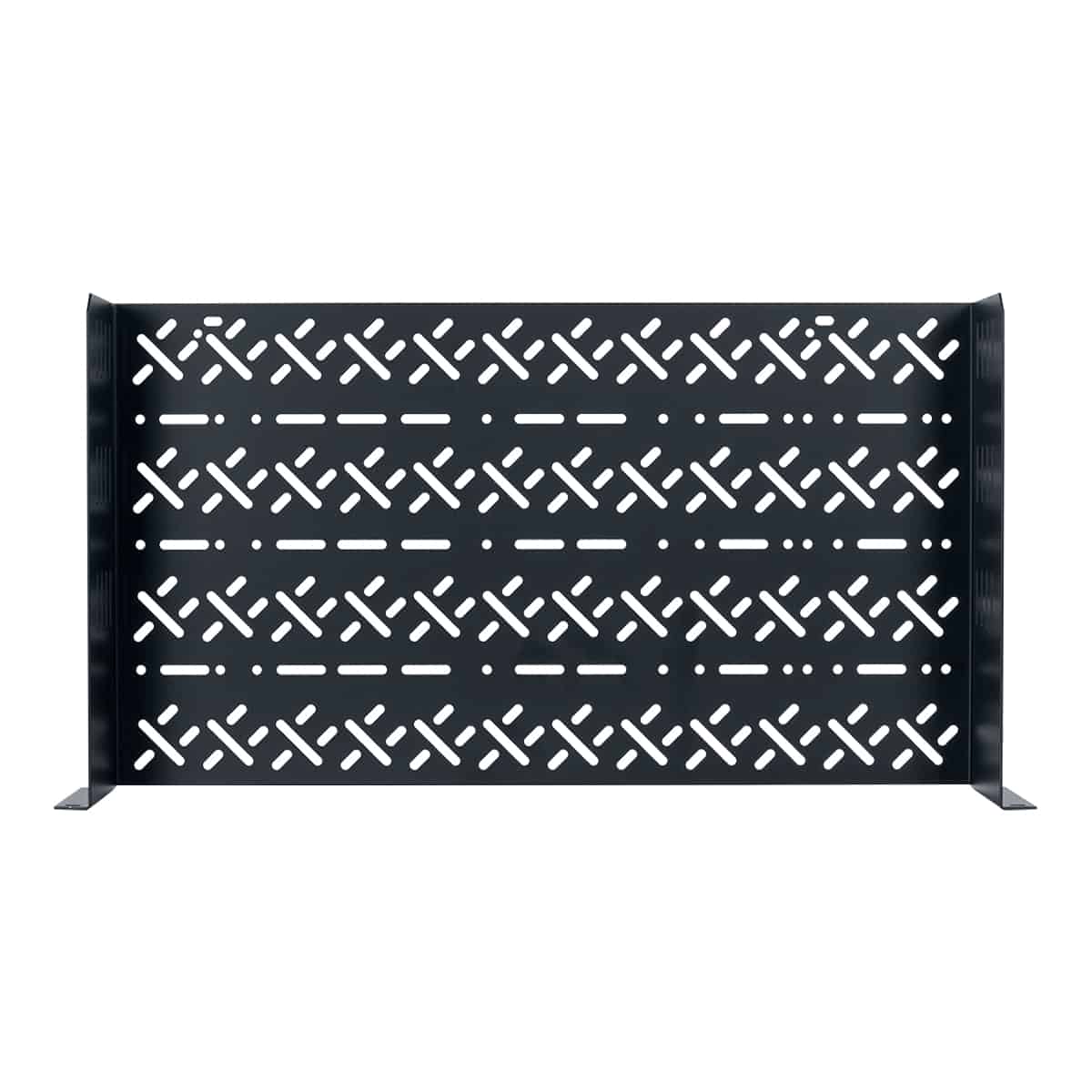

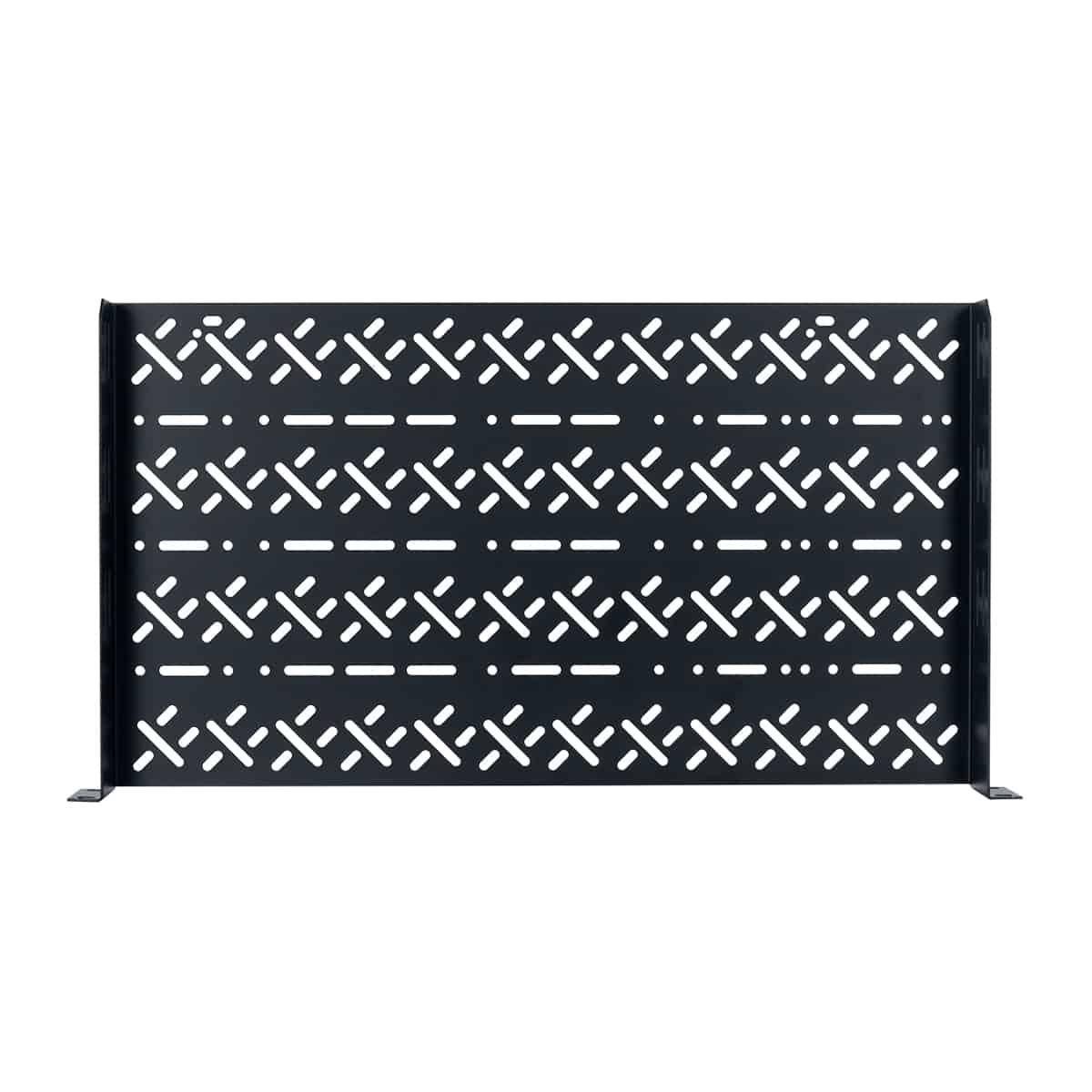

• Base: Unique hole and slot arrangement in base is designed to accommodate a variety of device mounting patterns, while contributing to enhanced ventilation.
• Front/Rear: Open (no flanges)
• Sides: Slotted
• Load Capacity:  25 lbs.

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant

TECHNICAL DOWNLOADS

• Spec Sheet (1U):  [lwl_spec_sheet_link id="2059-USM110"]
• Spec Sheet (2U):  [lwl_spec_sheet_link id="2060-USM210"]

A&E SPECIFICATIONS

• The rackmount utility shelf with multiple mounting slots in the base shall be Lowell model #______. It shall be 16-gauge certified U.S. steel construction with a smooth black powder epoxy finish. The base shall feature multiple holes and slots to provide tie-down positions for a variety of small devices and modules. The sides shall feature slots, while the front and back shall be open (no flanges). Overall shelf dimensions shall be 19"W x 10"D x ____ rack units. The shelf shall be made in the U.S.A. and have a load capacity of 25 lbs.
