Line Interactive UPS (2200VA / 2000W)

UPS or Bundle

$2,372.00 – $2,798.00 MSRP

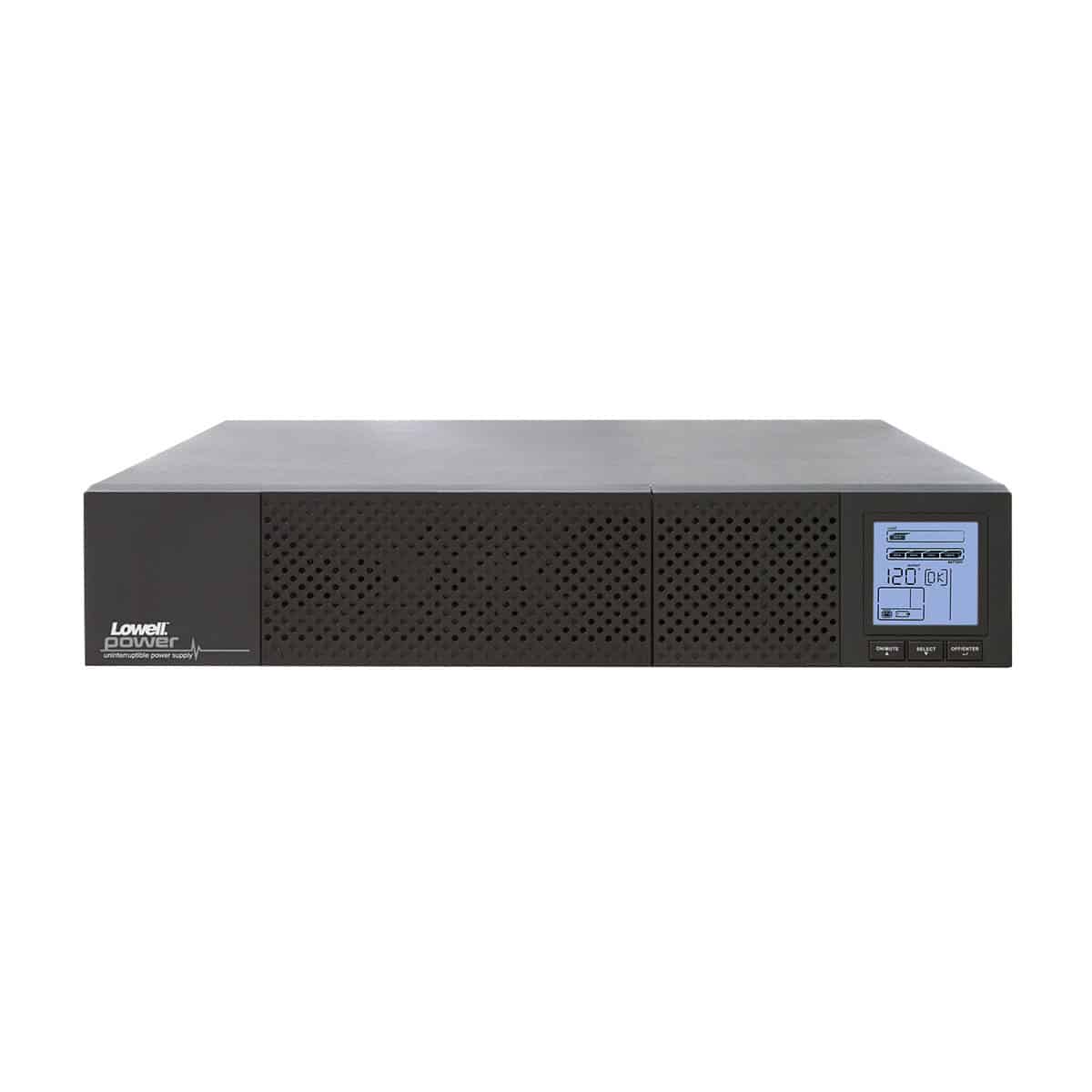

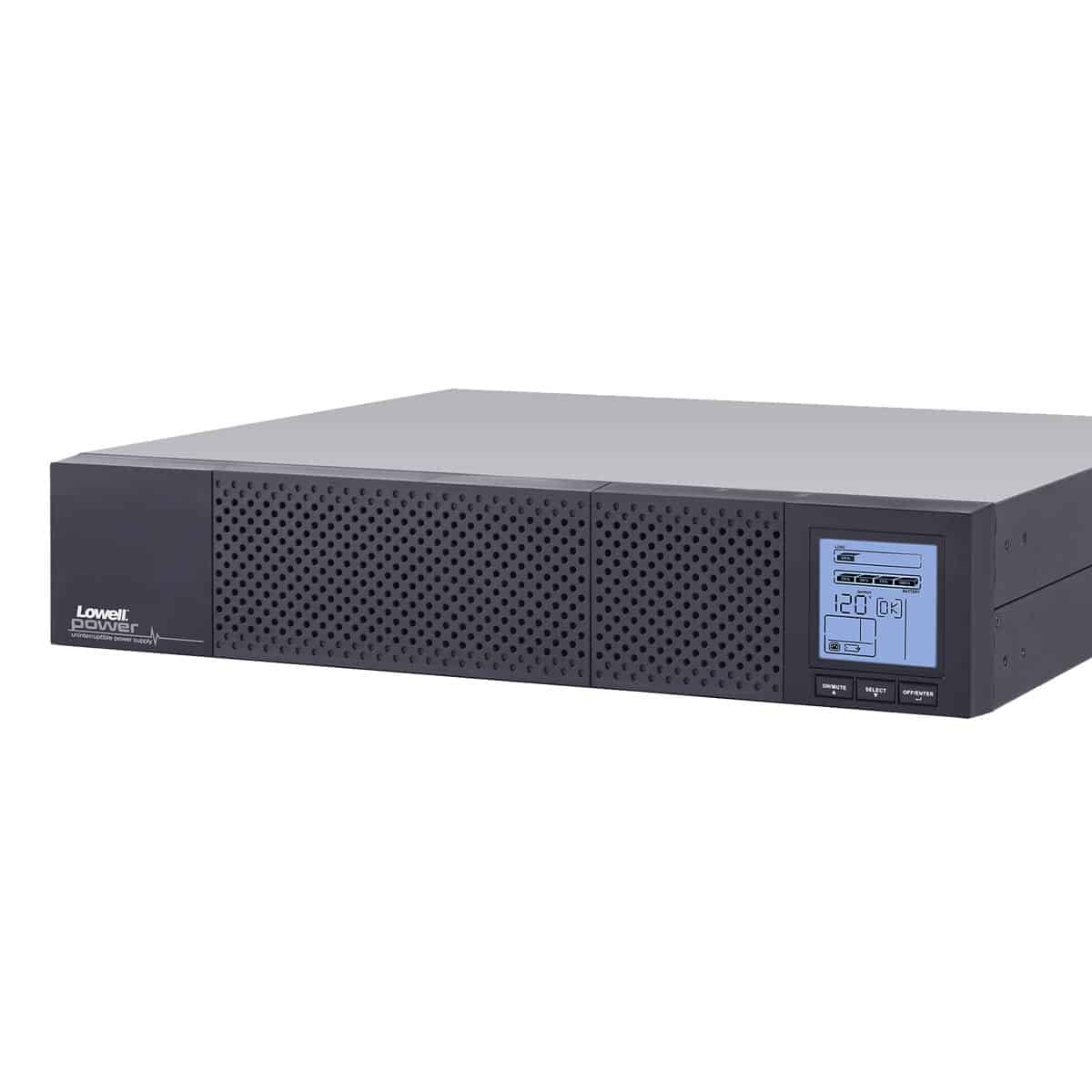

Model UPS8-2200

Pure sine wave 120V line interactive UPS offer the highest efficiency available and protects critical equipment from power problems, while supplying clean, reliable network-grade power. Includes 4-point rack rail kit plus tower pedestals for stand-up use. Ideal for AV electronics, servers, network equipment, and more. The UPS is available alone or bundled with accessories (see below).

Includes

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Power Rating: 2200VA (2000W)
Receptacles: (8) NEMA 5-15/20R
Line Cord: 6 ft. (5-20P)
Chassis: 17.2 x 24.6 x 3. 5 in. (2U)
Weight (approx.): 62 lbs.
Battery Quantity/Size: (6) 12V 7AH
Battery Run Times: 12 minutes (50% load); 4 minutes (100% load).
Note: Battery run times will vary based on condition, age, cycles, and ambient temperature. For longer run times, consider adding expansion battery pack. More
Output Voltage: 120VAC nominal (110/115/127 selectable)
Pure sine wave
Efficient operation: up to 99% (ECO mode); 95% (Buck & Boost mode)
Hot swappable battery
Auto restart after full discharge
Smart LCD display
Programmable receptacle group
Temperature compensation

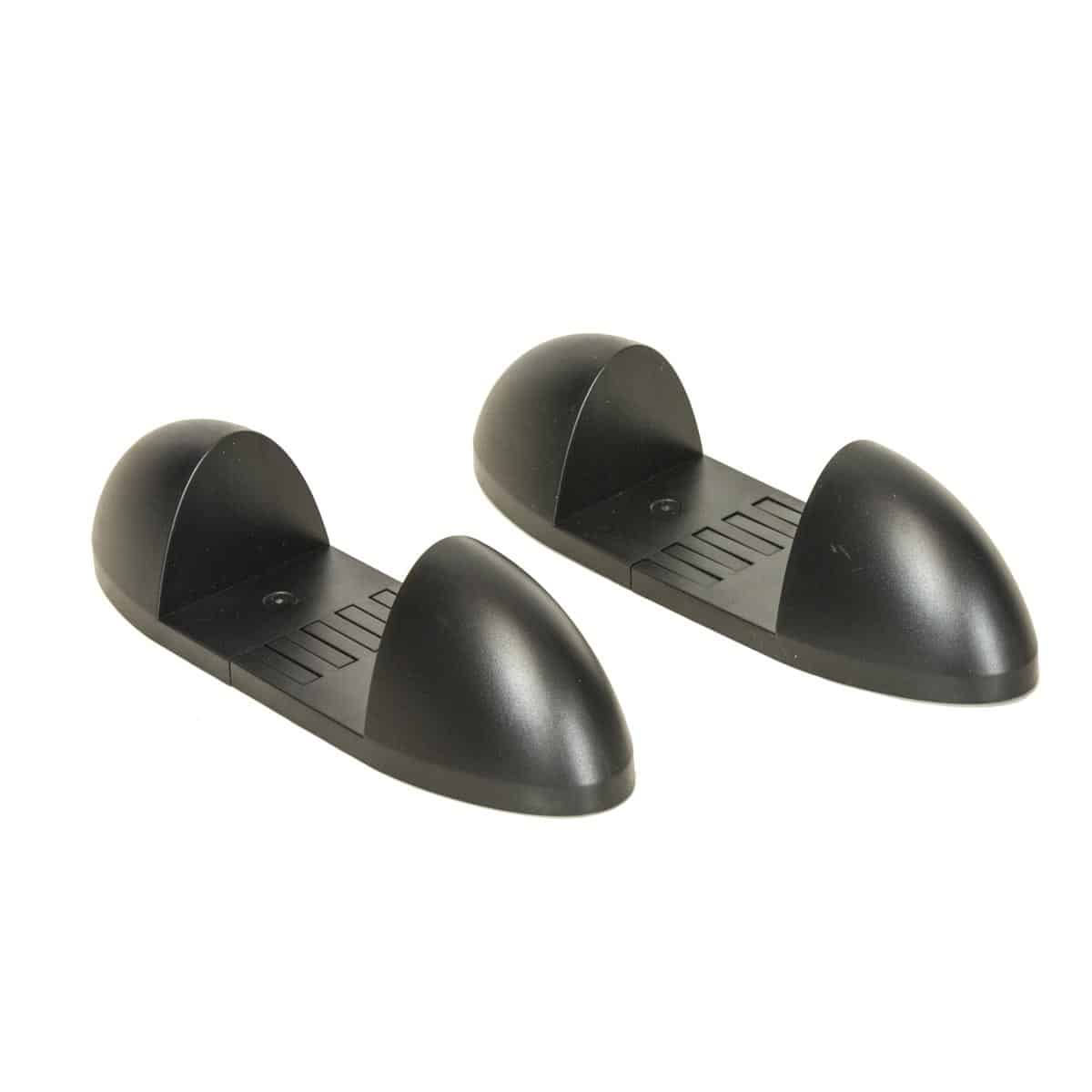

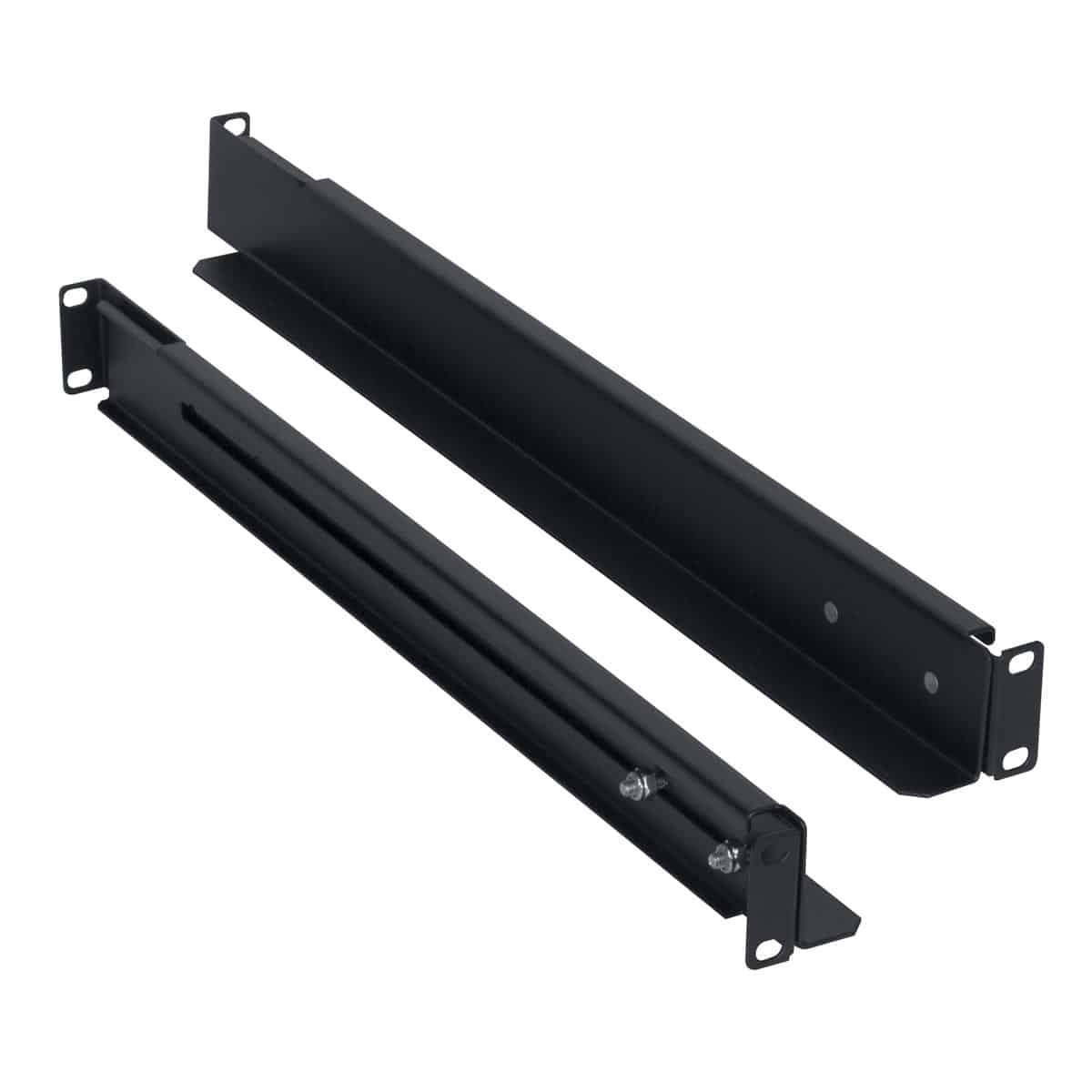

4-point rail kit (min. 32″D) plus tower pedestals
3 year warranty (electronics, battery)

Spec Sheet: 1884-UPS8
User & Installation Manual: Manual-UPS8
Rackmount Instructions: UPS 4-point rail kit
Rack Depth Requirements: UPS-mounted-floor

UL Listed
RoHS compliant

The uninterruptible power supply or UPS shall be Lowell Model UPS8-2200, which shall feature a 4-point rail kit for rack installation, as well as tower pedestals for alternate mounting options. The chassis shall measure 17.2″ x 24.6″ x 3.5″ (2U). The UPS shall operate on 120VAC/60Hz current with nominal output of 120V (110/115/127 selectable). Power rating shall be 2200VA (2000W). The unit shall feature (8) NEMA 5-15/20R receptacles and include a 6 ft. power cord with 5-20P plug. The UPS shall feature a battery that is hot-swappable and has a run time of 12 minutes (half load) or 4 minutes (full load). Note: Battery run times vary based on condition, age, cycles, and ambient temperature.

Expansion Battery Pack : UPS-XBP Series
Dry Contact Card: UPS-RELAY
5 Year Extended Warranty (must purchase simultaneously w/UPS): UPS-EW-523

UPS + SNMP card: UPS8-2200-IP
