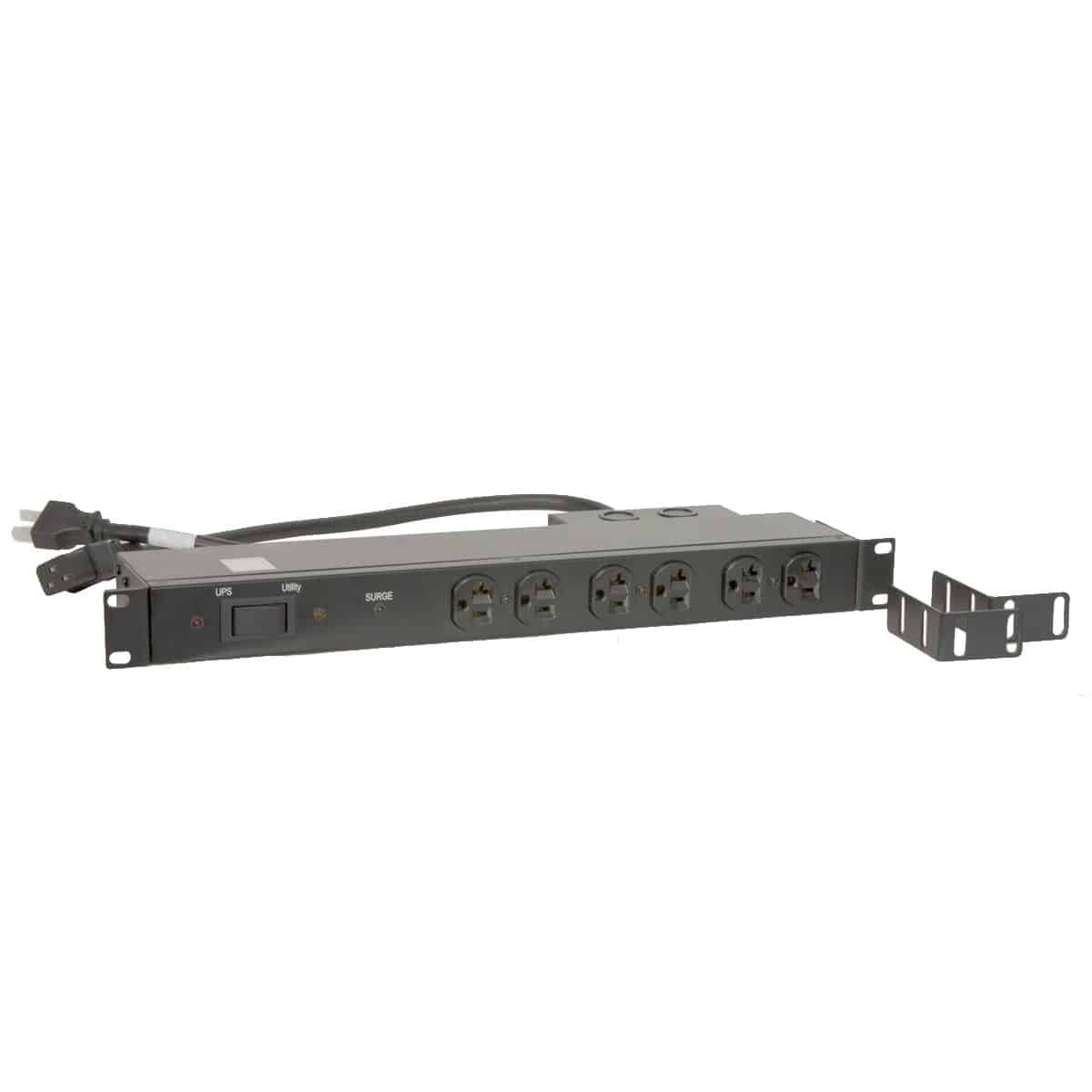

- Manually transfer critical loads from UPS power to utility power using a bypass switch— enabling UPS repair or replacement without power interruption to the load.
- Simplifies UPS repair or replacement—reduces costly downtime
- Hardwired utility input and system output
- Bypass switch provides transfer within 8ms
- Terminal block connections
- Six 5–15R output receptacles
- LED indicators verify availability of UPS and utility sources
- Surge protection—loads are surge protected even when UPS is in bypass mode; UPS electronics are protected during normal operation
- Wall and rack-mount hardware
The UPS shall include hardwired bypass module, Lowell Model UPS-XBDM-20RHW. The module shall have input and output hardwired terminal block connections to allow manual transfer of critical loads from UPS power to utility power using a bypass switch.
