Rackmount steel utility drawer, locking, mat liner, 2U

Rackmount steel utility drawer, locking, mat liner, 3U

Rackmount Utility Drawer with lock and liner

$278.12 – $367.10 MSRP

UDP Series Rack mount utility drawer for 19 inch equipment racks features a rear bushing for cable pass-through. This unit includes a key lock and mat liner.

Rack Units

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Rack Space: 2U, 3U, 4U, or 6U
Width: 19.00 in.
Depth: 14.50 in.
16-gauge steel
Smooth black finish

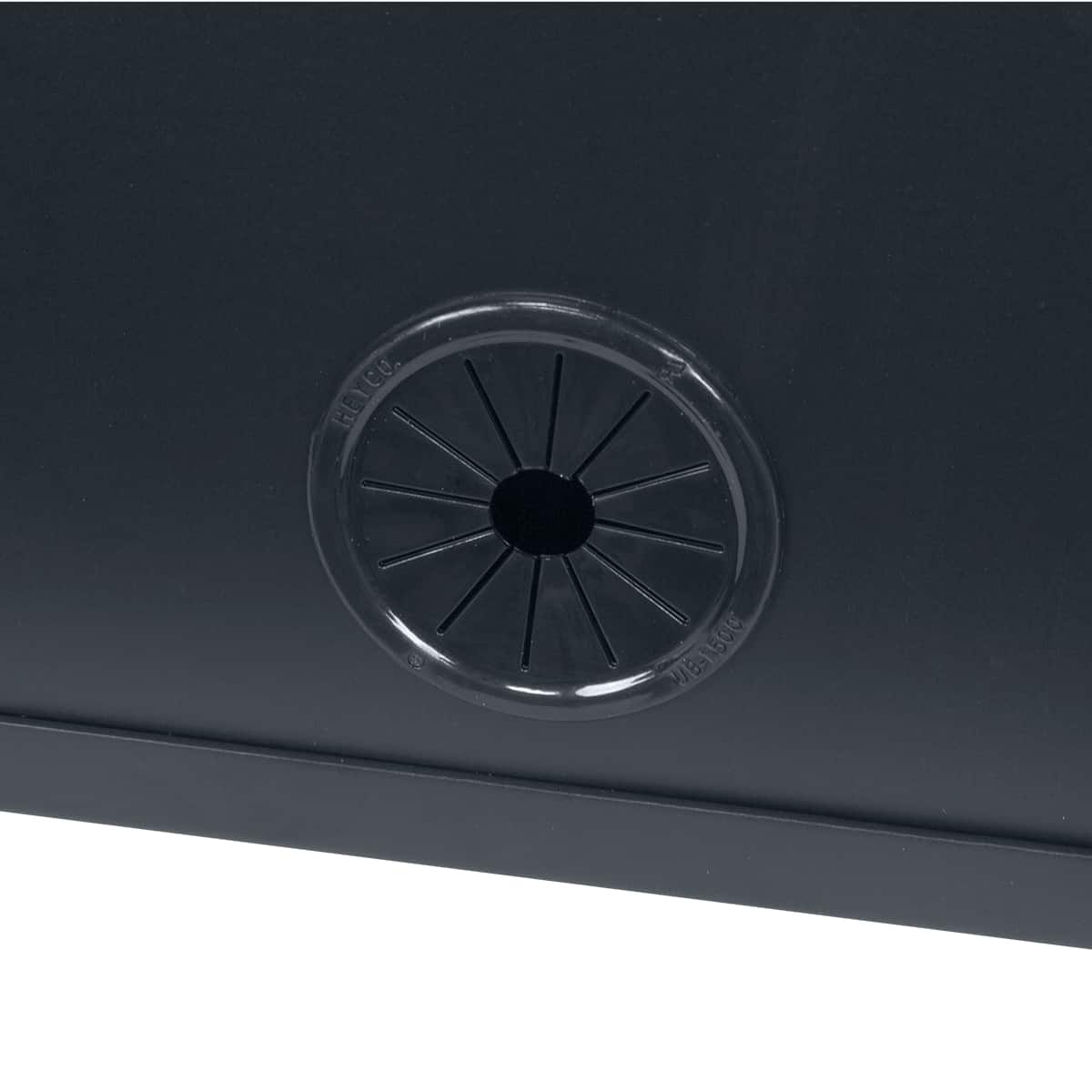

Rear bushing
Recessed drawer pull, slam latch closure, key lock
Load capacity 50 lbs.

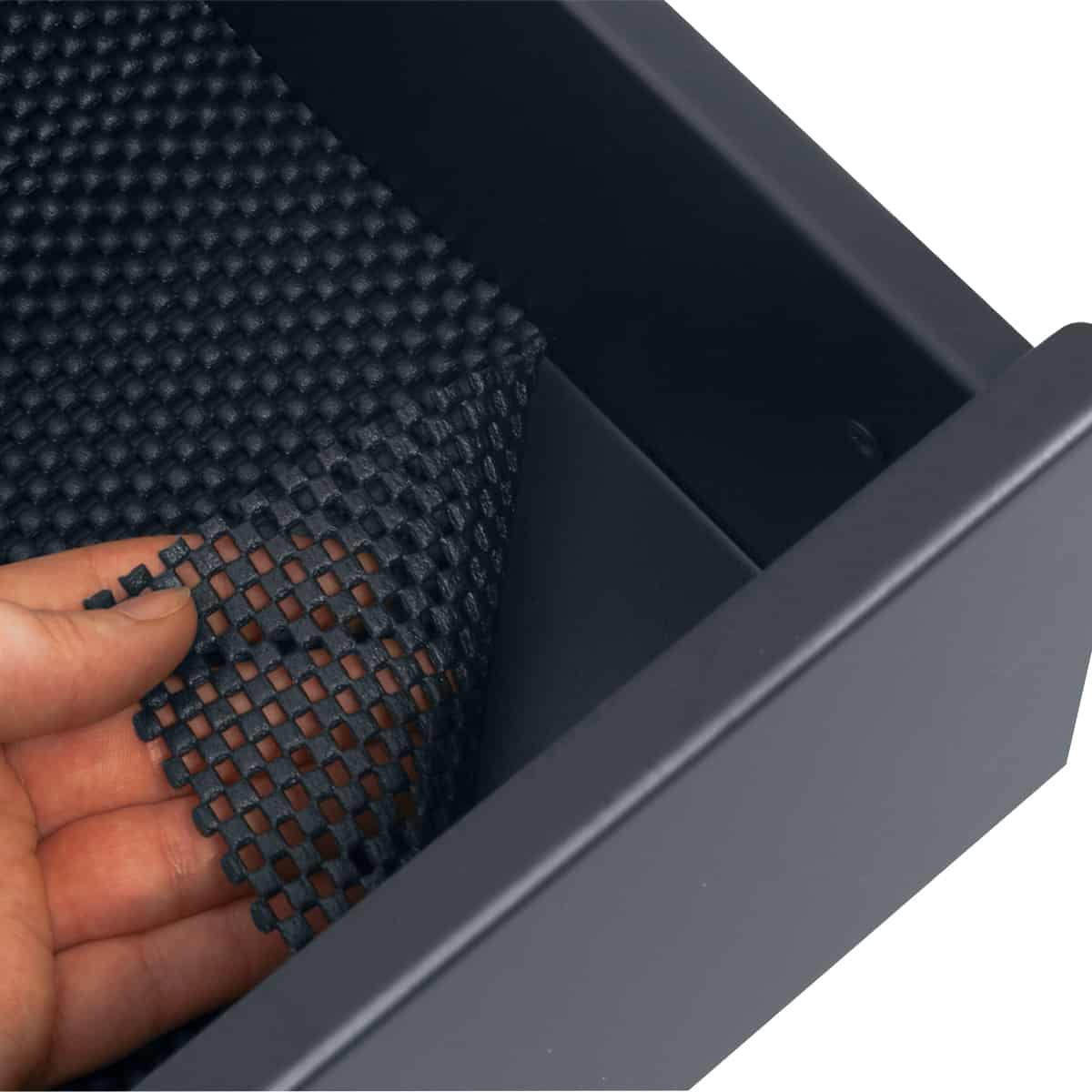

Perforated mat liner

2U drawer: 2105-UDP214

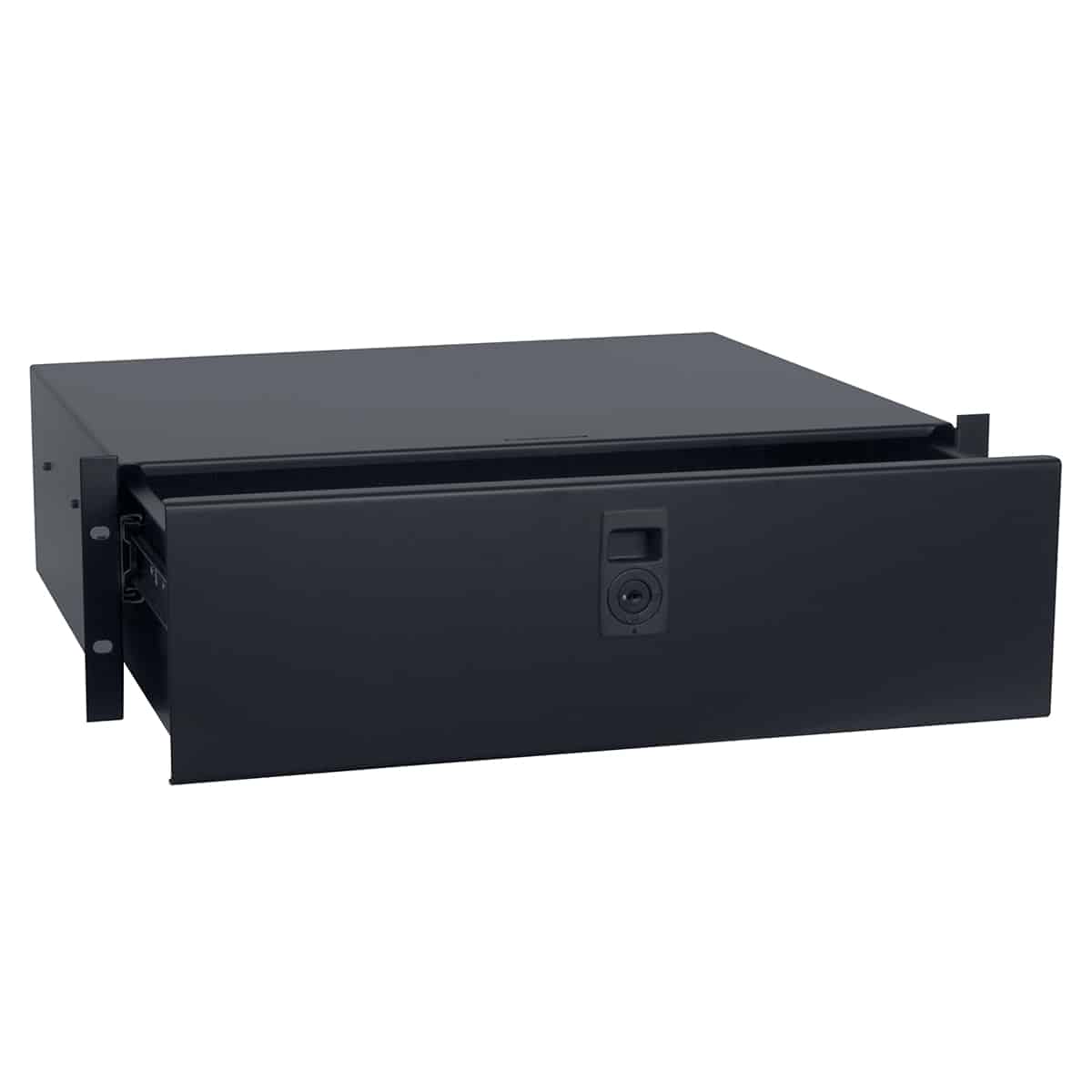

3U drawer: 2106-UDP314

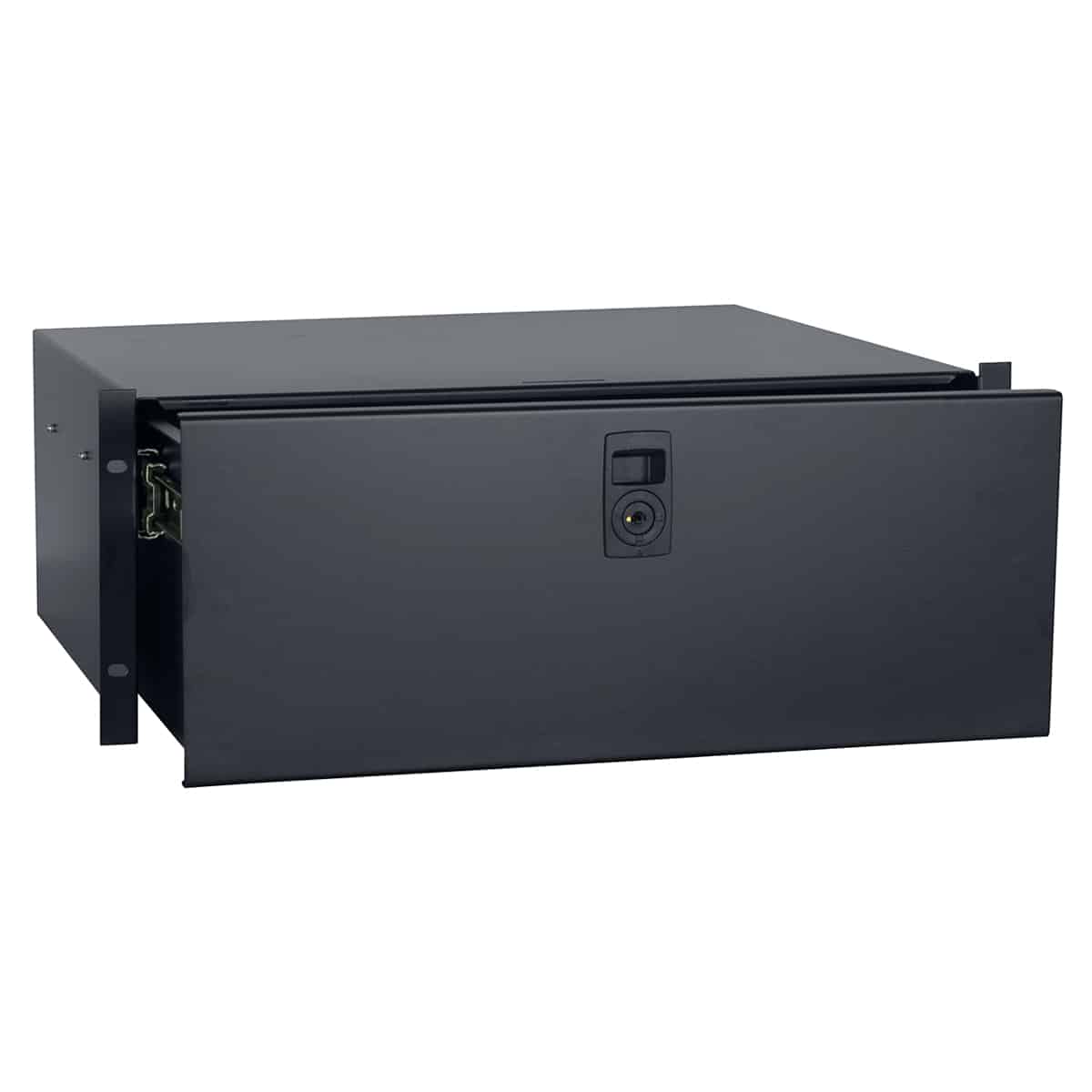

4U drawer: 2107-UDP414

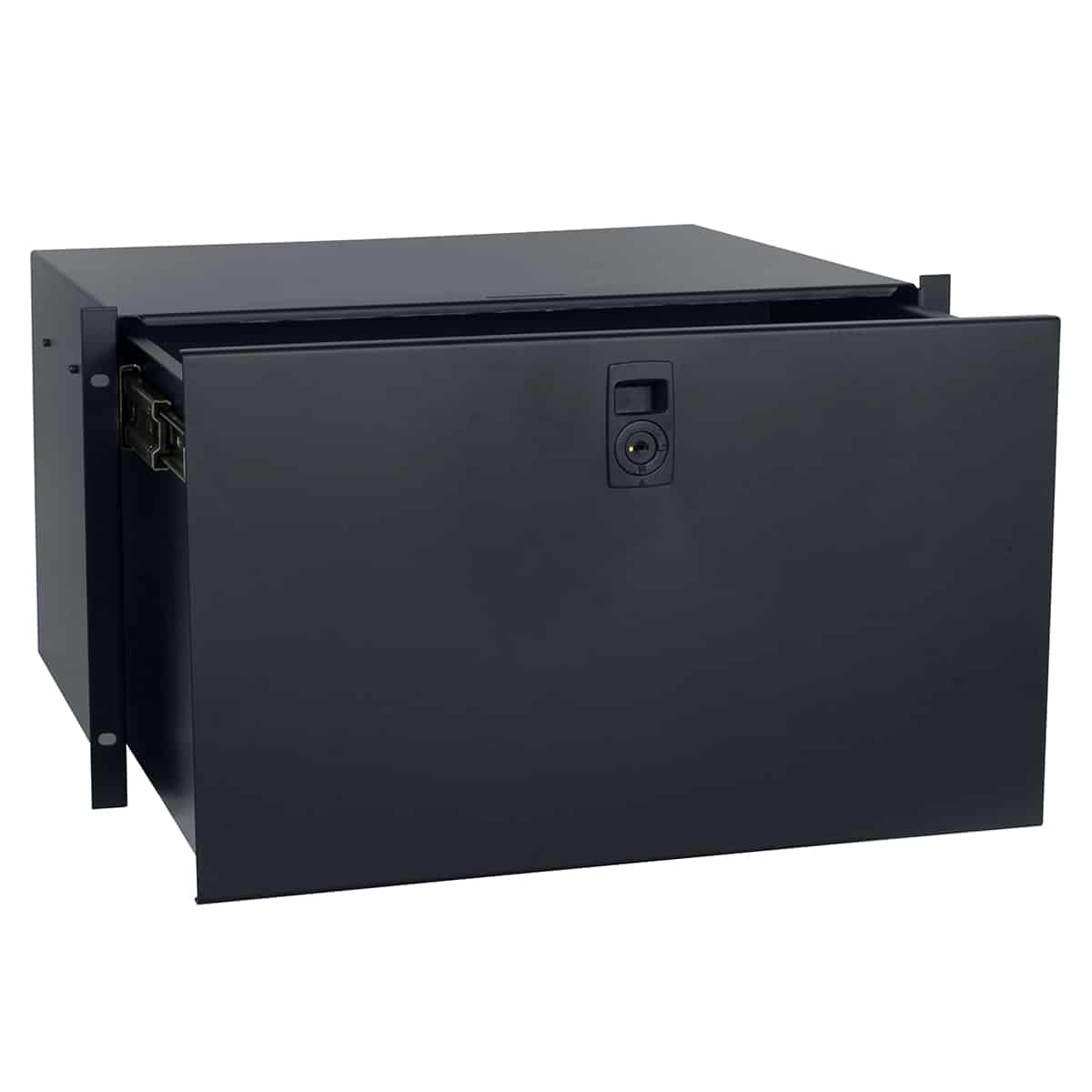

6U drawer: 2108-UDP614

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The rackmount utility drawer shall be Lowell Model No. ________ which shall be fully-welded 16-gauge steel with smooth black powder epoxy finish. The 19″W x 14.50″D x _______ drawer shall feature ball-bearing slides, recessed drawer pull, slam latch closure, keyed lock, rear plastic bushing for wire pass-through, and a non-slip perforated liner. Load capacity shall be 50 lbs.
