Rackmount power panel, hooded light, 8 outlets

AC Power Panel (15A) with 8 Outlets, Switch, Light

Name: AC Power Panel (15A) with 8 Outlets, Switch, Light
SKU: U181RL-LC
Price: 206.26 USD
Availability: InStock

NEMA 5-15R outlets

$206.26 MSRP

Model U181RL-LC

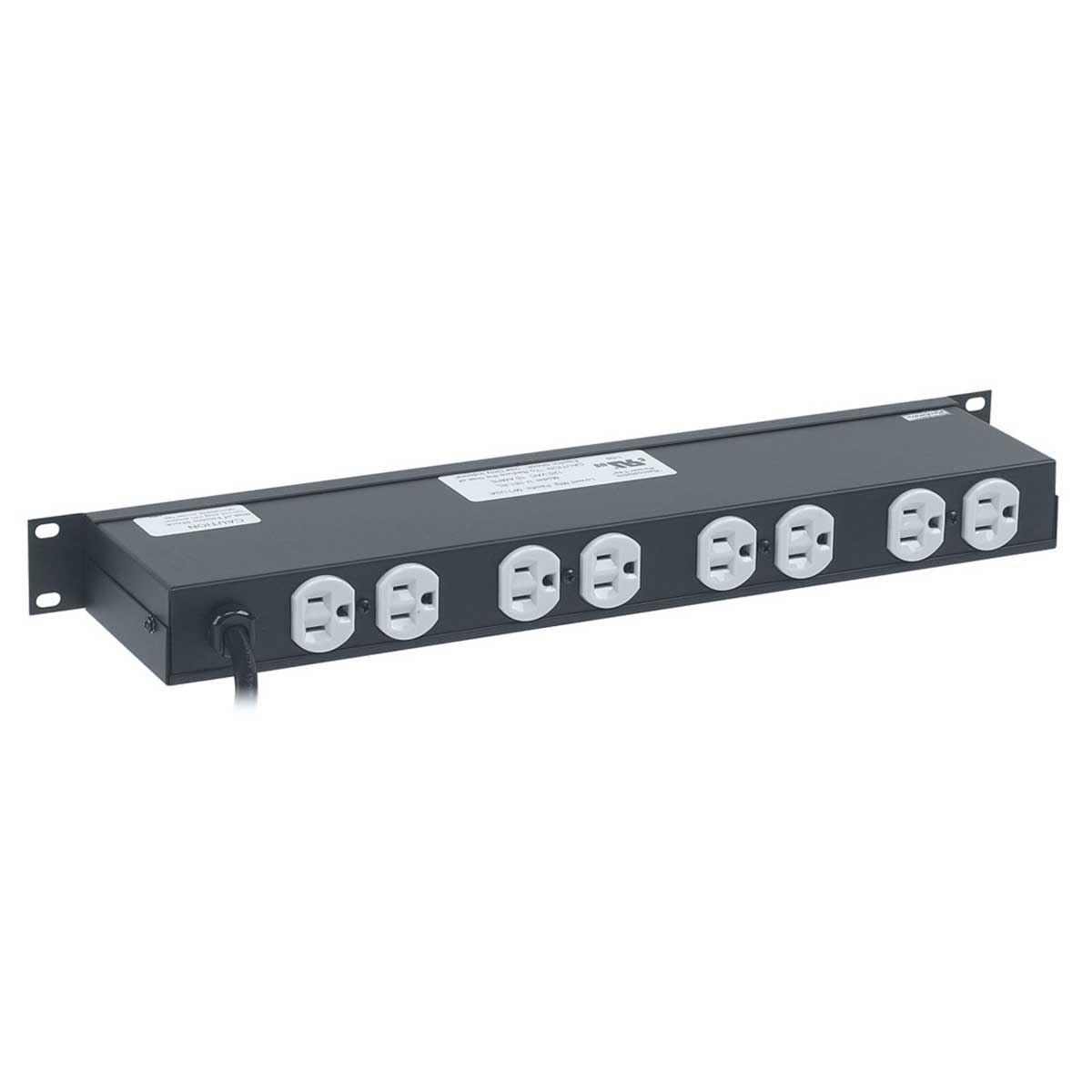

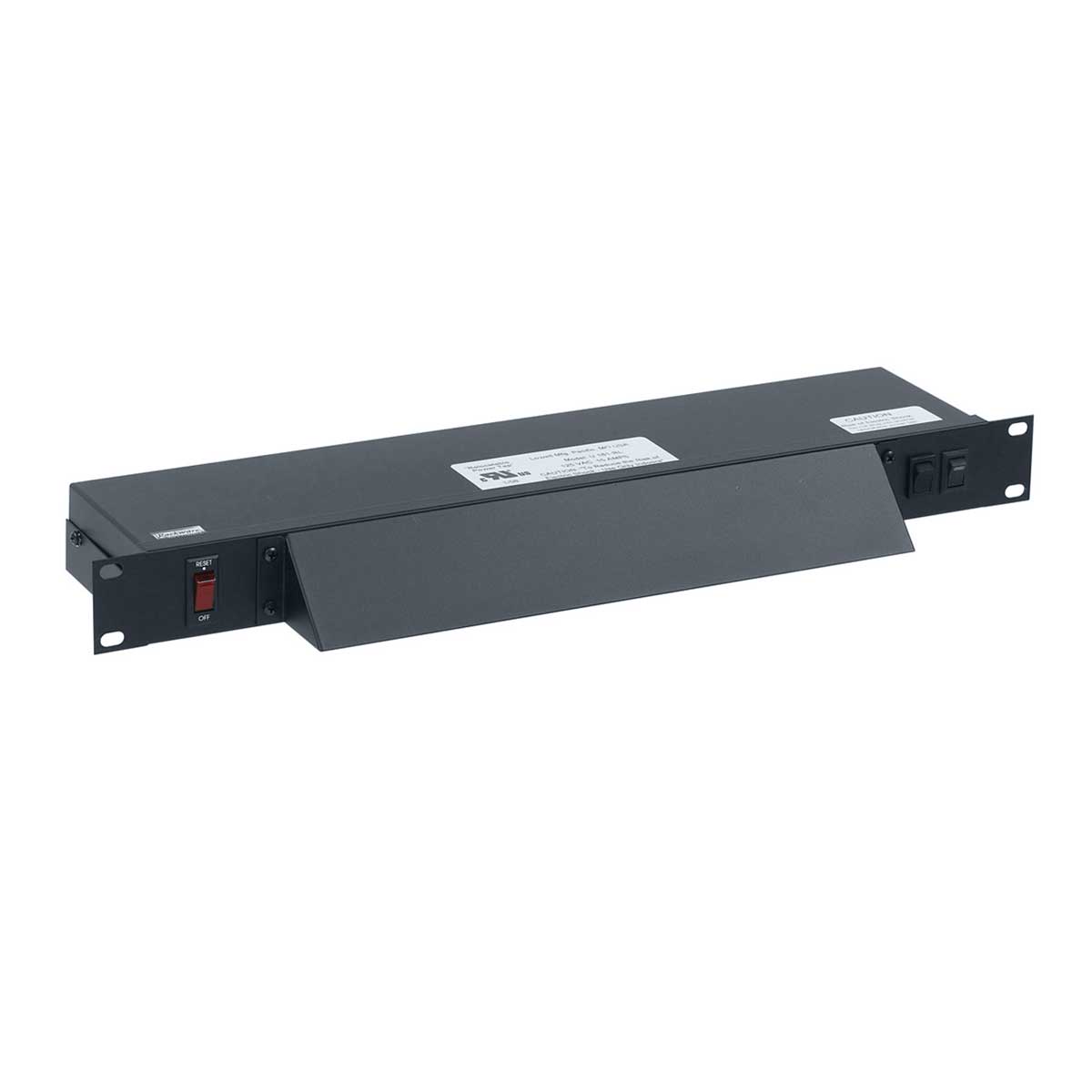

Shallow (4-1/2" deep) rackmount panel takes up minimal space, while providing a hooded white light to help users and technicians see equipment controls. The light is controlled by a front on/off switch and a high/low brightness switch for intensity. The panel has eight (8) NEMA 5-15R receptacles in the rear, which are all controlled by the front switch. The 120VAC 60Hz 15A panel includes a 15-ft. attached cord with NEMA 5-15P plug.

Add to Favorites

Compare

Power Rating: 120 VAC, 60 Hz, 15A, 1800W
Outlets: 8 (15A) outlets in rear are controlled by a lighted rocker switch on front.
Termination: 15 ft. attached cord with NEMA 5-15P plug
Chassis: 19 in. x 4.375 in. x 1.75 in. (1U)
Single hooded light produces white light. On/off switch plus hi/low brightness switch for lamps. Includes two bulbs.
Made in U.S.A. with global components

Spec Sheet: 1914-U181RLLC

The rackmount panel shall be Lowell U181RL-LC with 15 ft. cord. It shall feature a 15W power rating and include hooded white lights in front and (8) 15A NEMA outlets in back. The front shall feature a lighted rocker power switch, (2) 6W lamps under a hood, and switches for power outlets (on/off), lamp (on/off), and lamp (brightness). The chassis shall be steel construction with black powder epoxy finish, measuring 19″W x 1.75″H x 4.375″D plus 1.5″D for front projection hood assembly.
