70V (4W) Transformer

Name: 70V (4W) Transformer
SKU: TLM-470
Price: 31.30 USD
Availability: InStock

$31.30 MSRP

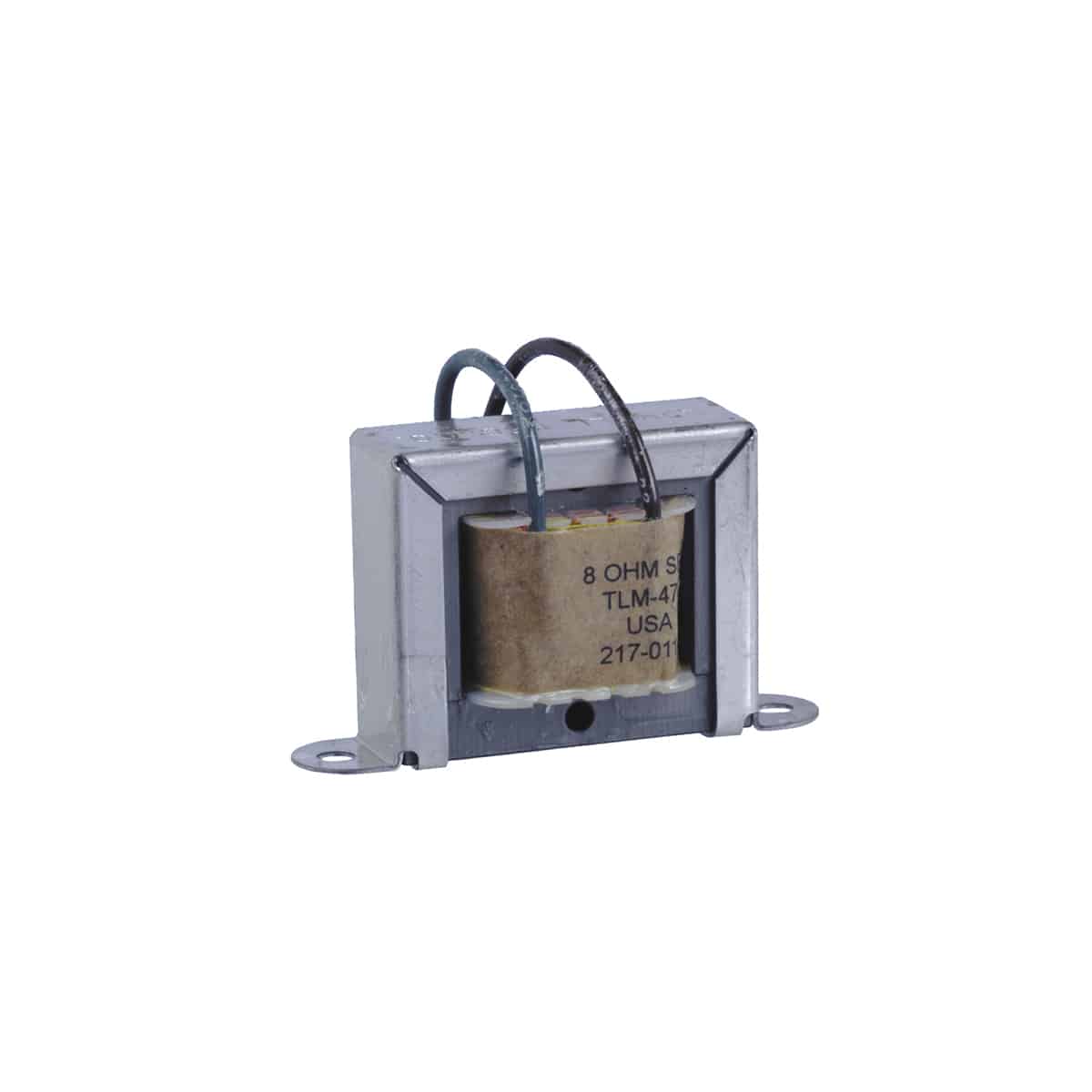

Model TLM-470

Line-matching transformer TLM-470 for high quality audio systems and general purpose paging applications where wide frequency response, low insertion loss, and high power handling are critical considerations. The TLM series features the industry standard open-housing design and color-coded leads for fast installation.

Add to Favorites

Compare

Primary Voltage: 70V
Power Rating: 4W
Primary Taps: .5, 1, 2, 4W
Secondary Impedance: 8ohms
Frequency Response: 60Hz–15kHz (±1dB)
Lead Length: 8 in.
Leads: Color-coded
Unit Size: 1.625 in. x 2.812 in. x 1.531 in.

Spec Sheet: 2288-TLM470

The line-matching transformer shall be Lowell Model TLM-470. Primary voltage shall be 70V with a power rating of 4W. All taps shall have color-coded leads with primary taps available at 4/2/1/0.5 watts and secondary impedance taps available at 8ohms. Frequency response shall be 60Hz-15kHz (±1dB) with insertion loss not to exceed 0.8 dB.
