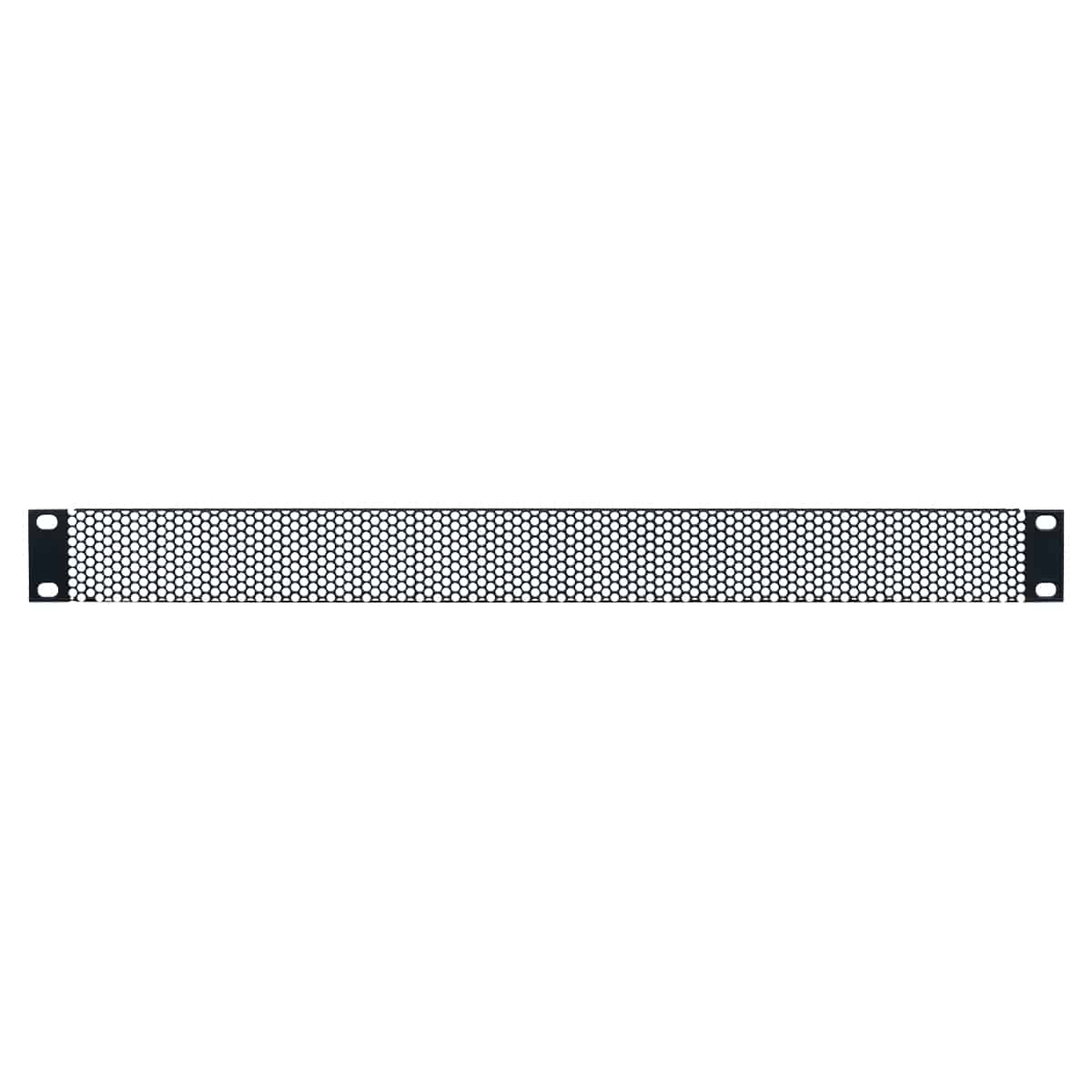

SVPL Series, 1U 63% open steel vent panel

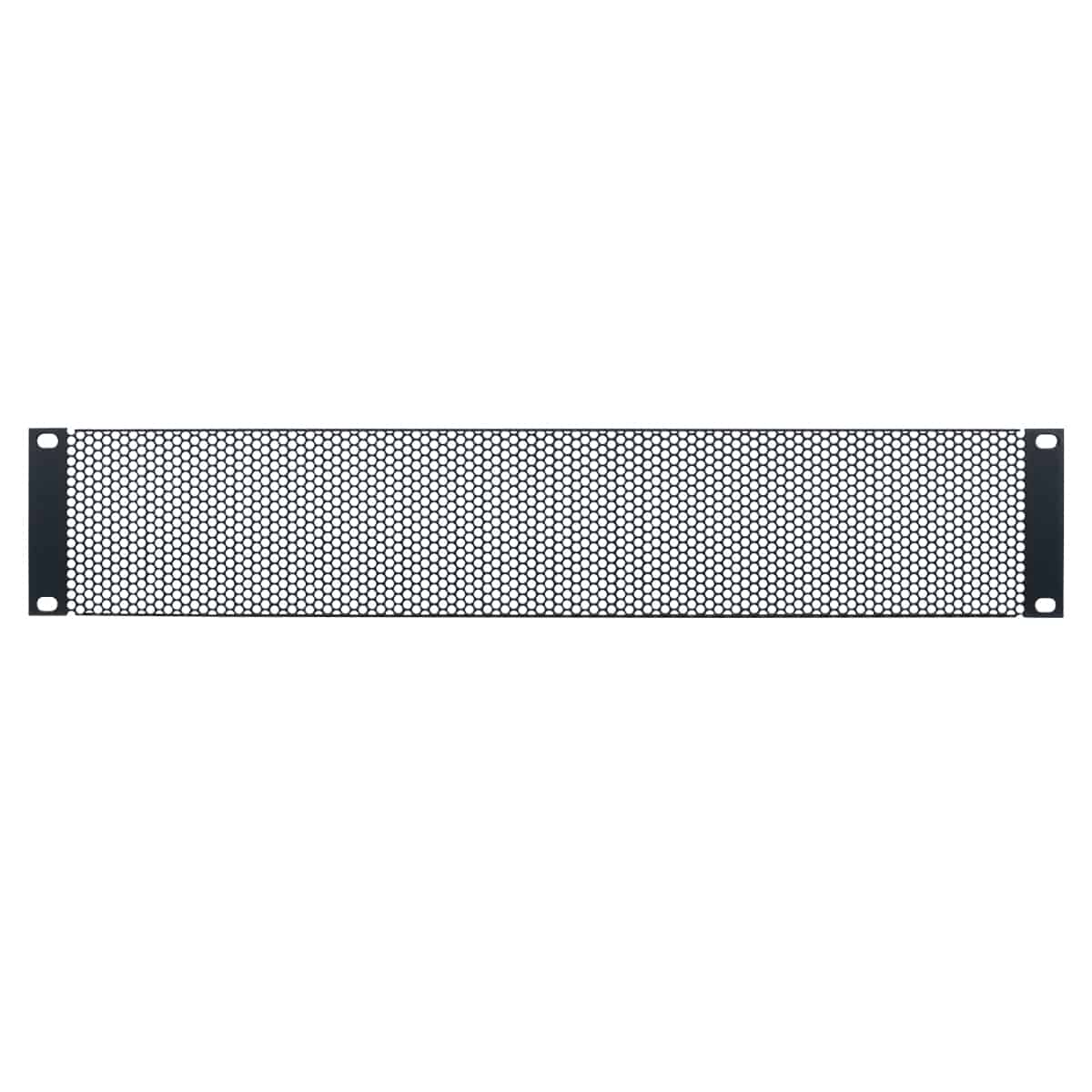

SVPL Series, 2U 63% open steel vent panel

Steel Rackmount Vent Panel with Large Holes

Smooth Black, 1U-4U

$21.98 – $311.86 MSRP

SVPL Series

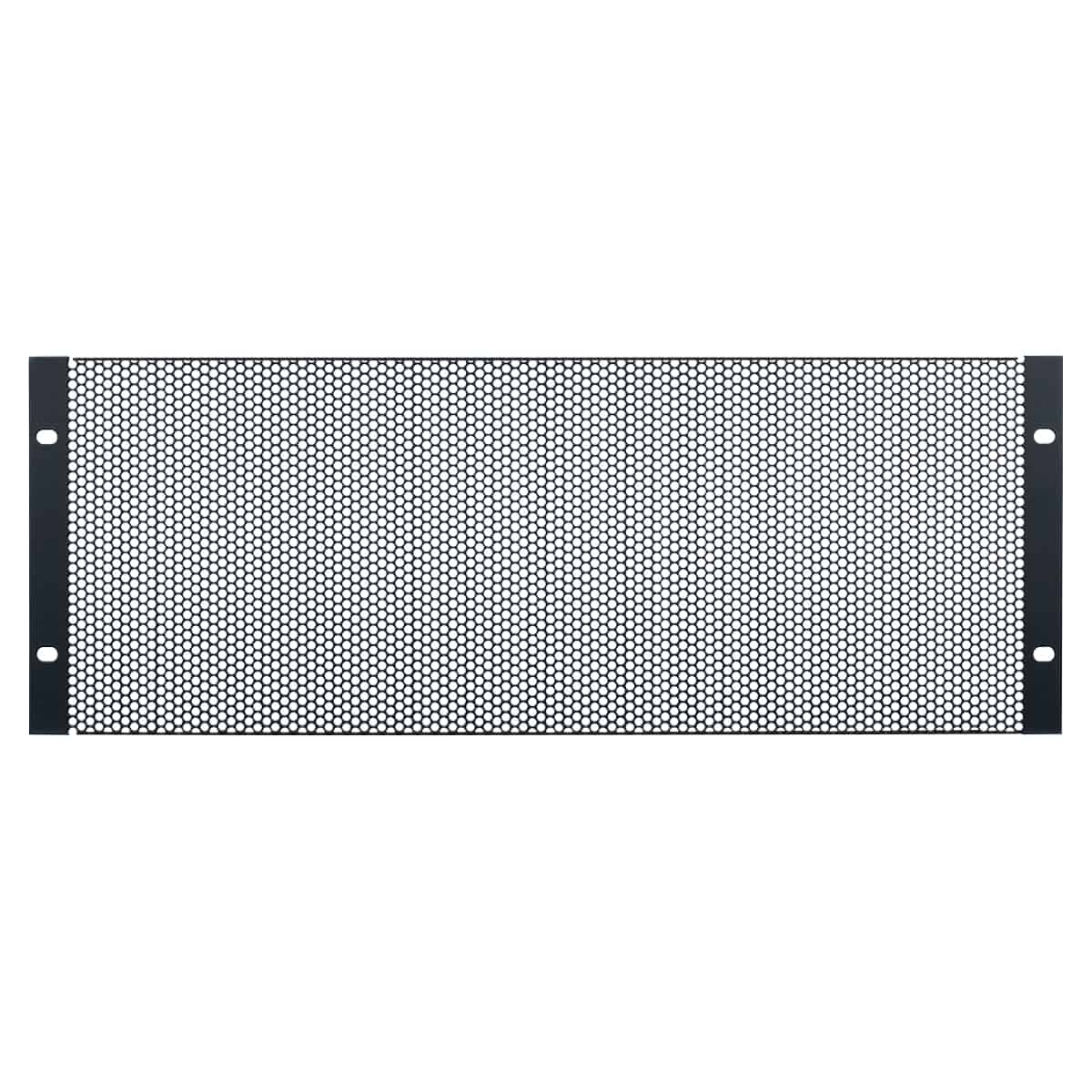

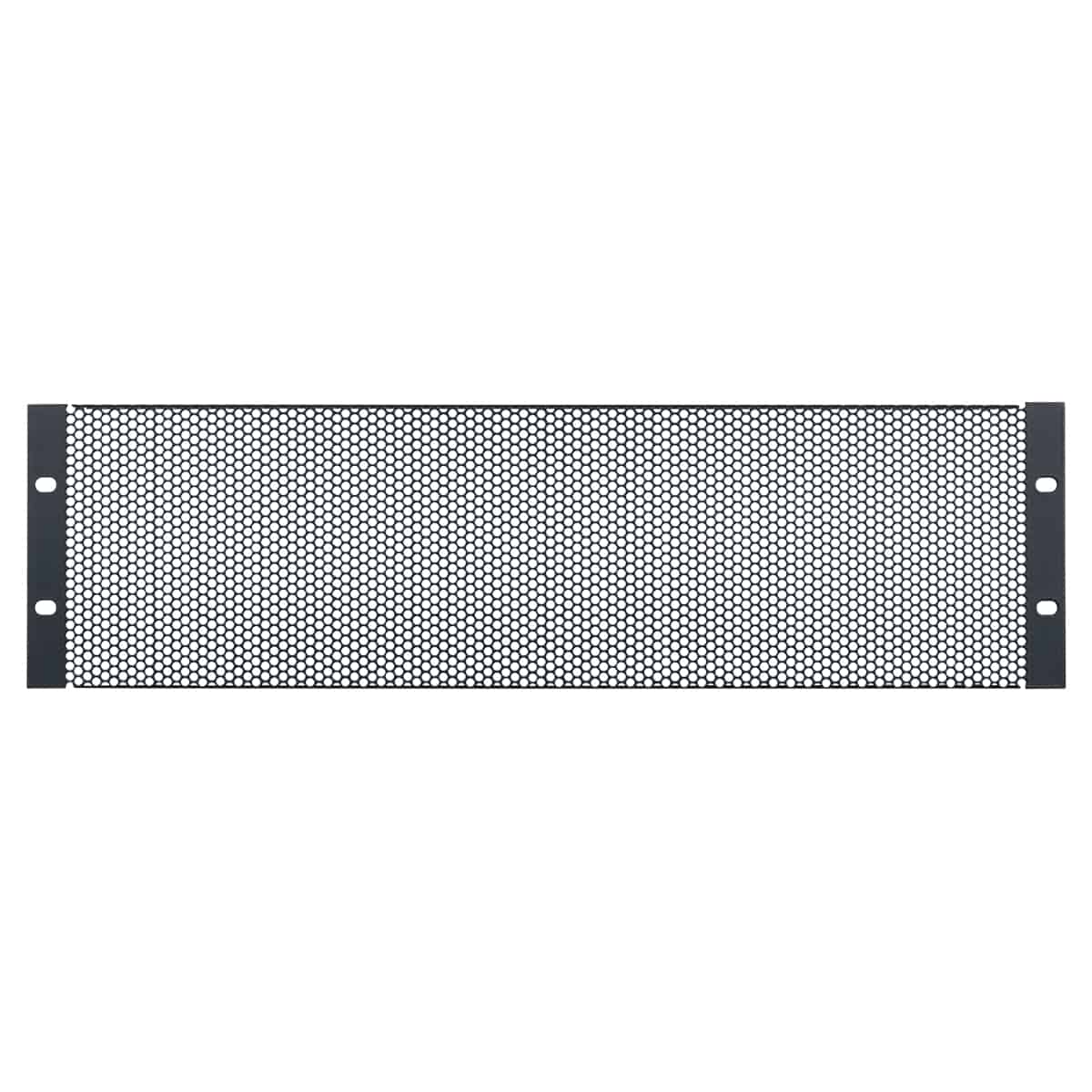

Steel vent panel for 19" racks features large staggered holes for passive ventilation. The vent pattern creates an open area of 63 percent.

Unit of Measure

Rack Units

Clear

Add to Cart Log in to place an order.

Add to materials list

Add to Favorites

Compare

Material: 18-gauge steel
Finish: Smooth black semi-gloss
Flange: 0.5 in.

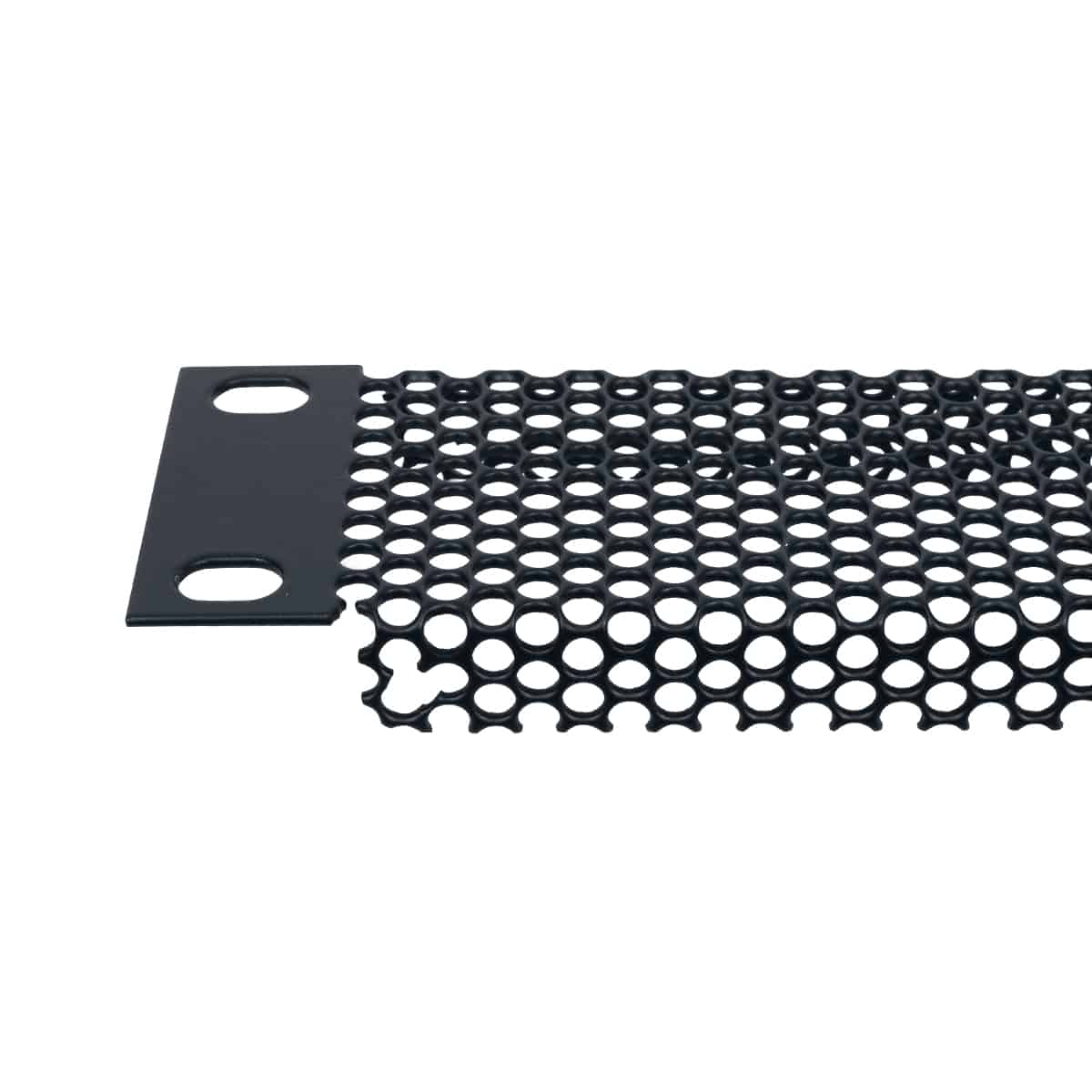

Staggered Holes: 0.156 in. diameter, staggered pattern
Open Area: 63 percent
Width: 19 in.
Height: 1–4U
Multi-pack cartons available

Spec Sheet: 1198-SVPL

Made in the U.S.A.
Certified U.S. steel
E.I.A. compliant

The rackmount vent panel shall be Lowell Model _______, which shall be 18-gauge certified U.S. steel perforated with 0.156 in. diameter holes on 0.187 in. staggered centers creating 63% open area. The panel shall feature 0.5 in. flange and smooth black semi-gloss powder epoxy finish. The panel shall measure 19 in. wide x _____ U.
