Surface Enclosure for 8 inch driver

Name: Surface Enclosure for 8 inch driver
SKU: CB84-SGA
Price: 59.56 USD
Availability: InStock

For screw-mount grille

$59.56 MSRP

Model CB84-SGA

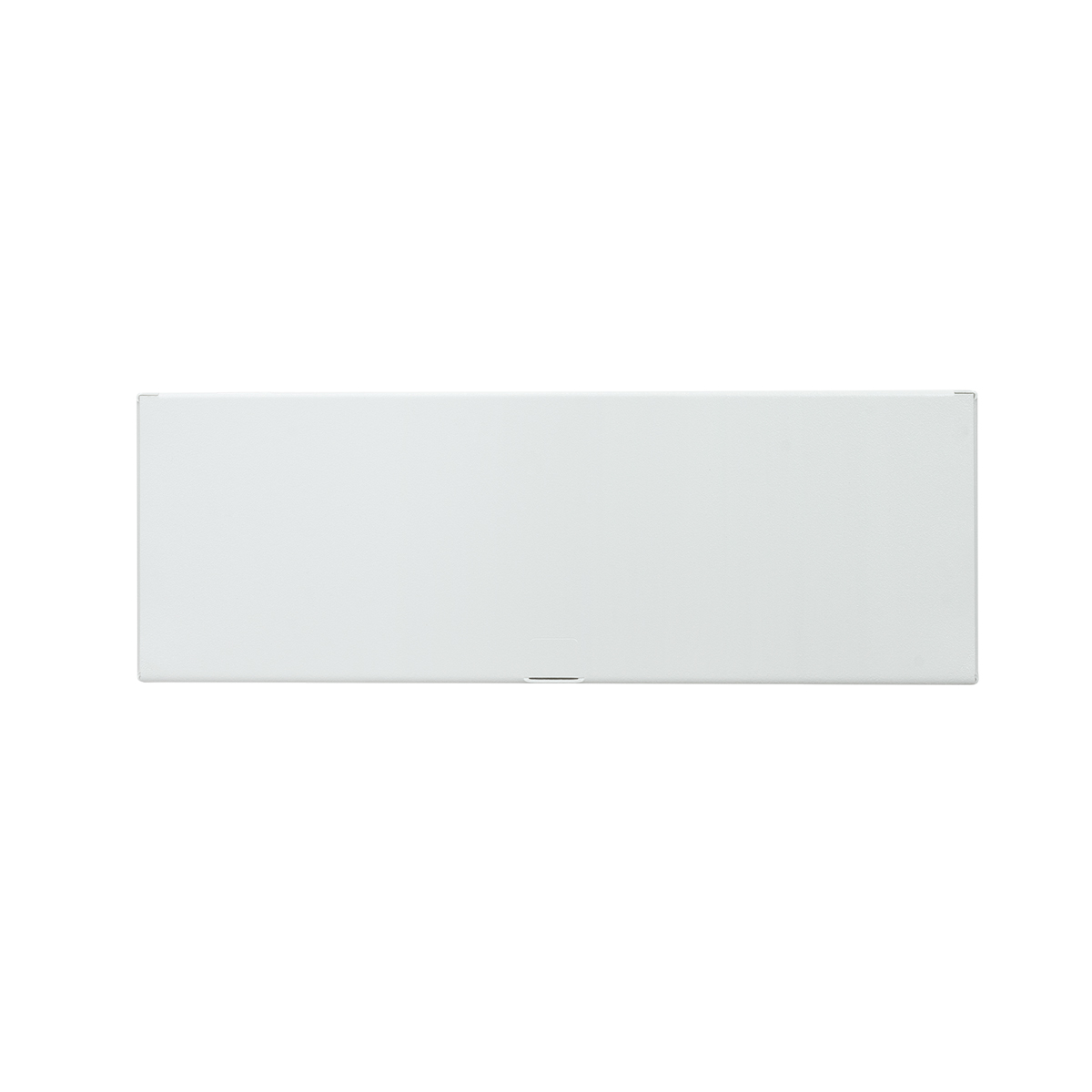

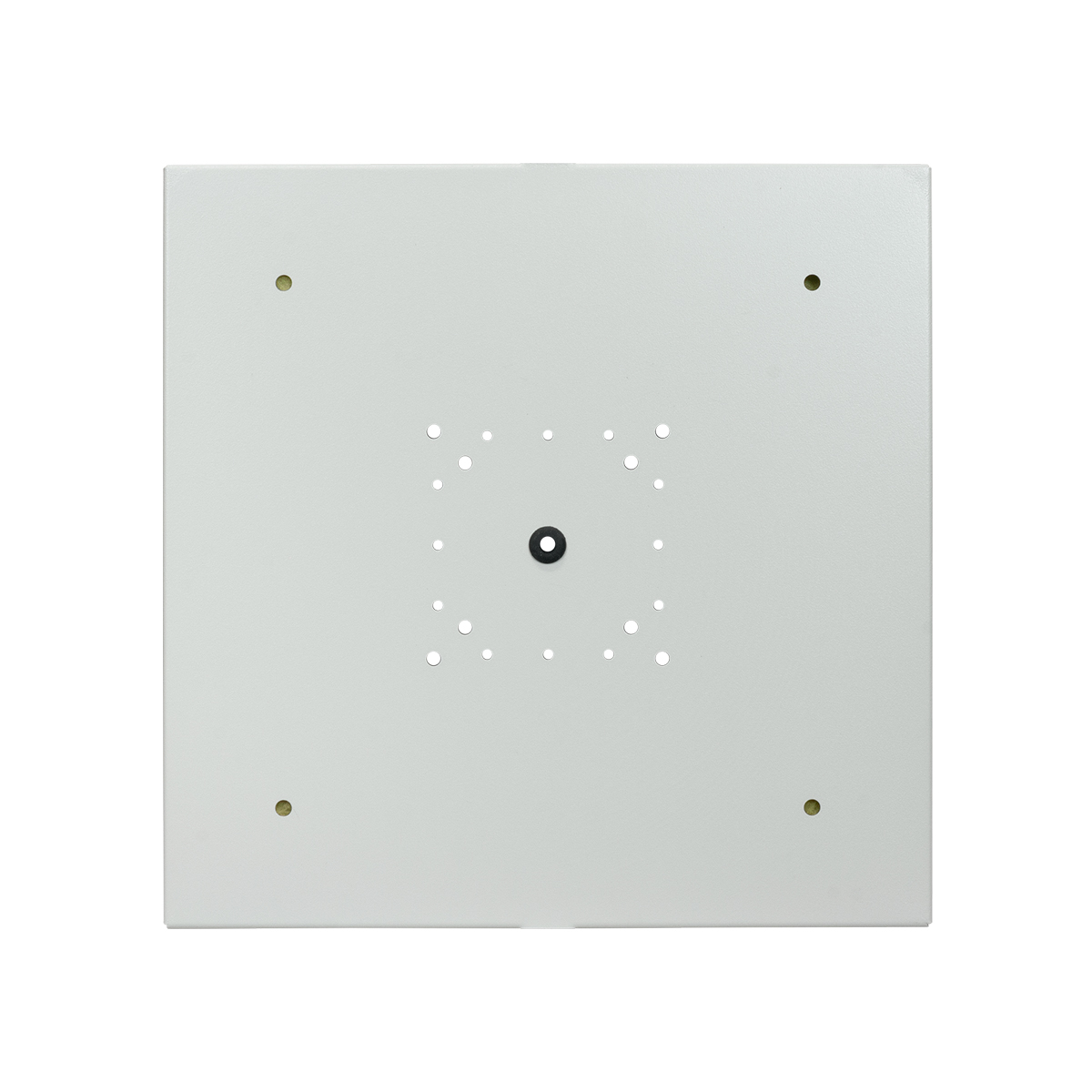

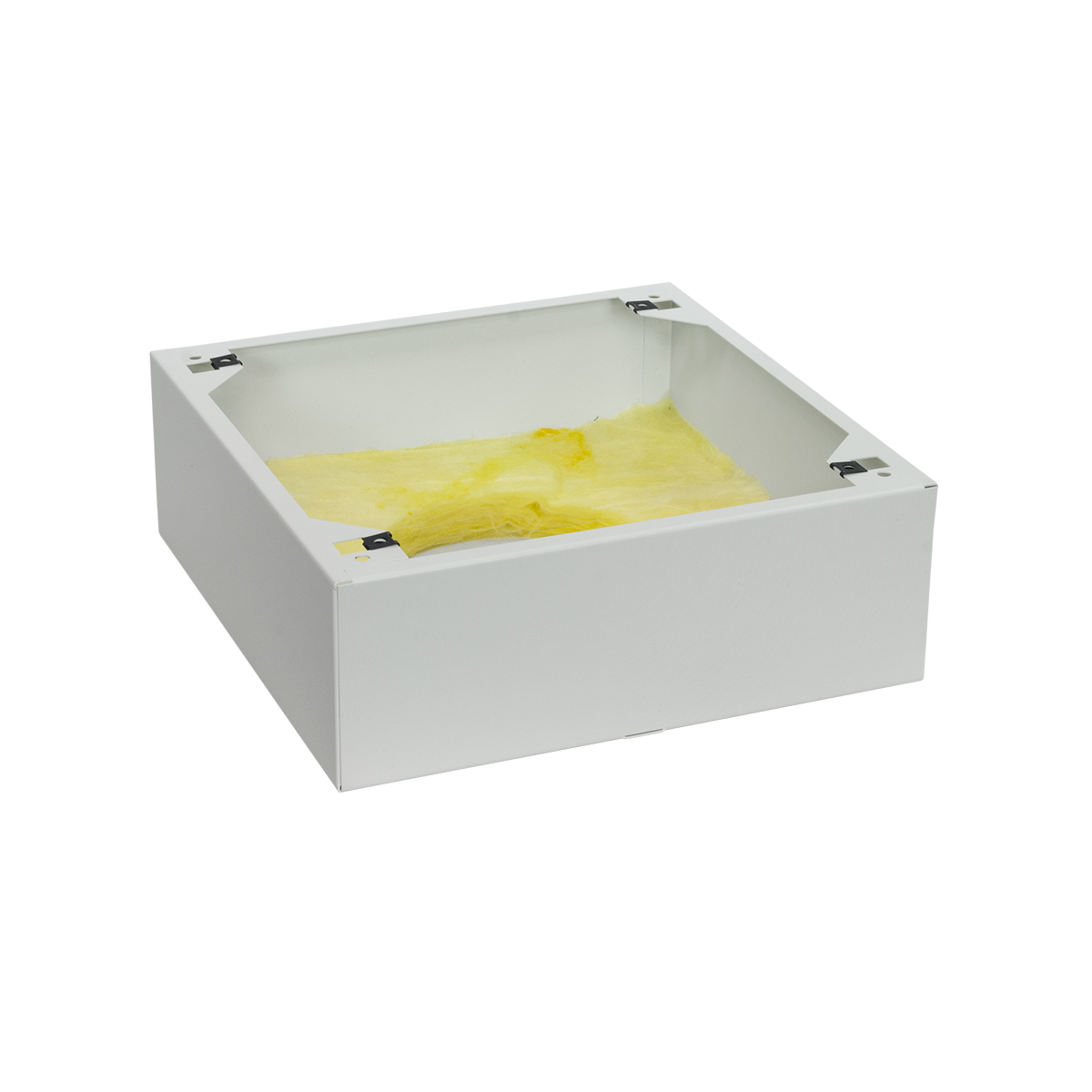

Surface-mount steel enclosure for ceiling or wall is designed to mount a screw-mount grille and standard 8 inch speaker. The clean square format is ideal for use in schools, offices, restaurants, hotels and similar venues.

Add to Favorites

Compare

Material: 20-gauge one-piece steel, welded seams, white finish
Height: 11.50 in.
Width: 11.50 in.
Depth: 4.00 in.
Volume: 0.306 in.

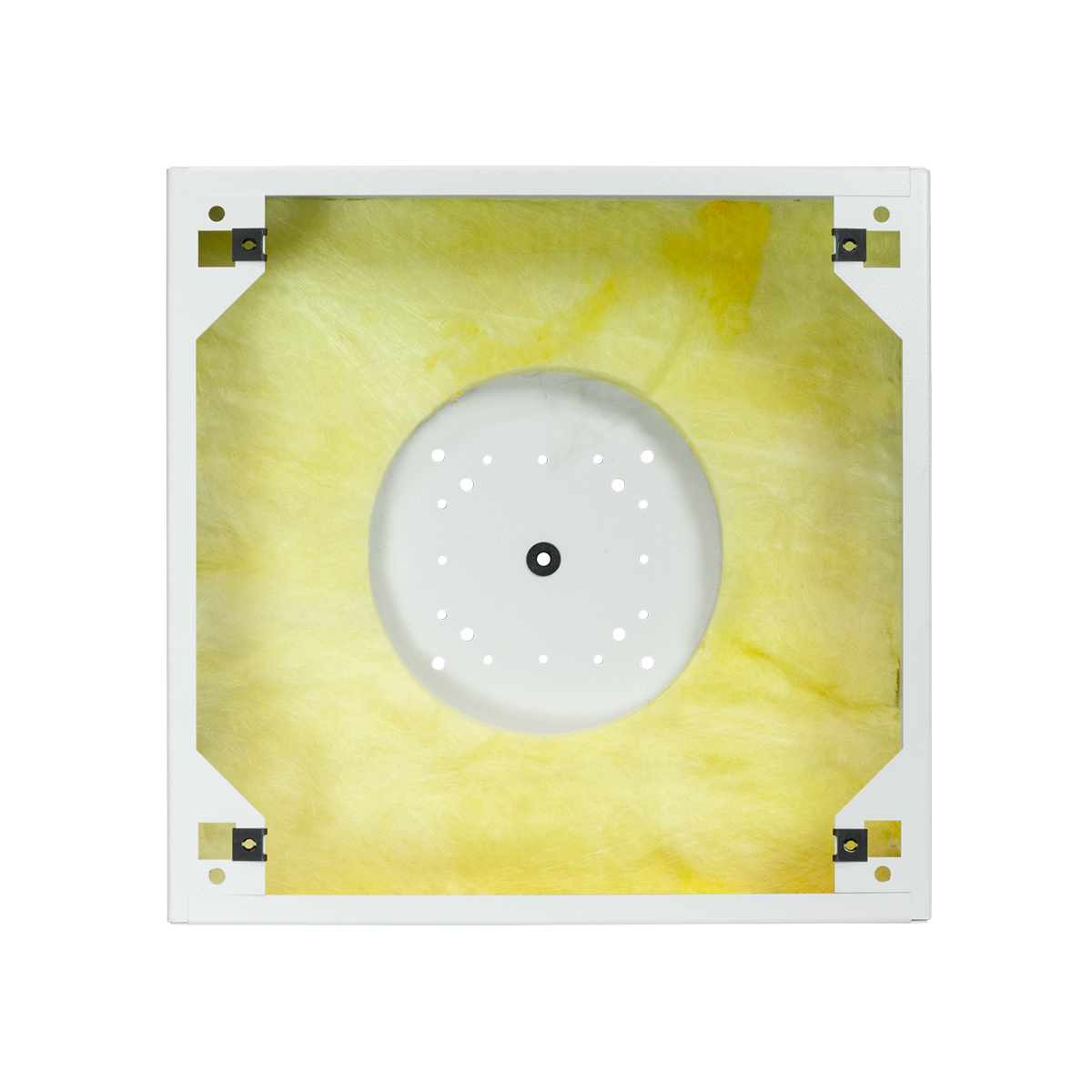

Acoustical Treatment: 1 in. thick batting
For Grille Type: Screw-mount
Mounting Aids: Timmerman clips on front flange, universal mounting pattern for E.O. box (not included), 0.375 in. hole with grommet for wire access, side knockouts (for 500 Series wire mold)

Spec Sheet: 2282-CB84SGA

Made in U.S.A.
Certified U.S. steel

The surface-mount enclosure for use with 8″ speaker and screw-mount grille shall be Lowell model CB84-SGA. It shall be 11.5″ x 11.5″ x 4″ steel construction with white powder epoxy finish, four mounting holes, four 8-32 U-clips, a rear access hole with grommet, provisions to mount an electrical box, two side knockouts for Wiremold 500 Series, and 1″ thick fiberglass acoustic batting. The enclosure shall be made in the U.S.A. with certified U.S. steel.

Grilles: SG-8, IC-105A
Drivers: 8 inch
