2U Side-mount Wall Rack

Name: 2U Side-mount Wall Rack
SKU: SMR-2
Price: 168.22 USD
Availability: InStock

19"D x 21"W

$168.22 MSRP

Model SMR-2

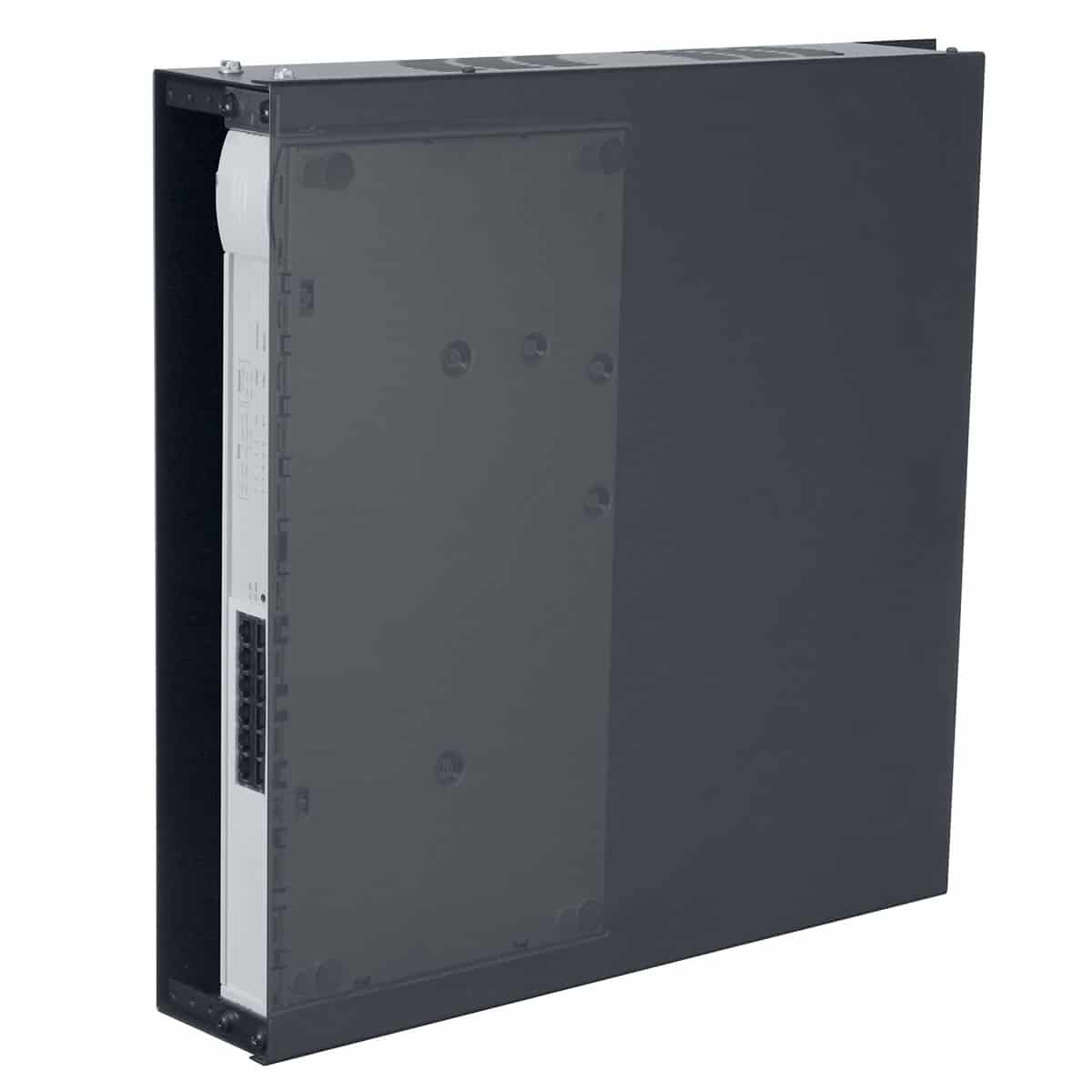

A low-profile wall enclosure for small installations with limited space, The SMR is ideal to hold switches, hubs and similar network equipment mounted sideways or vertically, depending on how the unit is mounted to a wall. Includes removable front cover for protection with easy access. Made in the U.S.A.

Add to Favorites

Compare

16-gauge steel construction
Bi-directional keyhole slots on standard 16 in. mounting centers allows horizontal or vertical orientation
Adjustable rails tapped 10-32, can be repositioned in three (1.5 in.) depth increments to accommodate equipment or cables.
Bridge lances on extended rear panel provide attachment points to secure cables

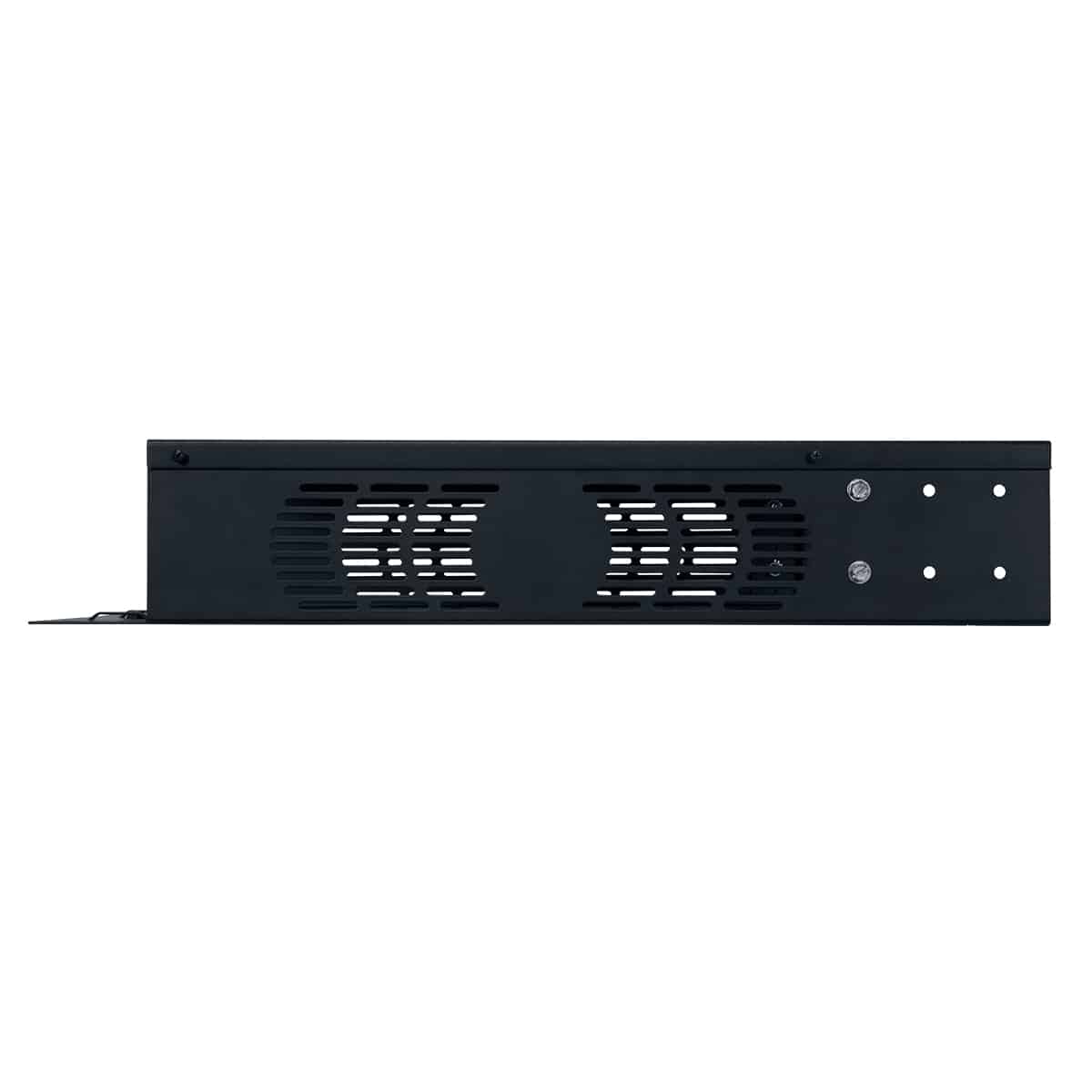

Top/bottom vents
Open sides

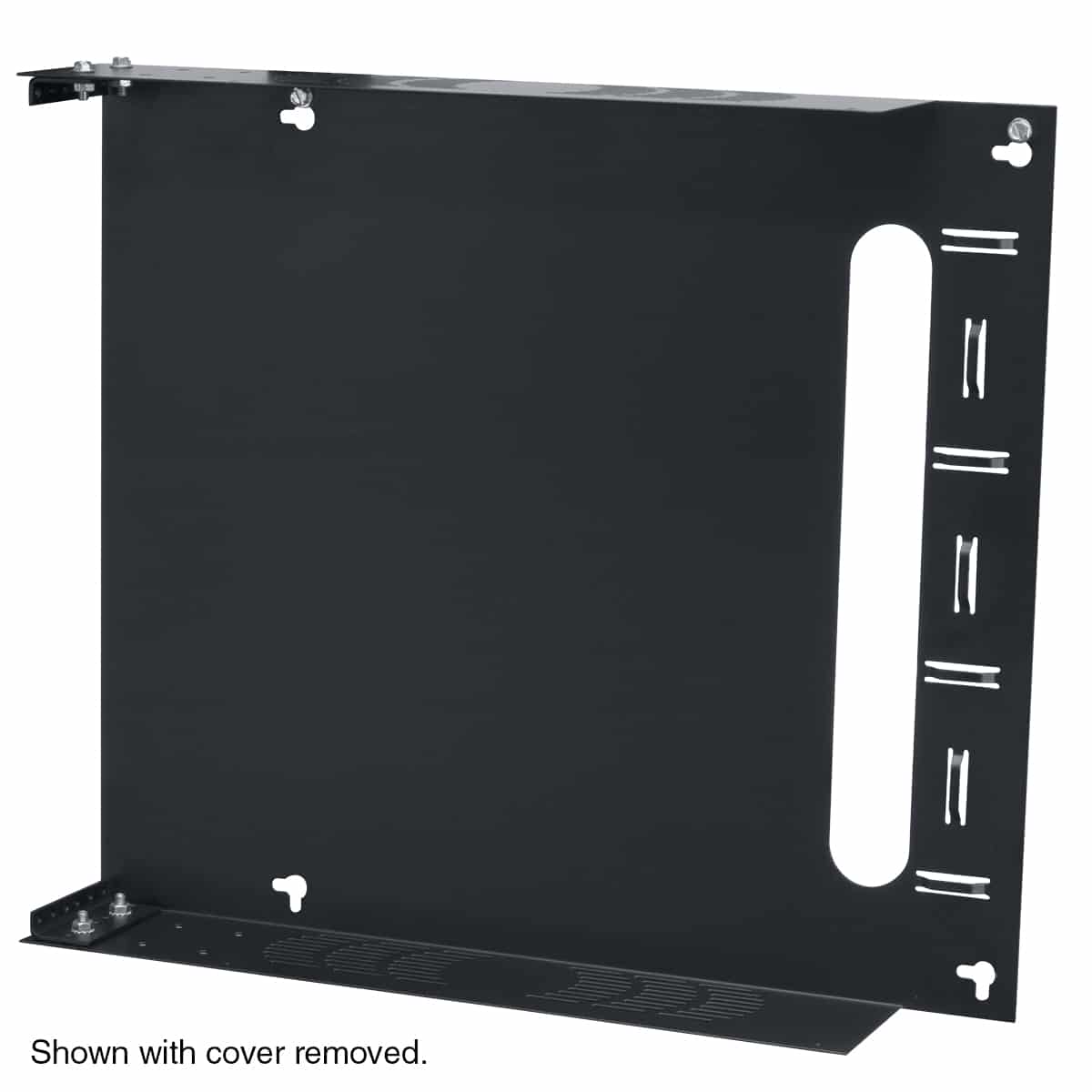

Removable front cover secures with screws
Black powder epoxy finish

Rack Space: 2U
Measurements: 21.625 in. x 19.307 in. x 3.920 in.
Usable Depth: 19 in.
Load Capacity: 50 lbs.

Spec Sheet: 1893-SMR2
CAD drawings: SMR-2

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.

The wall-mount rack shall be Lowell Model SMR-2, which shall be 16-gauge certified U.S. steel construction with a smooth black powder epoxy finish. Overall measurements shall be 21.625″ x 19.3″ x 3.92″, which shall provide two rack units of panel space. The rear of the rack shall feature bi-directional keyhole slots on standard 16″ mounting cen-ters to facilitate mounting the rack to a wall either vertically or horizontally, allowing top- or side-mounted equipment. The rack shall feature vents on the top and bottom, one pair of 11-gauge steel adjustable rails tapped 10-32, and multiple bridge lances on the extended back panel for cable manage-ment. The rack shall include a removable front cover secured with screws. It shall have a load capacity of 50 lbs.
