Sound Masking Generator

Name: Sound Masking Generator
SKU: SMG-2
Price: 399.90 USD
Availability: InStock

$399.90 MSRP

Model SMG-2

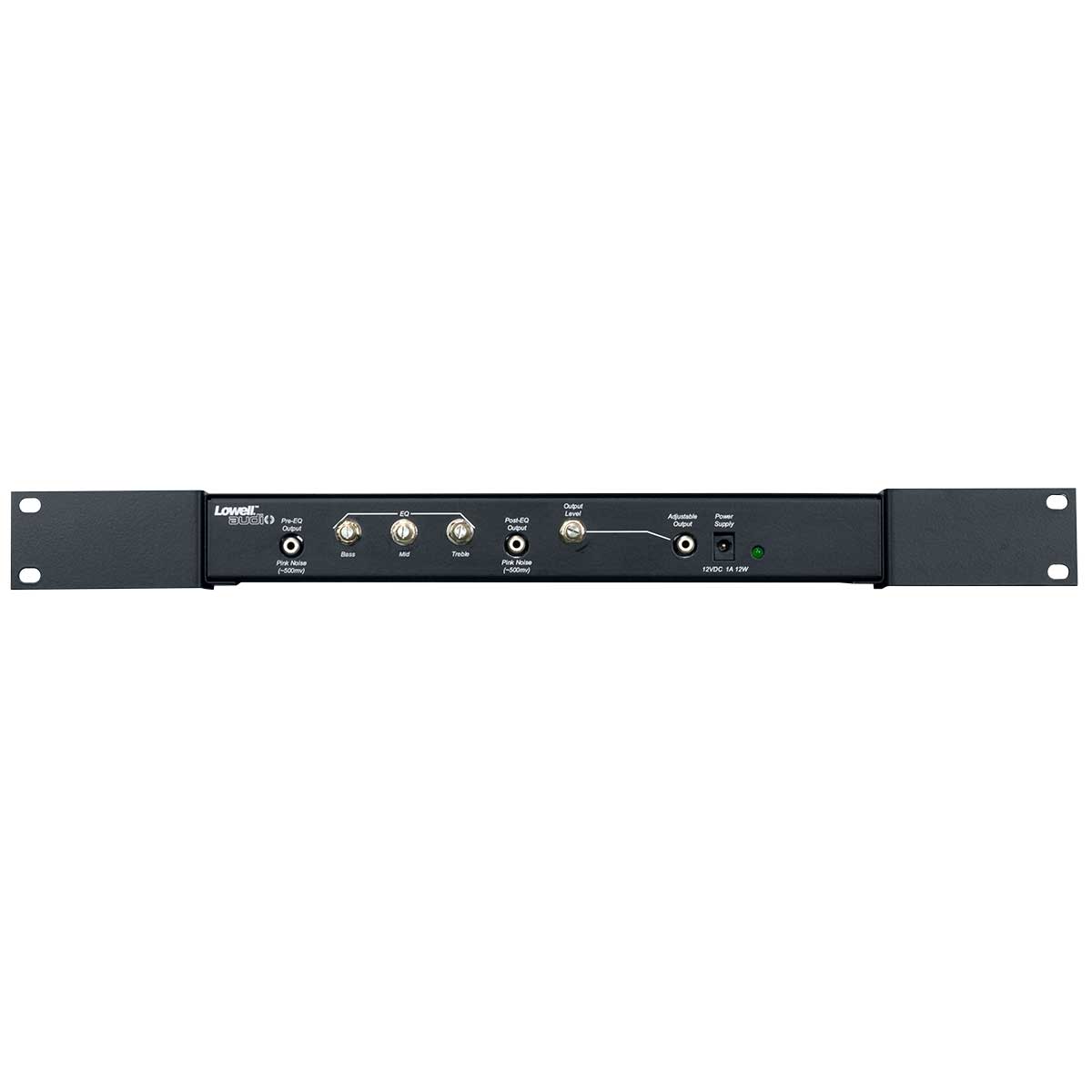

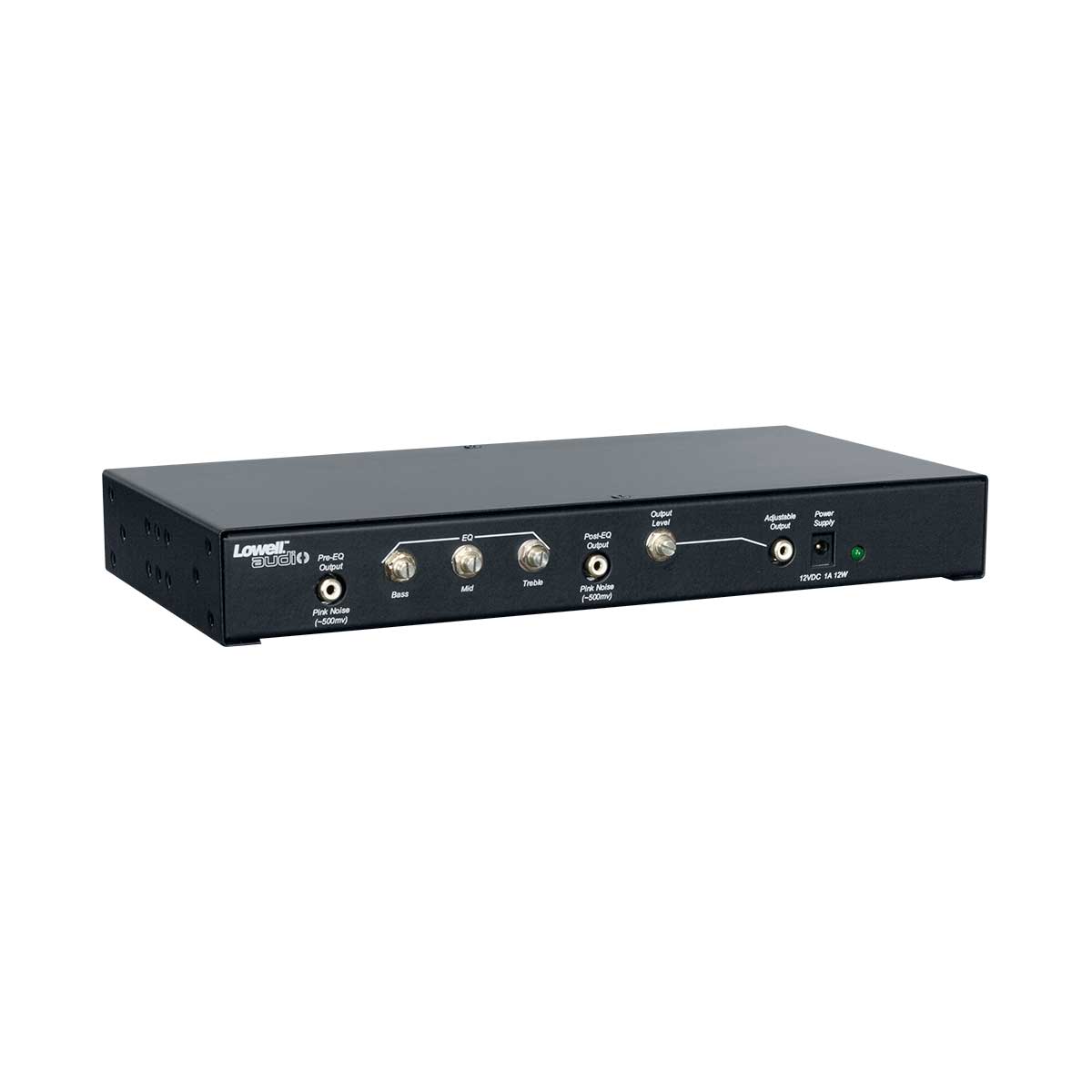

The SMG-2 sound masking generator produces an analog pink noise signal that is fed to sound masking amplifiers (ordered separately) in order to produce random low-level background noise to mask ambient noise and aid conversational privacy. The PRE-EQ OUTPUT has a flat spectrum that can be used as an input to equalizers that feed power amplifiers for masking systems that require precise equalization. The POST-EQ OUTPUT is adjusted by bass, mid and treble controls, and can be used for less demanding applications that utilize basic spectrum shaping.

Add to Favorites

Compare

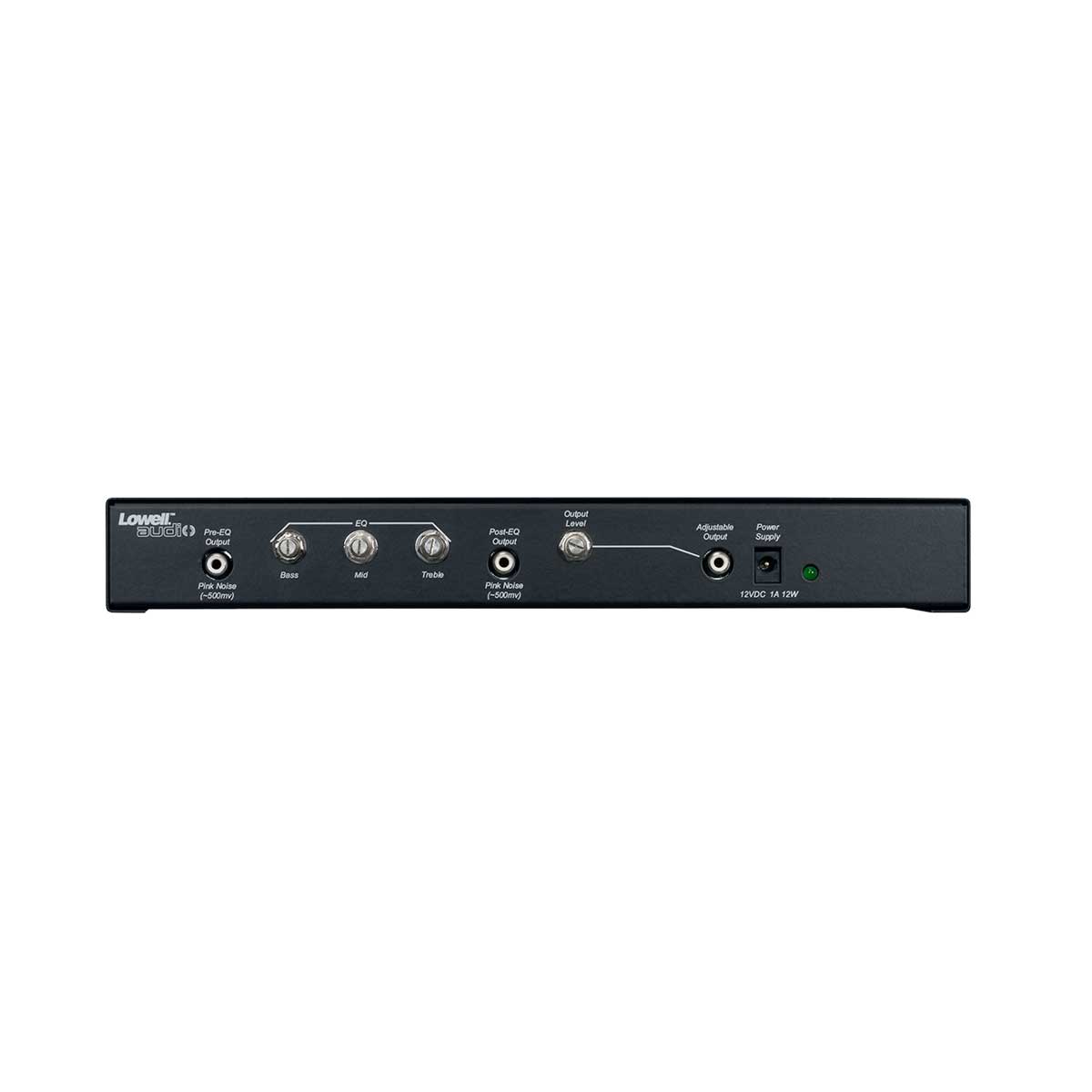

Outputs: Pre-EQ hi-Z line level (~500mV); Post-EQ hi-Z line level (~500mV); Pink noise (equal energy per octave); Adjustable post-EQ
Connections: RCA phono jacks
Controls: Bass, mid, treble, and volume allow for basic noise spectrum shaping without an external equalizer

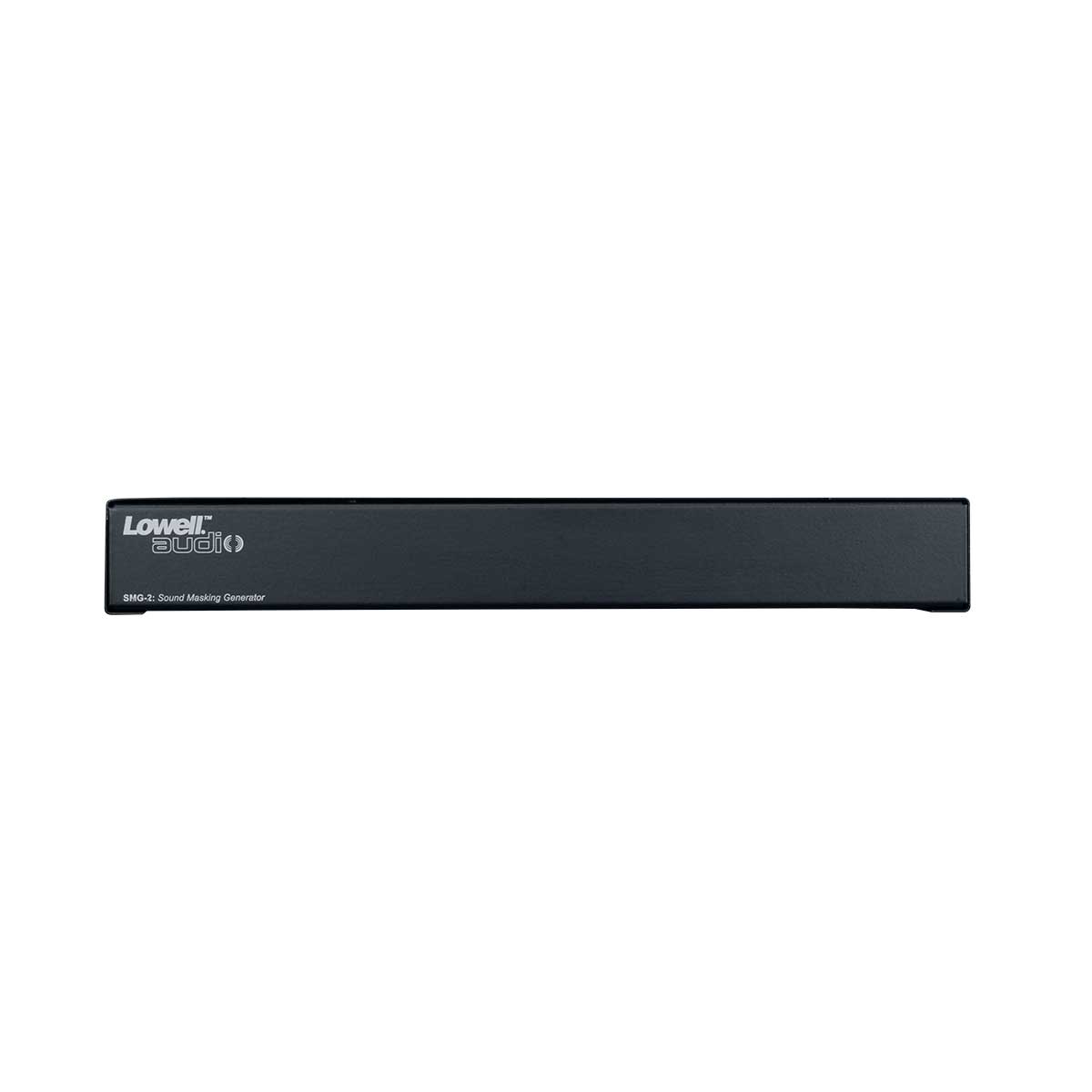

Chassis: 12.2 in. x 1.5 in. x 6 in. steel chassis with black powder epoxy finish (19 in. 1.75 in. x 6 in. with brackets set for rackmount use)

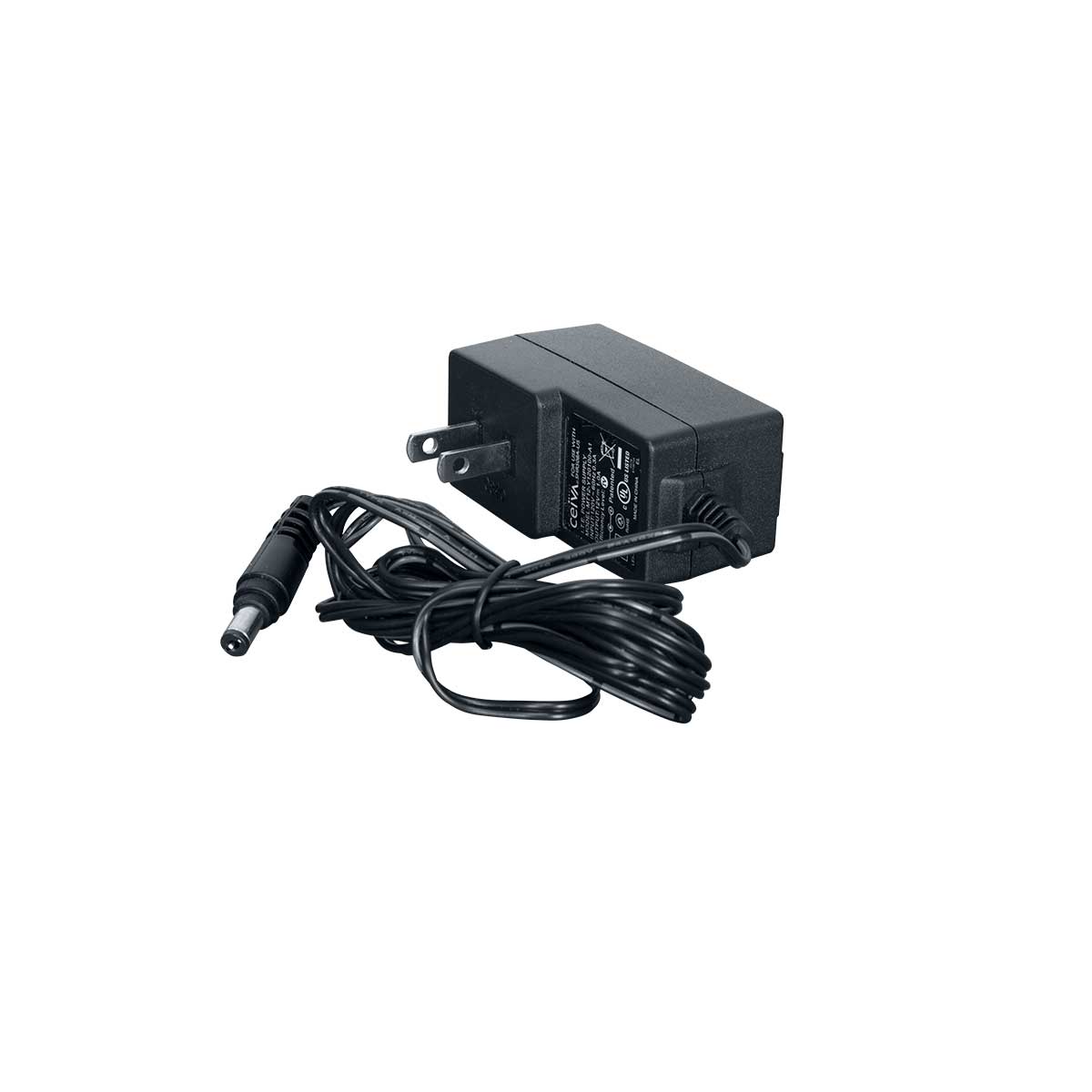

Power Requirements: 12VDC 1A. Includes power supply with universal input (100-240VAC) and 12VDC @ 1A output.

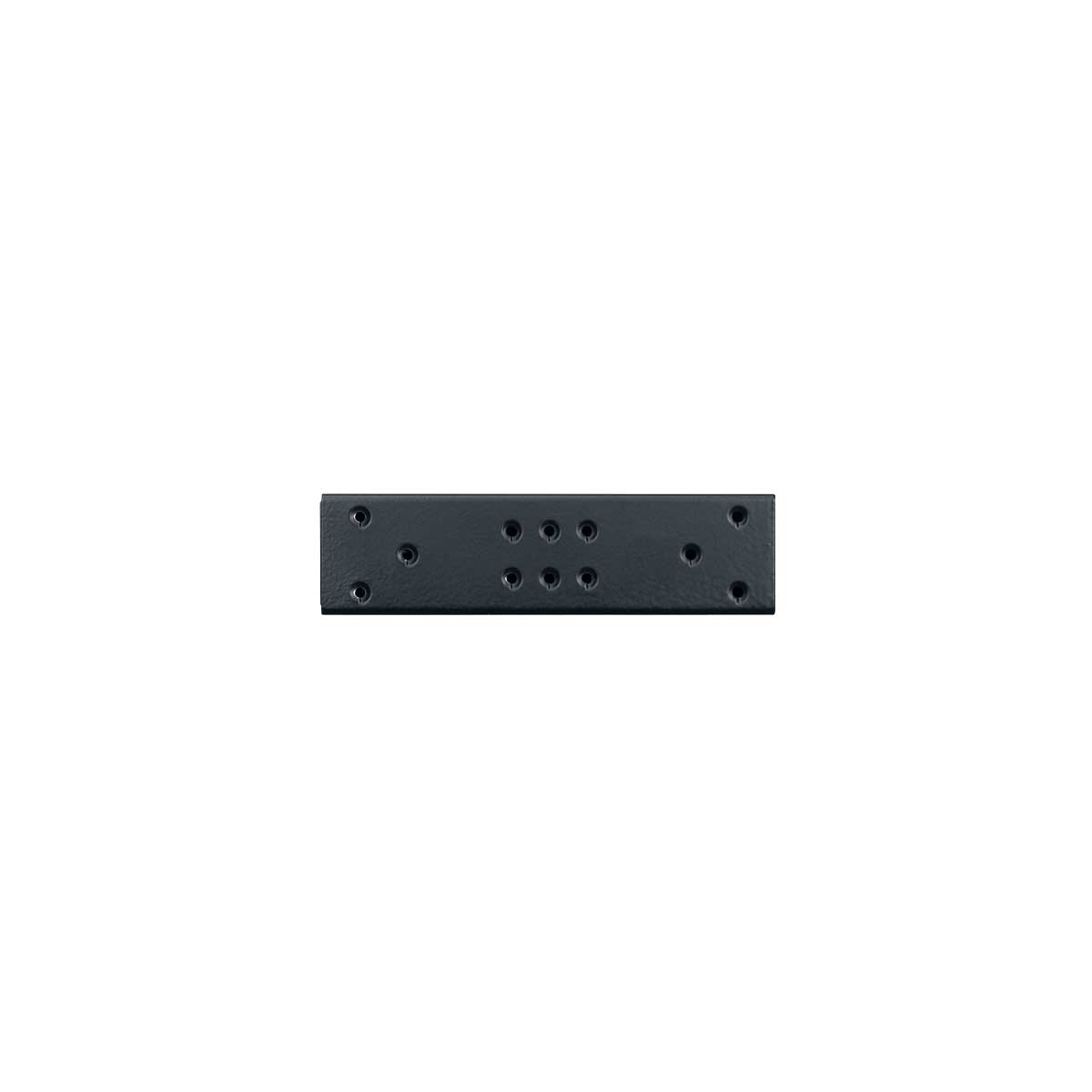

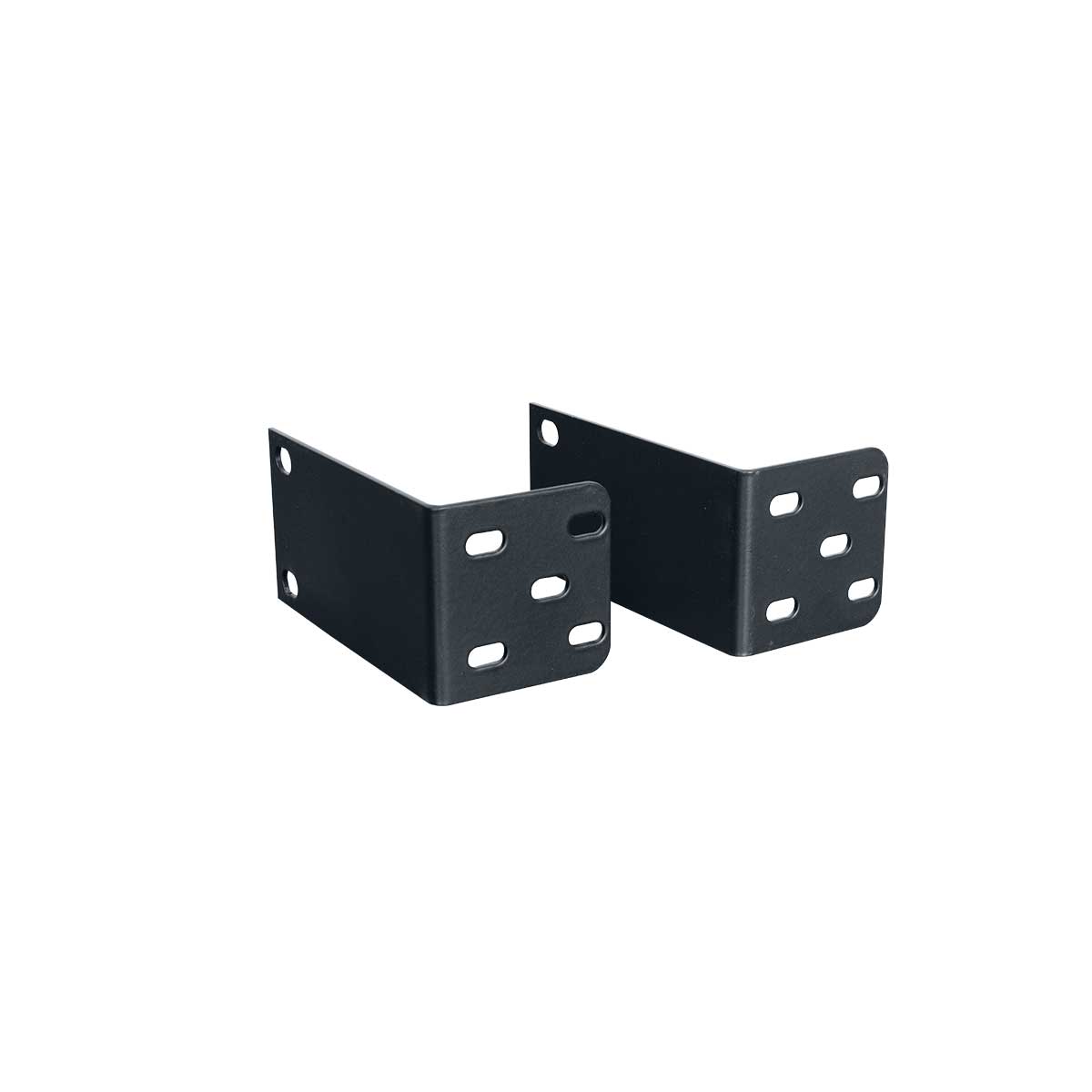

Mounting Aids: Universal mounting brackets for rack, shelf, wall, or under counter use.

Spec Sheet: 2215-SMG2

Made in the U.S.A. with global components

The sound masking generator shall be Lowell model SMG-2, which shall produce an analog pink noise signal and have pre-EQ and post-EQ hi-Z line level outputs. Controls shall include level, bass, mid, and treble. The steel chassis (12.2″ x 1.5″ x 6″) shall have a black powder epoxy finish and include universal mounting brackets for wall, shelf, rack or under counter use, which will slightly increase dimensions. It shall also include a power supply with universal input (100–240VAC) and 12VDC @ 1A output.
