15W sound masking speaker with mounting rails

Sound Masking Speaker:
• 8 in Cone Driver
• 70V Trans
• Enclosure
• Mounted Rails
• Grille

Name: Sound Masking Speaker: • 8 in Cone Driver • 70V Trans • Enclosure • Mounted Rails • Grille
SKU: SM810A-BR
Price: 194.00 USD
Availability: InStock

Above Ceiling

$194.00 MSRP

Model SM810A-BR

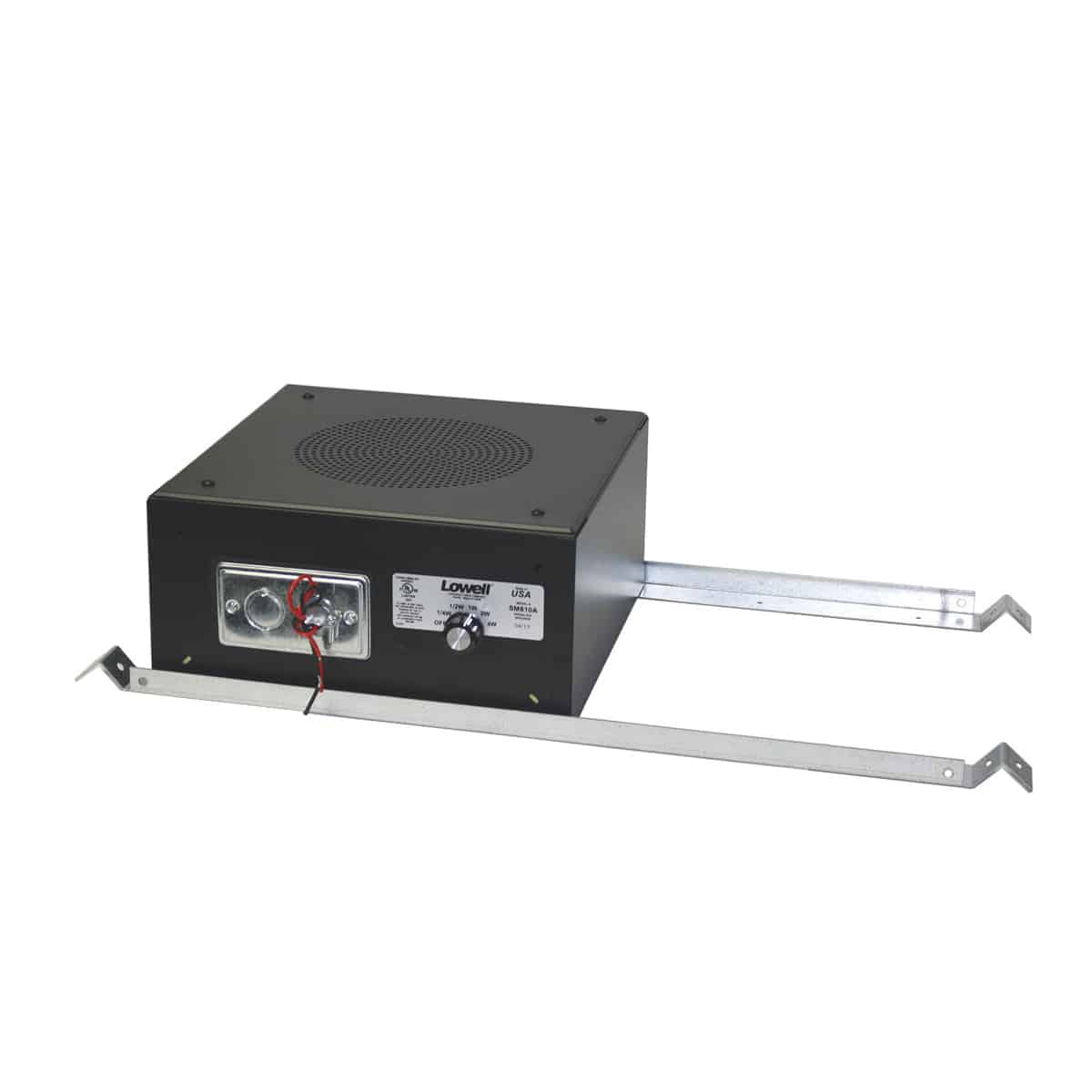

Above ceiling sound masking speaker with 8" 15W dual cone driver, 70V transformer, grille and backbox with factory-mounted bridge rails. NOTE: Models with factory-mounted rails are made to order and are not returnable.

Add to Favorites

Compare

Driver: 8 in. 15W dual cone driver (10 oz. magnet)

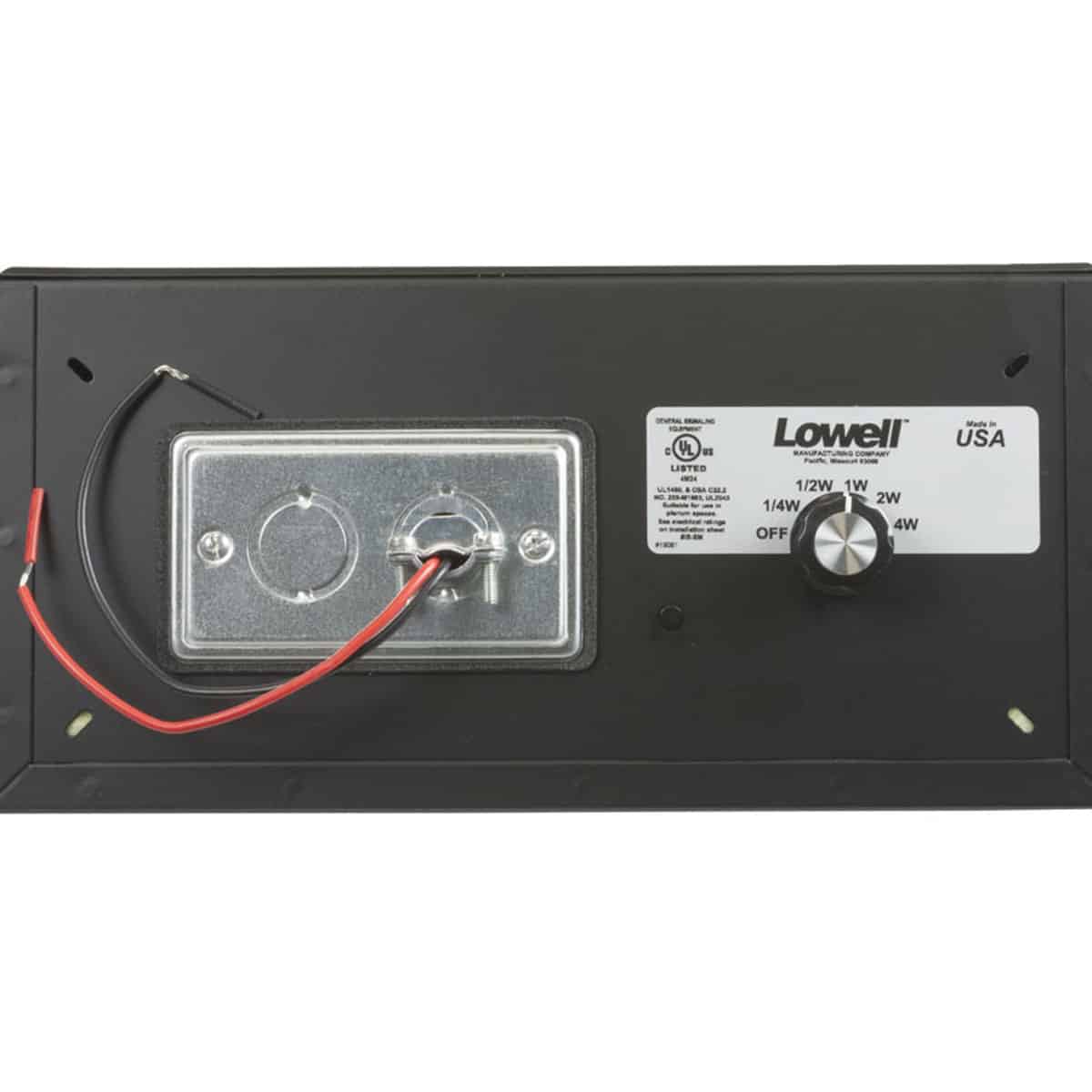

Transformer: 70V (0.25, 0.5, 1, 2, 4W). Selector switch includes “OFF” position.
Enclosure: 760 cu in. volume (11.625 in. square x 5.625 in. deep), fiberglass lining, externally accessible input leads, SG handibox cover with knockouts, Romex connector for installations without conduit. Black.
Grille: Steel grille with round perforation pattern. Black.
Mounting Aids: Factory-mounted bridge rails (offset)

Spec Sheet: 1999-SM810ABR
Instructions: Install-SM
Revit Models: SM–BR Series

UL 1480 General Signaling U.S.A.
UL 2043 Return air plenum space
CSAC22.2 No.205-M1983 General Signaling Canada
Made in the U.S.A. with global components
Certified U.S. steel

The sound masking speaker assembly for suspended ceiling installations shall be Lowell Model SM810A-BR, which shall include an 8 in. 15W dual cone driver with factory-wired transformer mounted in a 760 cu.in. steel backbox with grille and externally accessible speaker leads. The wired transformer shall be 70V with primary taps at 4, 2, 1, .5, and .25 watts. The assembly shall include an externally accessible rotary switch to adjust tap selections and include an “OFF” position. Speaker leads shall exit the backbox through a strain relief clamp on a single gang handibox cover. Backbox and grille shall have a black finish and include factory-mounted bridge rails.
