8 inch Dual Cone Surface-mount Speaker

Name: 8 inch Dual Cone Surface-mount Speaker
SKU: SL81072
Price: 91.28 USD
Availability: InStock

Includes driver, transformer, enclosure, fabric grille

$91.28 MSRP

Model SL810-72

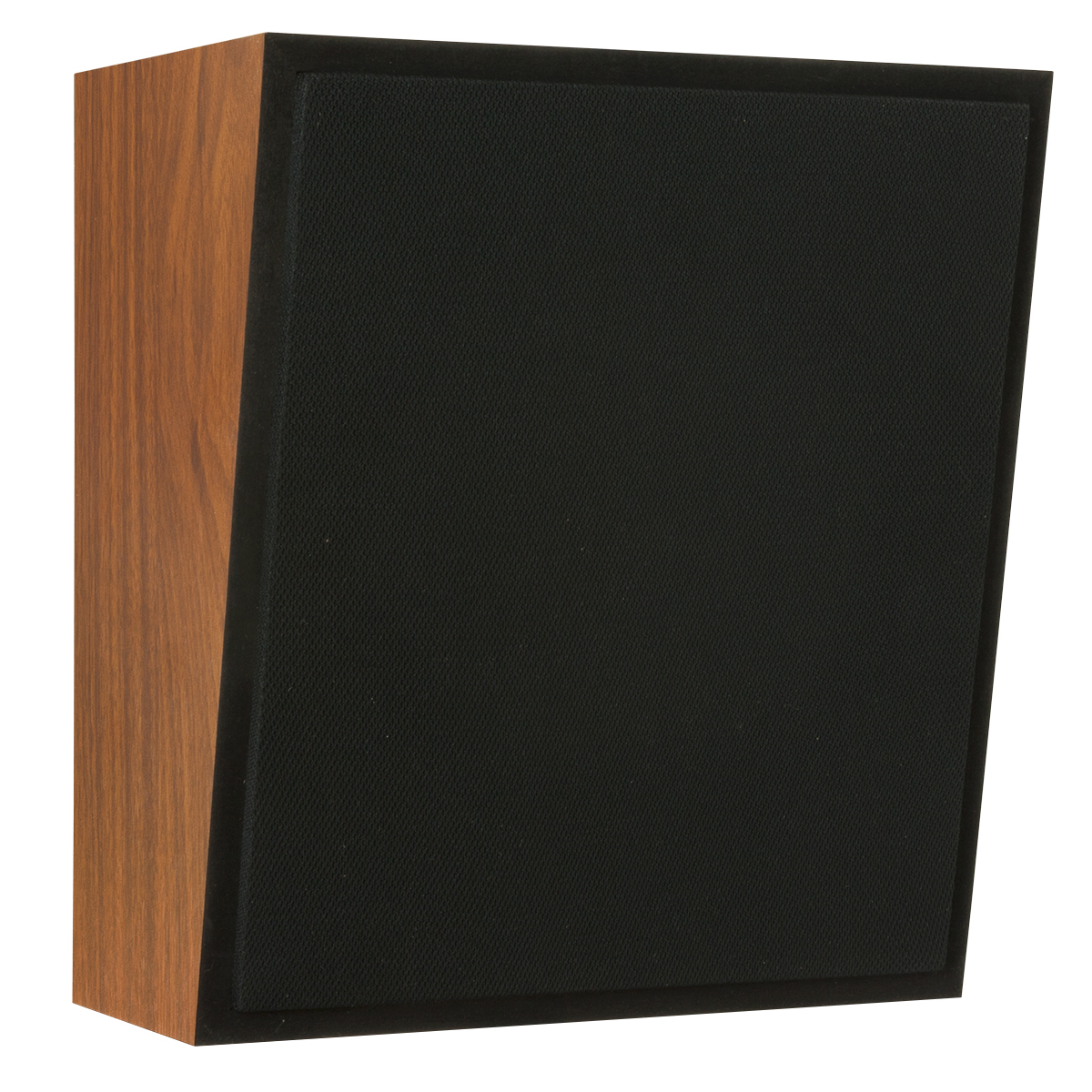

Surface-mount speaker assembly with woodgrain laminate finish is for background music and paging in classrooms, offices, and retail locations.

Add to Favorites

Compare

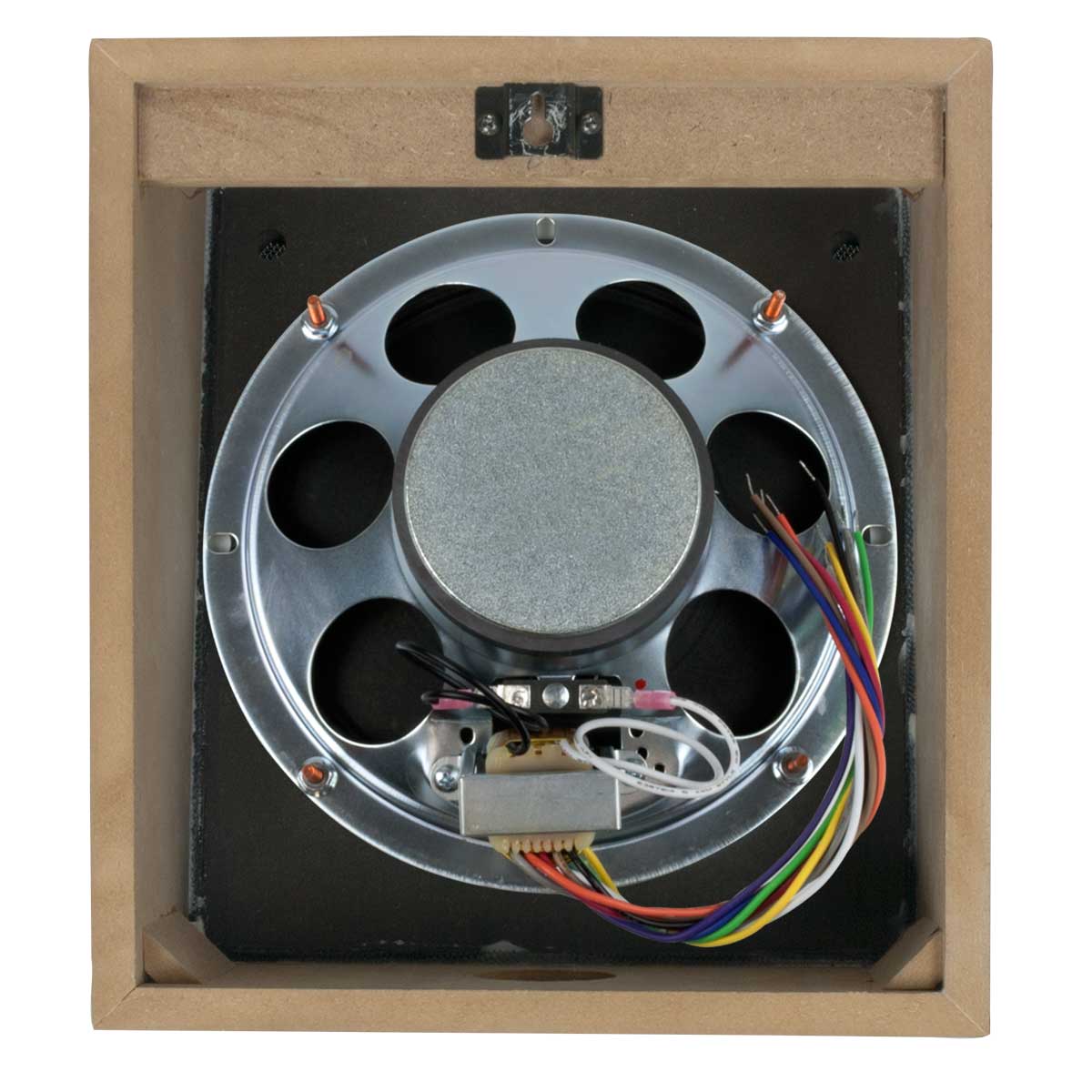

Driver: 8 in. 15W dual cone driver with 10 oz. ceramic magnet
Transformer: 25V/70V with taps at .25, .5, 1, 2, 5W
Enclosure: 10.55 in. x 9.47 in. x 5.5 in. at top (3.63 in. at base). Particle board with walnut laminate finish. Sloped front.
Grille: Black cloth
Mounting & Installation Aids: Rear hanger bracket with keyhole mount on top edge and .354 in. diameter opening with black gasket on bottom.
System Specifications: Frequency Response 54Hz–11.6kHz (±6dB) and 50Hz–20kHz (±6.6dB), Average Sensitivity 97.9dB (1W/1M), Dispersion 95 degrees conical.

Spec Sheet: 1393-SL81072

Made in U.S.A.

The surface-mount laminate speaker shall be Lowell Model SL810-72. It shall include an 8 in. 15W dual cone driver with dual voltage transformer (70V/25V) in a sloped-front housing constructed of particle board with a walnut laminate finish and black cloth grille. The driver shall have a frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB). Average sensitivity shall be 97.9dB. The factory-wired transformer shall be dual voltage (25V/70V) with taps at .25, .5, 1, 2, and 5W. The assembly shall terminate with color coded leads.
