Rackmount Panel for Devices

Name: Rackmount Panel for Devices
SKU: SG6P-3
Price: 51.70 USD
Availability: InStock

For 1-gang devices

$51.70 MSRP

Model SG6P-3

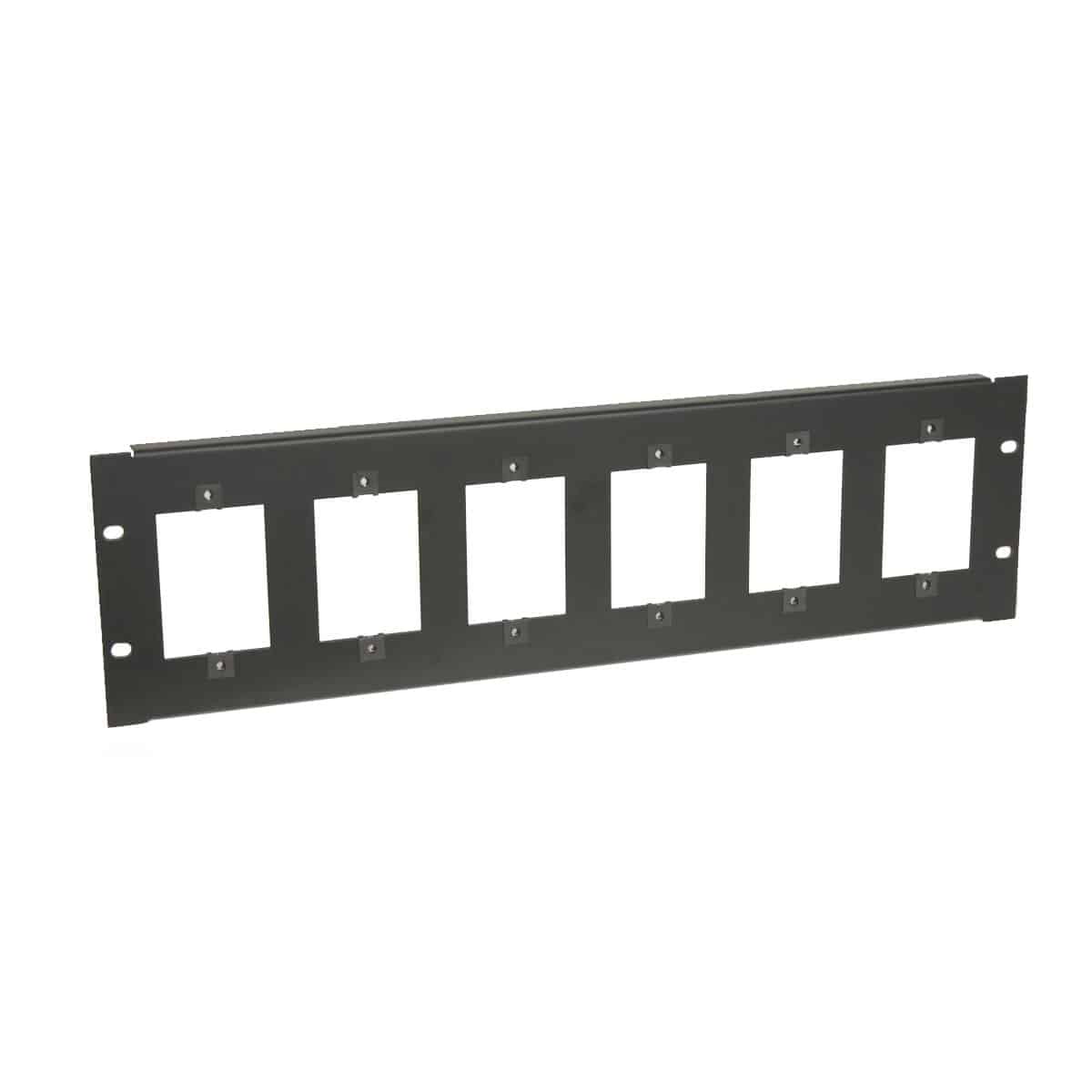

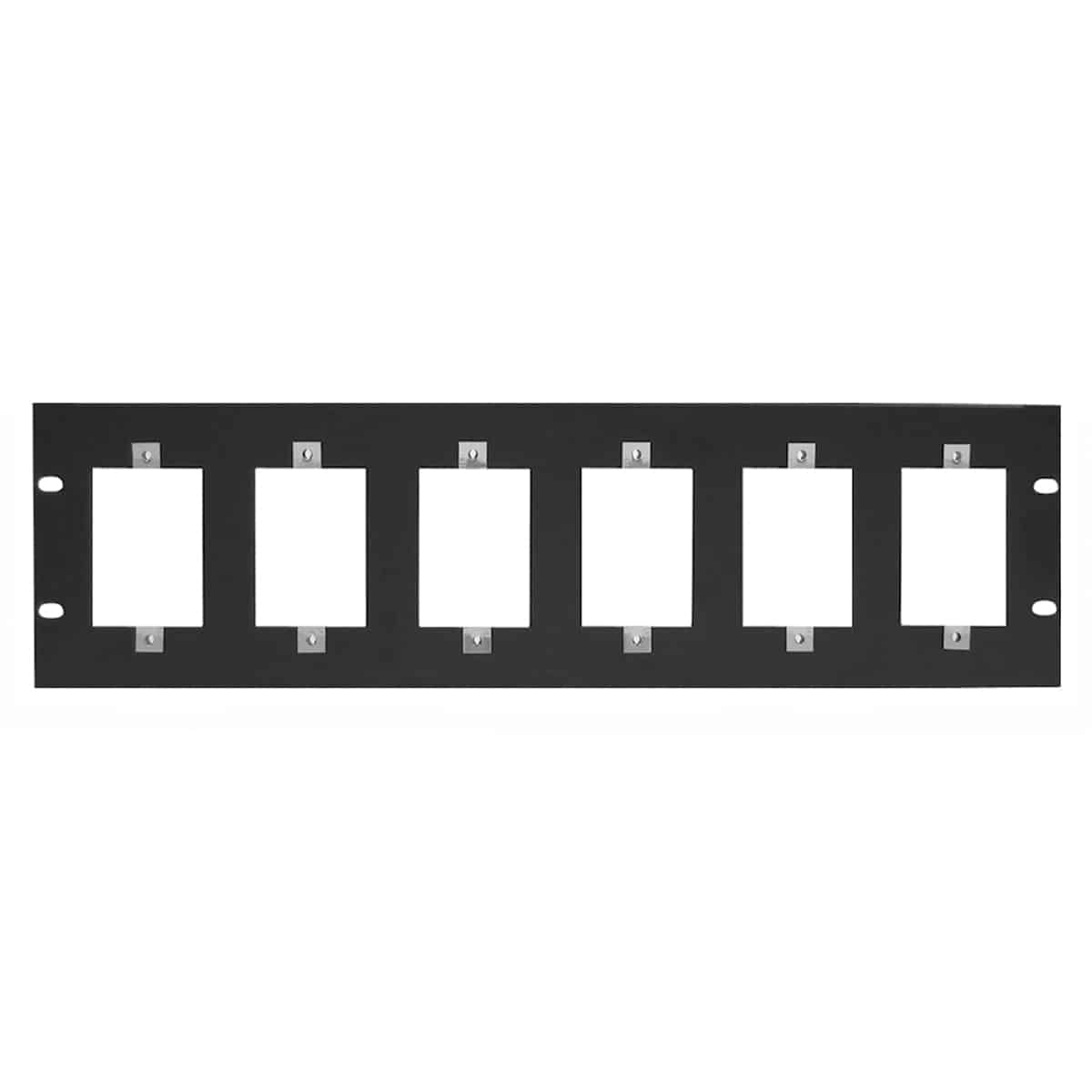

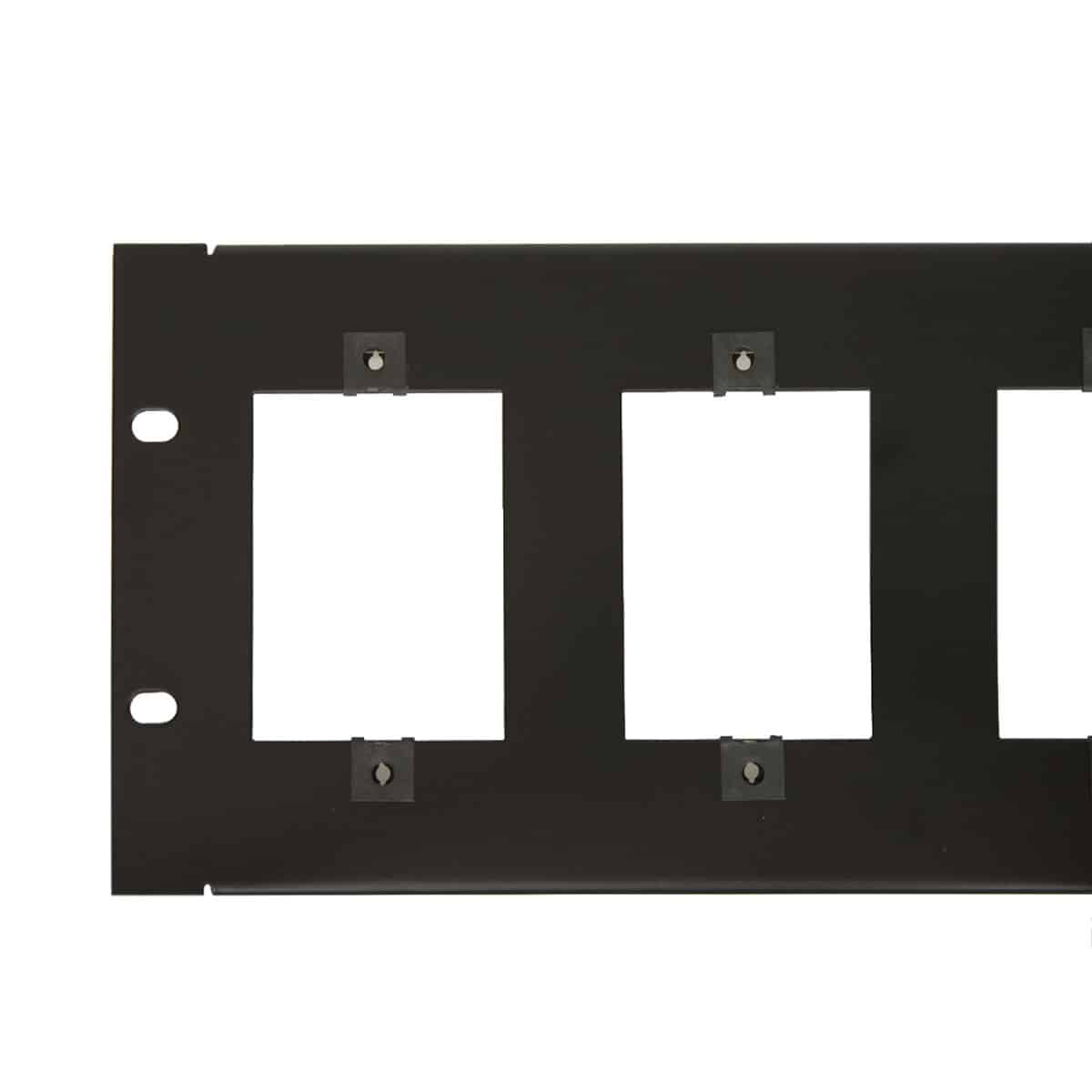

Rackmount steel panel with black powder epoxy finish is punched to mount up to six devices that have a standard one-gang wall plate. Note that this panel is not suitable for two-gang devices or decorator style wall plates.

Add to Favorites

Compare

16-gauge steel
Six punches for devices having a one-gang standard wall plate that installs with two screws
Smooth black powder epoxy finish

Rack Space: 3U
Height: 5.25 in.
Width: 19.00 in.
Depth: 0.625 in. flange

Spec Sheet: 1071-SG6P3

EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.

Low voltage accessory devices shall be mounted to Lowell rackmount panel model SG6P-3, which shall measure 19″W x 5.25″H and have a 0.625″ flange. The panel shall be made in the U.S.A. of formed 16 gauge steel construction. It shall feature six punched cutouts. It shall feature a smooth black semi-gloss epoxy finish.
