Steel Screw-mount Grille

Name: Steel Screw-mount Grille
SKU: SG-4
Price: 44.60 USD
Availability: InStock

For 4 inch driver

$44.60 MSRP

Model SG-4

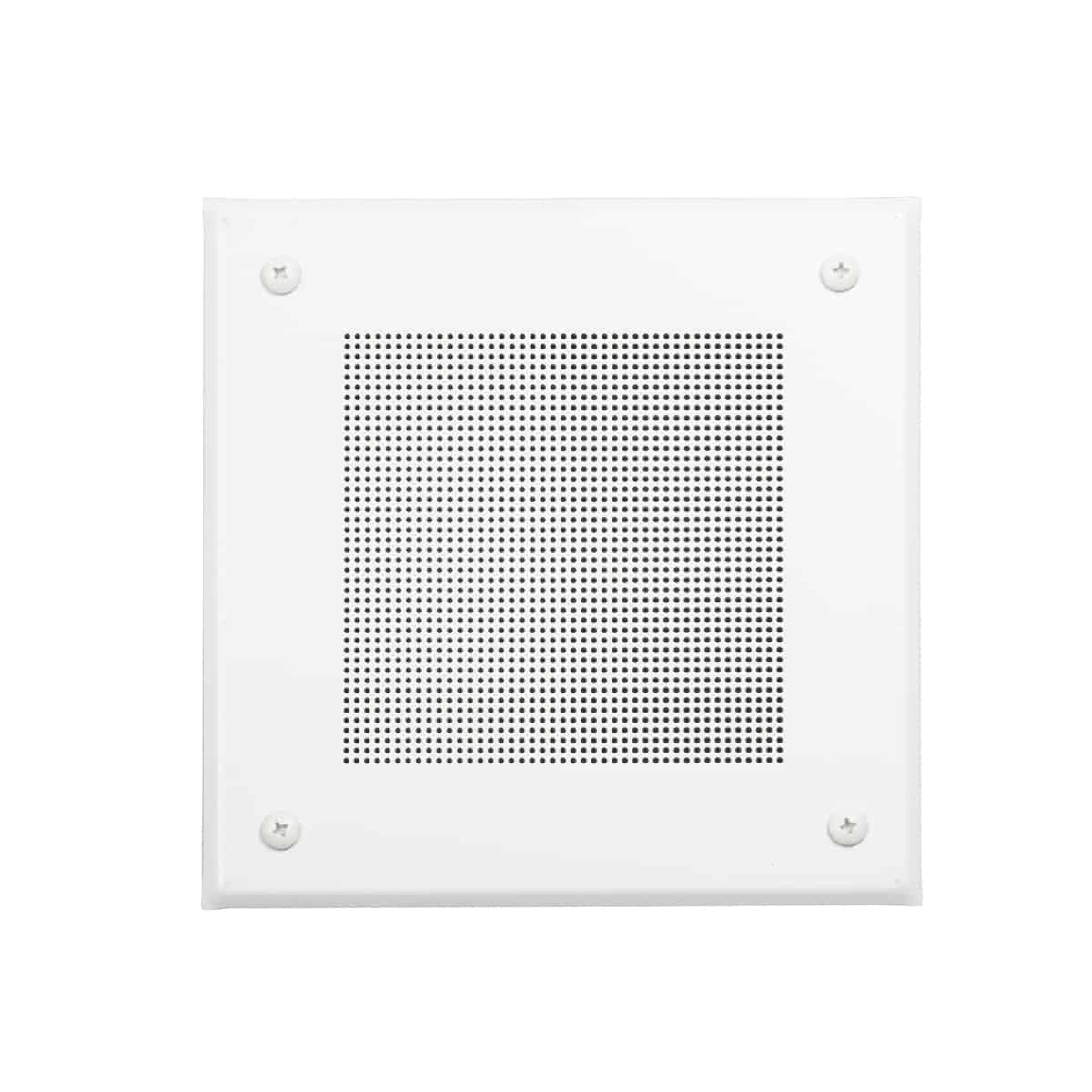

Square speaker grille with beveled edge and perforated center is made for use with a 4 inch driver. Steel with white finish.

Add to Favorites

Compare

Style: Screw-mount (4)
Material: One-piece 20-gauge steel, beveled edges, square perforation pattern
Finish: White
Size: 7.00 in. square
Mounting Projection: 0.13 in.
Mounting Provisions: 4 screws (white), 4 studs

Spec Sheet: 1646-SG4

Made in the U.S.A.
Certified U.S. steel

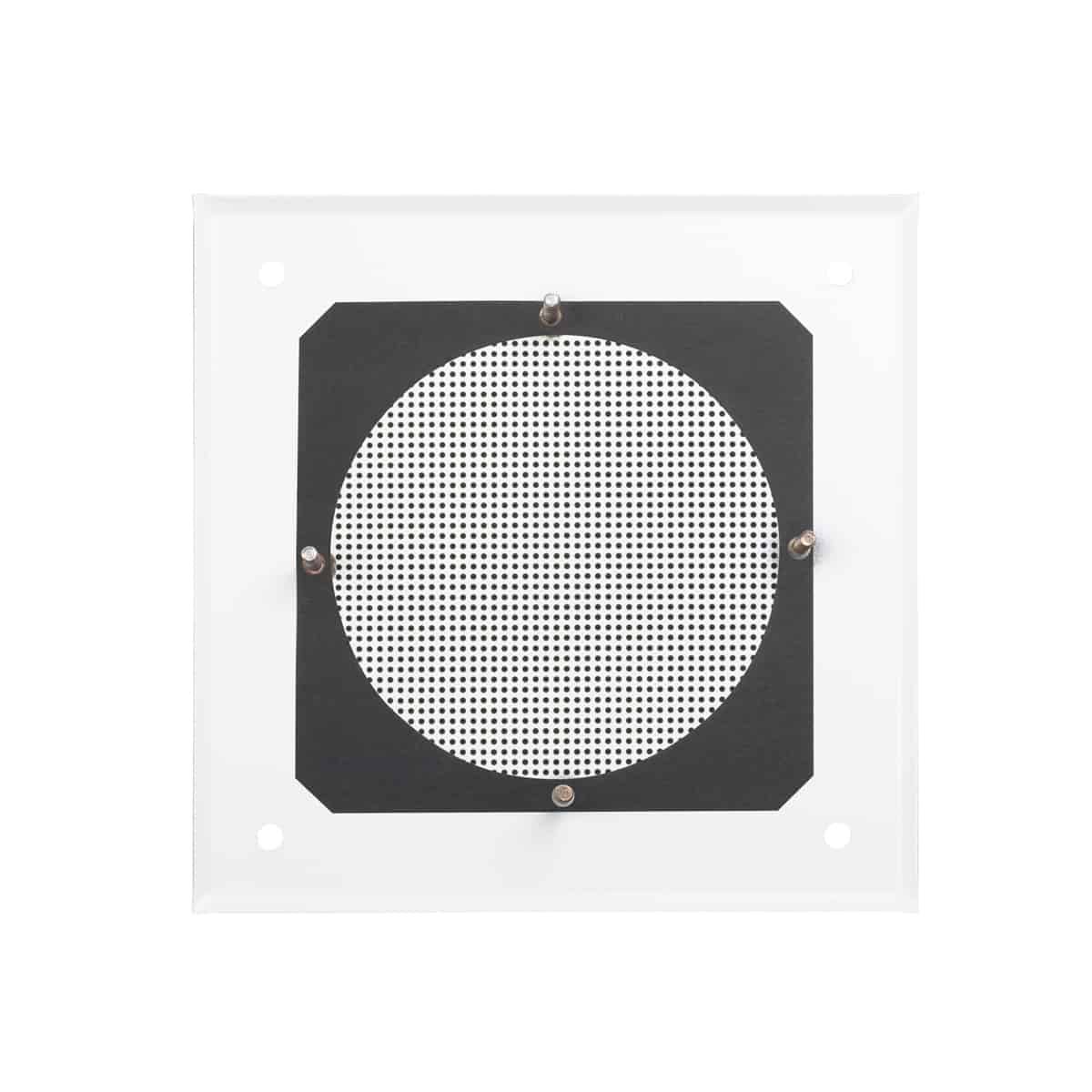

The square speaker grille for 4 inch drivers shall be Lowell Model SG-4. It shall be fabricated from one-piece 22-gauge perforated steel reinforced with a peripheral flange. The grille shall be 7 in. square with a shallow mounting projection of 0.13 in. It shall include 8-32 x 3/4 in. welded studs with nuts for mounting specified 4 in. (EIA 5 in.) speaker. The grille shall also have four 0.218 in. holes on 5.48 in. centers for mounting specified recessed or surface backbox. Grille shall be finished in white powder epoxy and include white screws for backbox installation.

Drivers: 4A30, JR410
Recessed Backbox: P625X
Surface-Mount Backbox: CB44
Support Rails: ss24, ss30
