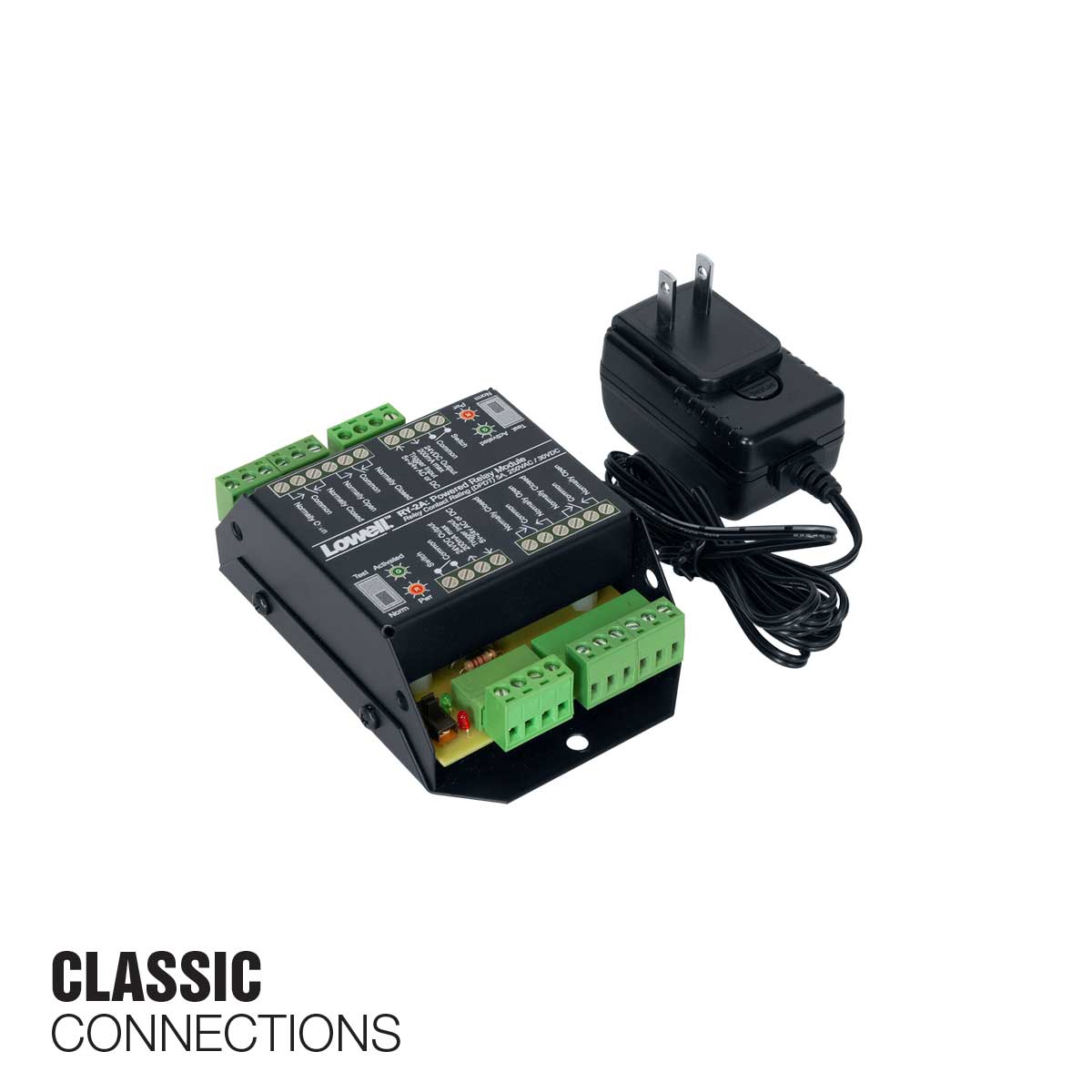

RY-2A relay module with classic connections

2-DPDT Relay Modules

Name: 2-DPDT Relay Modules
SKU: RY-2A
Price: 213.36 USD
Availability: InStock

$213.36 MSRP

Model RY-2A

General purpose relay module with two double-pole double-throw (DPDT) relays serves in a wide variety of applications. Each relay is independent. The enclosed design protects relays and components. Relays are activated by contact closures or voltage input (5-24V AC or DC). Phoenix-style terminals are detachable.

Add to Favorites

Compare

Steel chassis (5.00 in. x 1.69 in. x 3.28 in.) with mounting holes
5A contact rating
Two (2) DPDT independent relays
Test switch for troubleshooting
Detachable Phoenix style terminals
Relays are activated by contact closures or voltage input (5-24V AC or DC).
Permanently attached power supply (100-250VAC input, 24VDC 500mA output)

Spec Sheet: 1956-RY2A

Made in U.S.A. with global components

The relay module shall be Lowell Model #RY-2A, which shall have a contact rating of 5 amps, 24VDC/250VAC. It shall include a 24VDC 5000 mA power supply. All connections shall be detachable Phoenix-style terminals. Relays shall be activated by contact closures or voltage input (5-24 AC or DC) and include a test switch. The module shall be enclosed in a steel chassis with black finish measuring 5″L x 1.69″H x 3.28”W). The chassis shall feature holes for mounting to rack shelf or wall.
